Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.

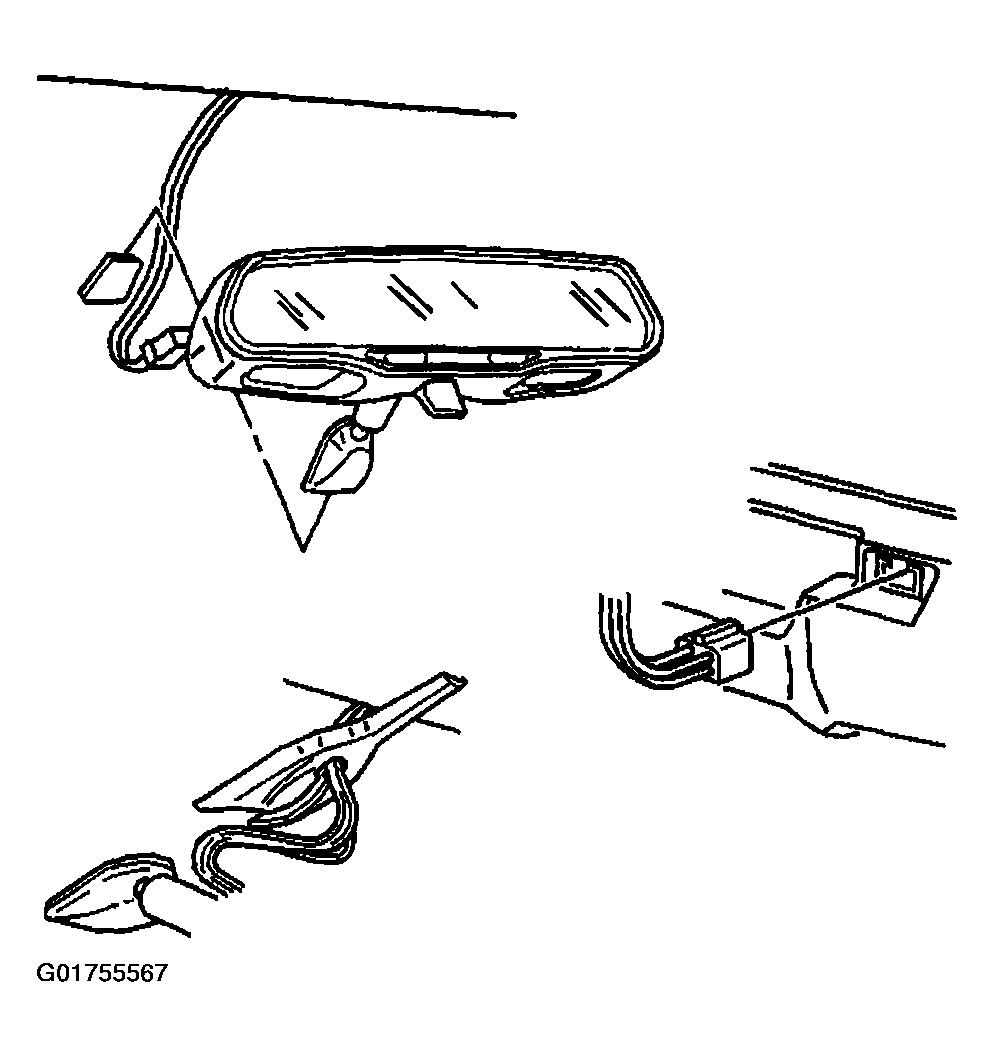

    Fig 1: Identifying Rearview Mirror Components
    G01755567Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the base.
    3. Fig 2: Identifying Rearview Mirror Base Screw
    G01755568Courtesy of GENERAL MOTORS CORP.
  3. Slide mirror off of the support.
  4. Disconnect the electrical connector from the lighted rearview mirror, if equipped.
