HVAC Control Module Connector End View (2 of 2)

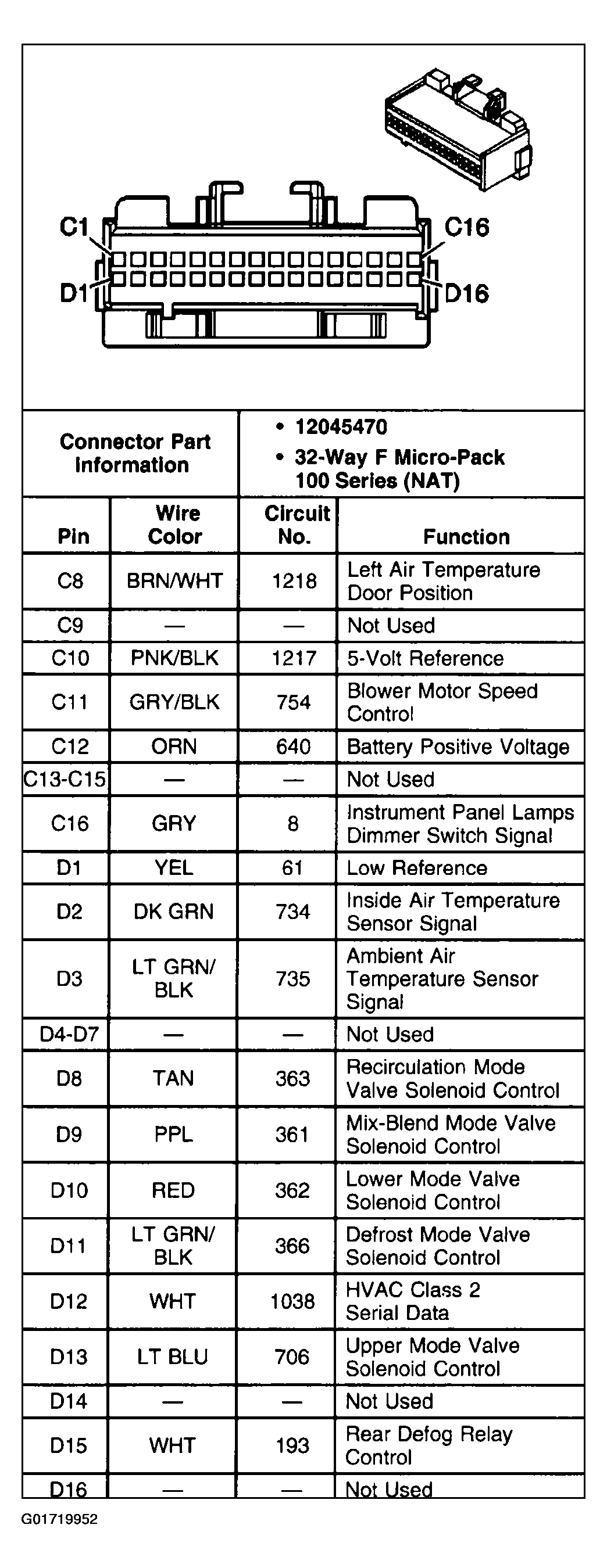

Fig 1: HVAC Control Module (2 of 2)

G01719952

Courtesy of GENERAL MOTORS CORP.
