Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the battery. Refer to Battery Replacement .
  3. Remove the battery tray bolts.

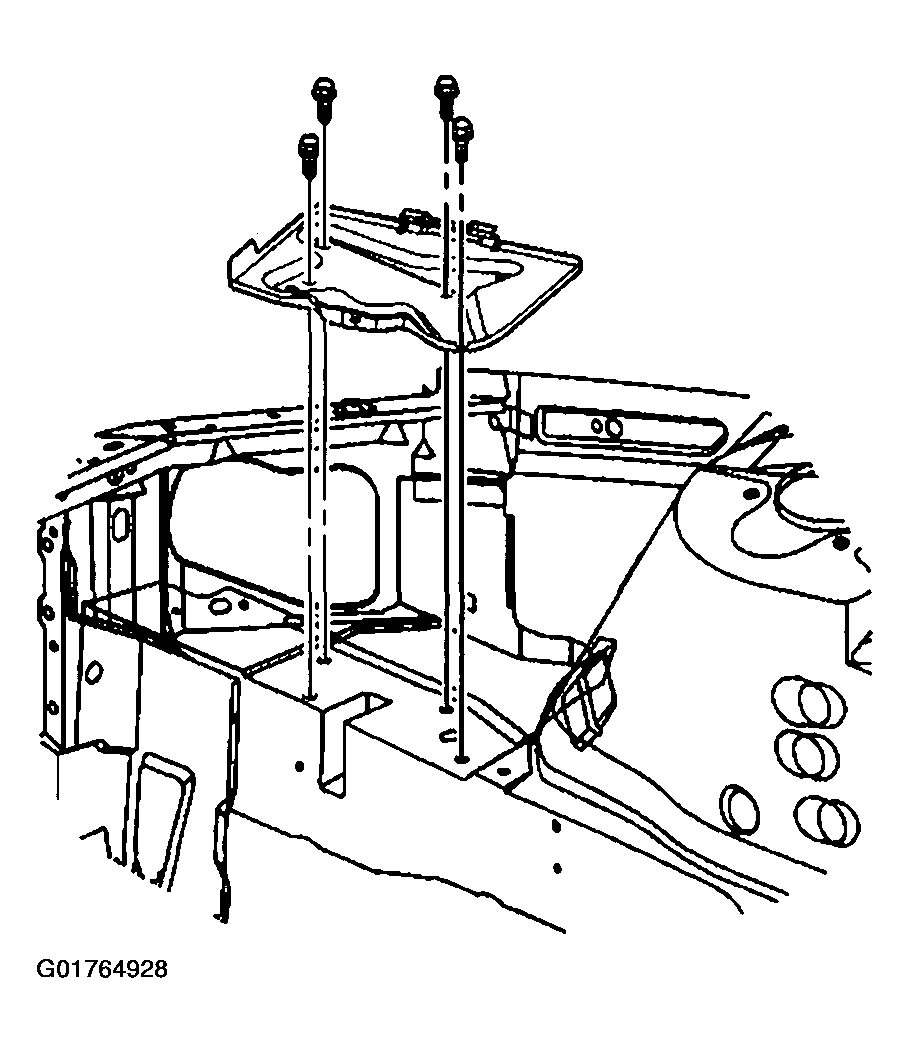

    4. Fig 1: Identifying Battery Tray
    G01764928Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray.
