Scan Tool Data List

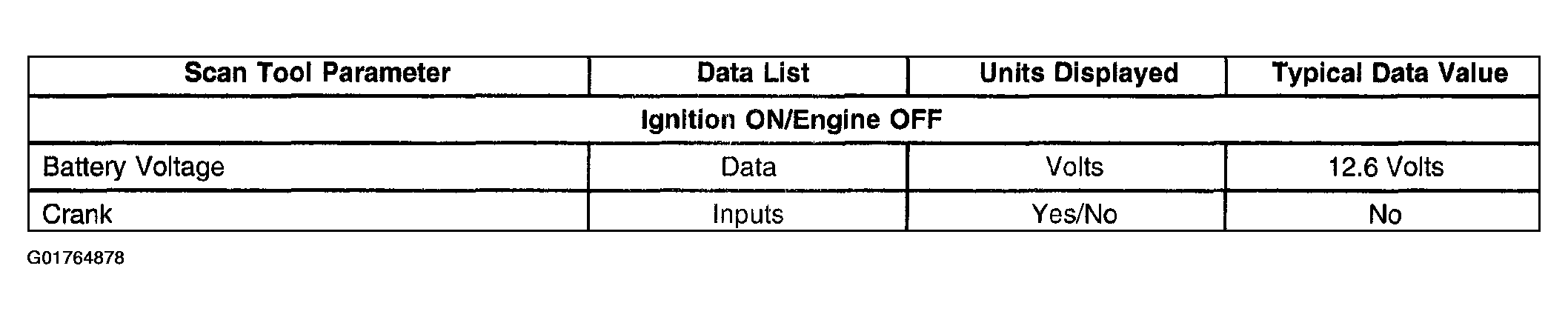

Fig 1: Identifying Body Control Module (BCM) Scan Tool Data
G01764878Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Scan Tool Data List
G01764879Courtesy of GENERAL MOTORS CORP.

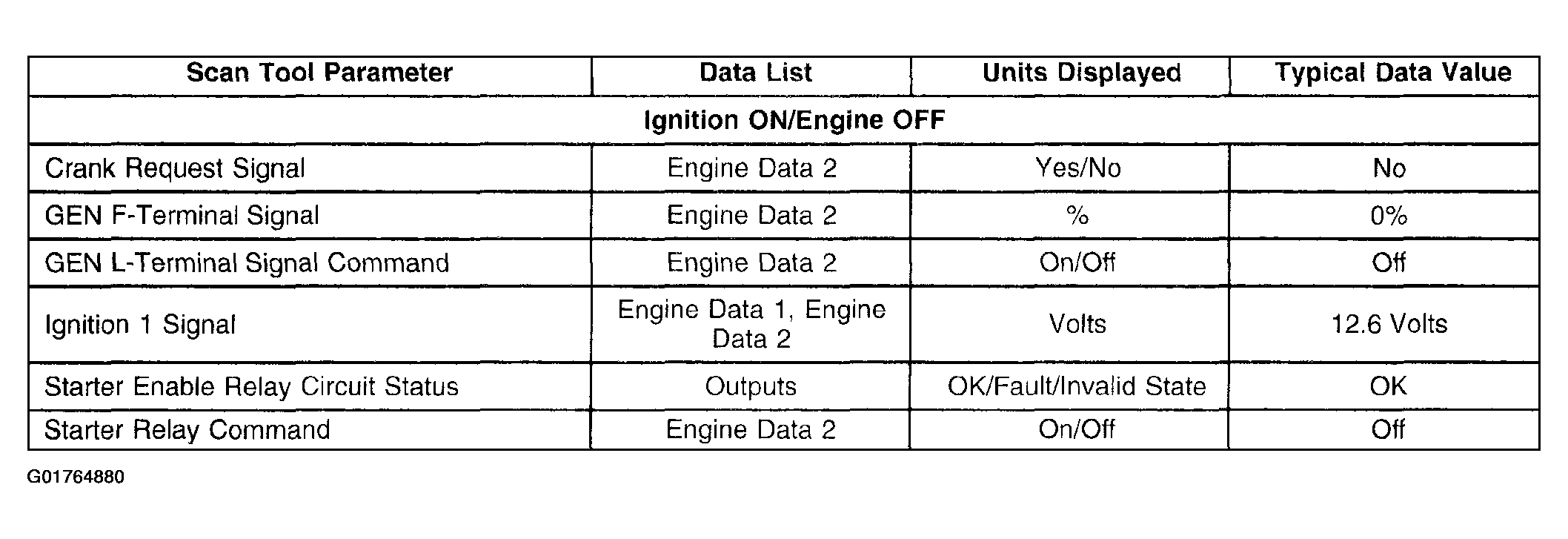

Fig 3: Identifying LG8 Powertrain Control Module (PCM) Scan Tool Data
G01764880Courtesy of GENERAL MOTORS CORP.

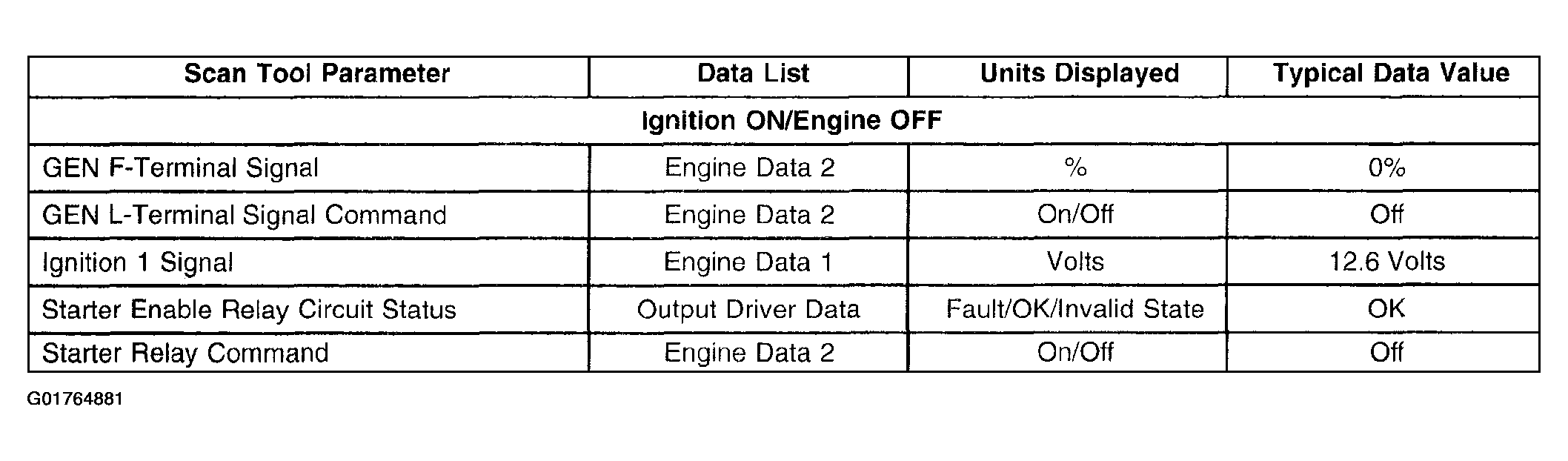

Fig 4: Identifying L36, L67 Powertrain Control Module (PCM) Scan Tool Data
G01764881Courtesy of GENERAL MOTORS CORP.
