Removal Procedure

  1. Raise the vehicle. Refer to
  2. Remove the height sensor connector from the vehicle harness connector.
  3. Remove the height sensor harness clip and the connector from the vehicle.
  4. Disconnect the link from the height sensor actuating arm.
  5. Remove the two bolts and the height sensor with the bracket from the vehicle.
  6. Remove the four nuts and the bracket from the height sensor.

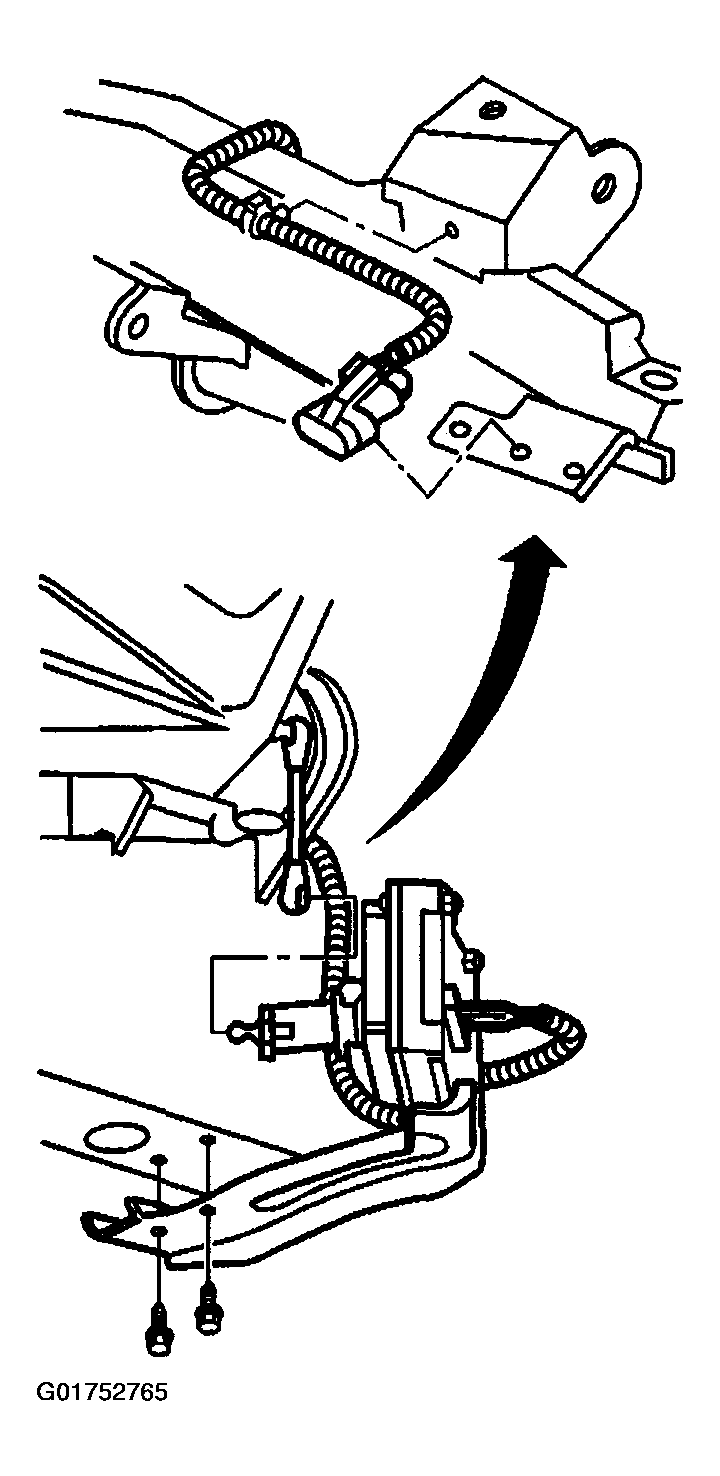

    Fig 1: Removing Bracket From Height Sensor
    G01752765Courtesy of GENERAL MOTORS CORP.
