Automatic Level Control Suspension Connector End Views

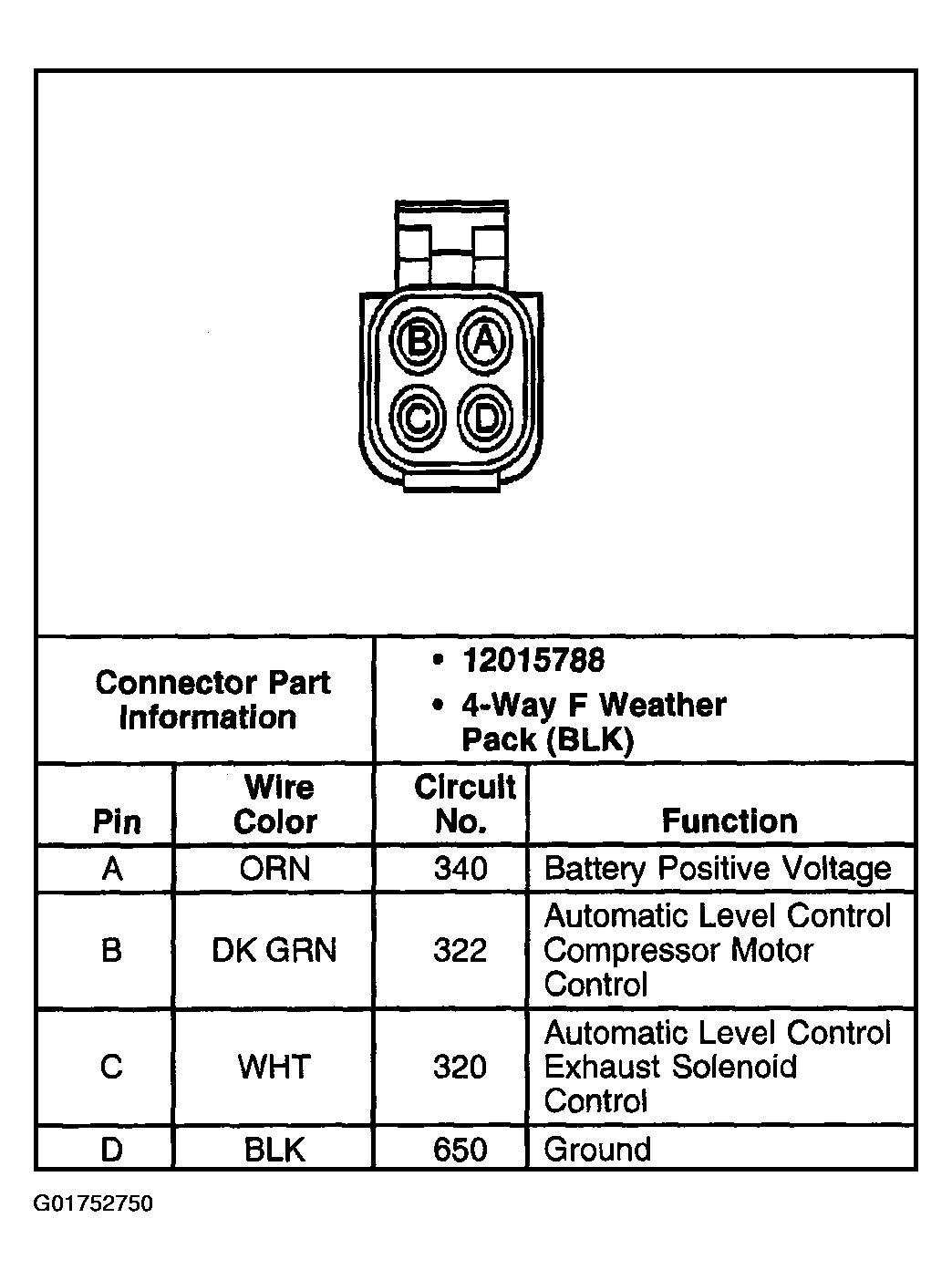

Fig 1: Identifying Automatic Level Control (ALC) Compressor Harness Connector
G01752750Courtesy of GENERAL MOTORS CORP.

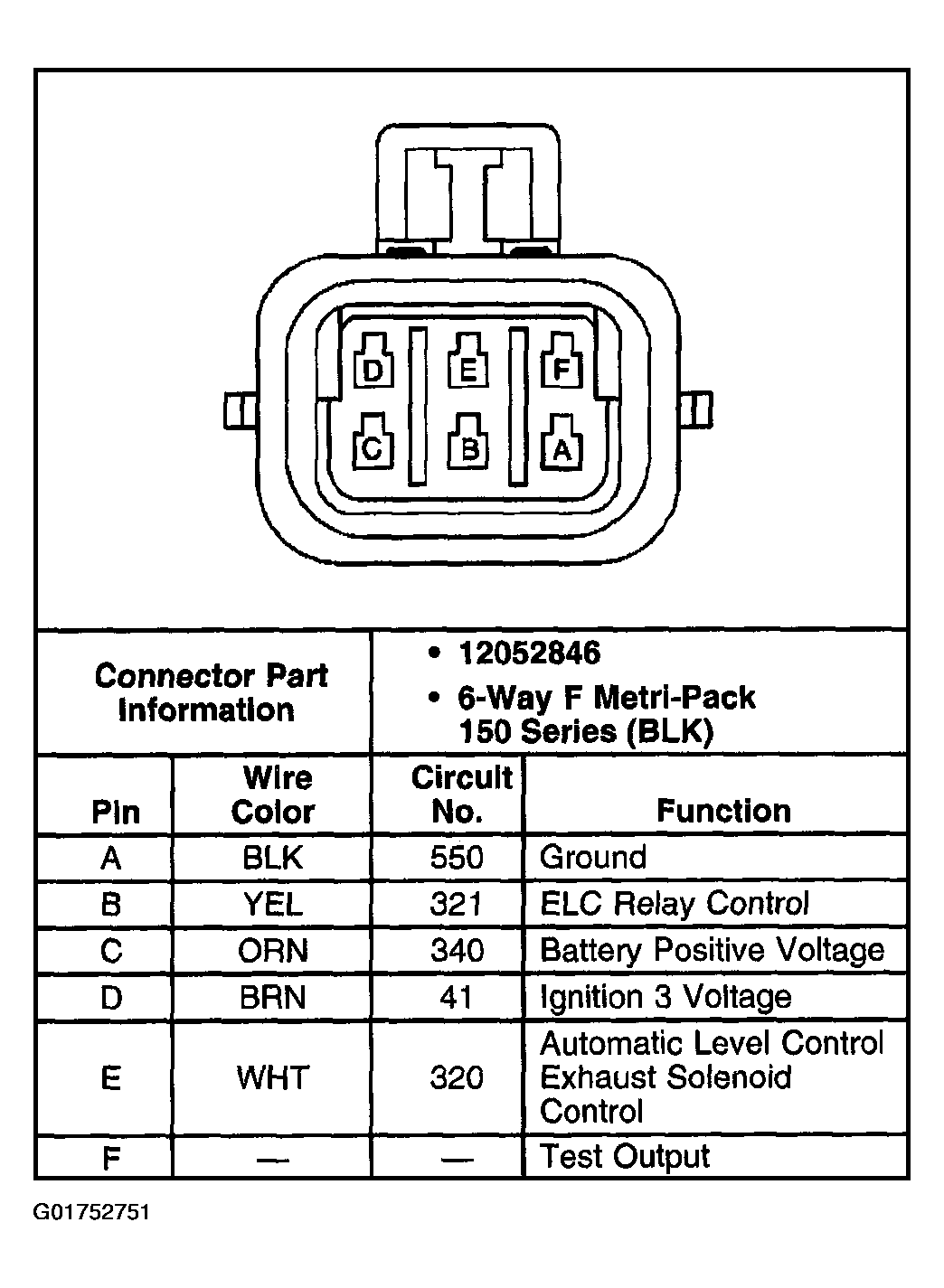

Fig 2: Identifying Automatic Level Control (ALC) Sensor Harness Connector
G01752751Courtesy of GENERAL MOTORS CORP.
