Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right side of the rear compartment trim retainer and reposition the trim.
Remove the 3 upper fasteners (2).

Fig 1: Removing Upper Fasteners
Courtesy of GENERAL MOTORS CORP.
Remove the side fastener (1).

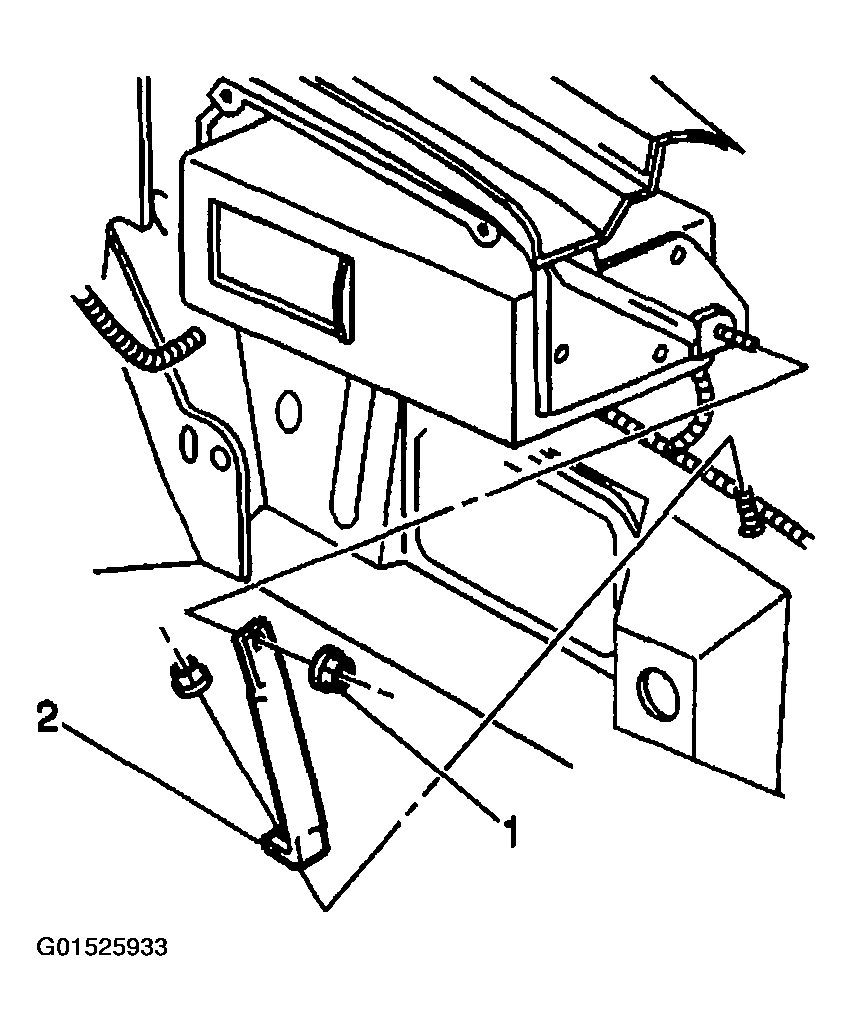

Fig 2: Removing Side Fastener
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors (2, 3).
Remove the CD changer (1) from the studs (4).

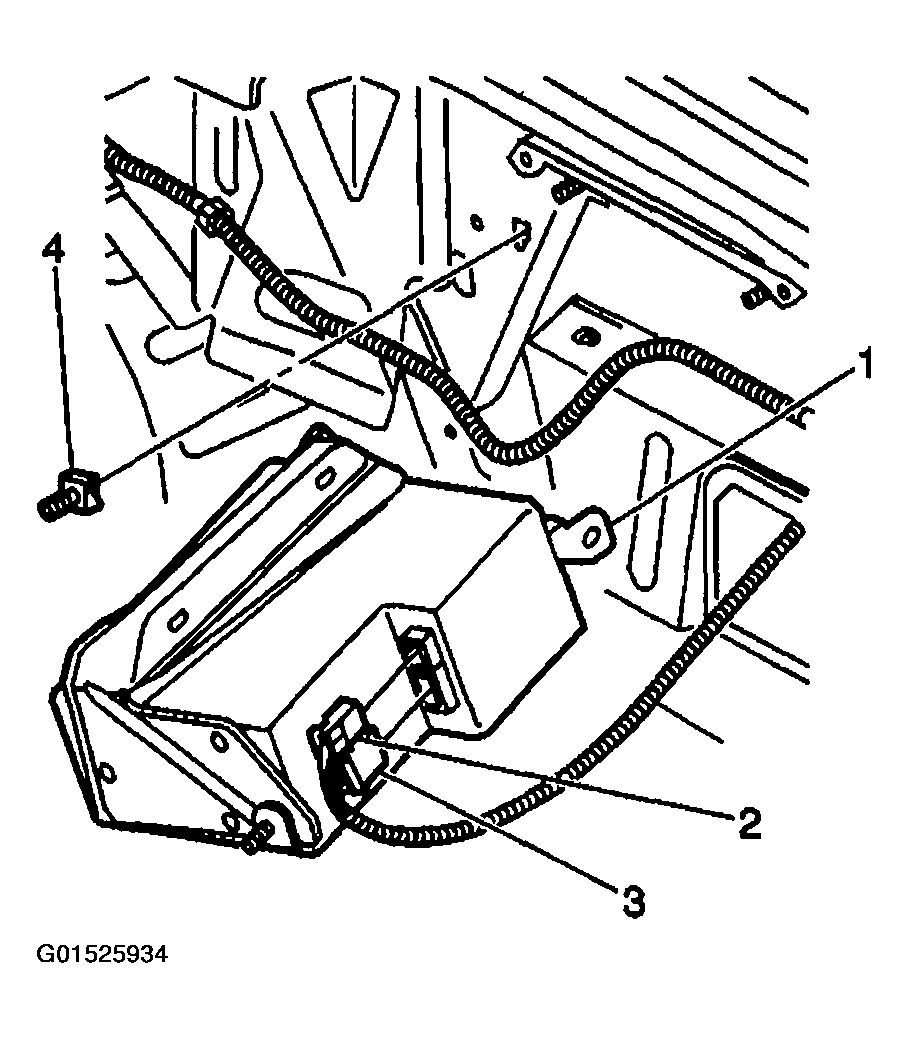

Fig 3: Removing CD Changer
Courtesy of GENERAL MOTORS CORP.
