Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors (2,3).
Install the CD changer (1) to the studs (4).

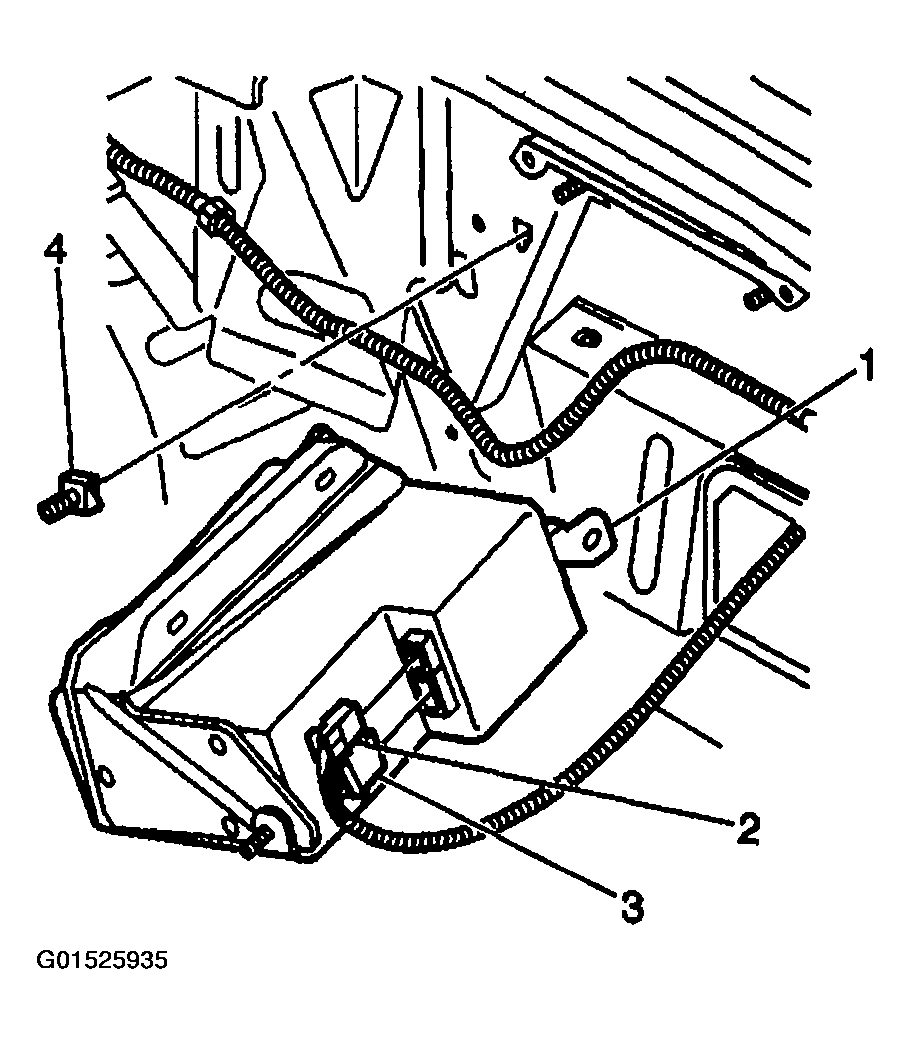

Fig 1: Installing CD Changer
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the side fasteners (1).
Tighten

Tighten the fasteners to 7 N.m (62 lb in).

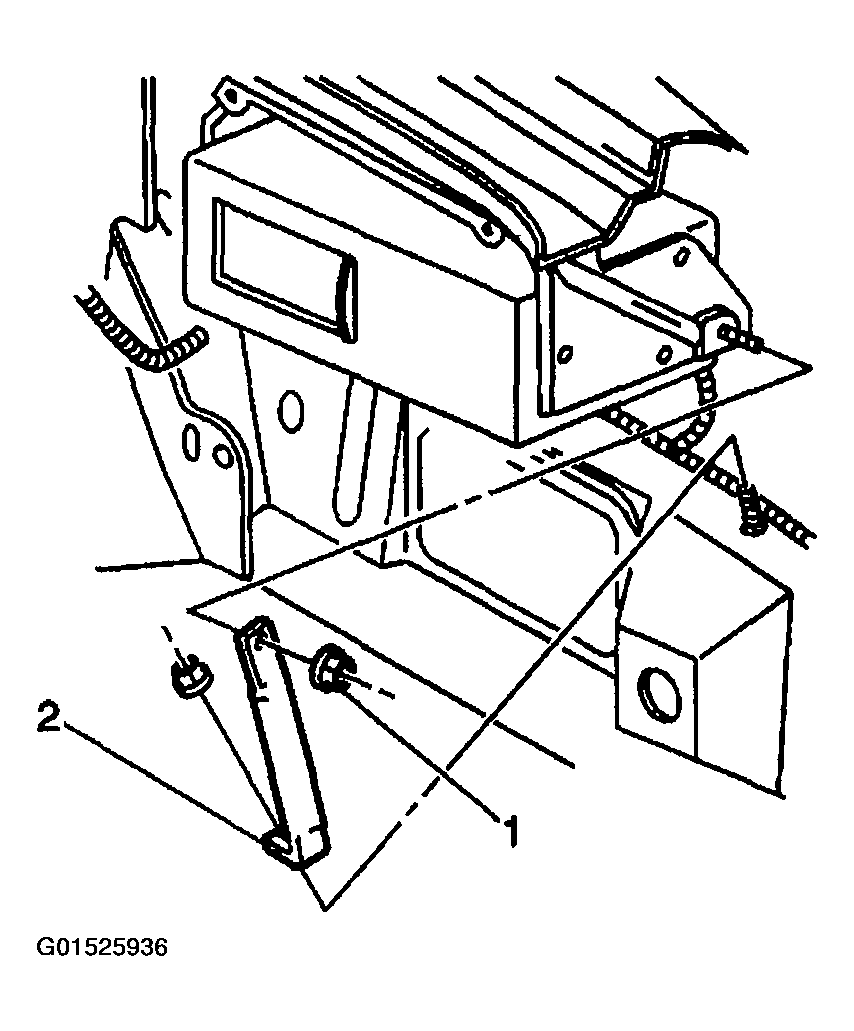

Fig 2: Installing Side Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the upper fasteners (2).
Tighten

Tighten the fasteners to 7 N.m (62 lb in).
Reposition the trim.
Install the fasteners.

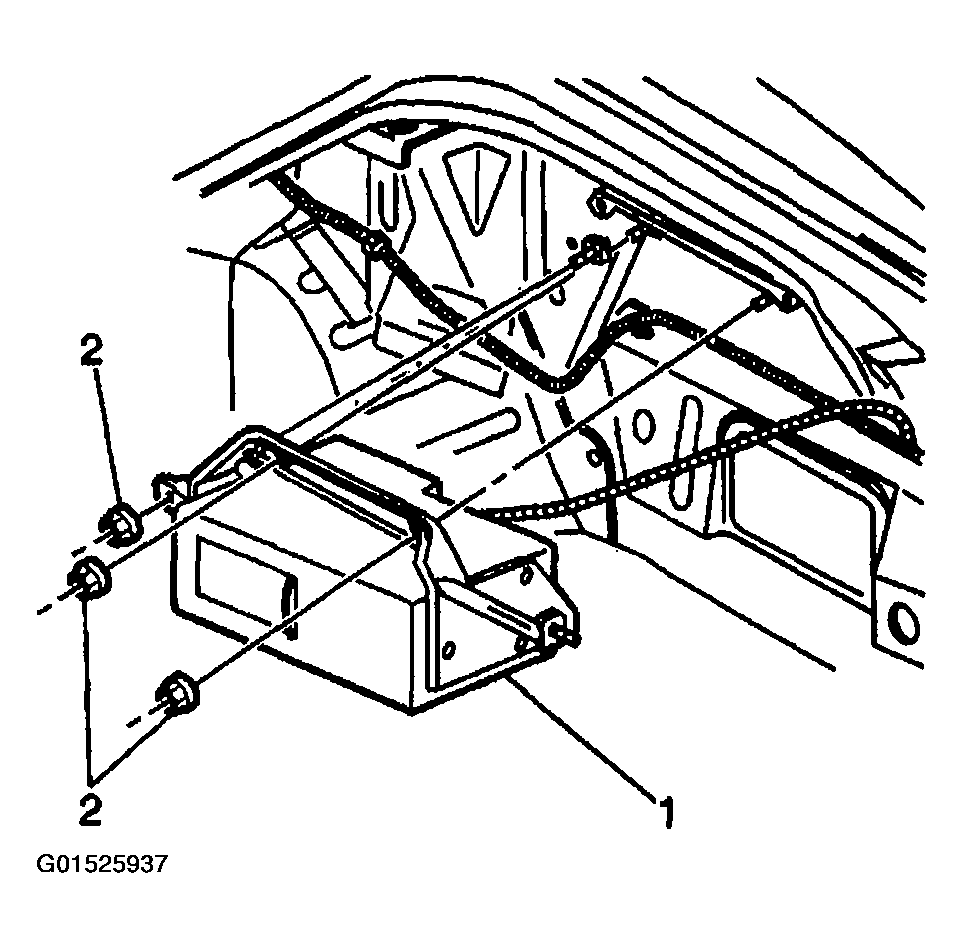

Fig 3: Installing Upper Fasteners
Courtesy of GENERAL MOTORS CORP.
