Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the radio electrical connector (3).

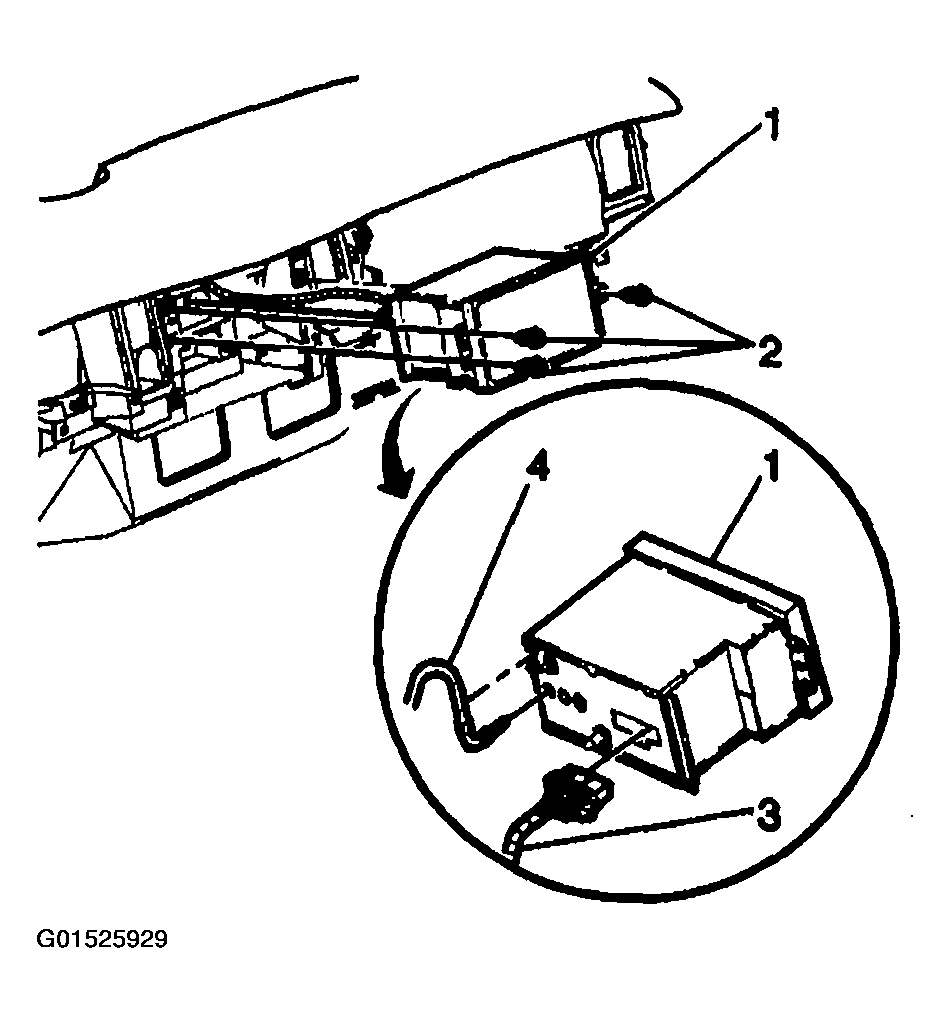

    Fig 1: Locating Radio Components
    G01525929Courtesy of GENERAL MOTORS CORP.
  2. Connect the antenna lead (4).
  3. Install the radio (1).
    NOTE: Refer to FASTENER NOTICE .
  4. Install the radio fasteners (2).

    Tighten

    Tighten the fasteners to 1.8 N.m (16 lb in).

  5. Install the IP cluster trim plate. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
