Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the module tab into the slot.

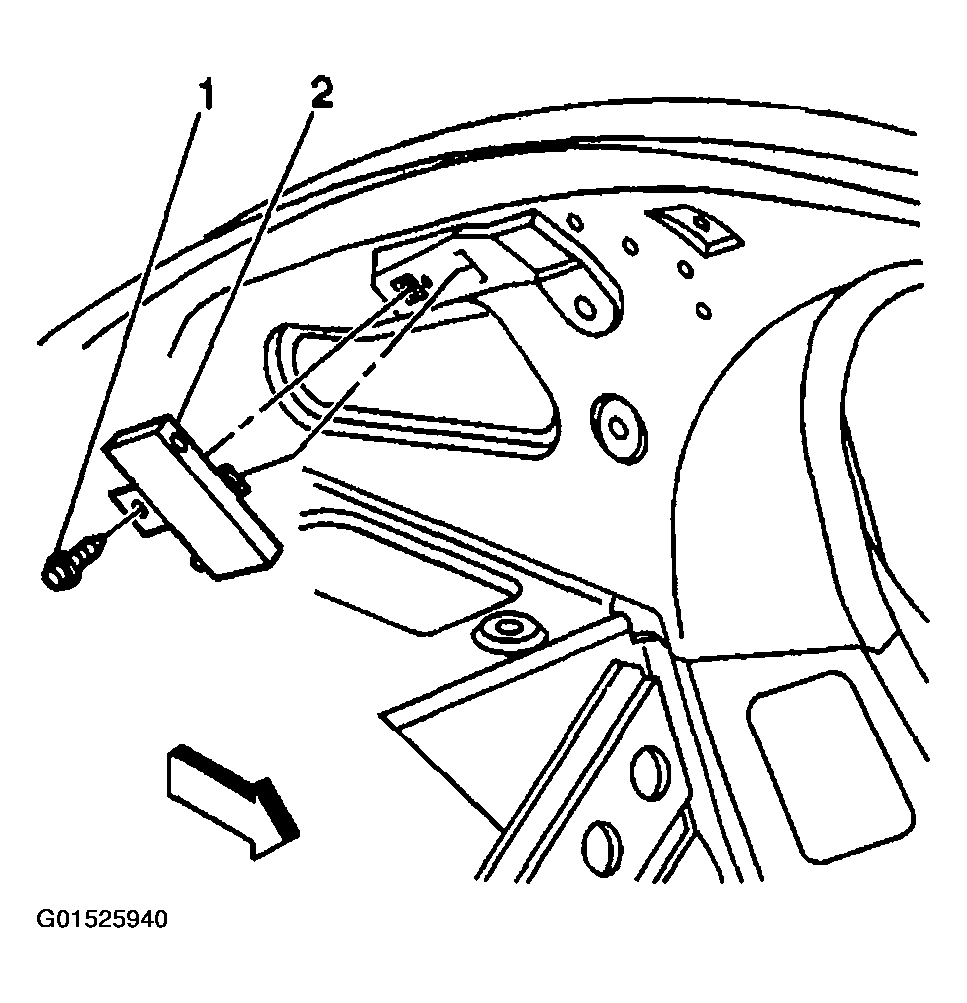

    Fig 1: Installing Antenna Module
    G01525940Courtesy of GENERAL MOTORS CORP.
  2. Rotate the tab down in order to align the hole for the bolt (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolt (1).

    Tighten

    Tighten the ground antenna to 7.5 N m (66 lb in).

  4. Connect the electrical connectors (2) to the module (3).

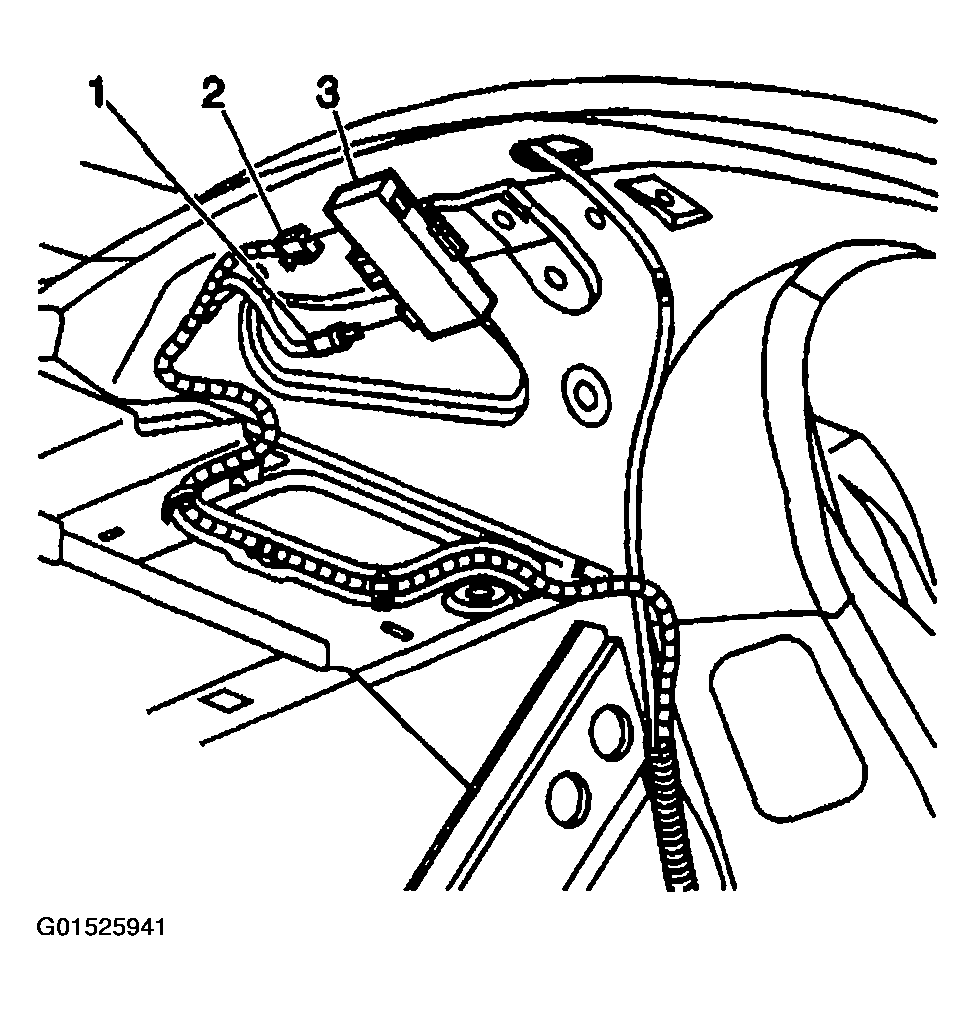

    Fig 2: Connecting Connectors To Module
    G01525941Courtesy of GENERAL MOTORS CORP.
  5. Connect the antenna coax cable (1) to the module (3).
  6. Install the left sail trim panel. Refer to SAIL PANEL REPLACEMENT in Interior Trim.
