Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right sail trim panel. Refer to SAIL PANEL REPLACEMENT in Interior Trim.
  2. Disconnect the body harness from the module.
  3. Remove the bolt (2).
  4. Disengage the tab on the module (1) from the slot in the sail panel.

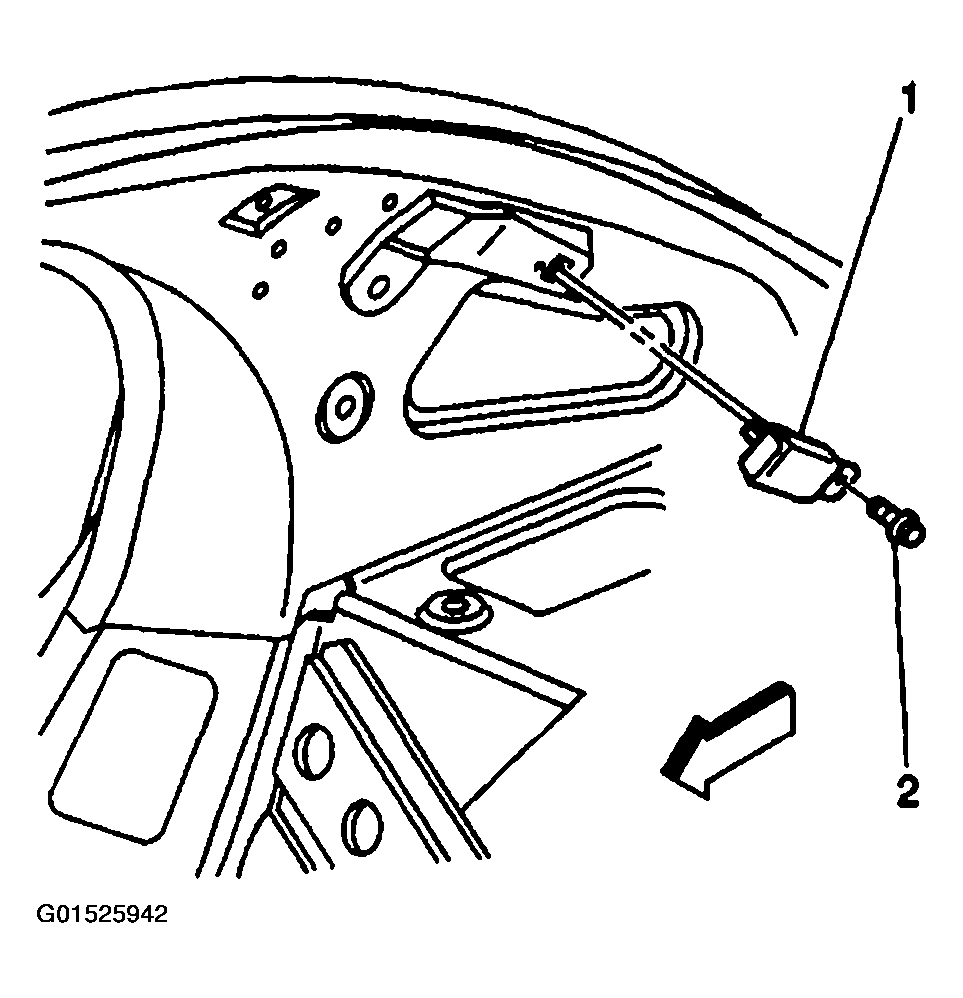

    Fig 1: Removing Antenna Module Coil
    G01525942Courtesy of GENERAL MOTORS CORP.
