Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the module tab in the slot.

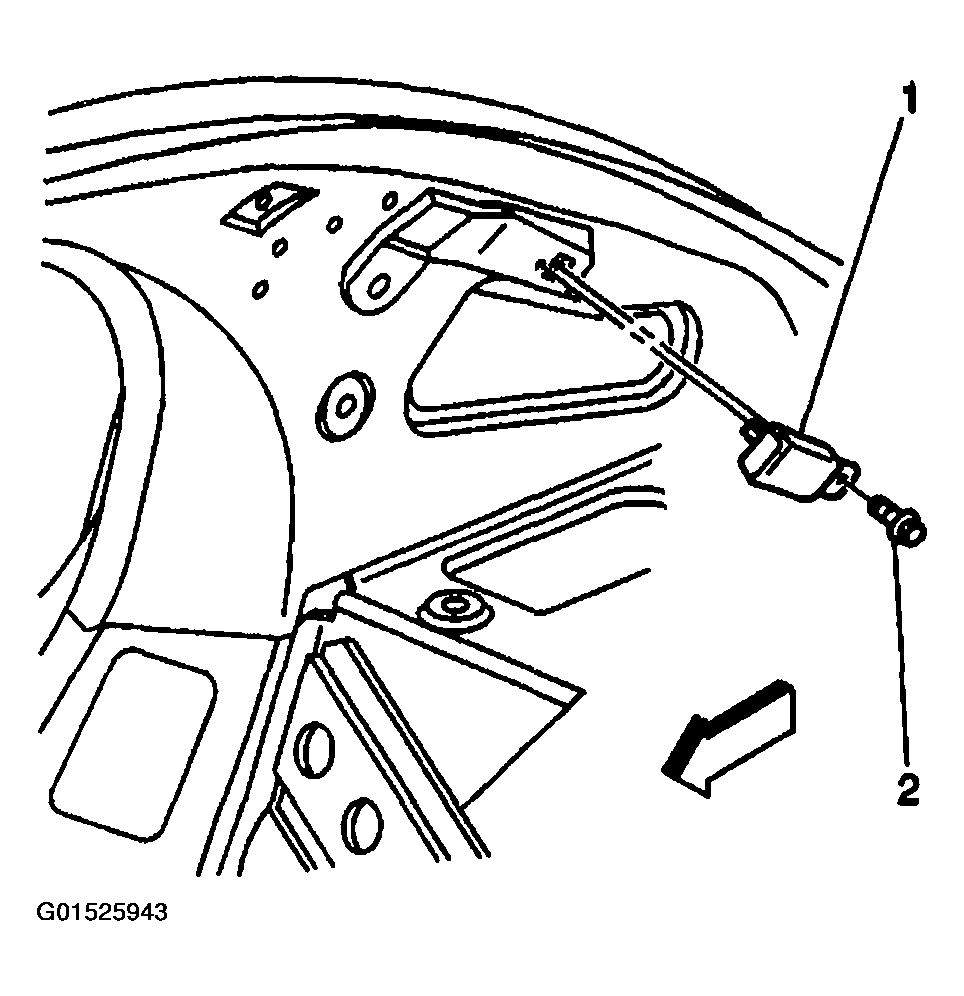

    Fig 1: Installing Antenna Module Coil
    G01525943Courtesy of GENERAL MOTORS CORP.
  2. Align the module hole for the bolt (2).

    Rotate downward the module (1).

    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolt (2) for the antenna ground coil module.

    Tighten

    Tighten the bolt to 7.5 N.m (66 lb in).

  4. Connect the body harness.
  5. Install the sail trim panel. Refer to SAIL PANEL REPLACEMENT in Interior Trim.
