Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

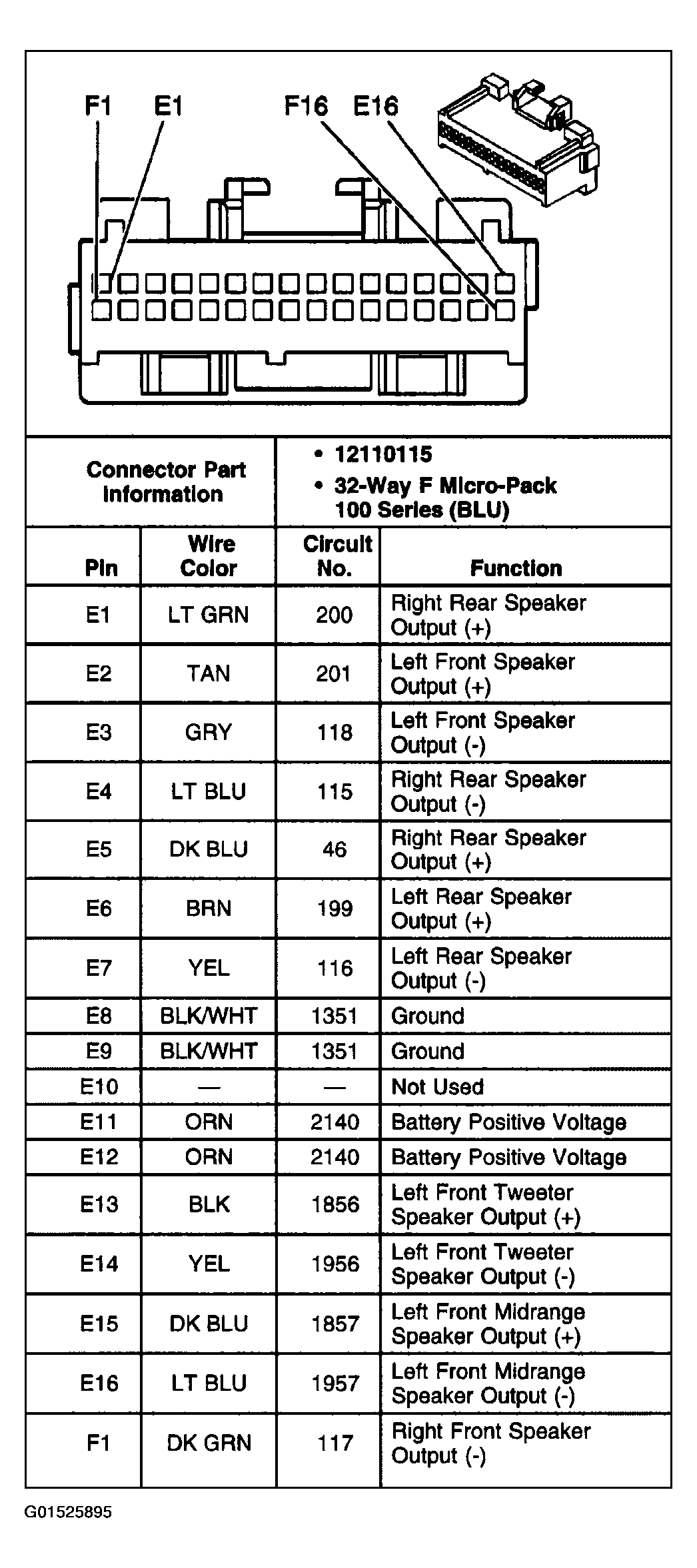

Fig 1: Identifying Audio Amplifier Connector (1 Of 2)

G01525895

Courtesy of GENERAL MOTORS CORP.

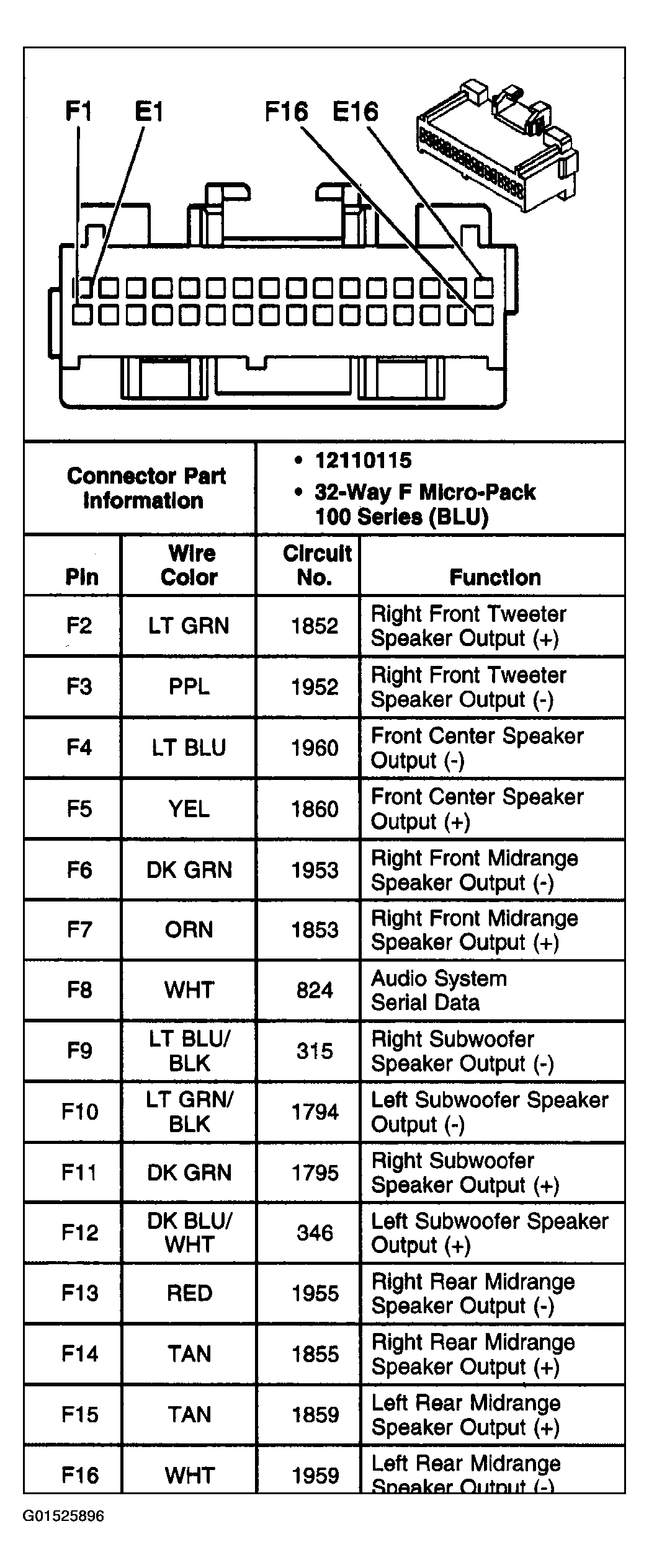

Fig 2: Identifying Audio Amplifier Connector (2 Of 2)

G01525896

Courtesy of GENERAL MOTORS CORP.

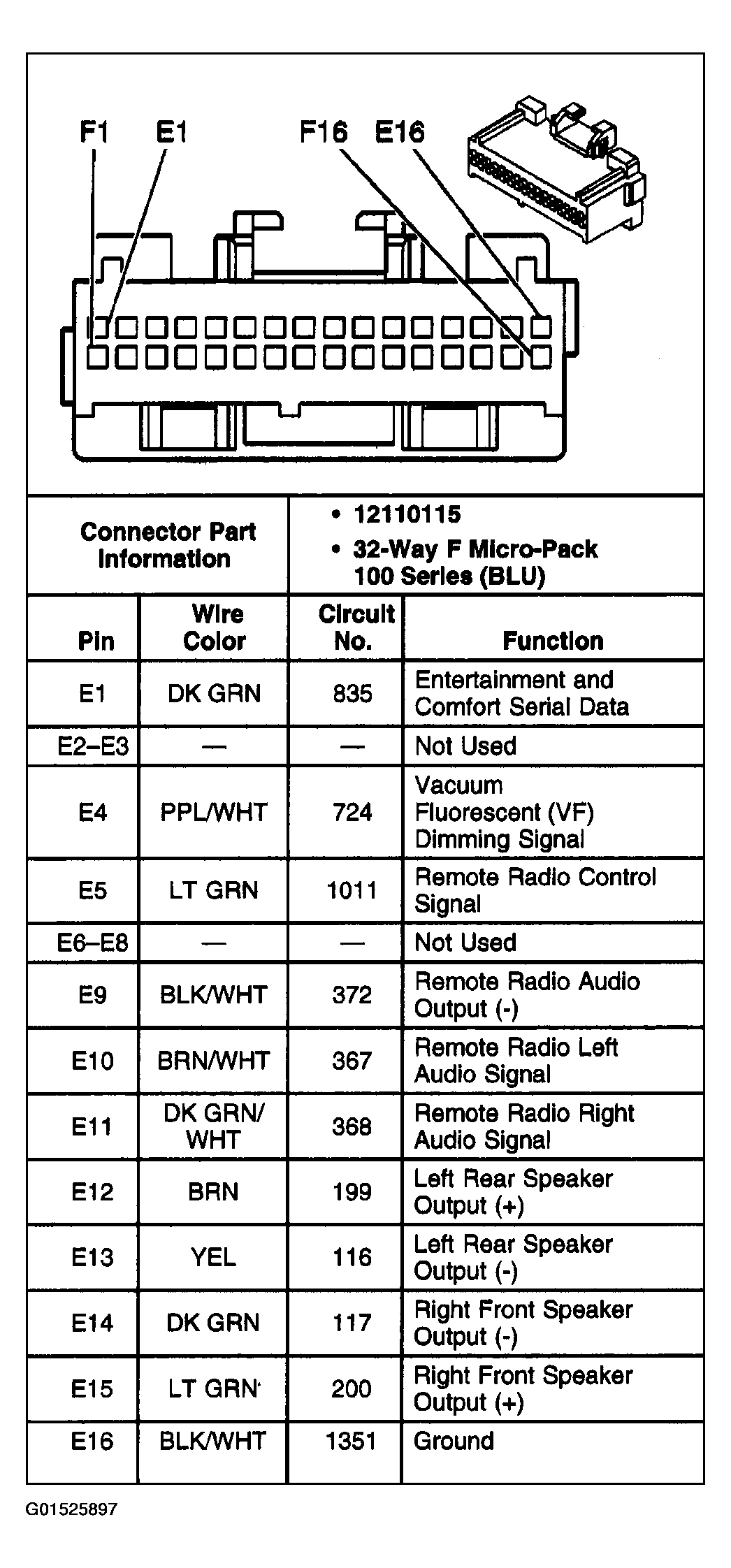

Fig 3: Identifying Radio Connector (1 Of 2)

G01525897

Courtesy of GENERAL MOTORS CORP.

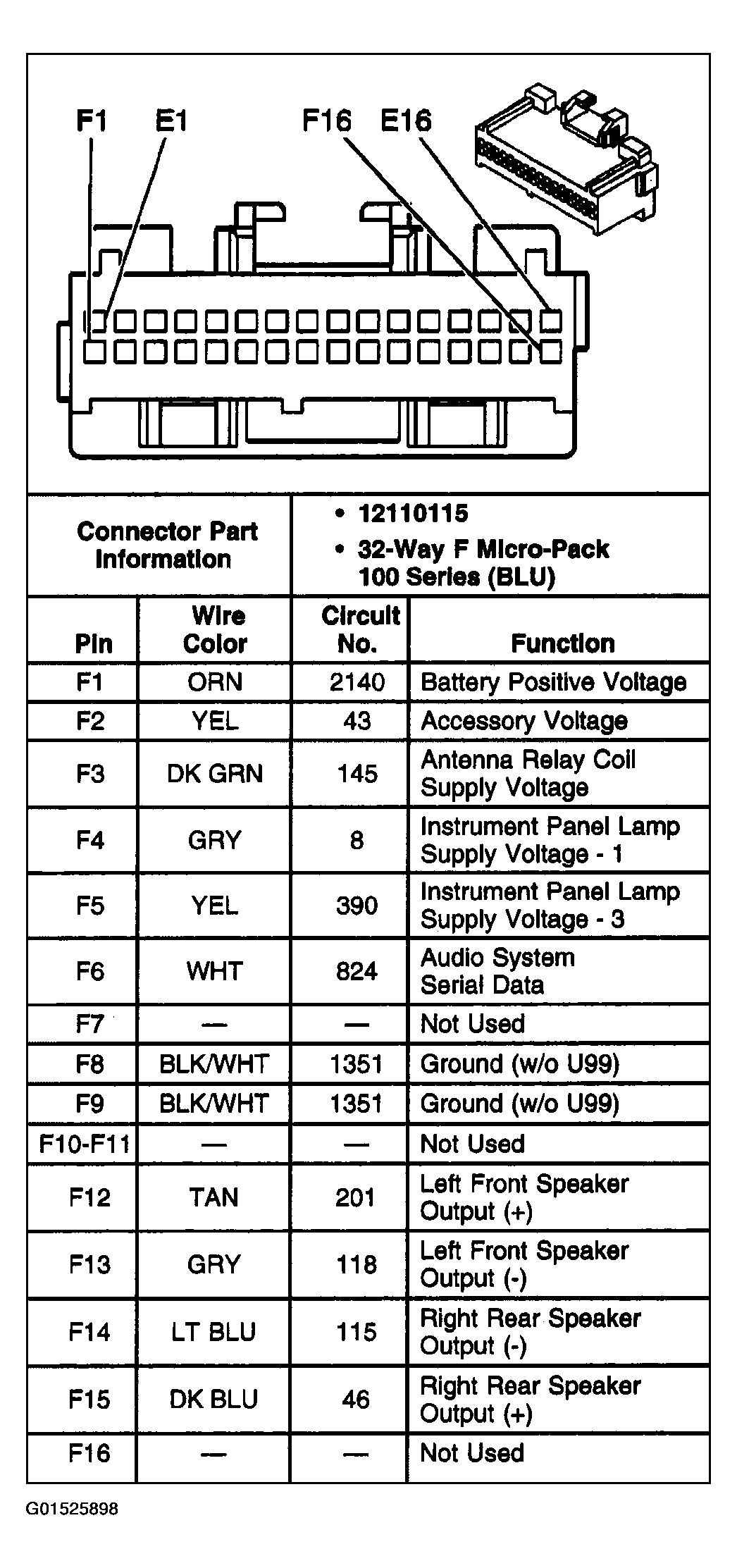

Fig 4: Identifying Radio Connector (2 Of 2)

G01525898

Courtesy of GENERAL MOTORS CORP.

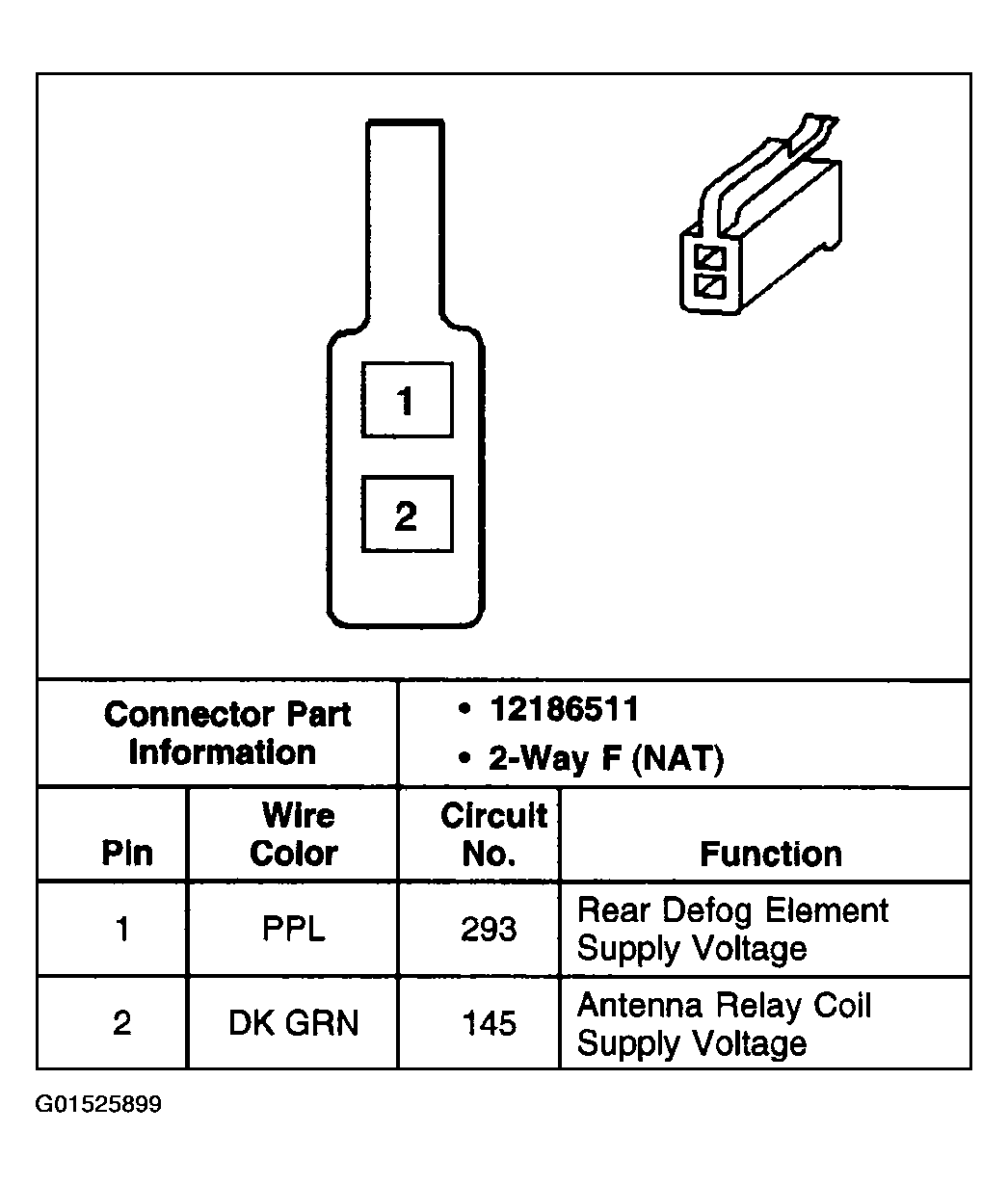

Fig 5: Identifying Radio Antenna Module C1 Connector

G01525899

Courtesy of GENERAL MOTORS CORP.

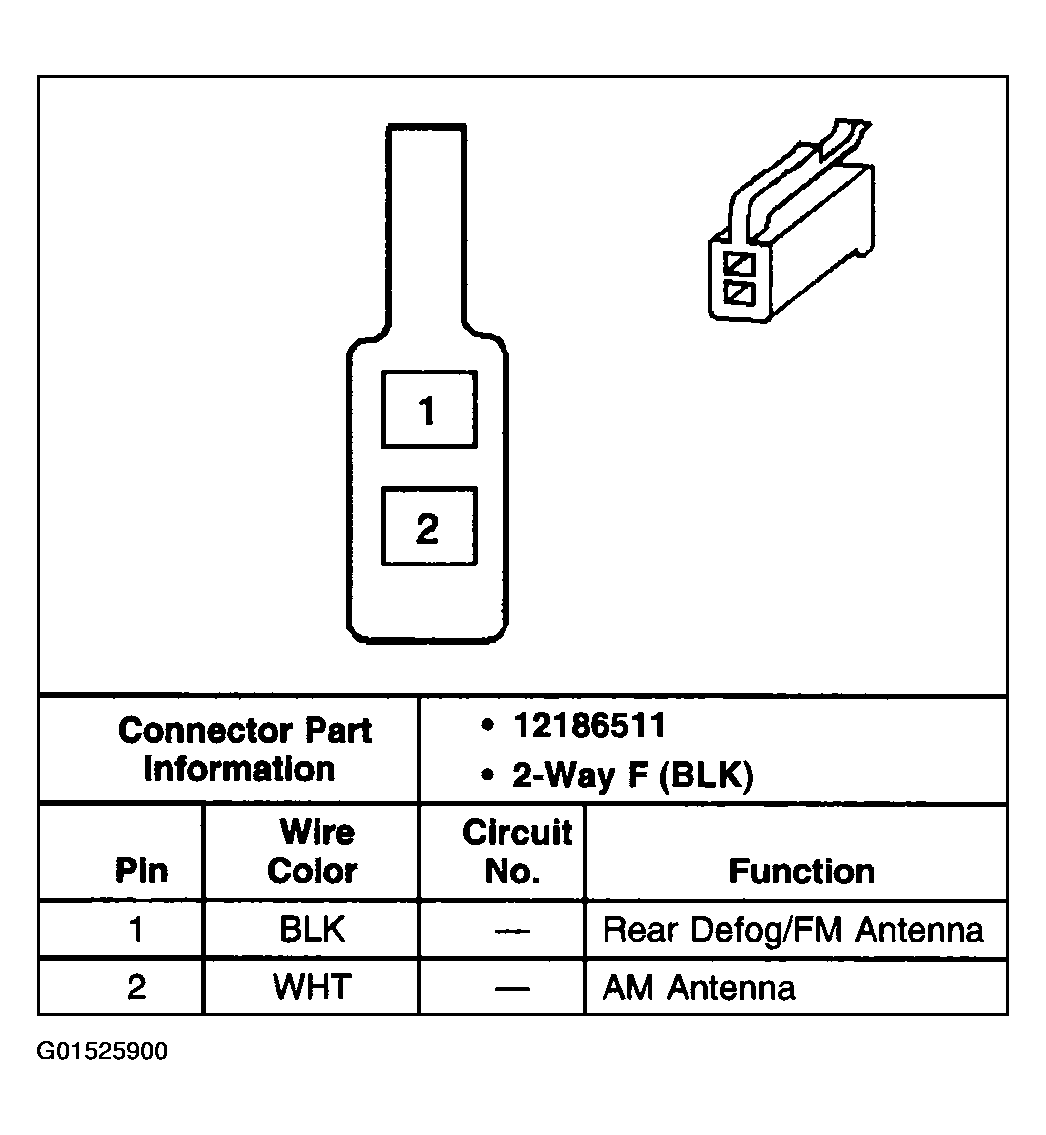

Fig 6: Identifying Radio Antenna Module C2 Connector

G01525900

Courtesy of GENERAL MOTORS CORP.

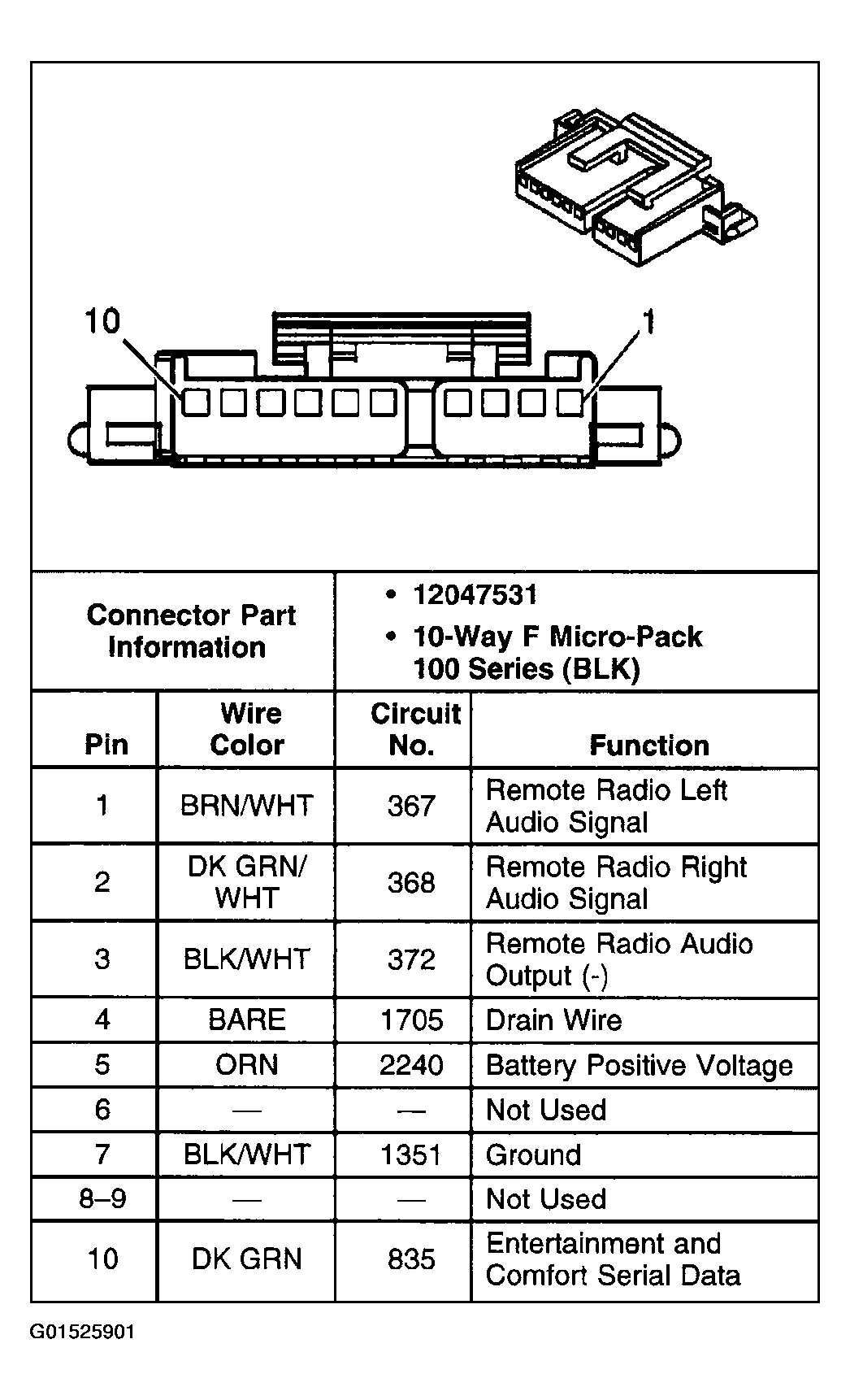

Fig 7: Identifying Remote Playback Device - CD Changer Connector

G01525901

Courtesy of GENERAL MOTORS CORP.

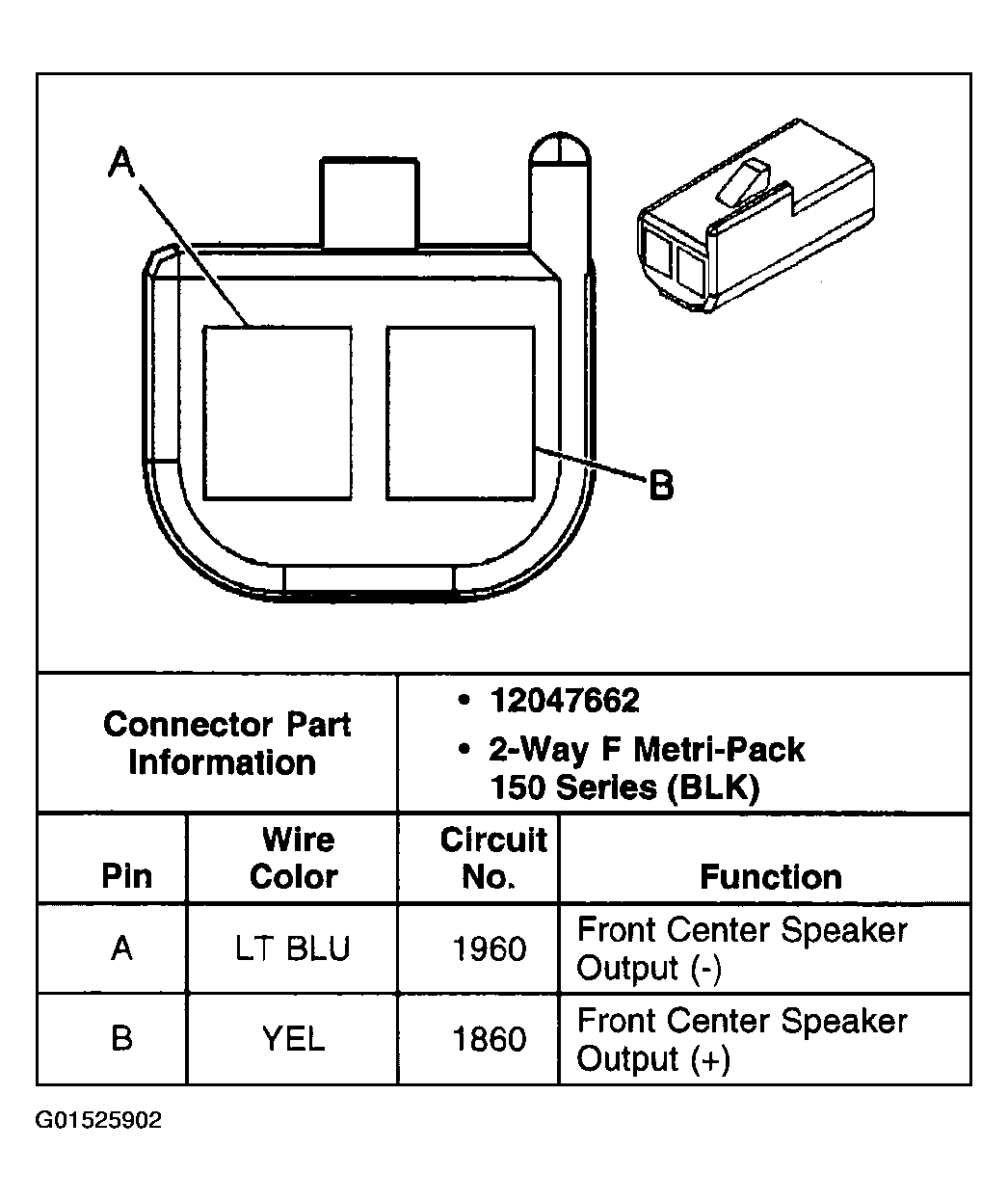

Fig 8: Identifying Speaker - Center (Midrange) (w/U99) Connector

G01525902

Courtesy of GENERAL MOTORS CORP.

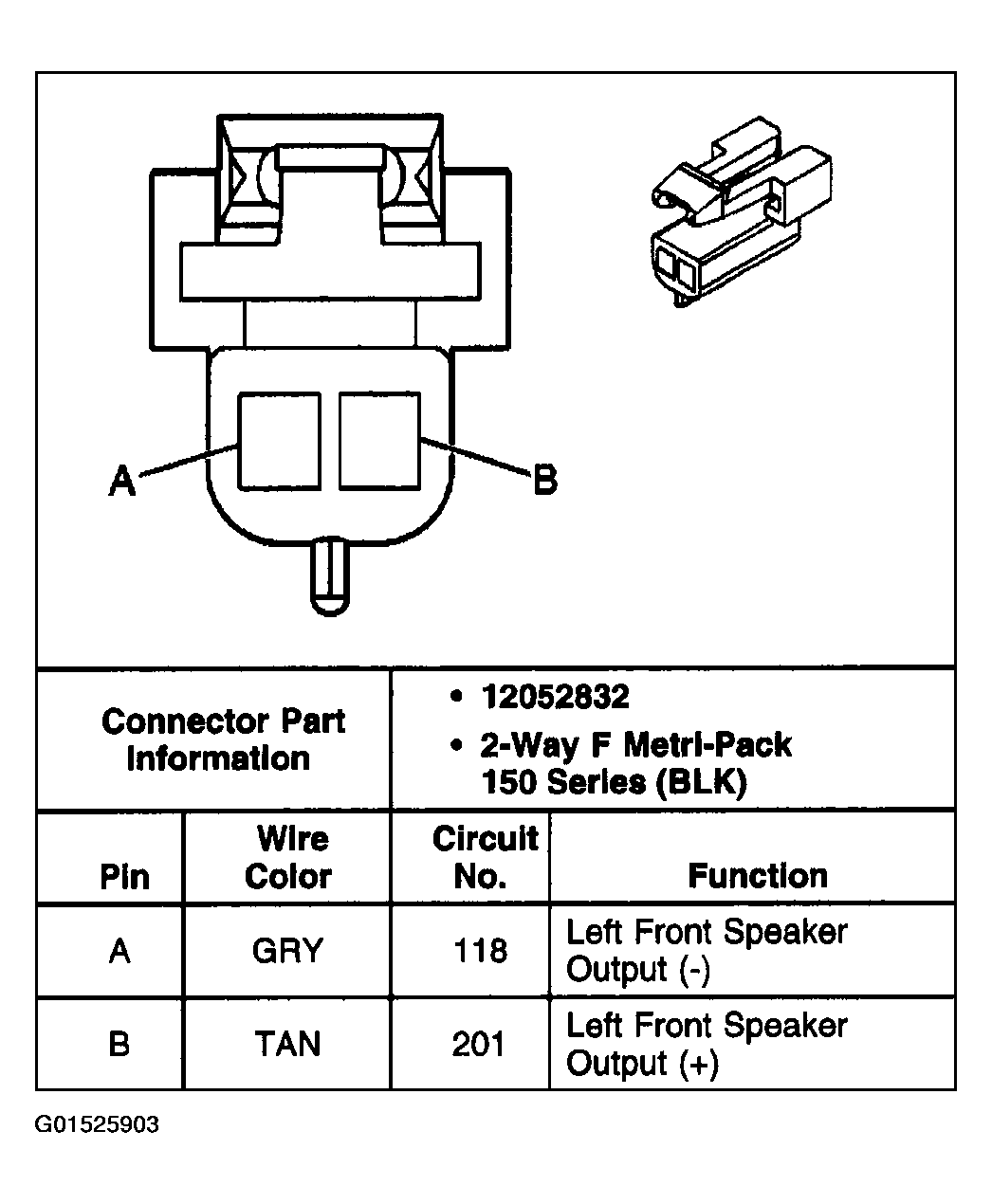

Fig 9: Identifying Speaker - LF Door (w/o U99) Connector

G01525903

Courtesy of GENERAL MOTORS CORP.

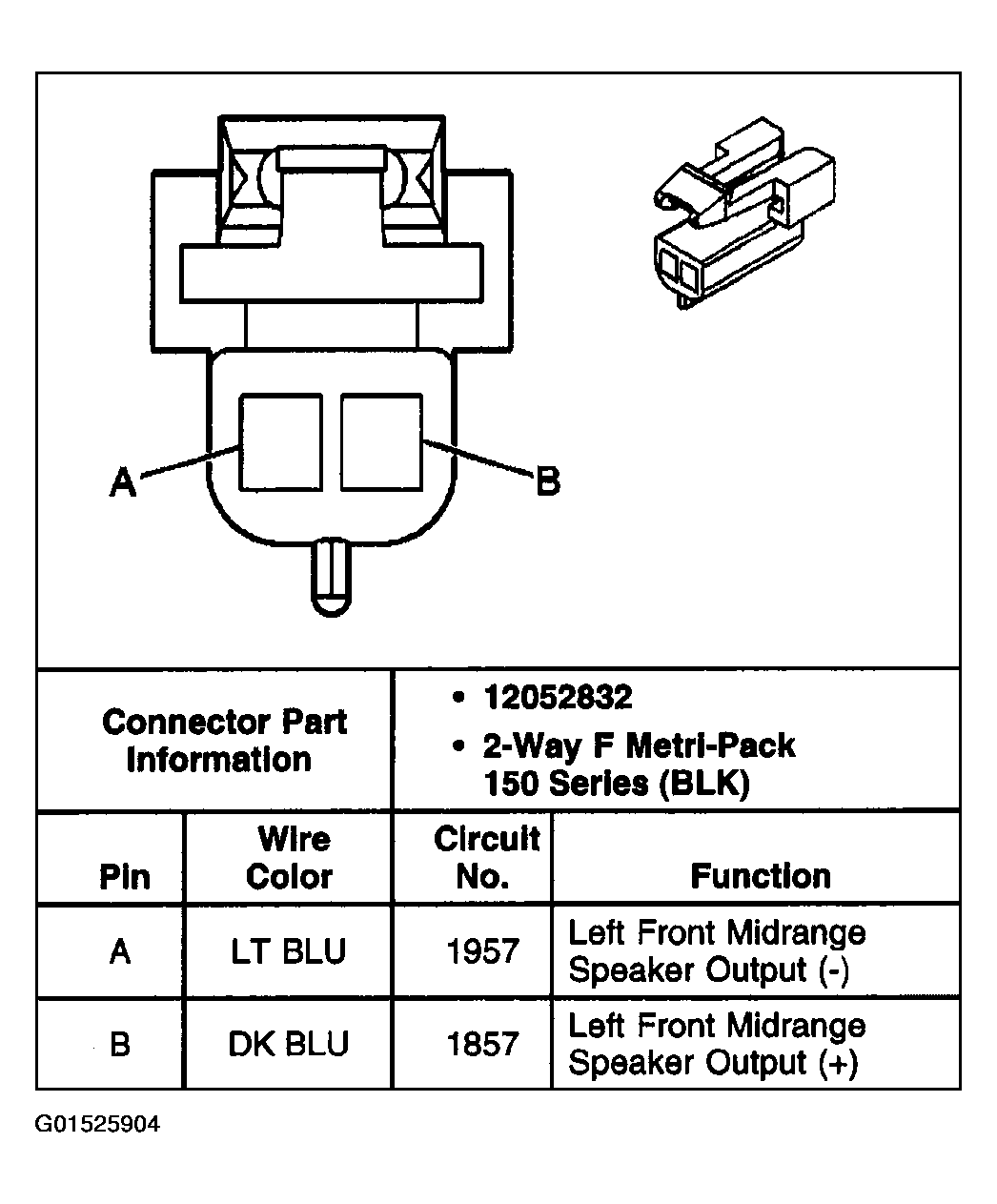

Fig 10: Identifying Speaker - LF Door (w/U99) Connector

G01525904

Courtesy of GENERAL MOTORS CORP.

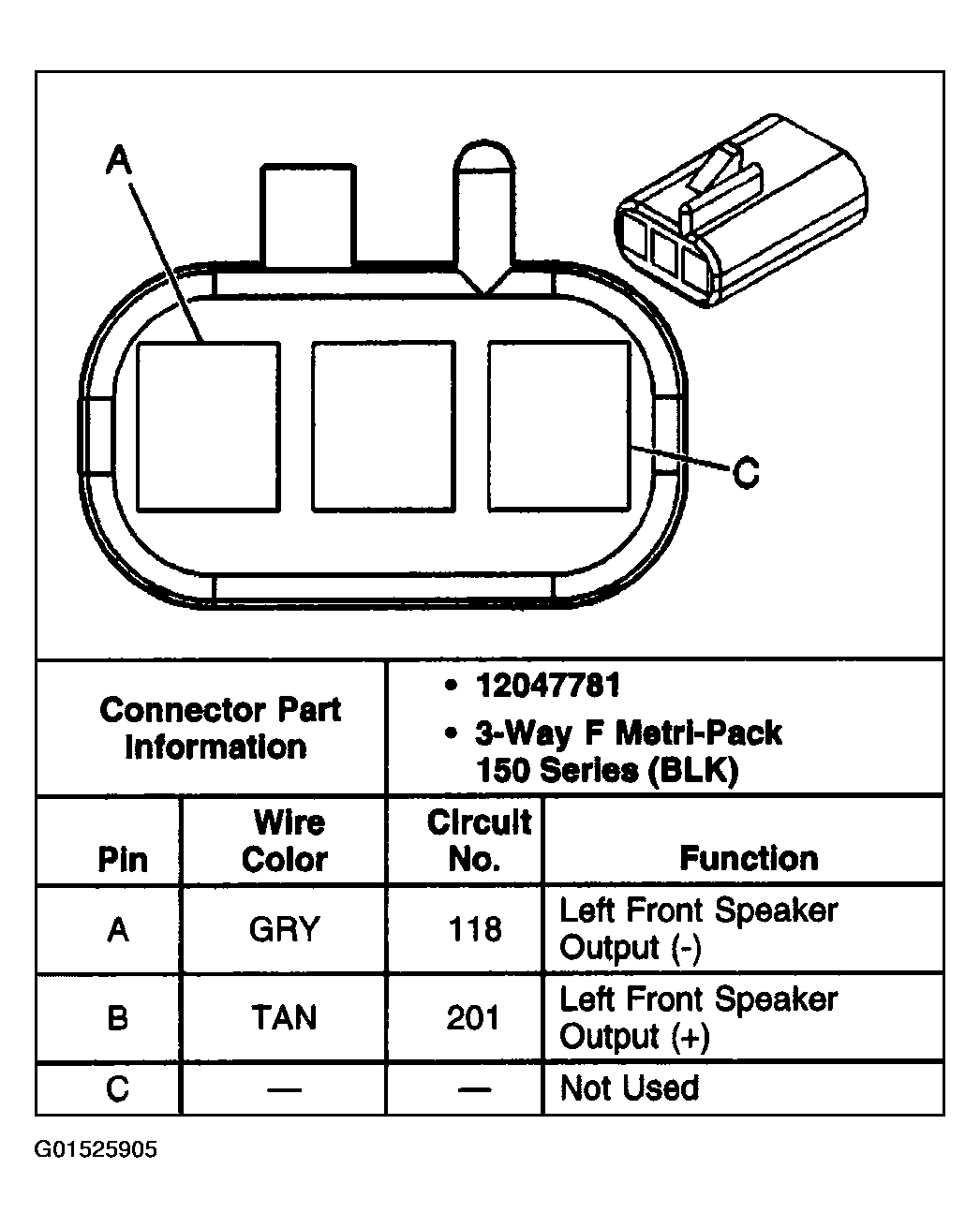

Fig 11: Identifying Speaker - LF Door Tweeter (w/o U99) Connector

G01525905

Courtesy of GENERAL MOTORS CORP.

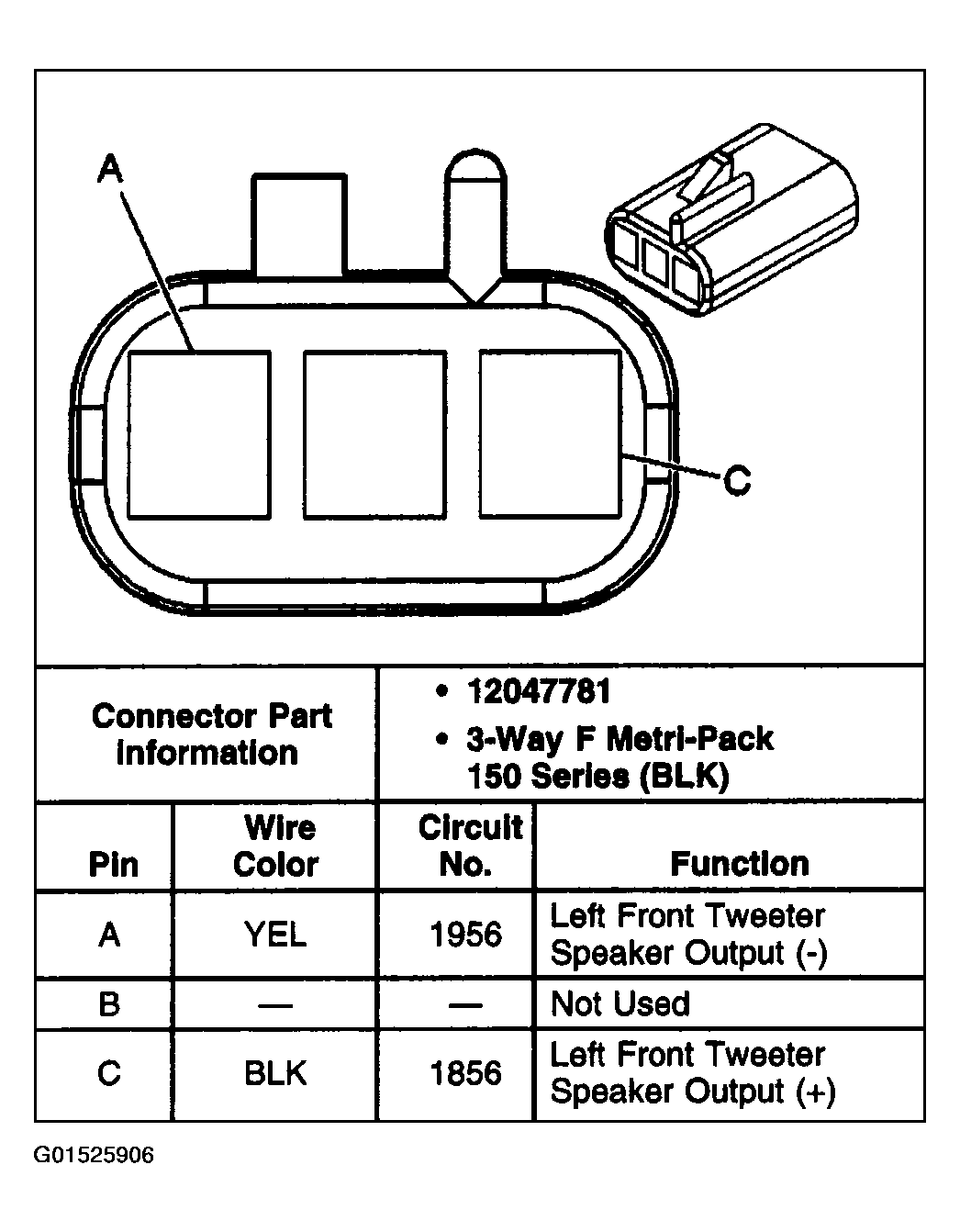

Fig 12: Identifying Speaker - LF Door Tweeter (w/U99) Connector

G01525906

Courtesy of GENERAL MOTORS CORP.

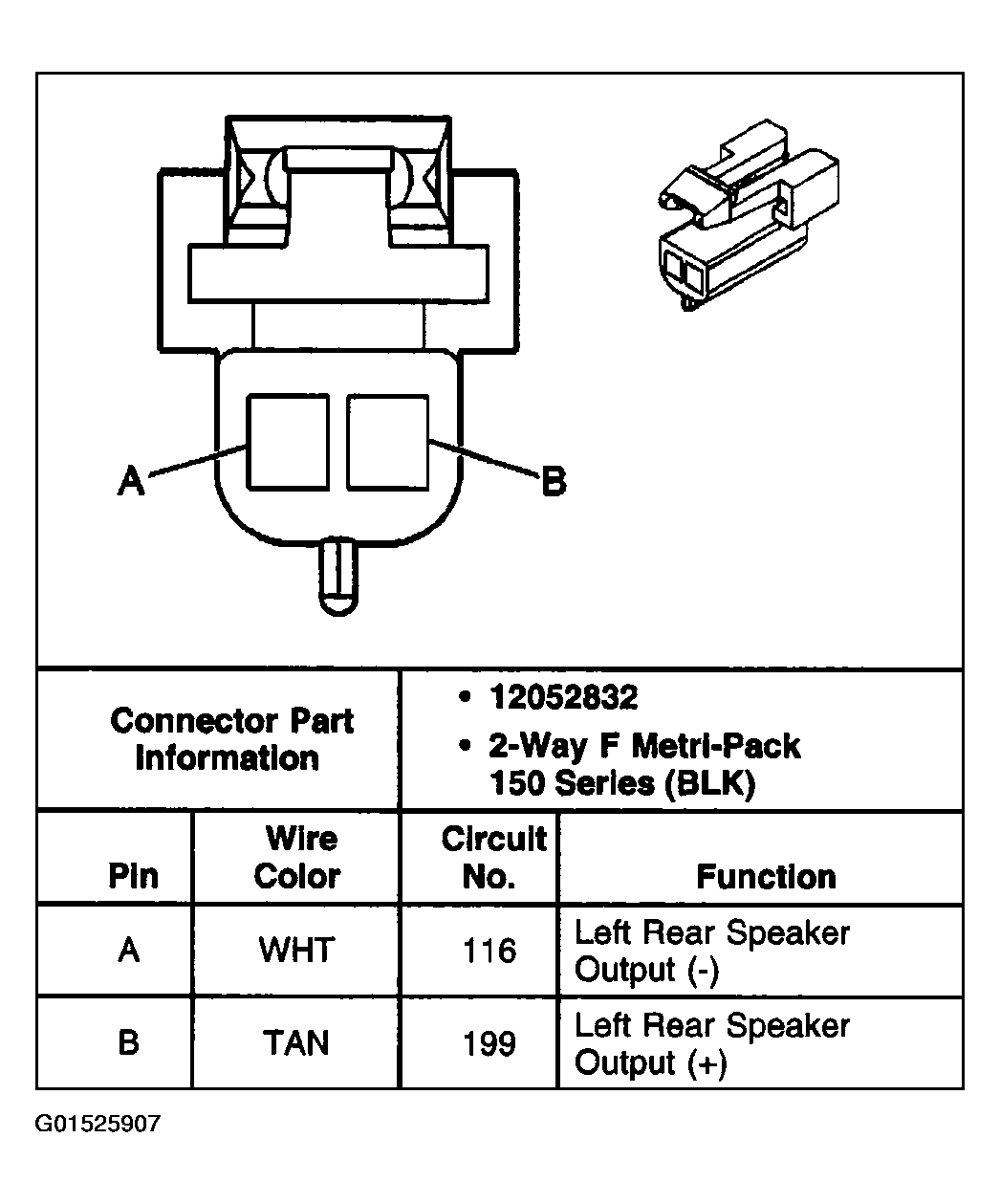

Fig 13: Identifying Speaker - LR Connector

G01525907

Courtesy of GENERAL MOTORS CORP.

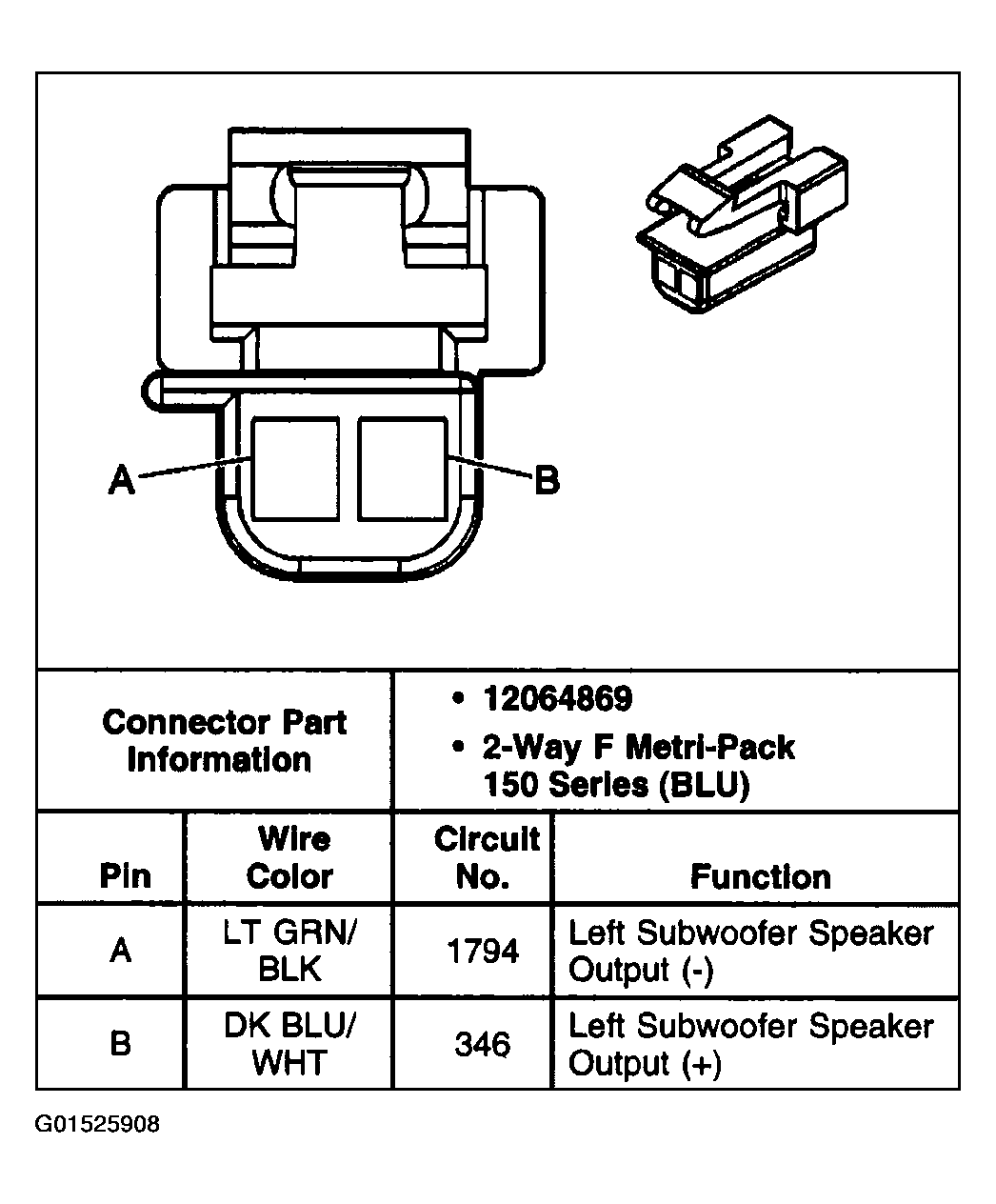

Fig 14: Identifying Speaker - LR (Subwoofer) (w/U99) Connector

G01525908

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Speaker - RF Door (w/o U99) Connector

G01525909

Courtesy of GENERAL MOTORS CORP.

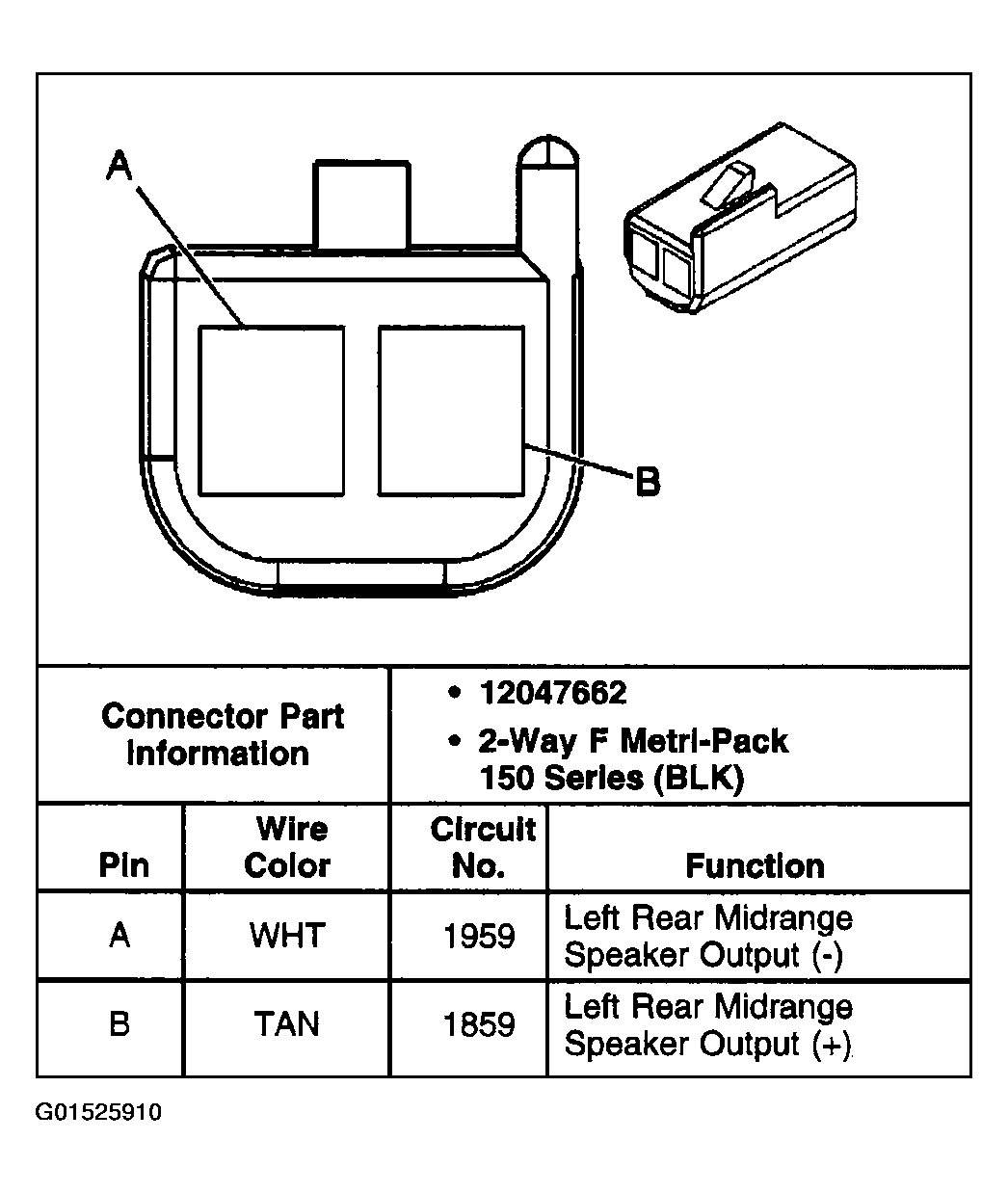

Fig 16: Identifying Speaker - LR Door (w/U99) Connector

G01525910

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying Speaker - RF Door (w/U99) Connector

G01525911

Courtesy of GENERAL MOTORS CORP.

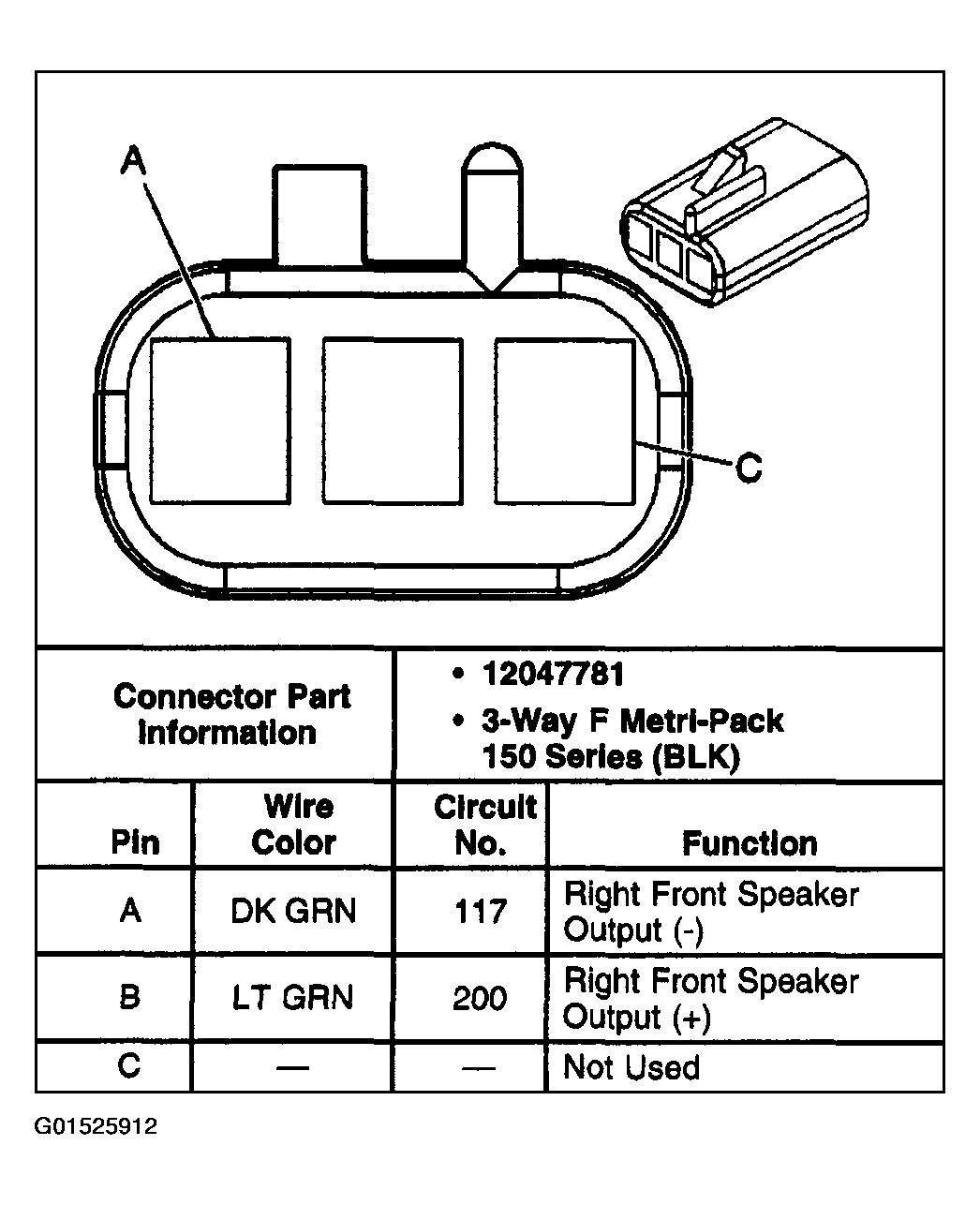

Fig 18: Identifying Speaker - RF Door Tweeter (w/o U99) Connector

G01525912

Courtesy of GENERAL MOTORS CORP.

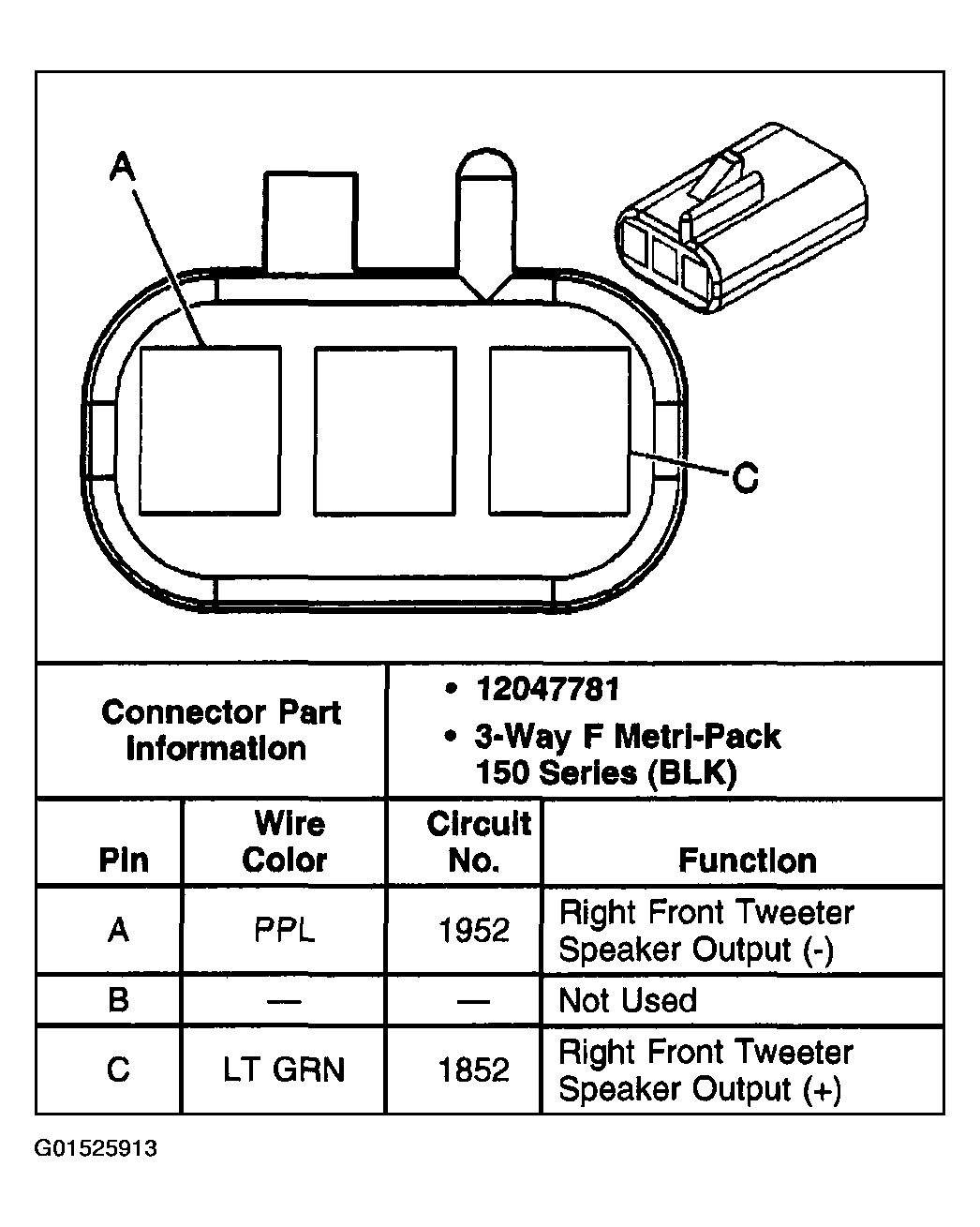

Fig 19: Identifying Speaker - RF Door Tweeter (w/U99) Connector

G01525913

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Speaker - RR Connector

G01525914

Courtesy of GENERAL MOTORS CORP.

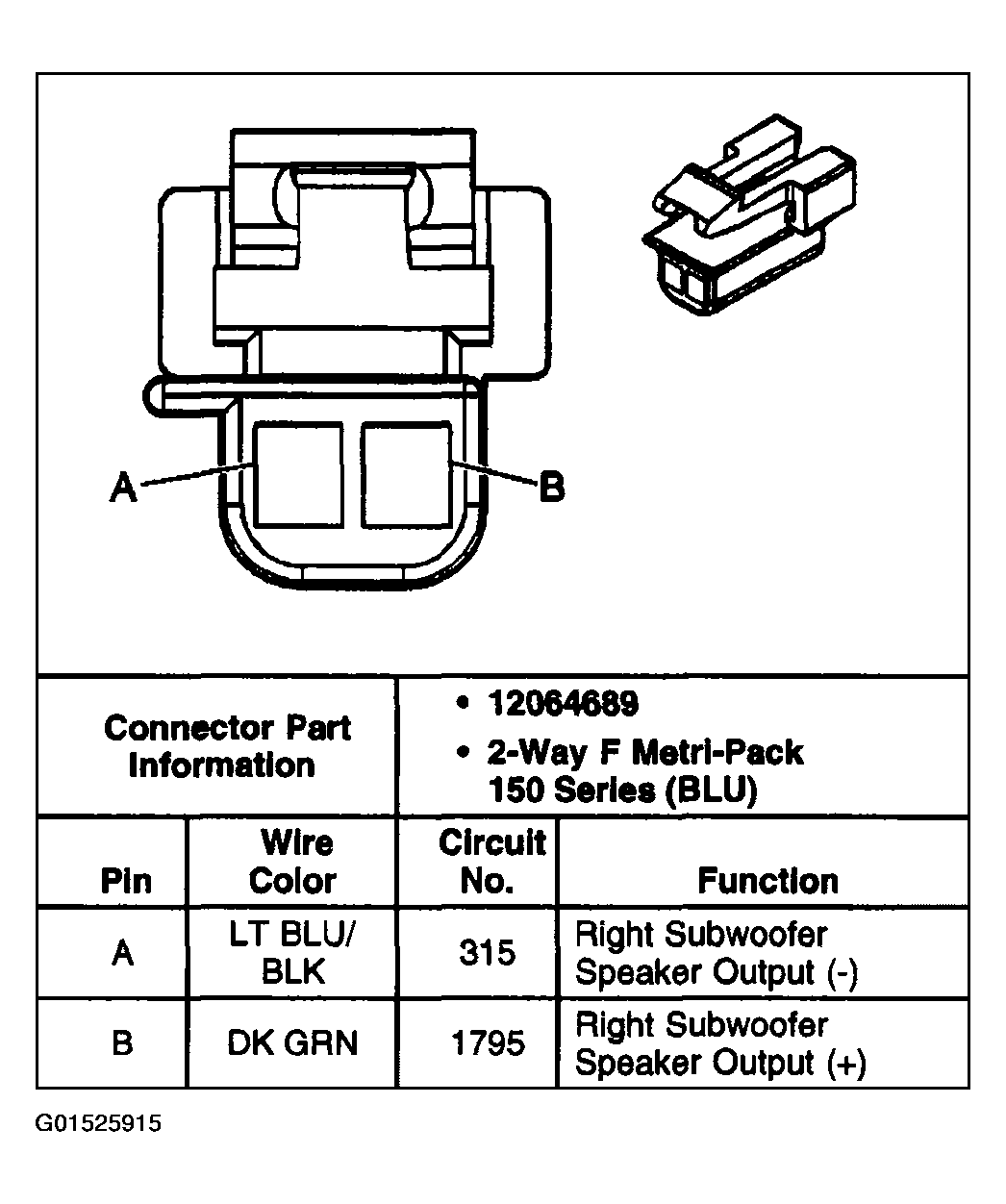

Fig 21: Identifying Speaker - RR (Subwoofer) (w/U99) Connector

G01525915

Courtesy of GENERAL MOTORS CORP.

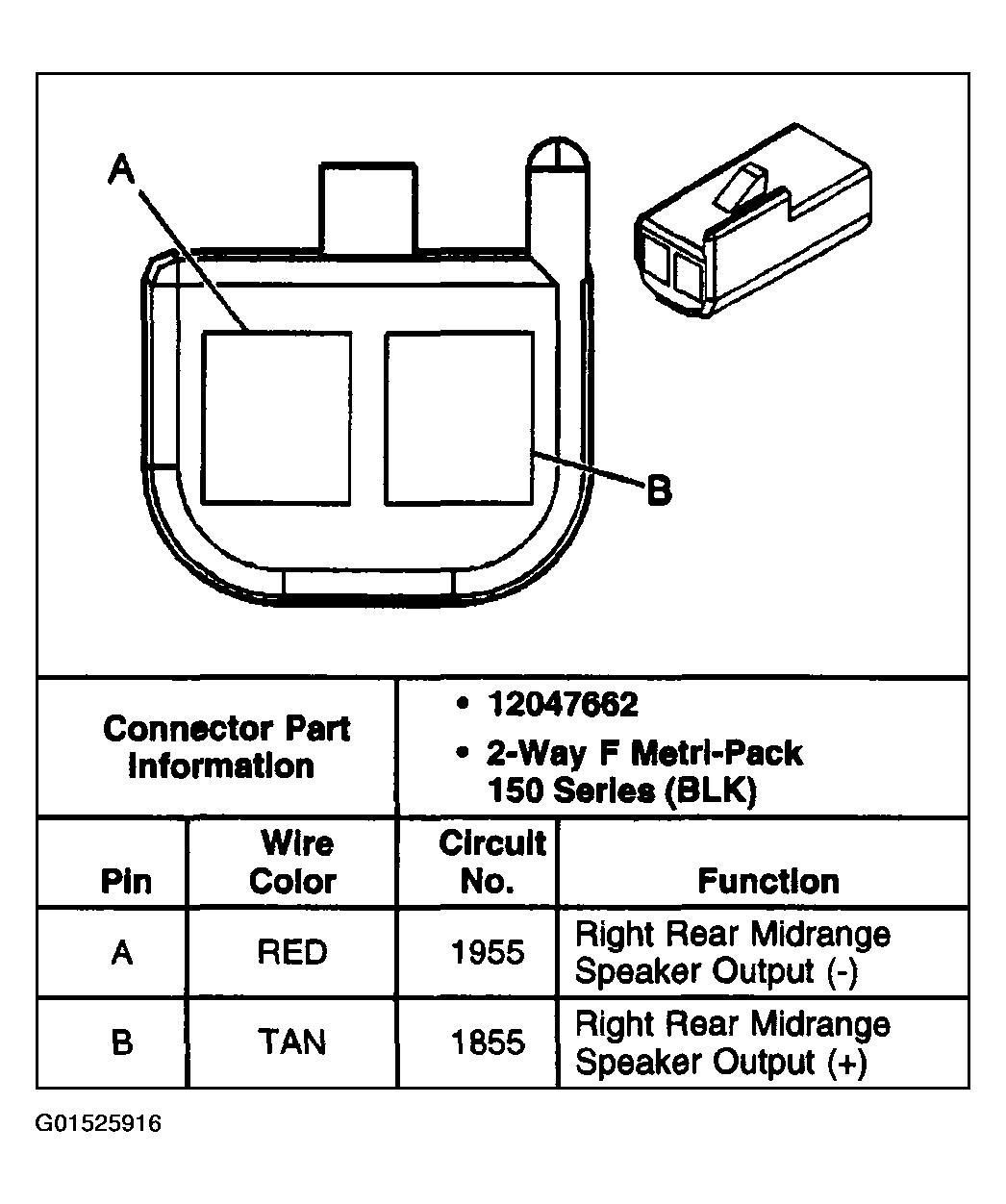

Fig 22: Identifying Speaker - RR Door (w/U99) Connector

G01525916

Courtesy of GENERAL MOTORS CORP.
