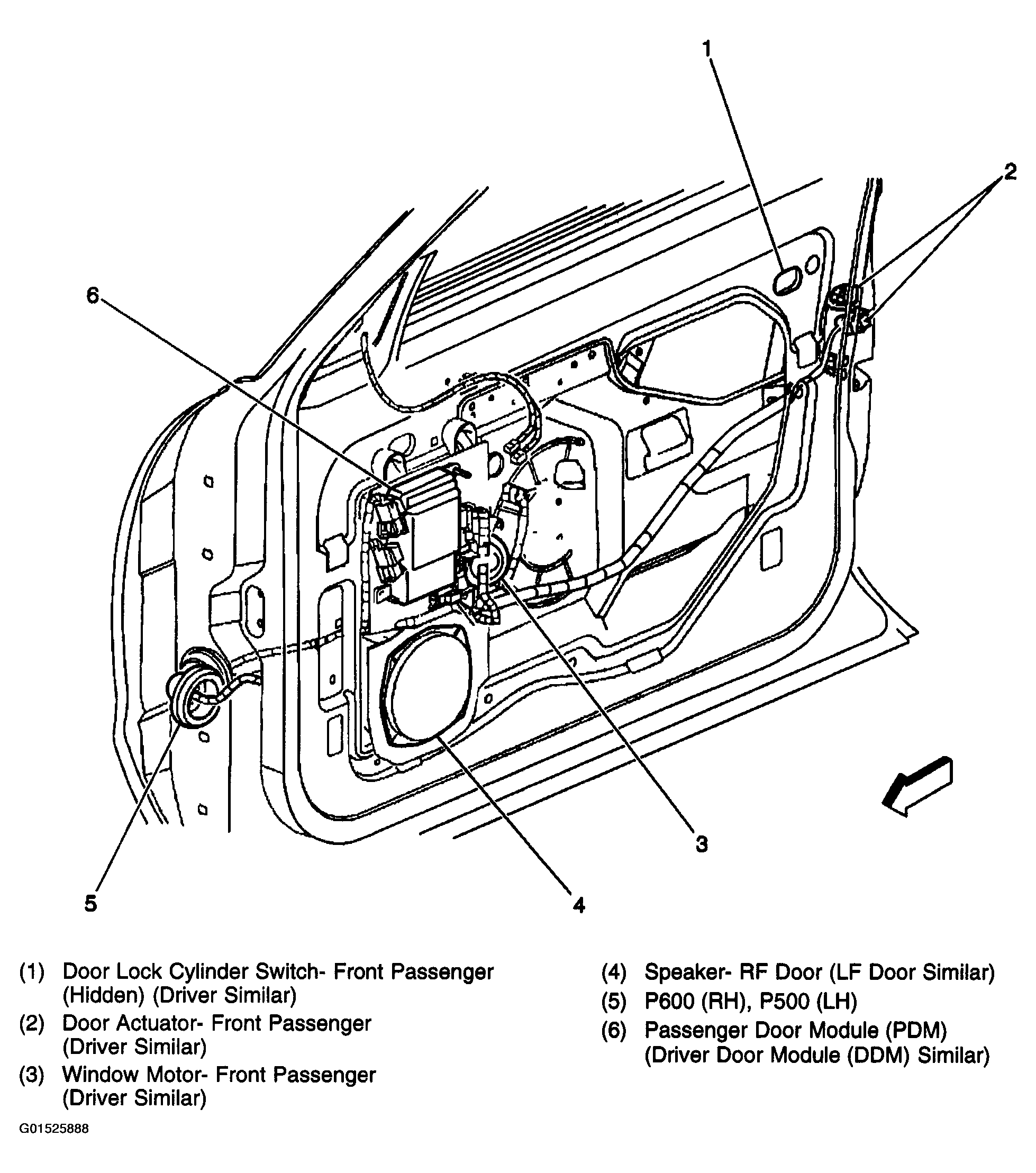

Fig 1: Right Front Door, Behind Trim Pad
Courtesy of GENERAL MOTORS CORP.

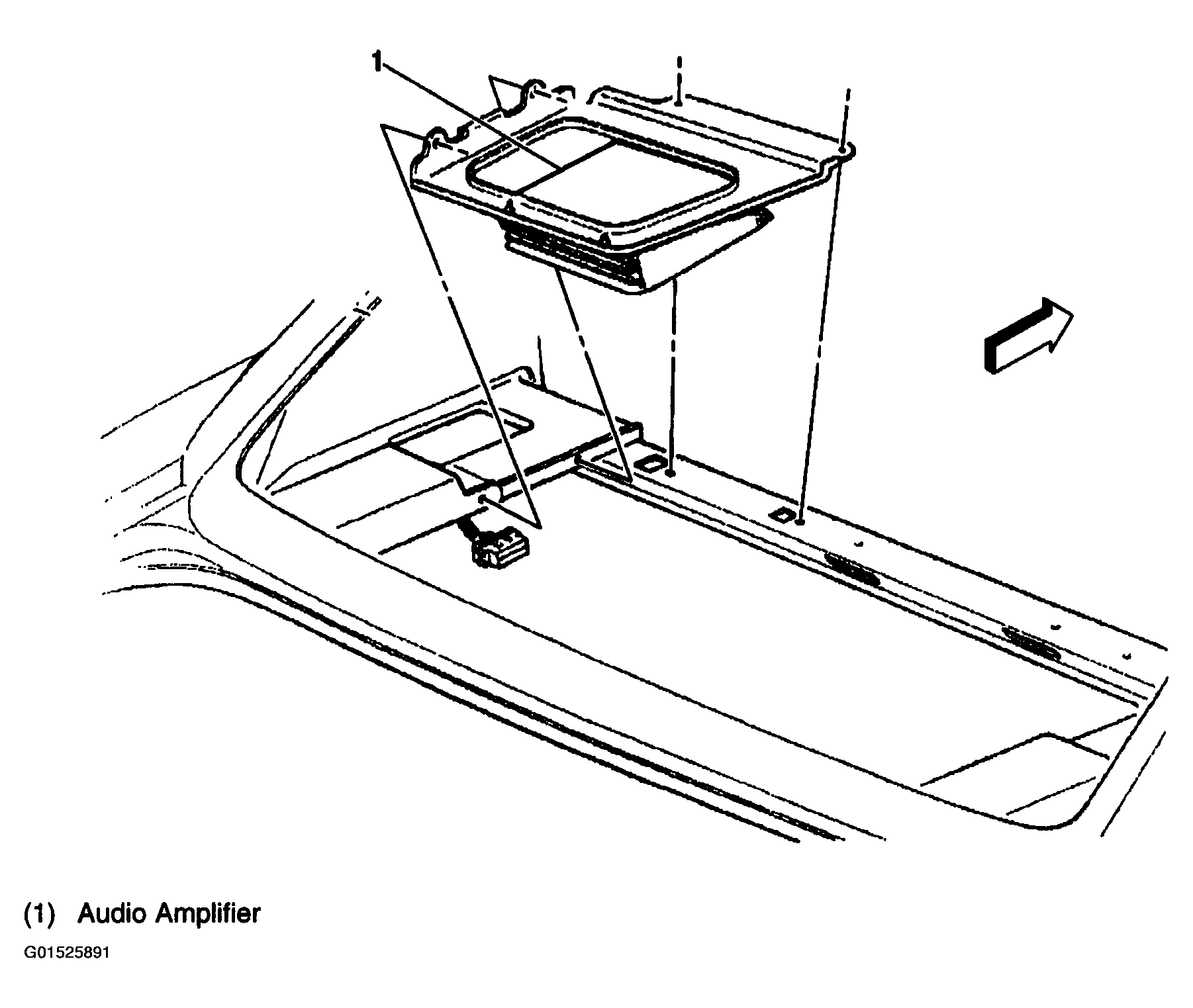

Fig 2: Center Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

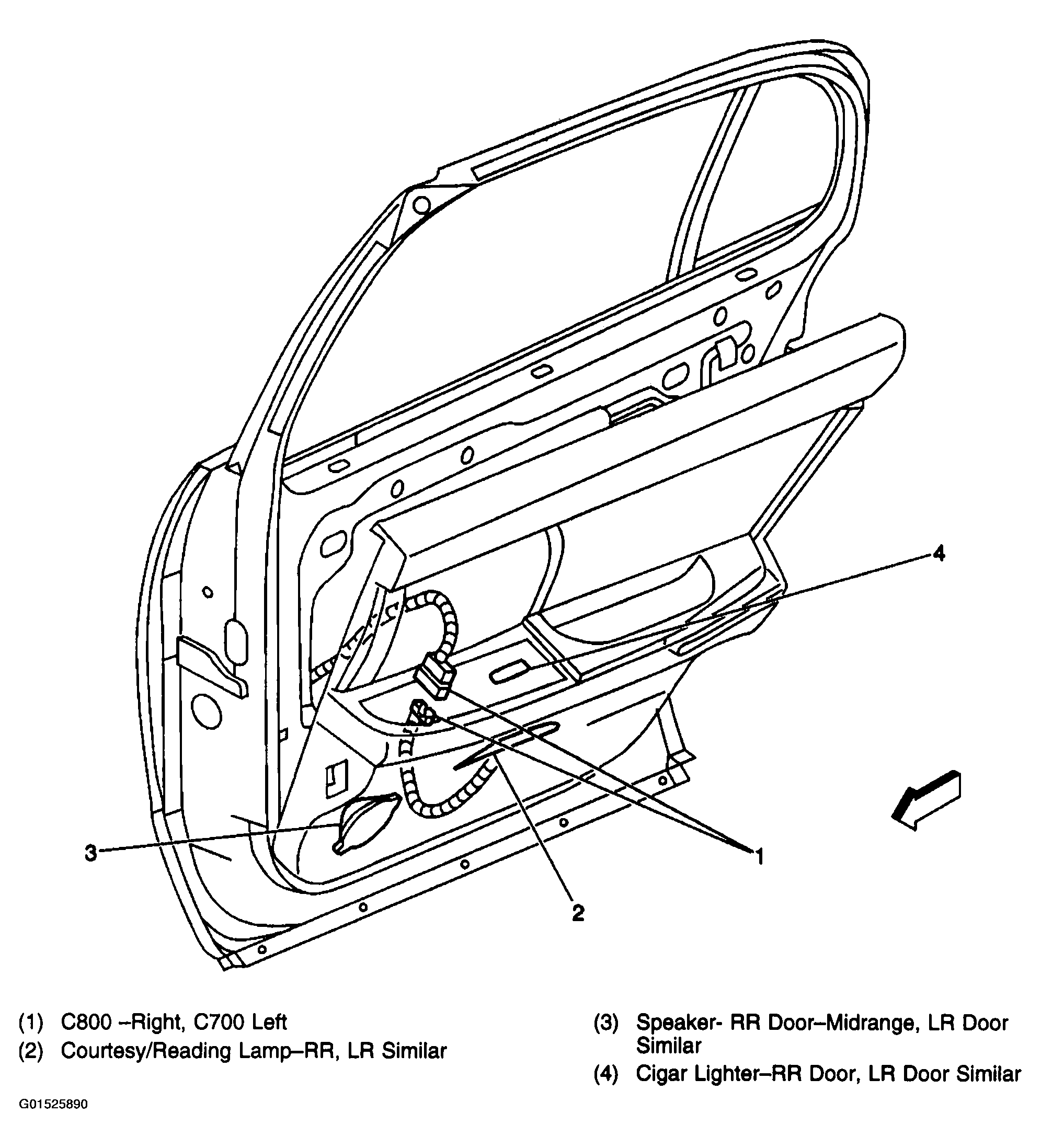

Fig 3: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

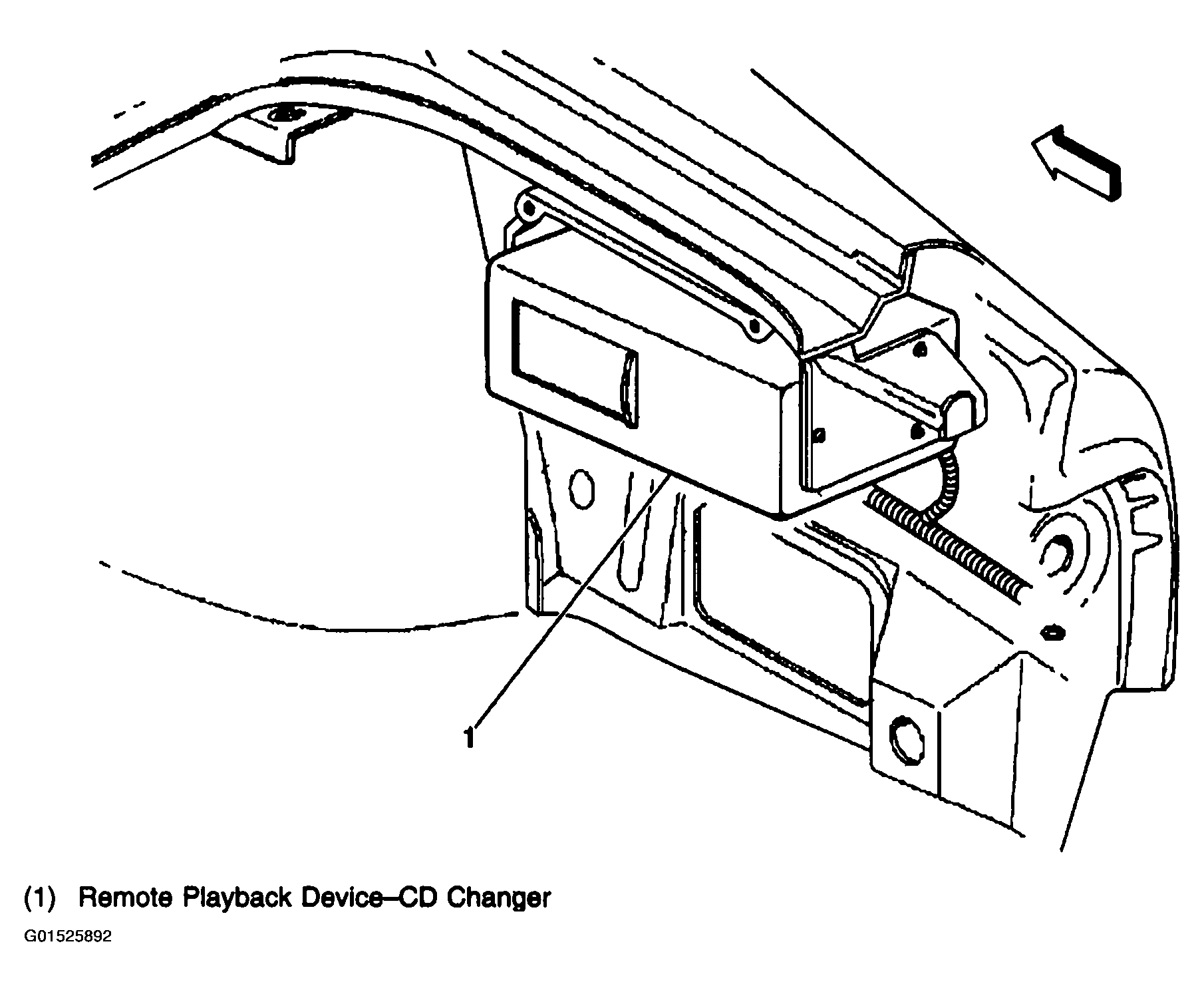

Fig 4: Left Front For Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Right Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

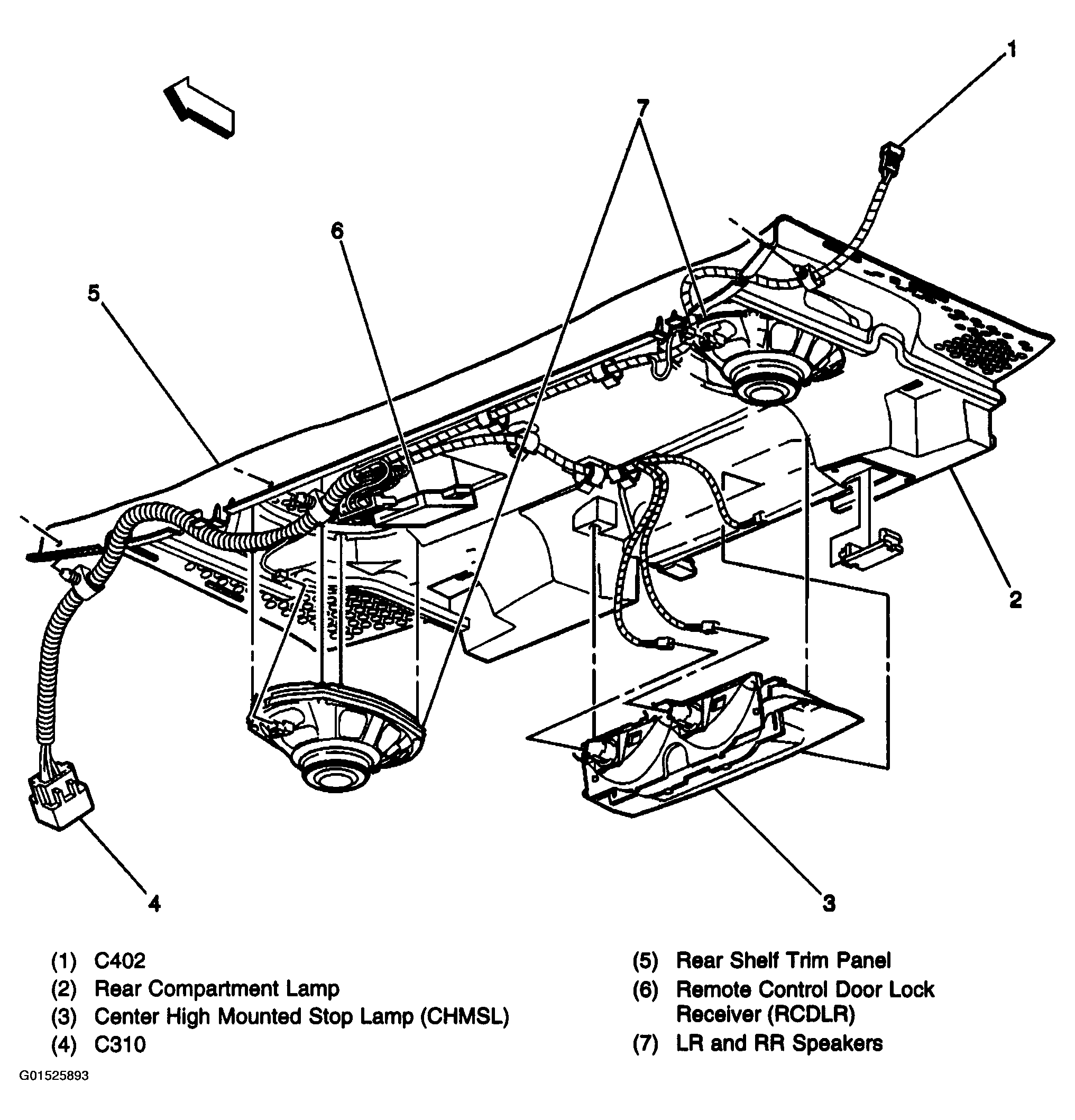

Fig 6: Rear Compartment, Below Rear Shelf Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 7: Passenger Compartment, Front Of Instrument Panel
