Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent level sensor grommet to the washer solvent container.
    IMPORTANT: The tab on the washer solvent level sensor must be aligned with the slot in the hole on the container.
  2. Install the washer solvent level sensor into the washer solvent container.

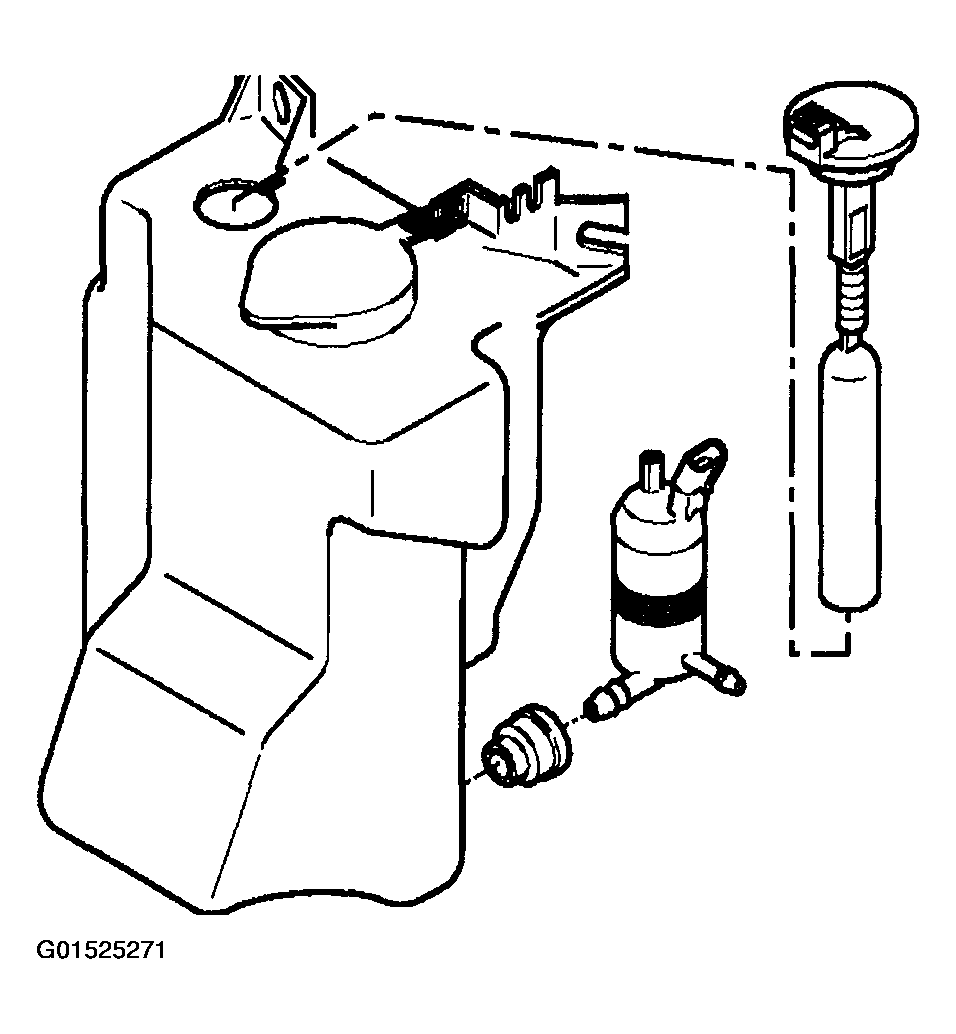

    Fig 1: Installing Washer Solvent Level Sensor Into Washer Solvent Container
    G01525271Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the level sensor.

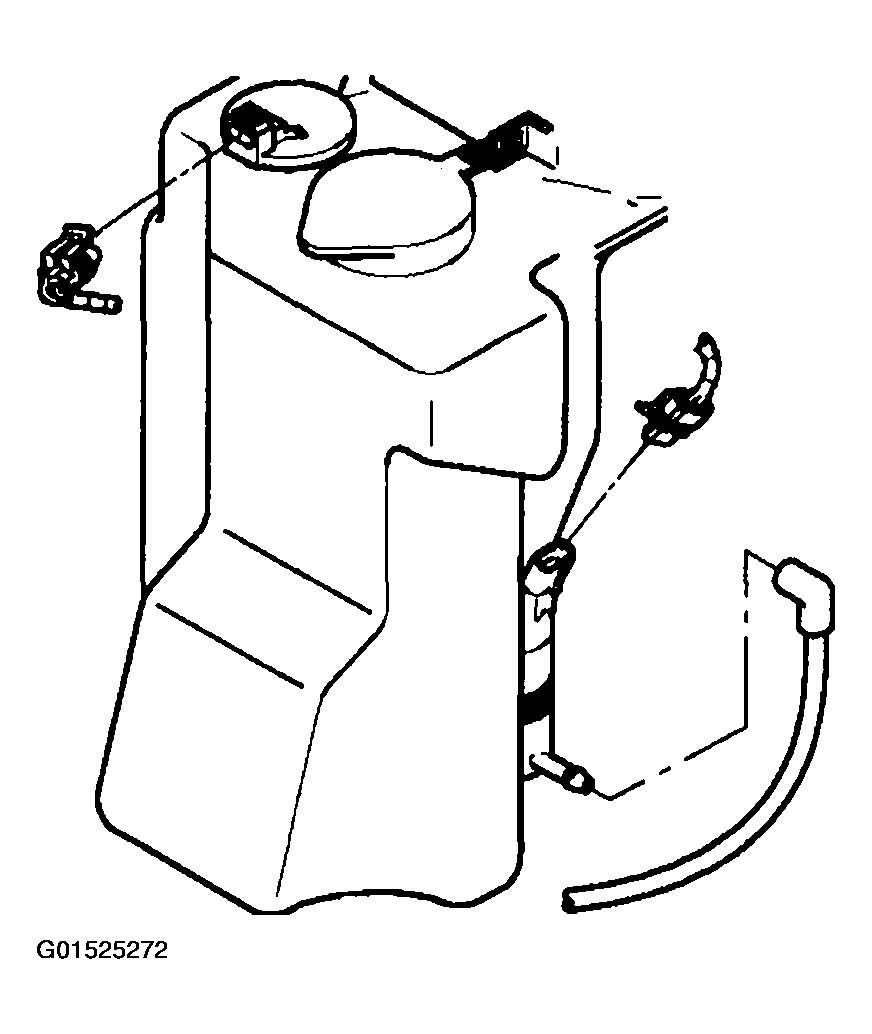

    Fig 2: Connecting Electrical Connector To Level Sensor
    G01525272Courtesy of GENERAL MOTORS CORP.
  4. Fill the washer solvent container with washer solvent.
  5. Secure the washer solvent container cap.
  6. Verify the wiper washer system operation.
