Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the memory switch (1) to the trim panel and fasten the switch by pushing downward.
  2. Connect the electrical connector.
  3. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.

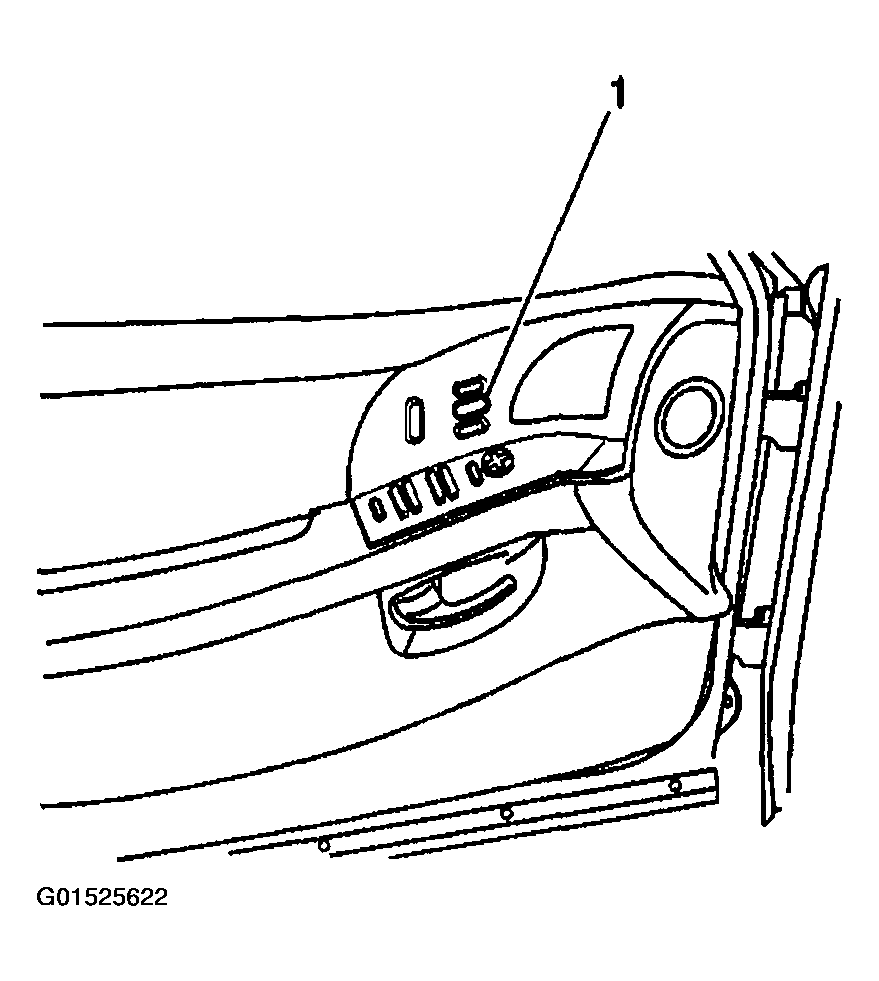

    Fig 1: Installing Memory Switch To Trim Panel
    G01525622Courtesy of GENERAL MOTORS CORP.
