Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the switch to the bezel.
  2. Fasten the switch to the bezel by pushing downward.
  3. Connect the electrical connectors.

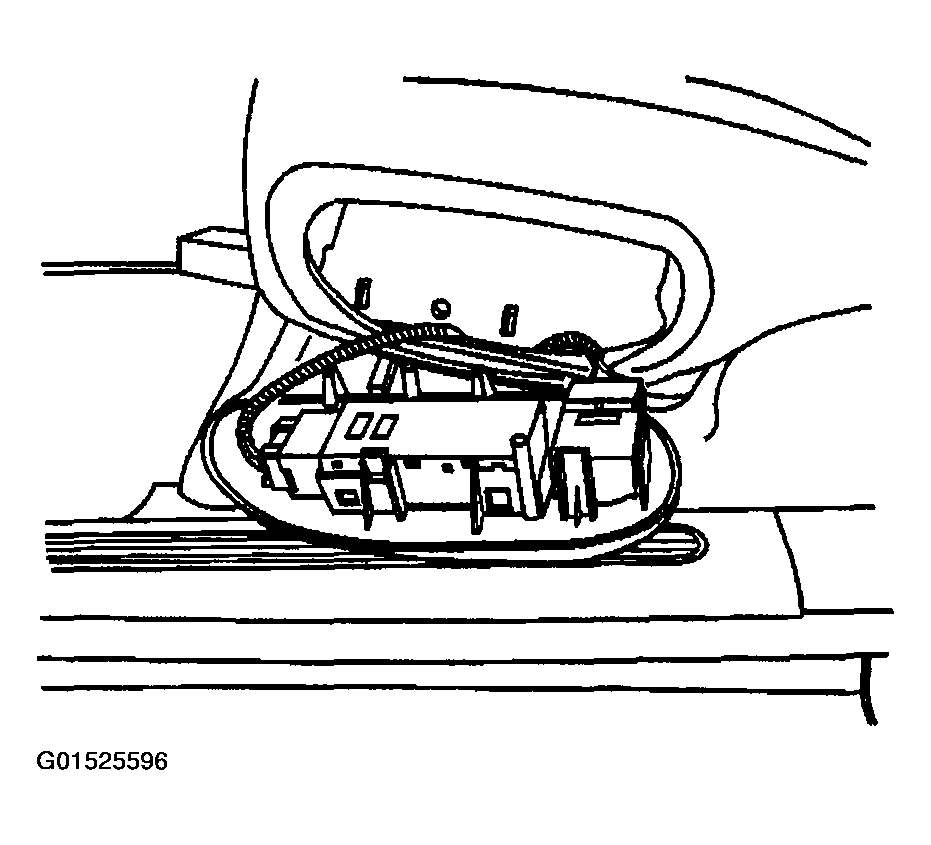

    Fig 1: Connecting Electrical Connectors
    G01525596Courtesy of GENERAL MOTORS CORP.
  4. Align the bezel to the seat (1).

    Push inward to engage the retaining clips.

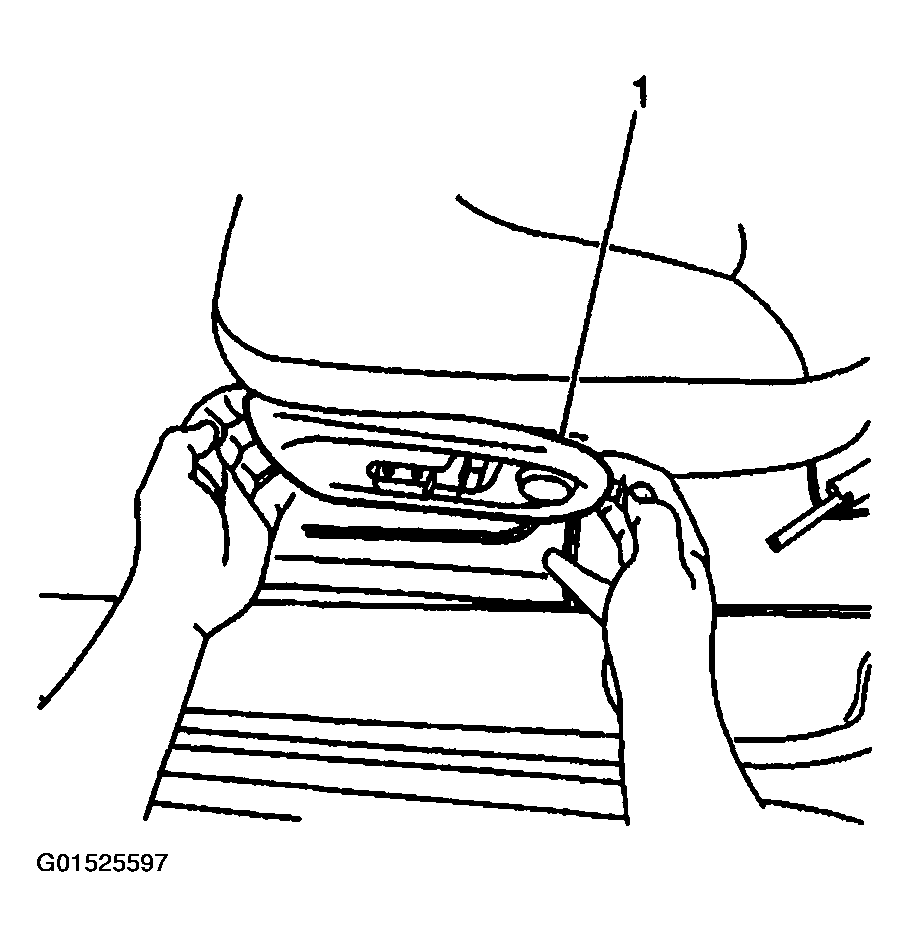

    Fig 2: Installing Bezel To Seat
    G01525597Courtesy of GENERAL MOTORS CORP.
