Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

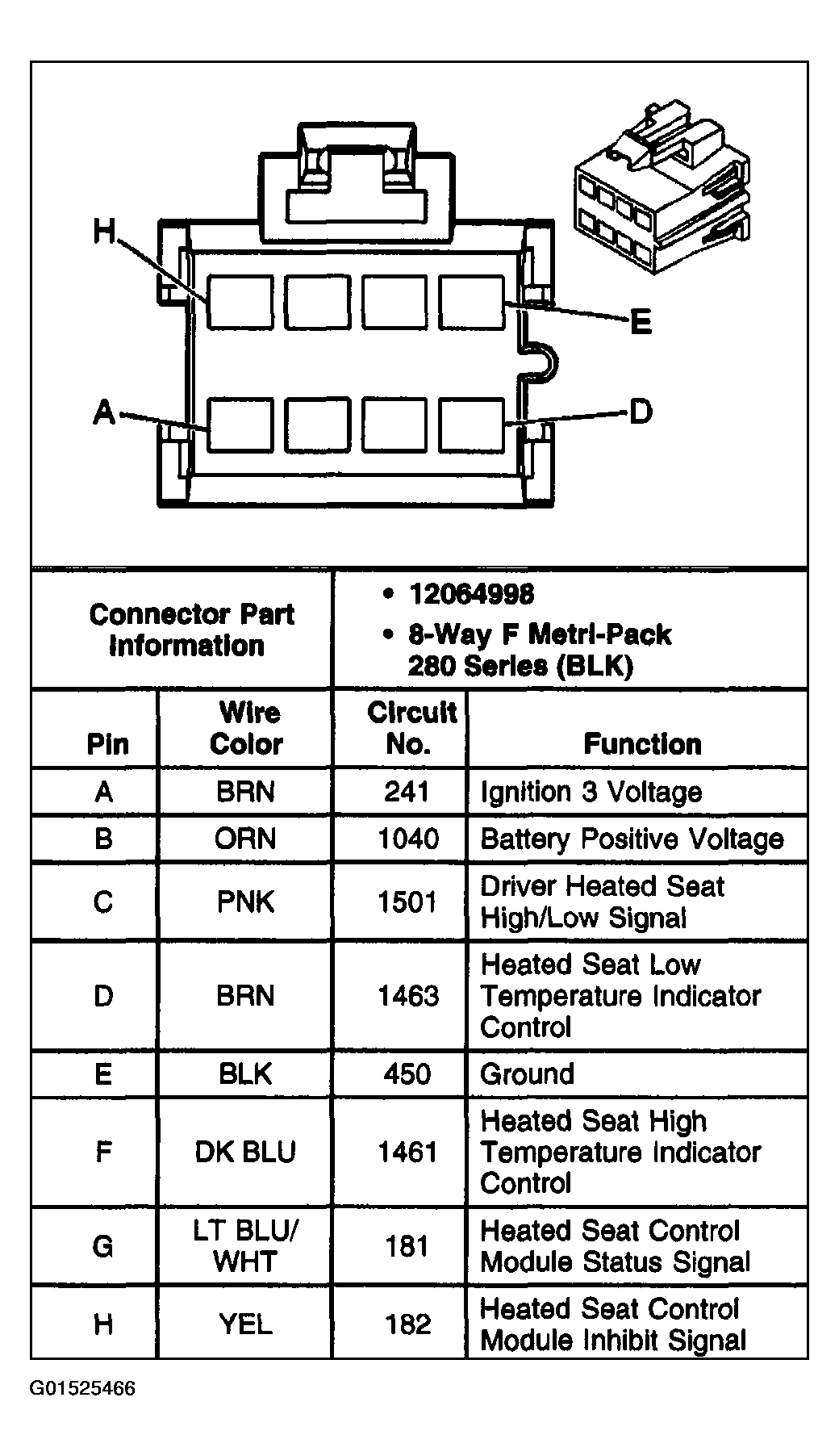

Fig 1: Heated Seat Module - Driver - C1 Connector End View
G01525466Courtesy of GENERAL MOTORS CORP.

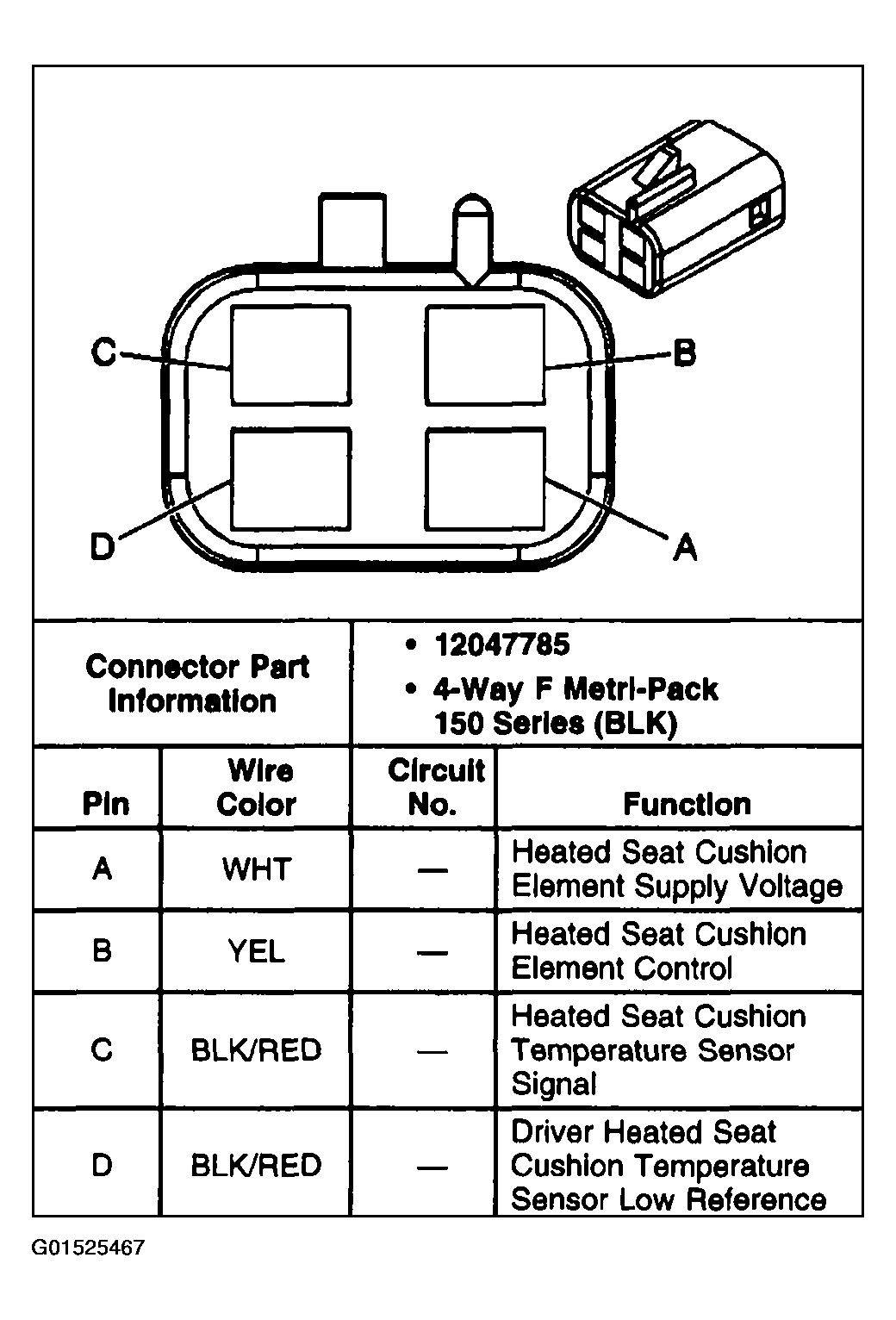

Fig 2: Heated Seat Module - Driver - C2 (Seat Cushion) Connector End View
G01525467Courtesy of GENERAL MOTORS CORP.

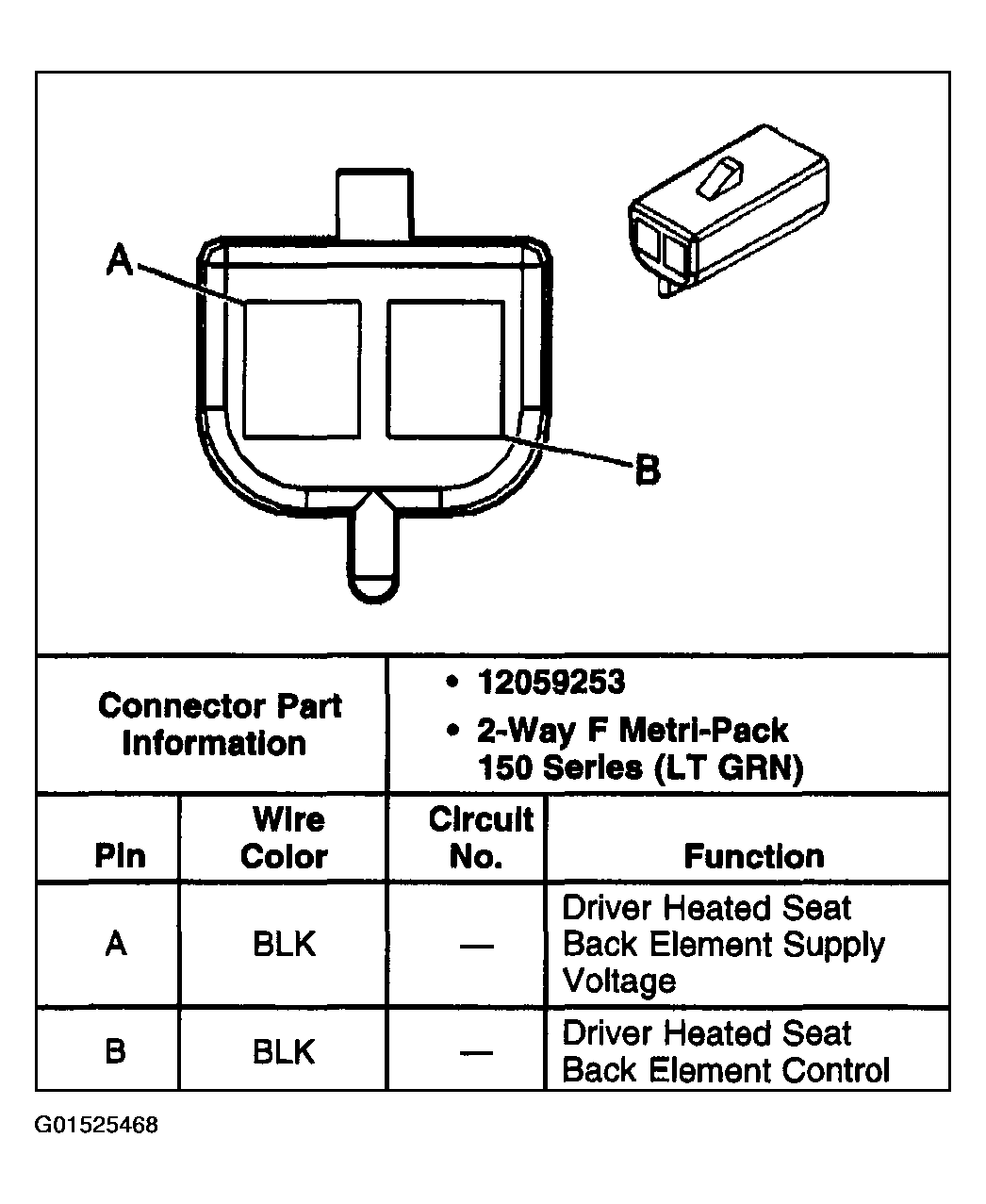

Fig 3: Heated Seat Module - Driver - C3 (Seat Back) Connector End View
G01525468Courtesy of GENERAL MOTORS CORP.

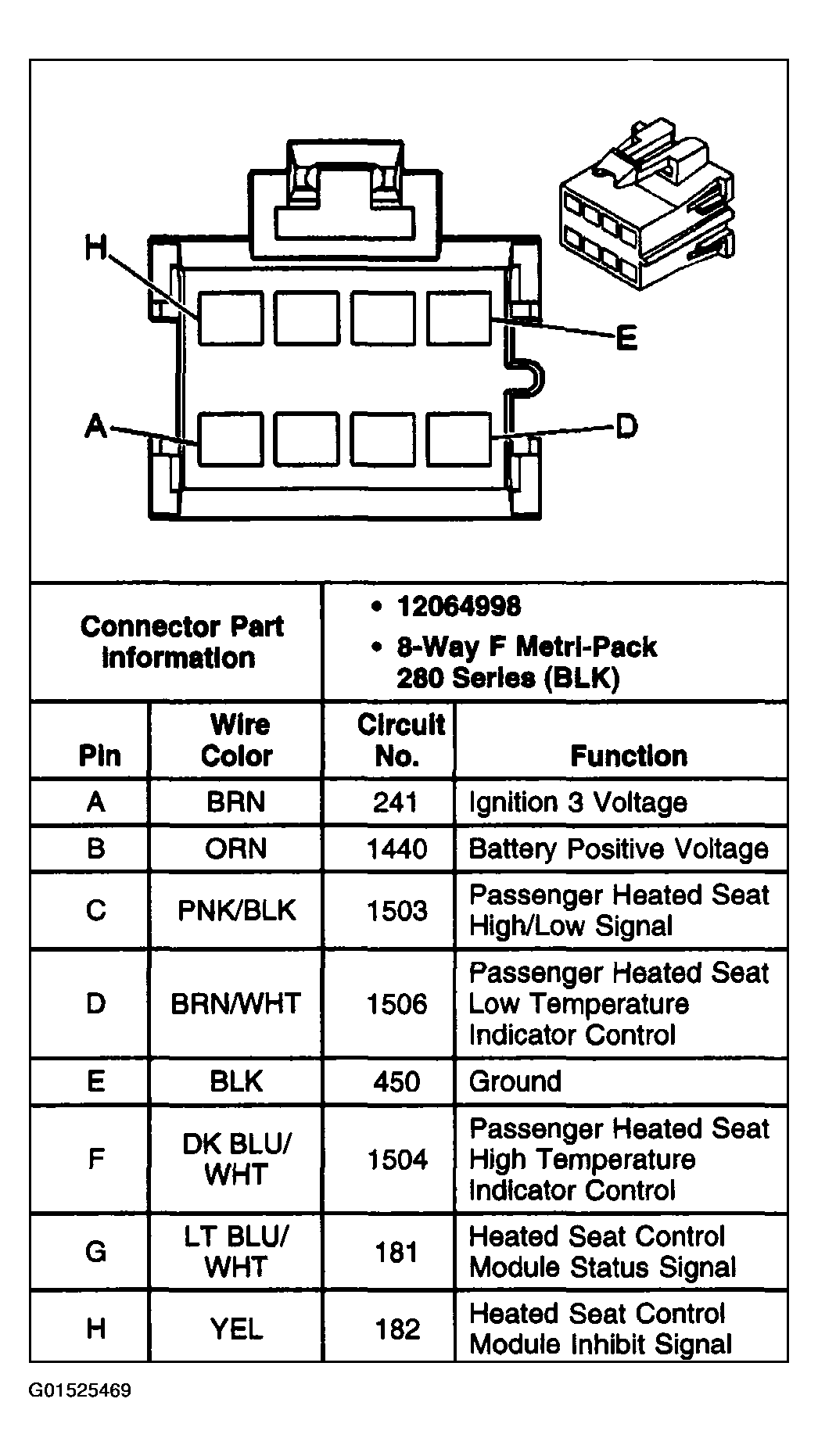

Fig 4: Heated Seat Module - Front Passenger - C1 Connector End View
G01525469Courtesy of GENERAL MOTORS CORP.

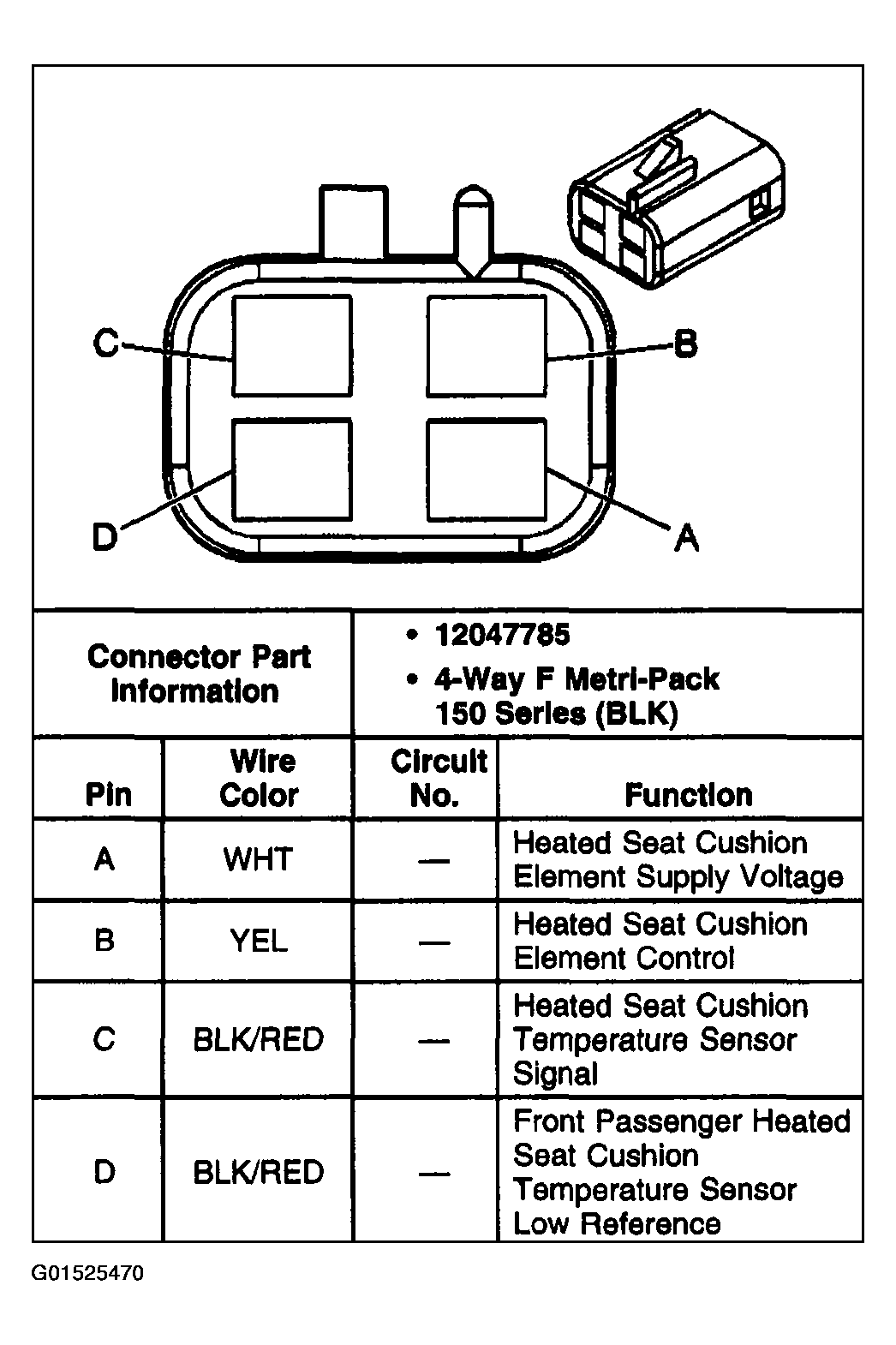

Fig 5: Heated Seat Module - Front Passenger - C2 (Seat Cushion) Connector End View
G01525470Courtesy of GENERAL MOTORS CORP.

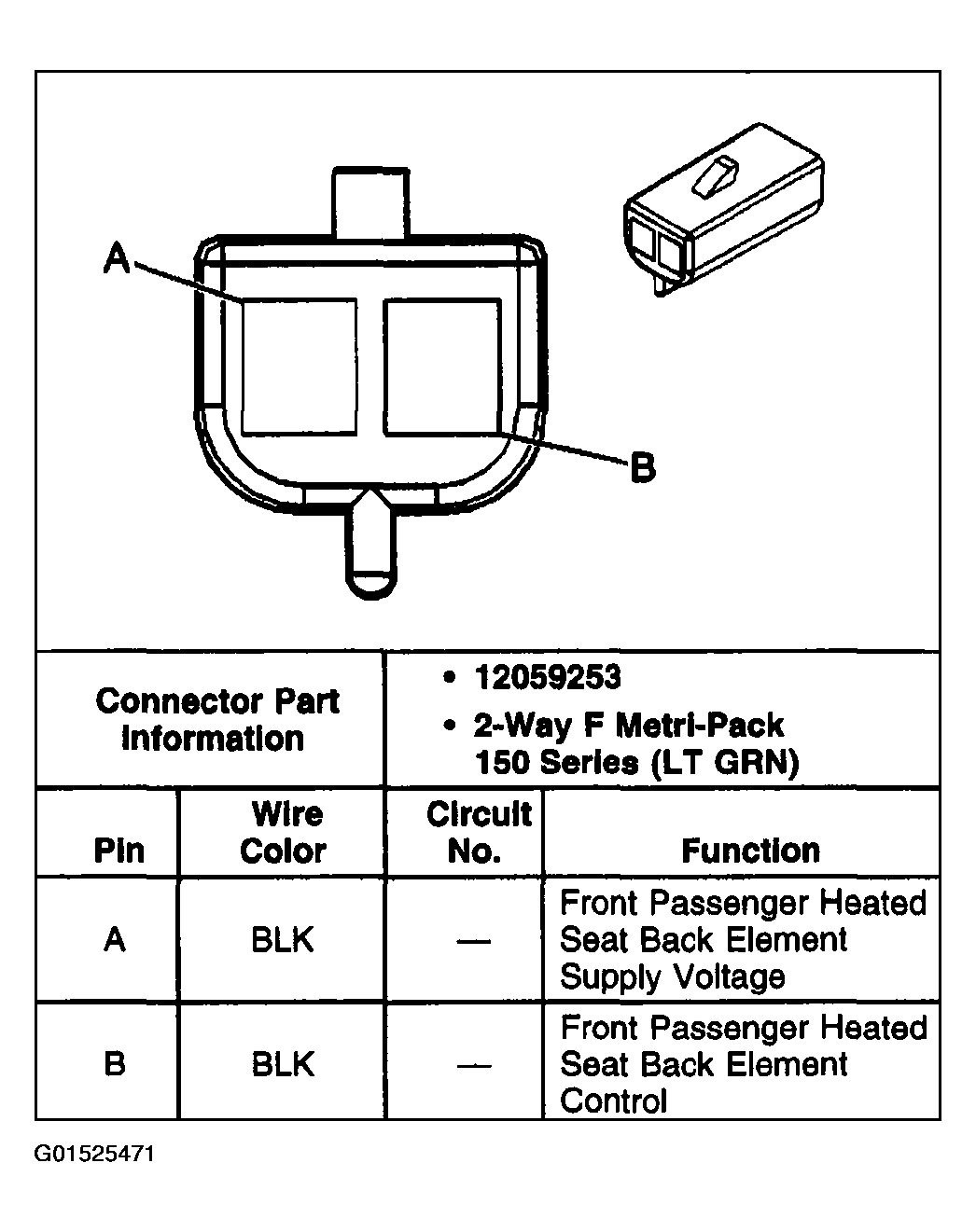

Fig 6: Heated Seat Module - Front Passenger - C3 (Seat Back) Connector End View
G01525471Courtesy of GENERAL MOTORS CORP.

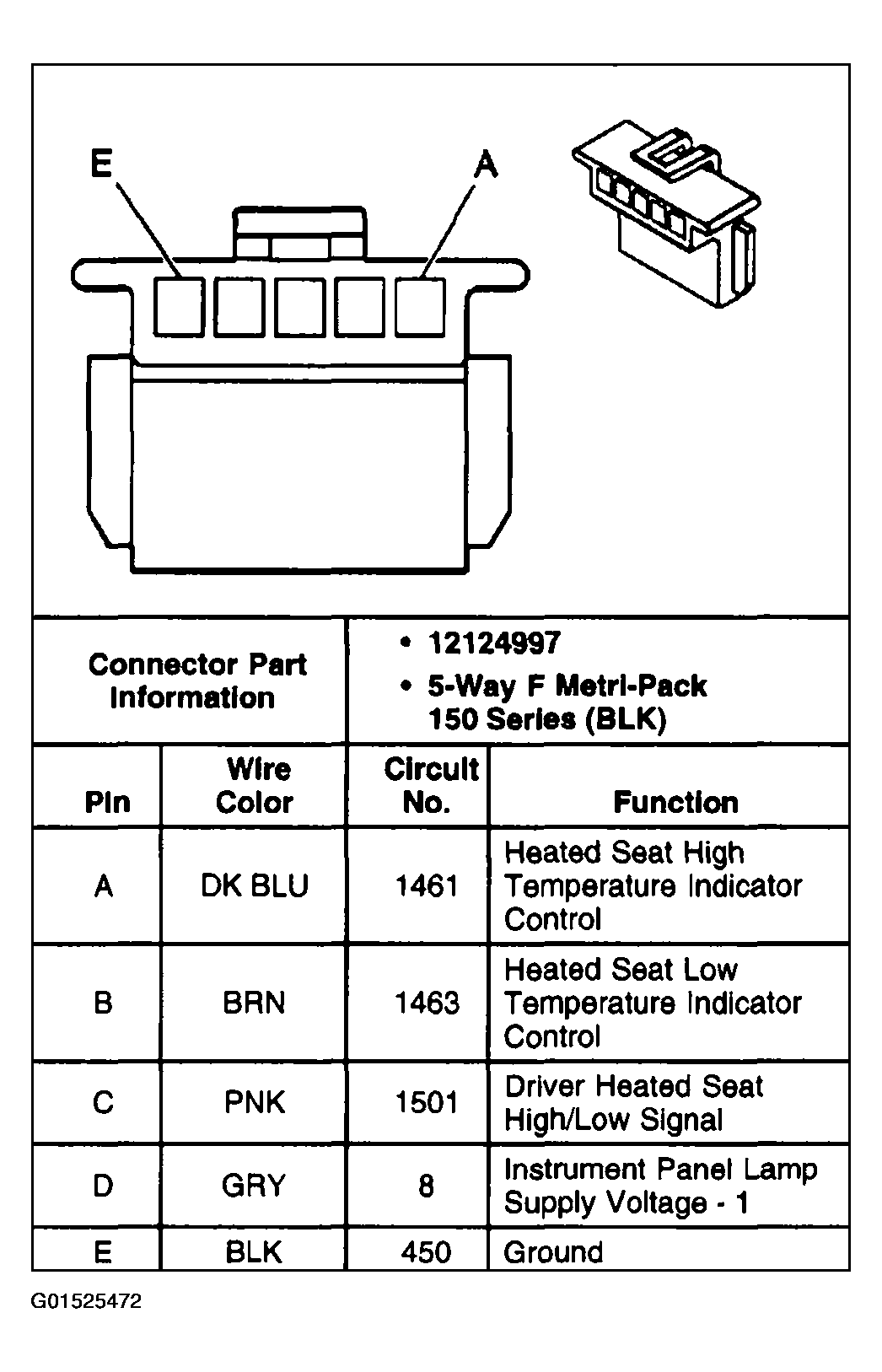

Fig 7: Heated Seat Switch - Driver Connector End View
G01525472Courtesy of GENERAL MOTORS CORP.

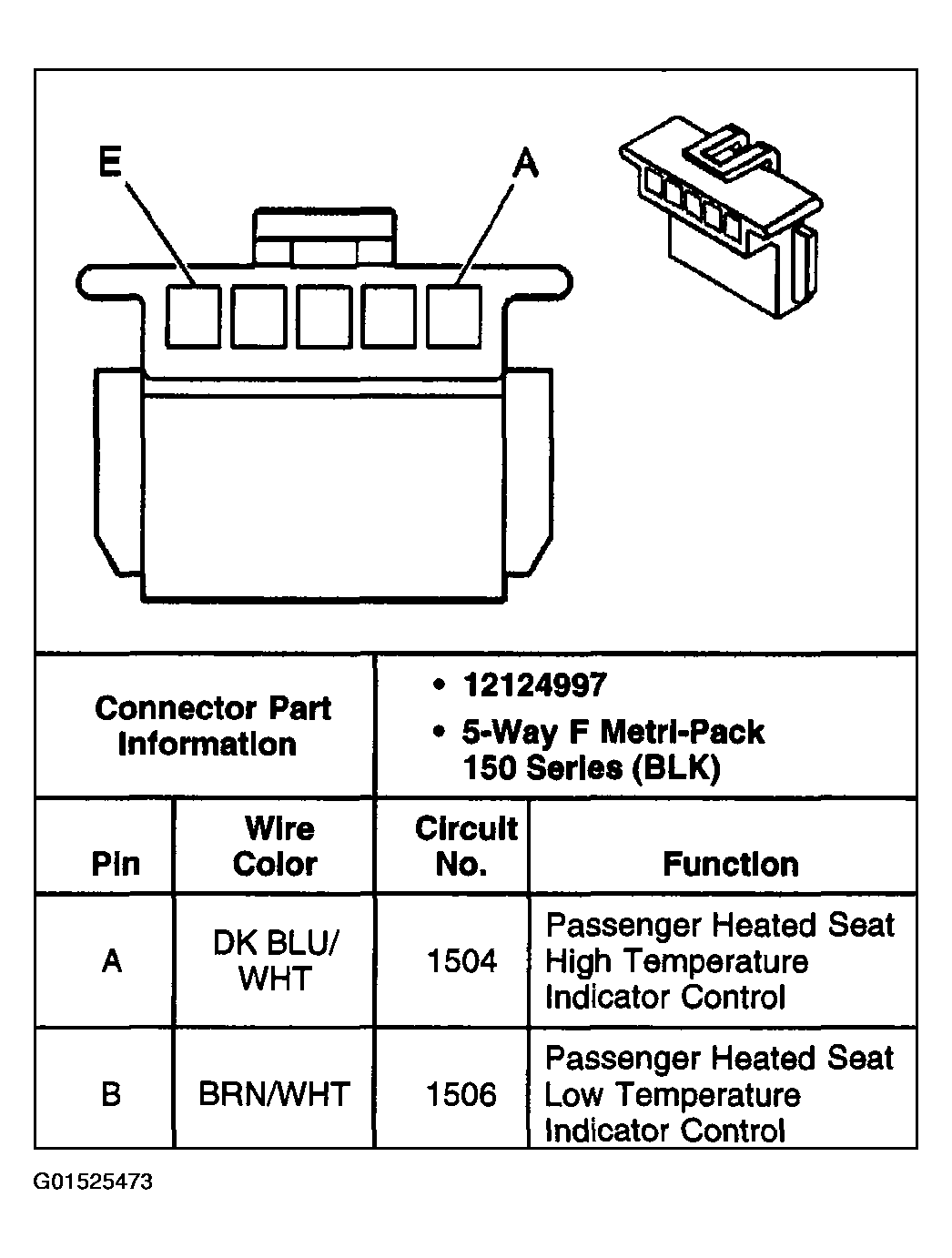

Fig 8: Heated Seat Switch - Front Passenger Connector End View (1 Of 2)
G01525473Courtesy of GENERAL MOTORS CORP.
Fig 9: Heated Seat Switch - Front Passenger Connector End View (2 Of 2)
G01525474Courtesy of GENERAL MOTORS CORP.
Fig 10: Memory/Personalization Function Switch Connector End View
G01525475Courtesy of GENERAL MOTORS CORP.

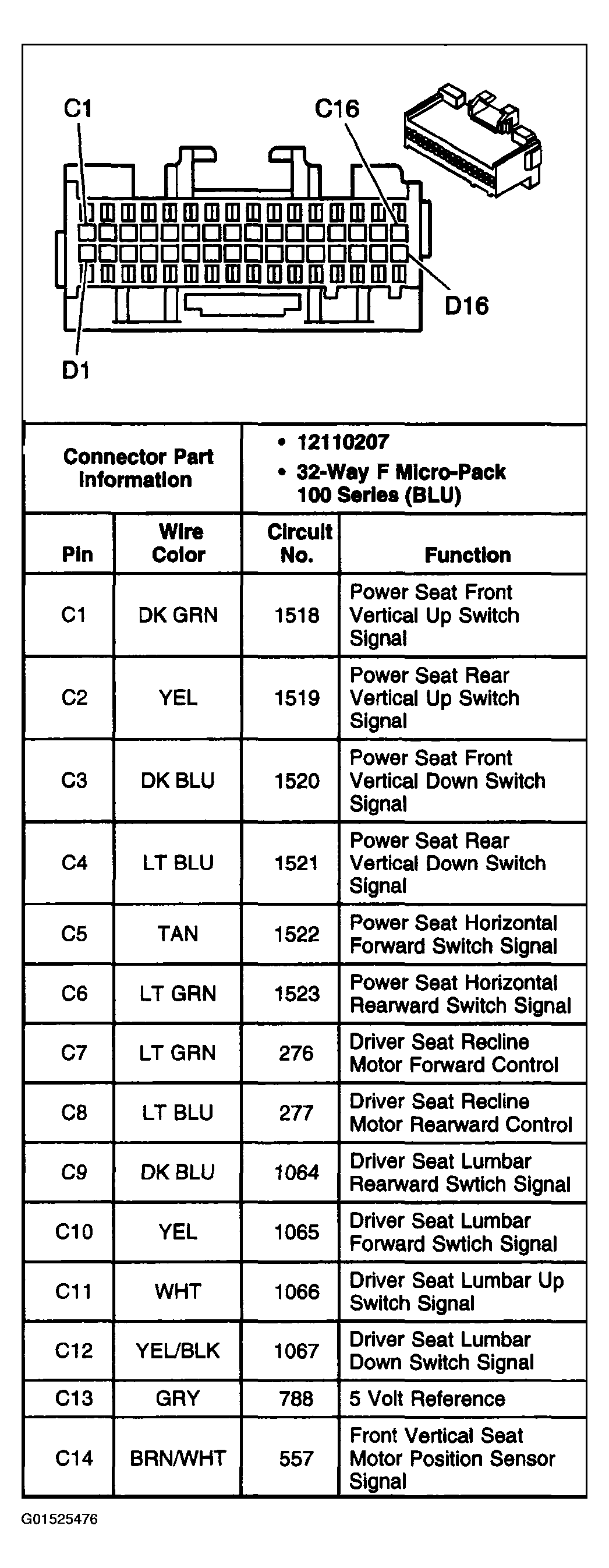

Fig 11: Memory Seat Module MSM C1 Connector End View (1 Of 2)
G01525476Courtesy of GENERAL MOTORS CORP.

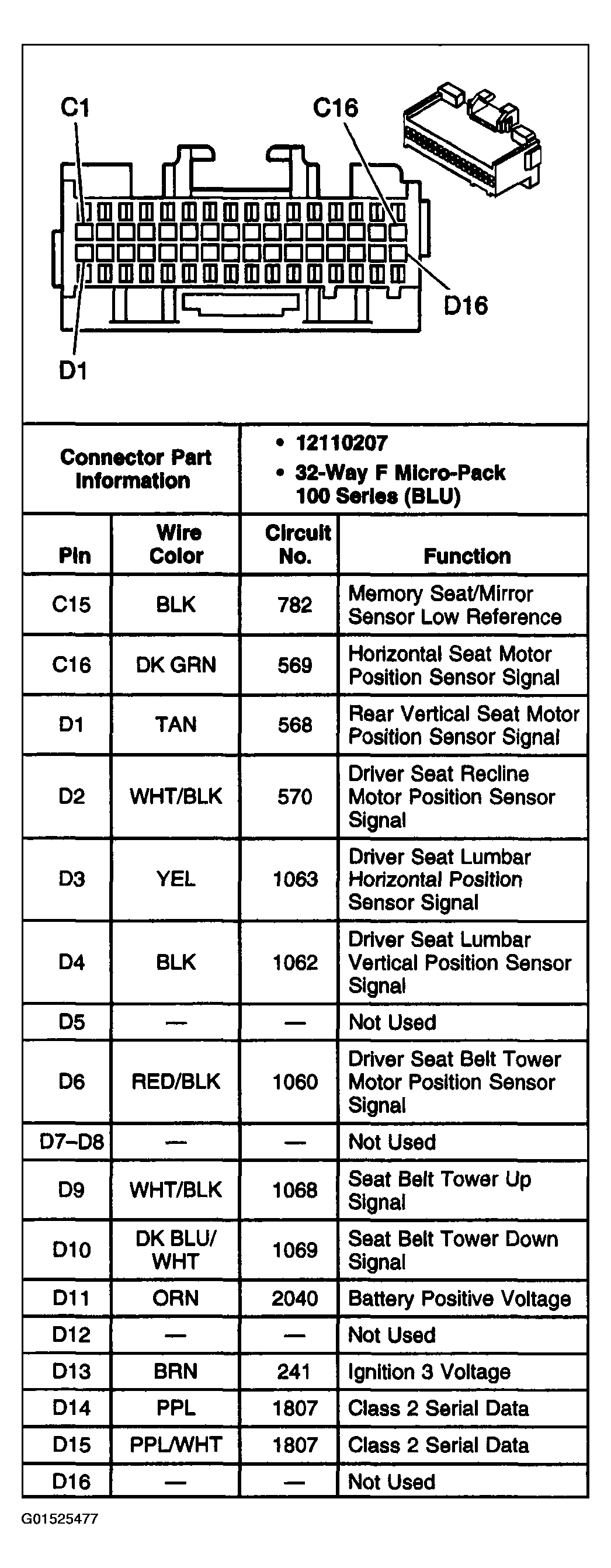

Fig 12: Memory Seat Module MSM C1 Connector End View (2 Of 2)
G01525477Courtesy of GENERAL MOTORS CORP.

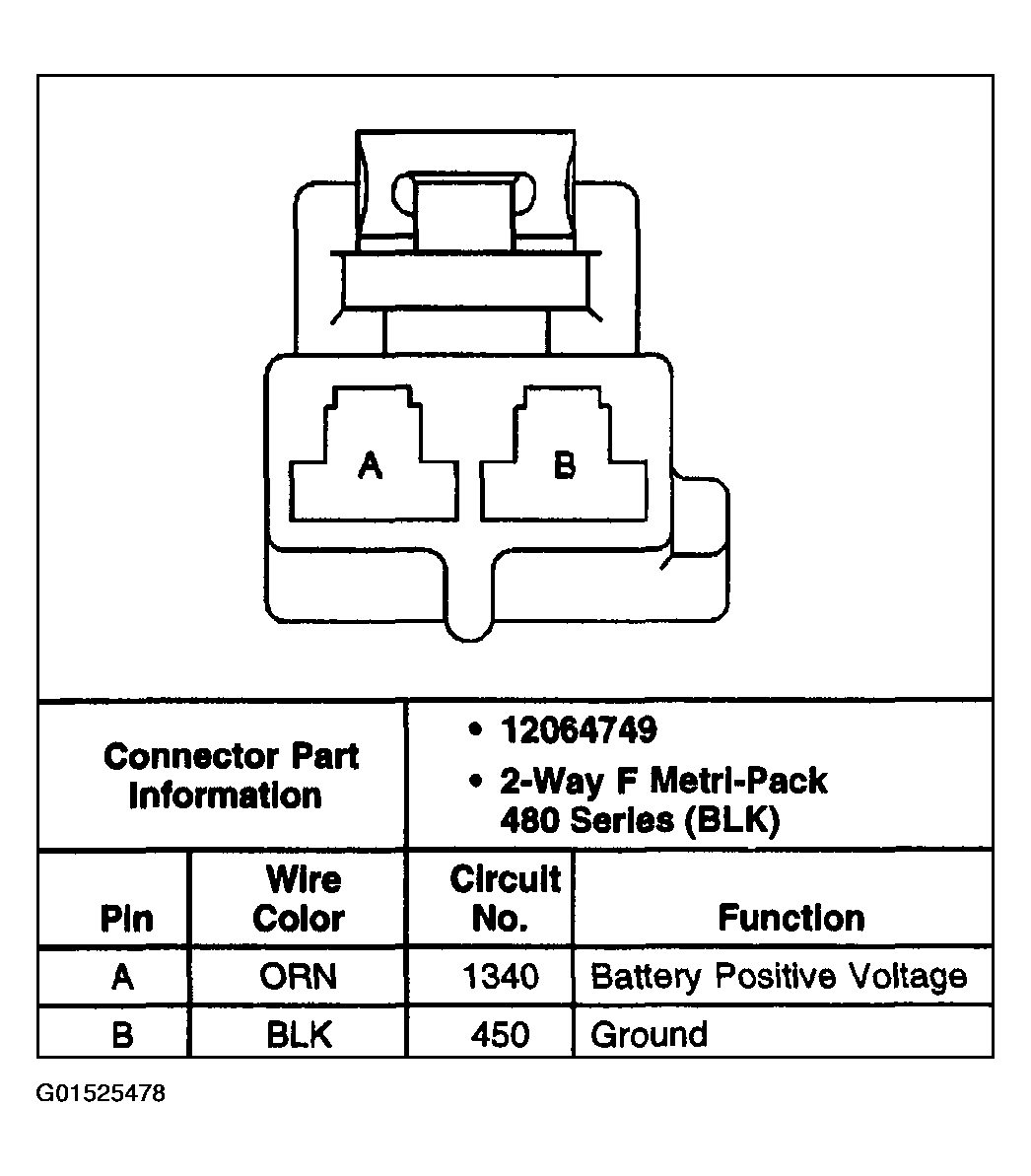

Fig 13: Memory Seat Module (MSM) C2 Connector End View
G01525478Courtesy of GENERAL MOTORS CORP.

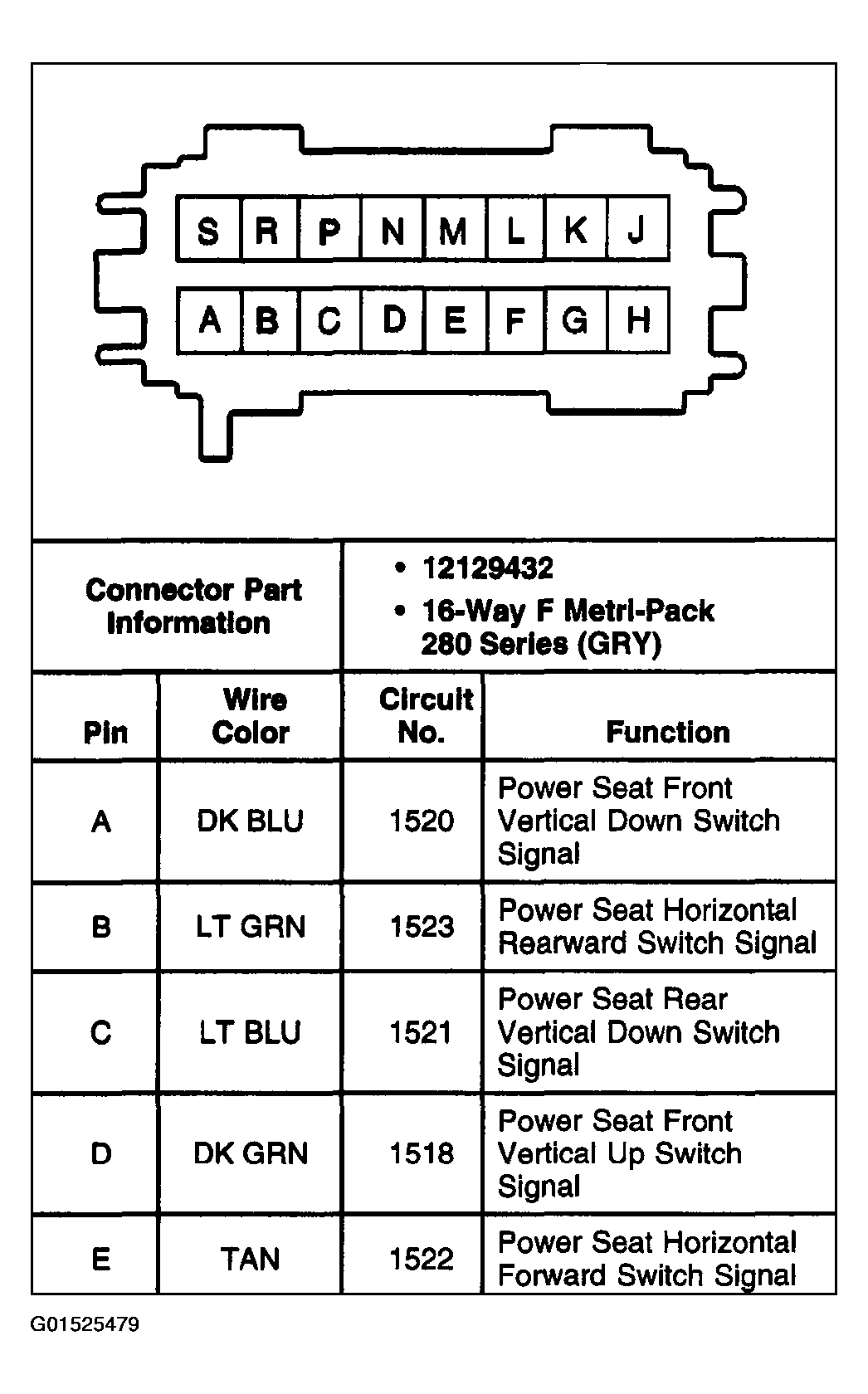

Fig 14: Seat Adjuster Switch - Driver Connector End View (W/ A45) (1 Of 2)
G01525479Courtesy of GENERAL MOTORS CORP.

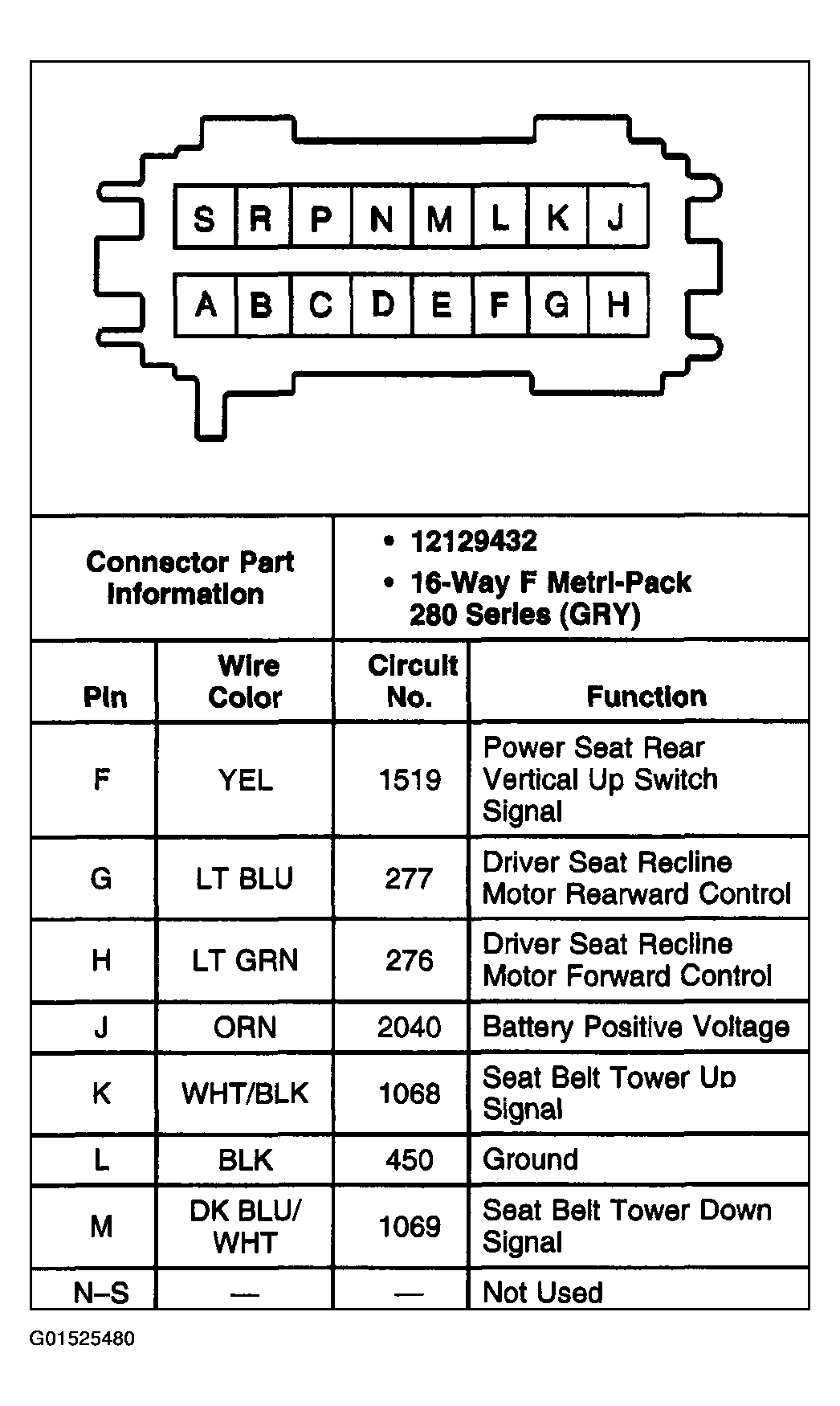

Fig 15: Seat Adjuster Switch - Driver Connector End View (W/ A45) (2 Of 2)
G01525480Courtesy of GENERAL MOTORS CORP.

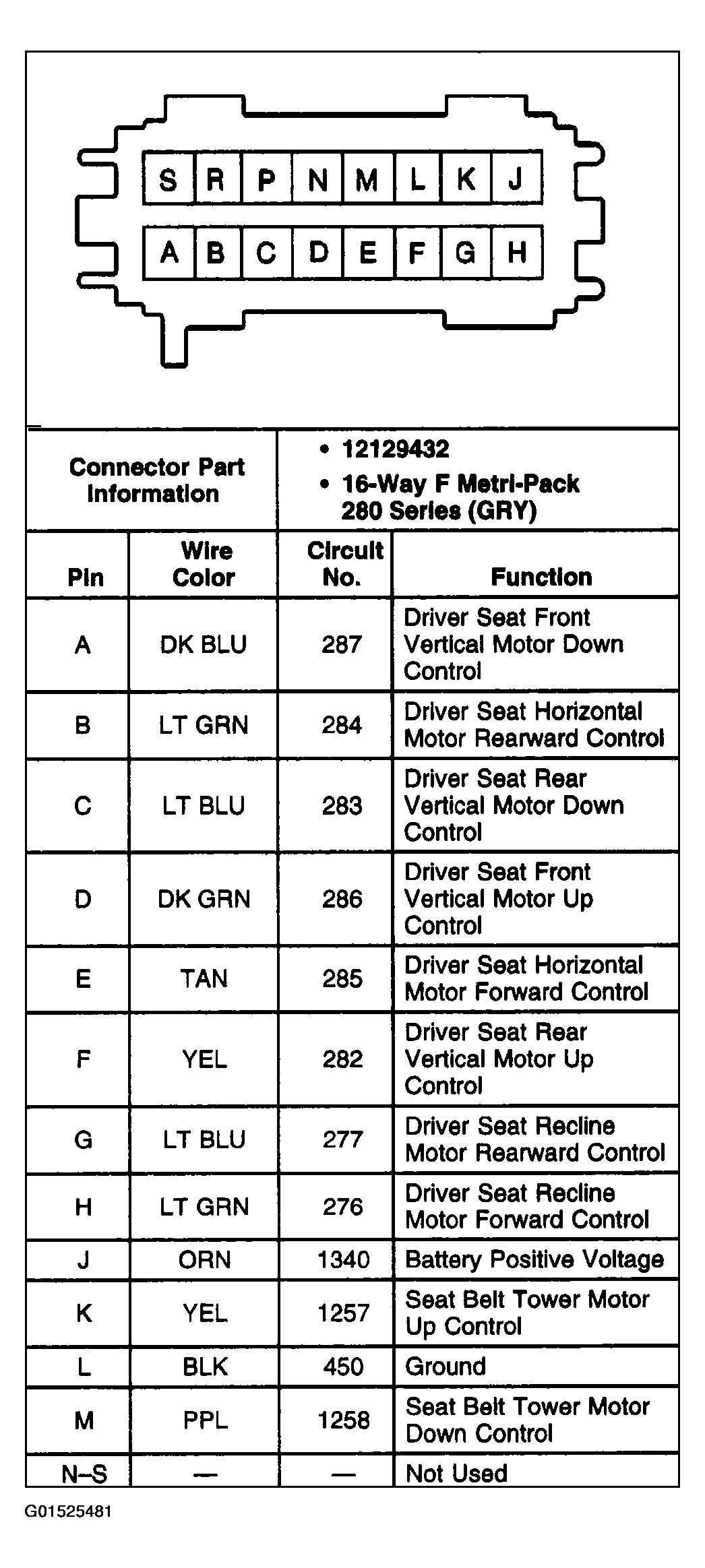

Fig 16: Seat Adjuster Switch - Driver Connector End View (W/O A45)
G01525481Courtesy of GENERAL MOTORS CORP.

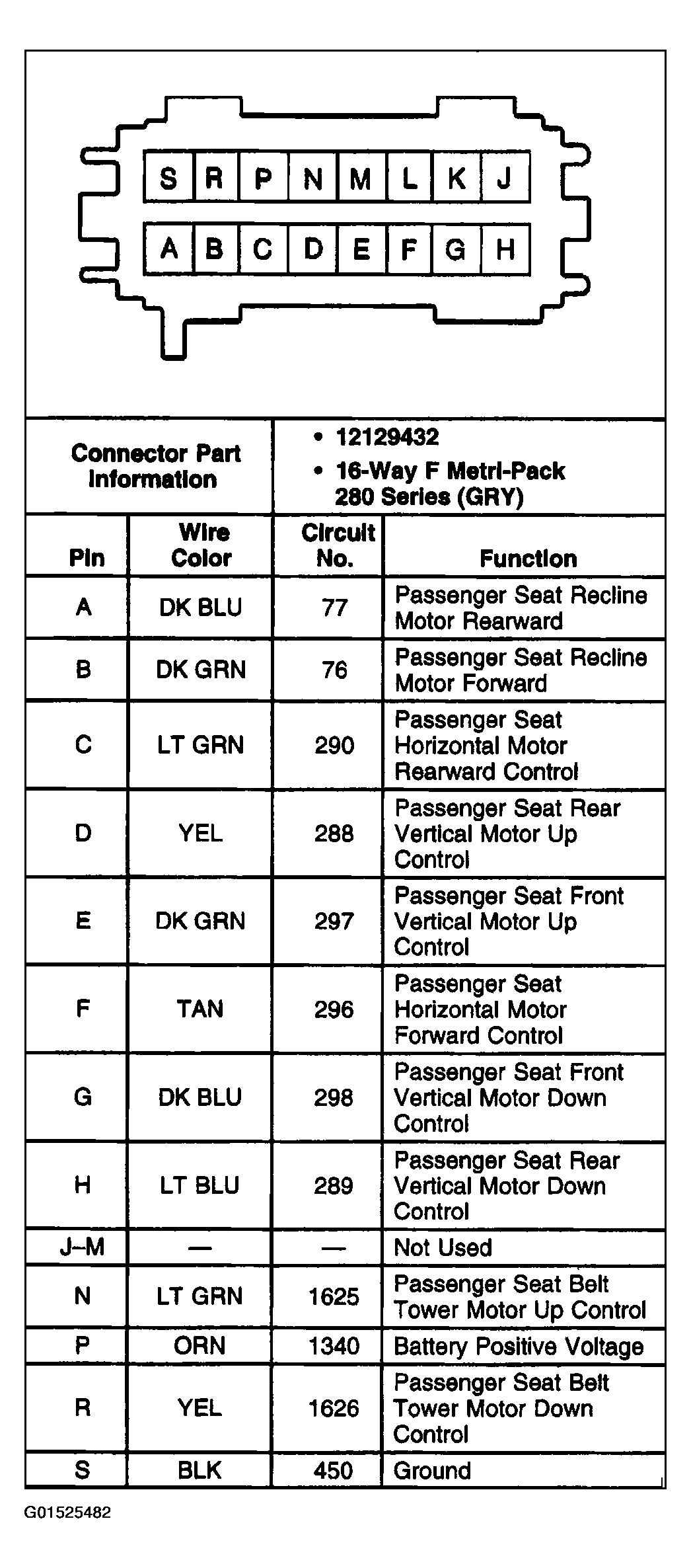

Fig 17: Seat Adjuster Switch - Front Passenger Connector End View
G01525482Courtesy of GENERAL MOTORS CORP.

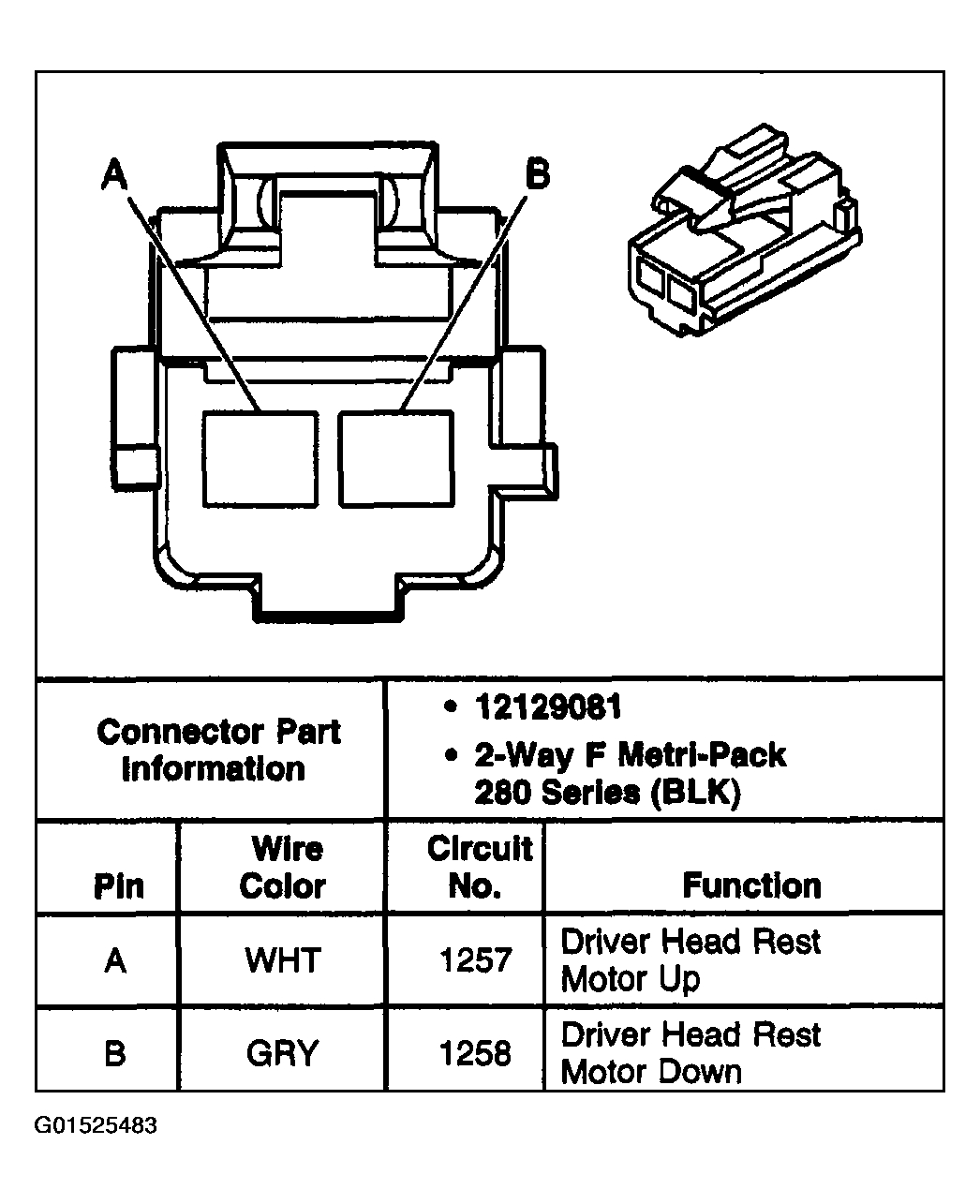

Fig 18: Seat Belt Tower Motor - Driver Connector End View
G01525483Courtesy of GENERAL MOTORS CORP.

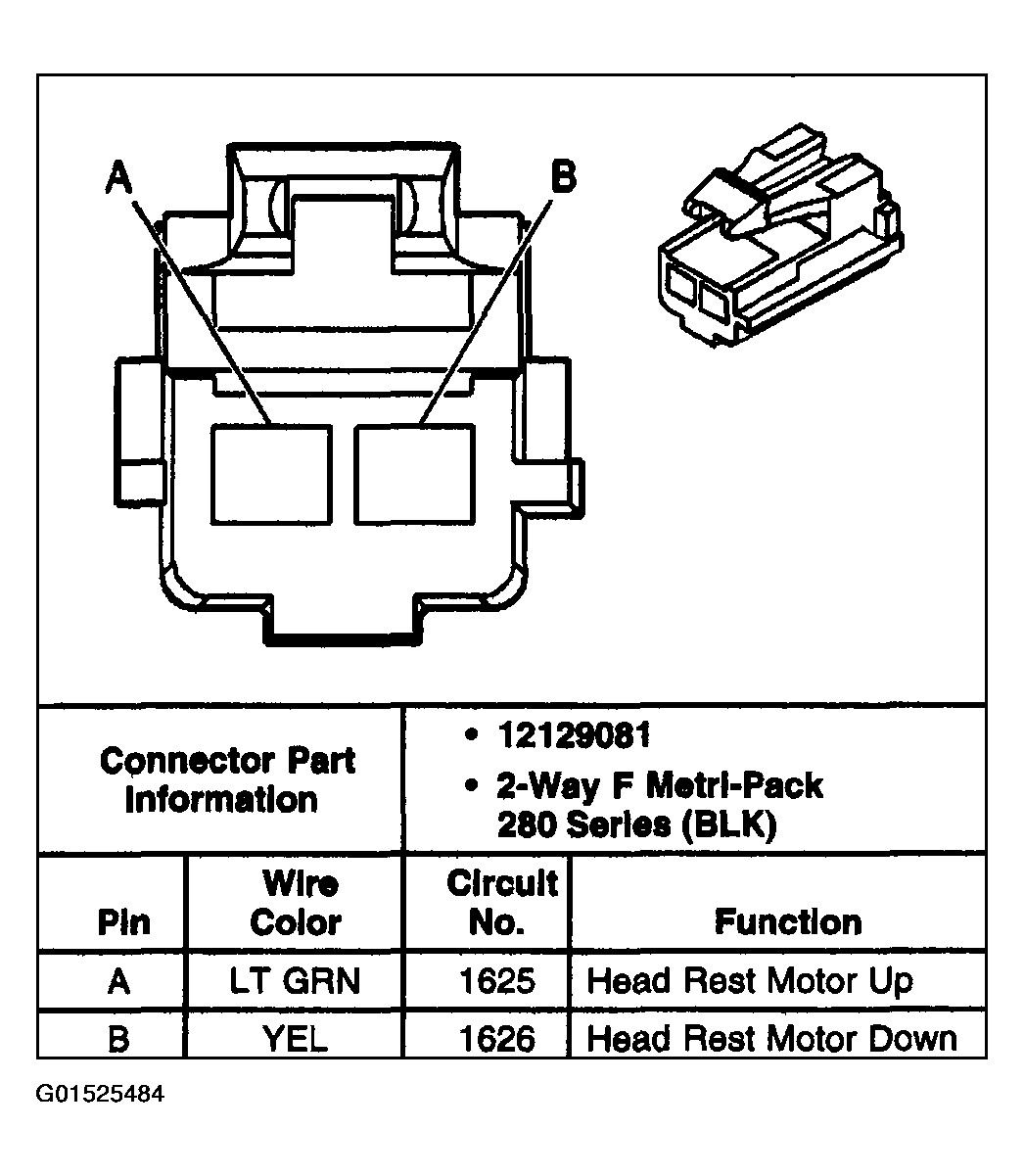

Fig 19: Seat Belt Tower Motor - Front Passenger Connector End View
G01525484Courtesy of GENERAL MOTORS CORP.

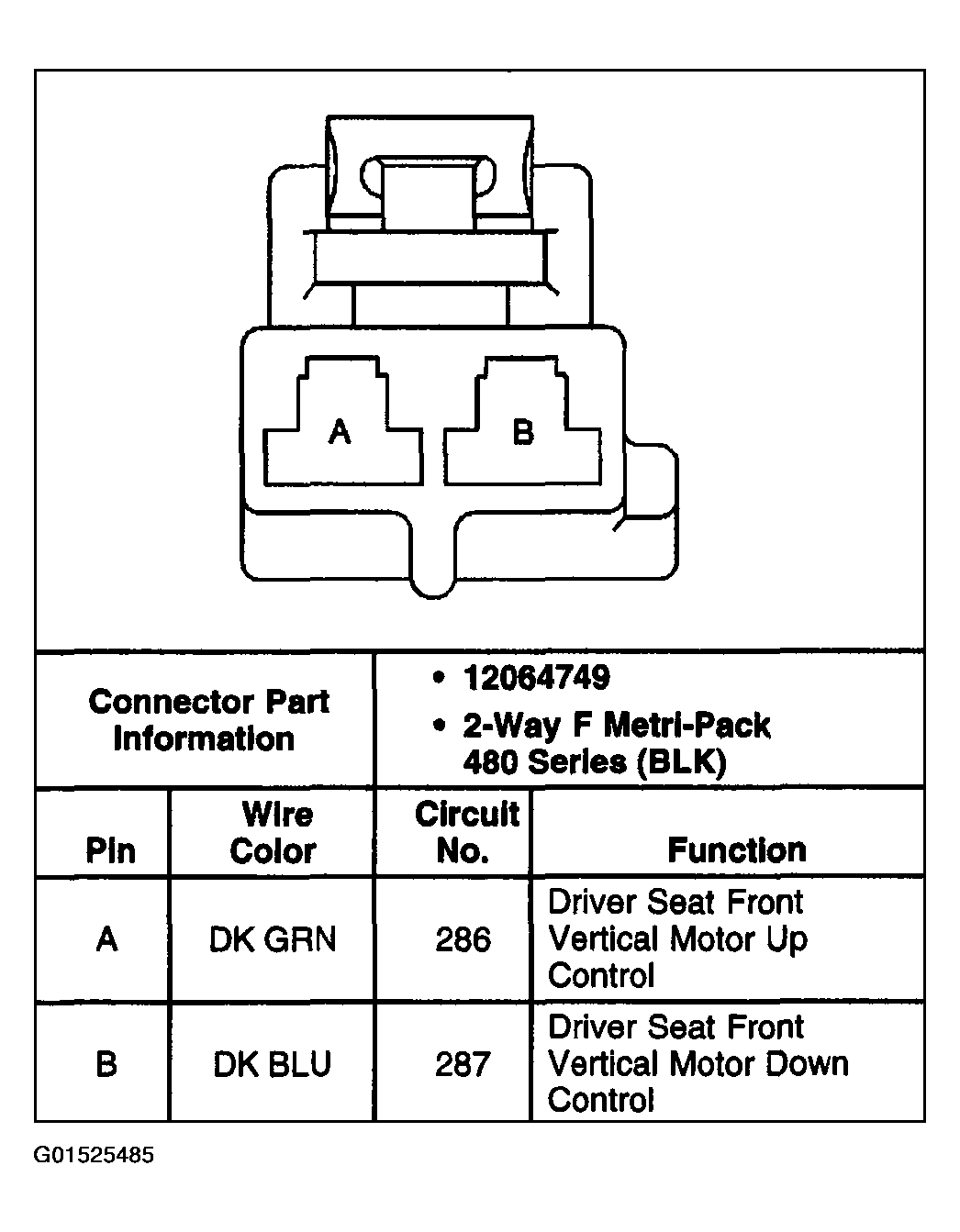

Fig 20: Seat Front Vertical Motor - Driver Connector End View
G01525485Courtesy of GENERAL MOTORS CORP.

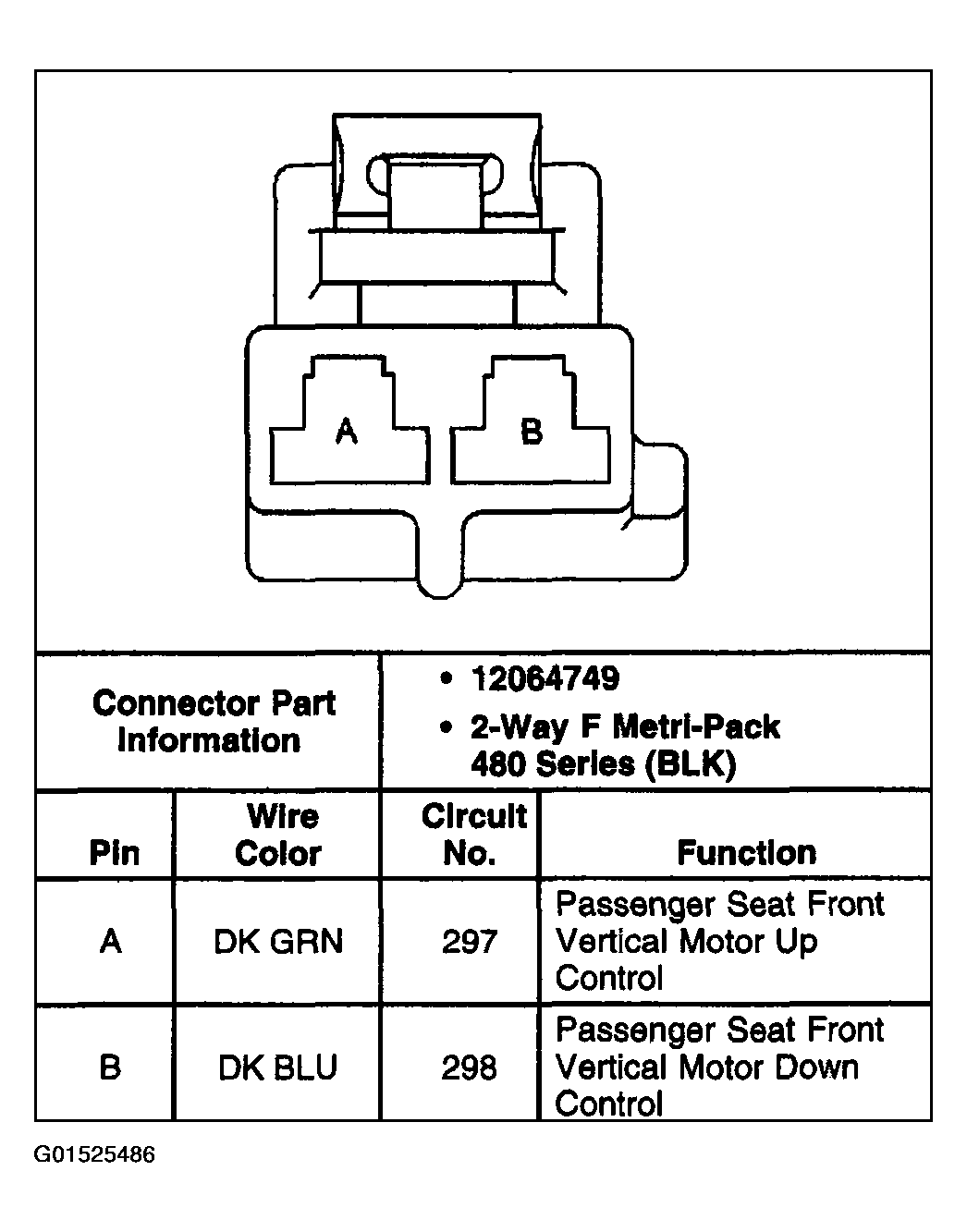

Fig 21: Seat Front Vertical Motor - Front Passenger Connector End View
G01525486Courtesy of GENERAL MOTORS CORP.

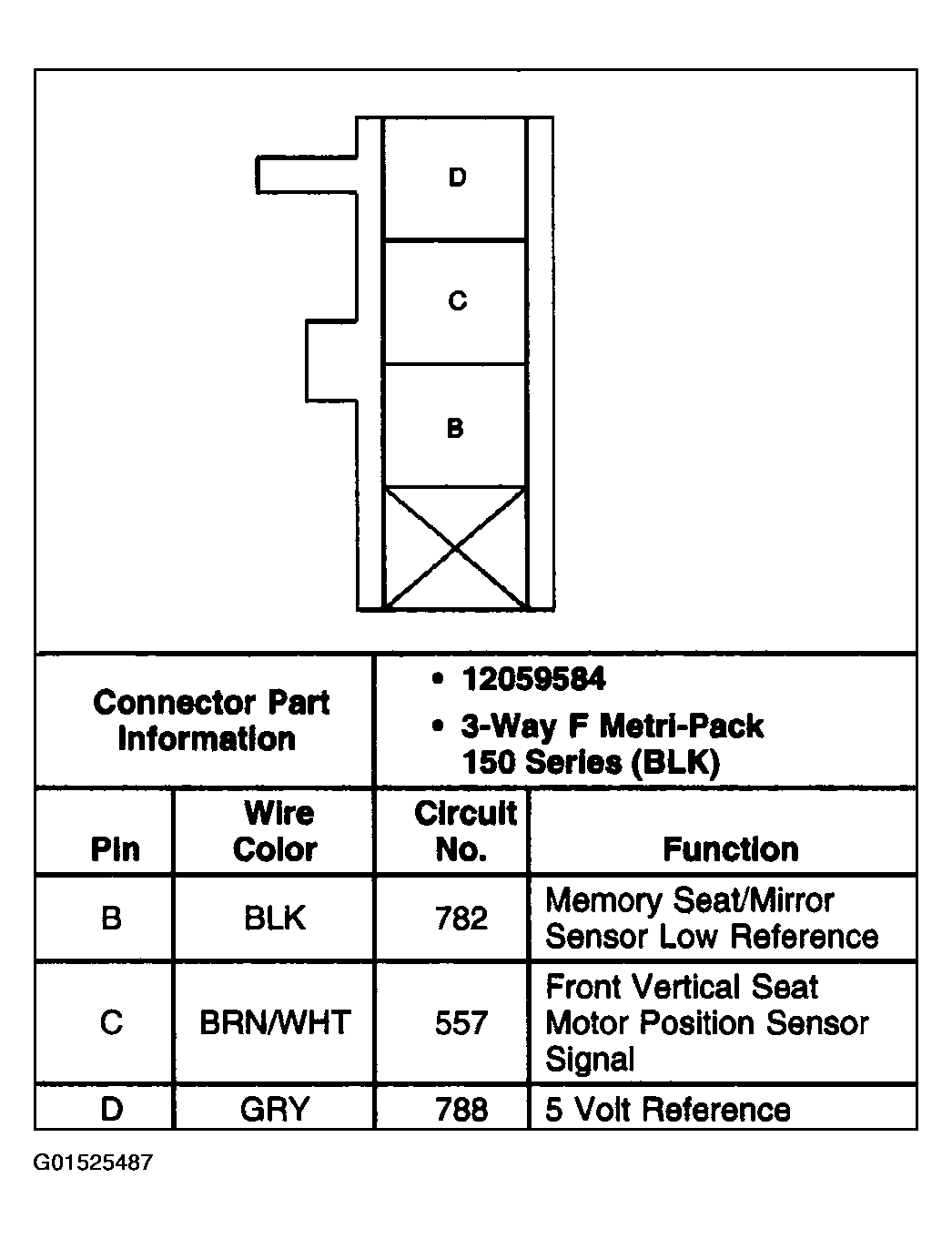

Fig 22: Seat Front Vertical Position Sensor - Driver Connector End View (W/A45)
G01525487Courtesy of GENERAL MOTORS CORP.

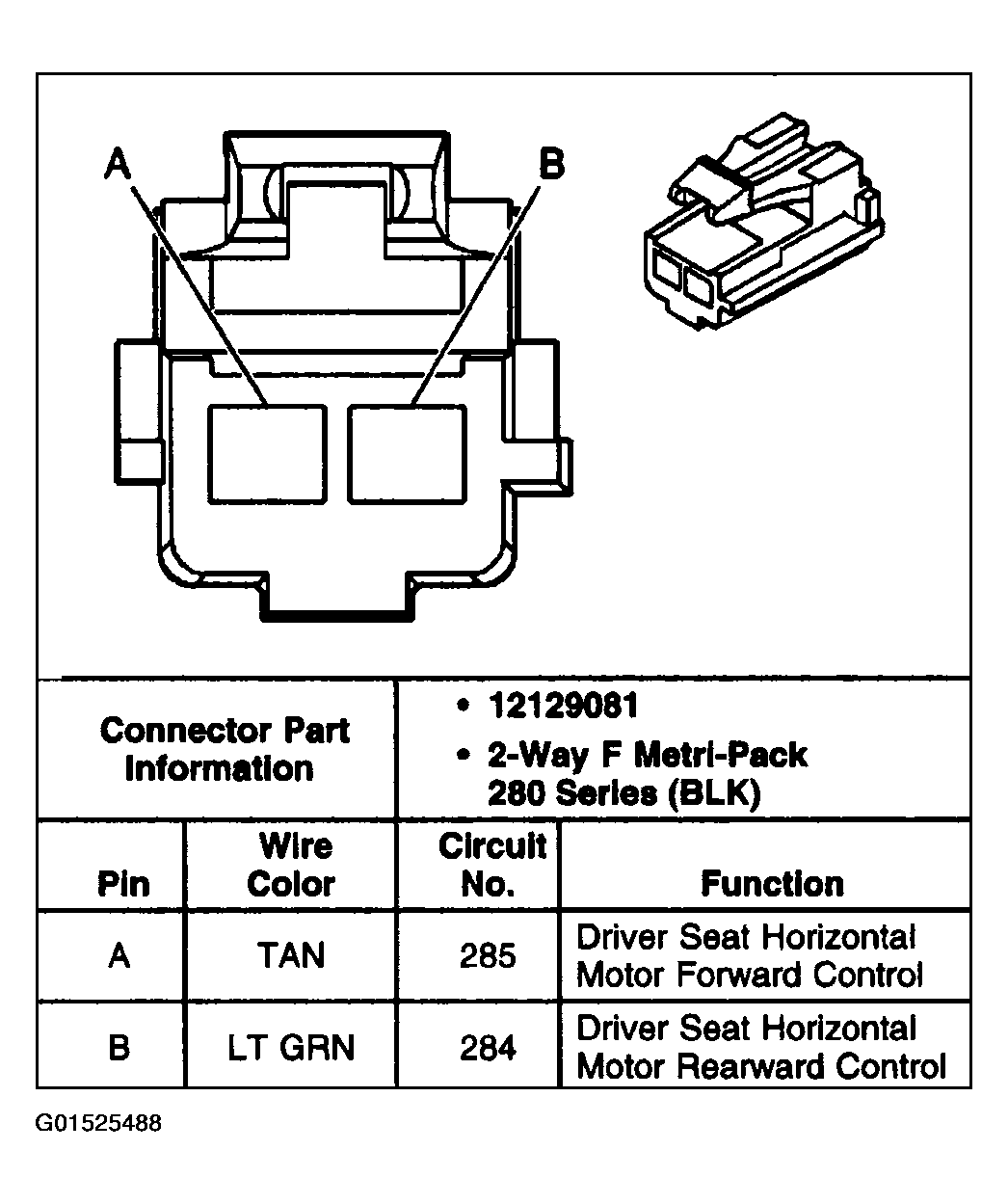

Fig 23: Seat Horizontal Motor - Driver Connector End View
G01525488Courtesy of GENERAL MOTORS CORP.

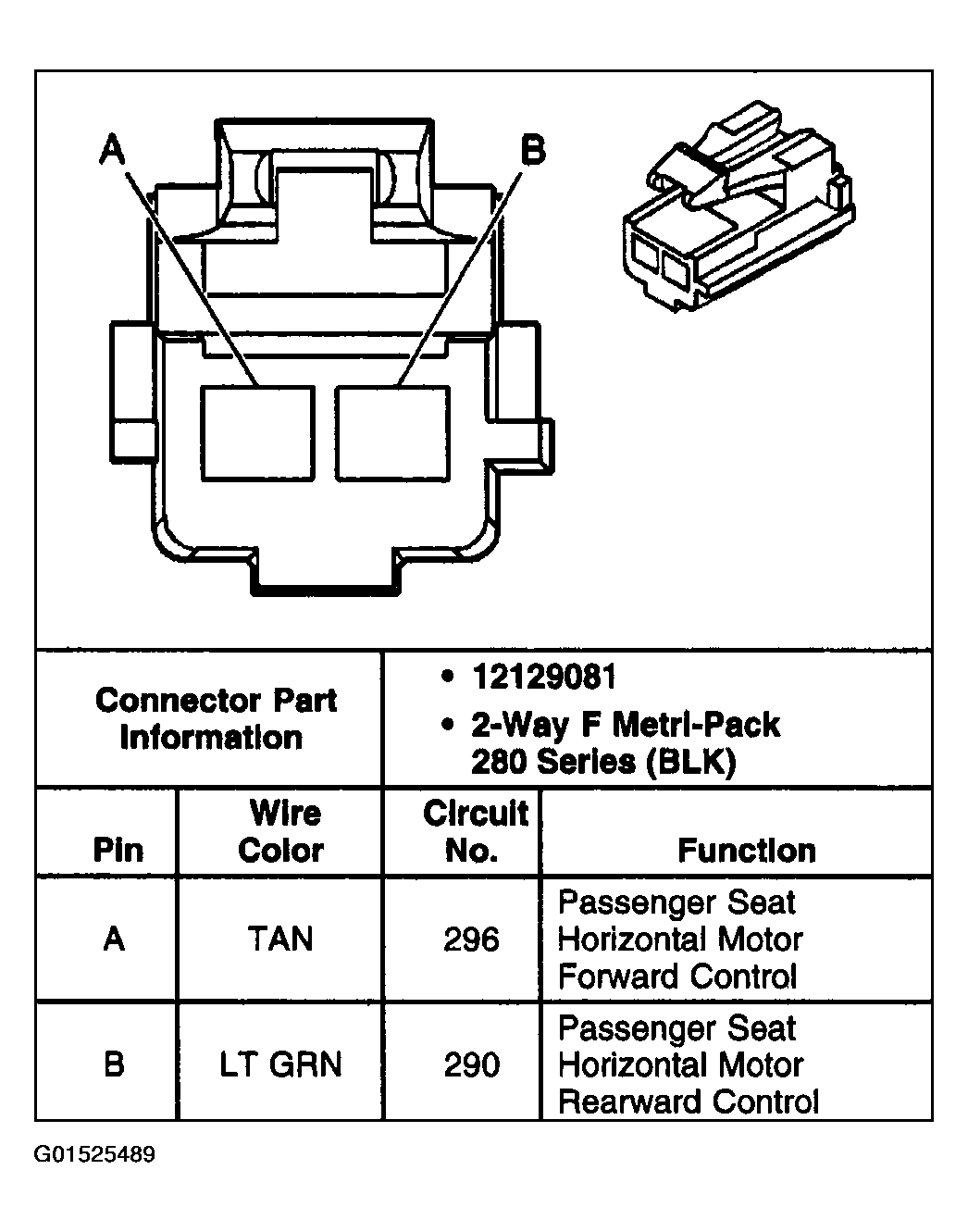

Fig 24: Seat Horizontal Motor - Front Passenger Connector End View
G01525489Courtesy of GENERAL MOTORS CORP.

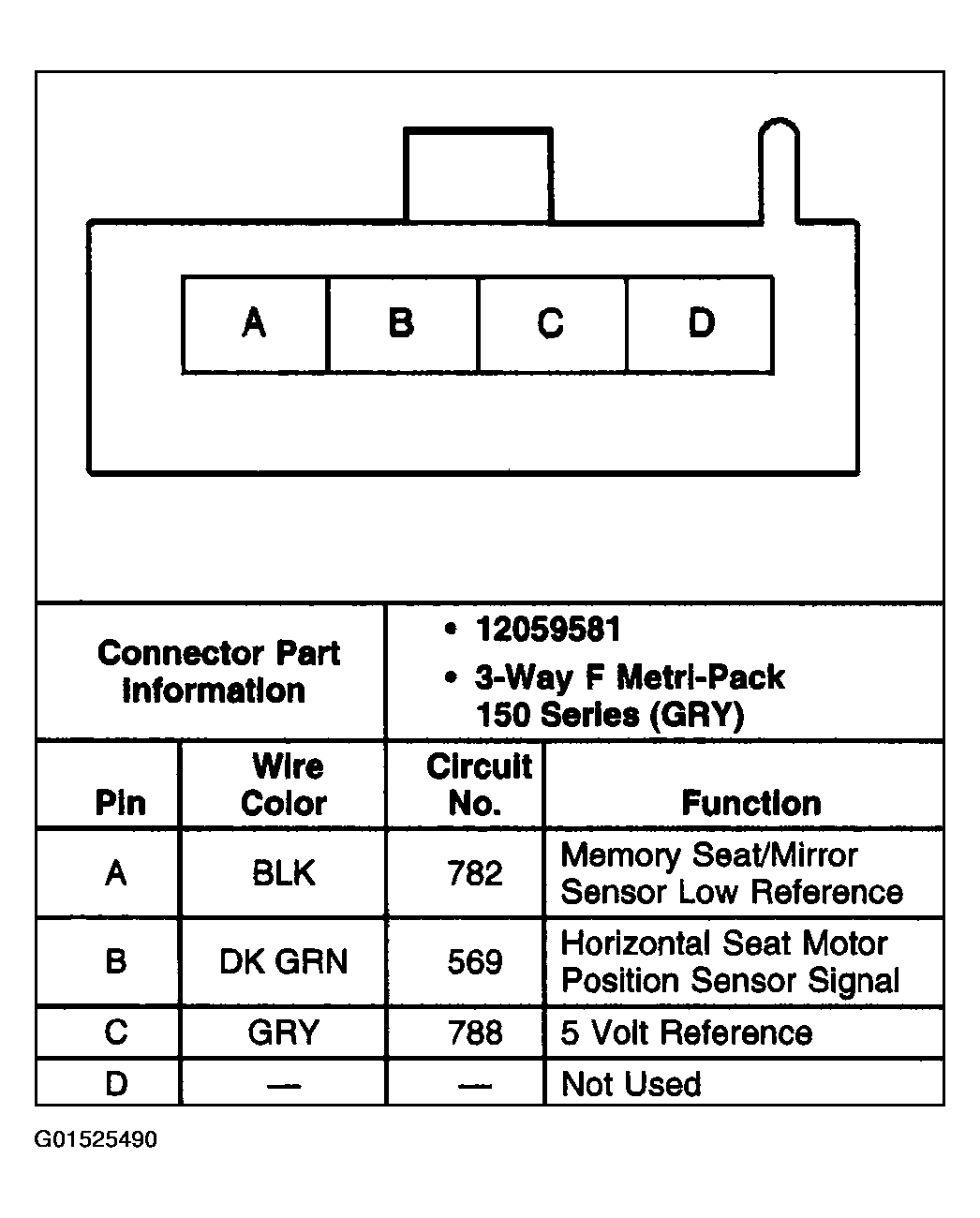

Fig 25: Seat Horizontal Position Sensor - Driver Connector End View
G01525490Courtesy of GENERAL MOTORS CORP.

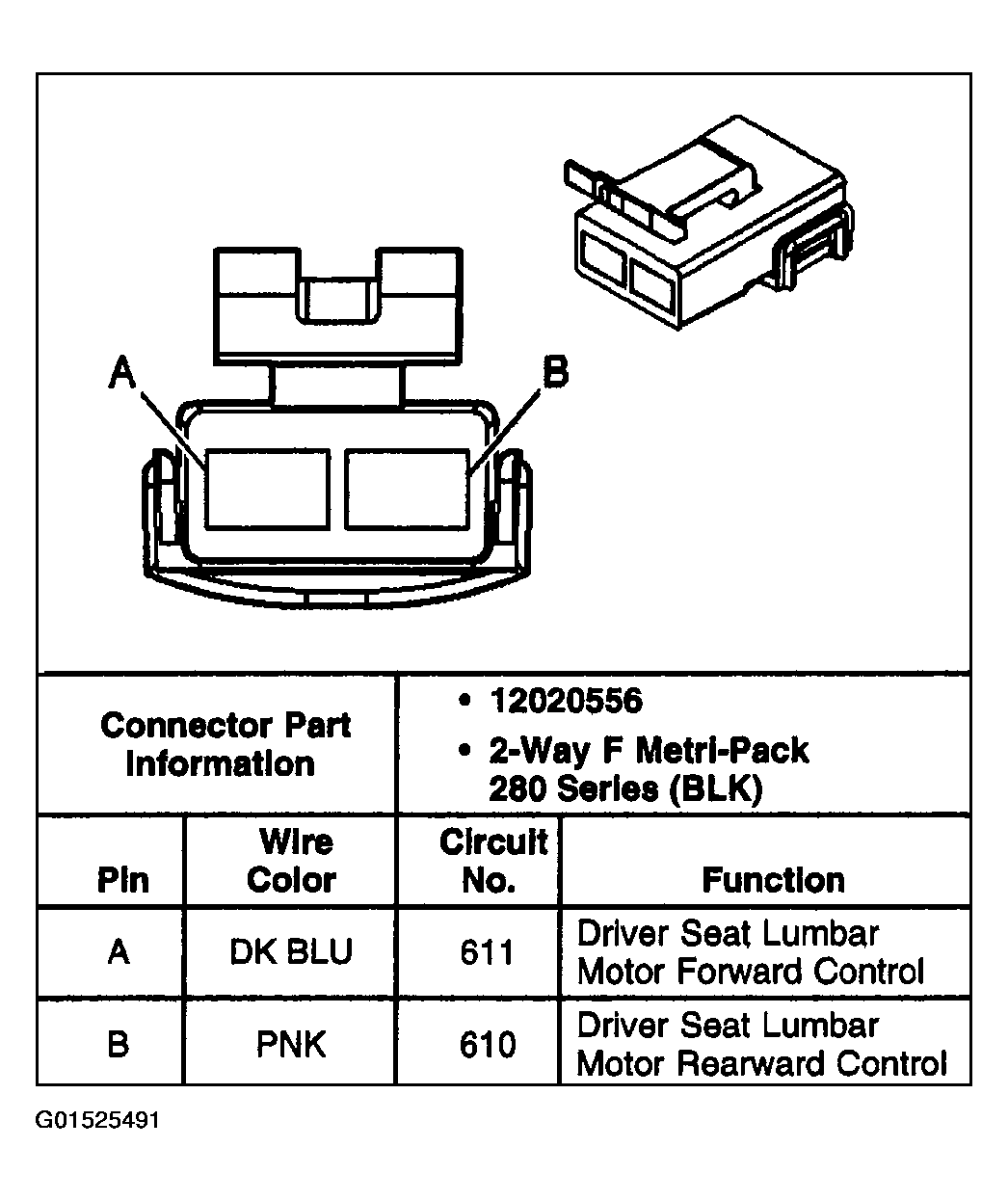

Fig 26: Seat-Lumbar Horizontal Motor - Driver Connector End View
G01525491Courtesy of GENERAL MOTORS CORP.

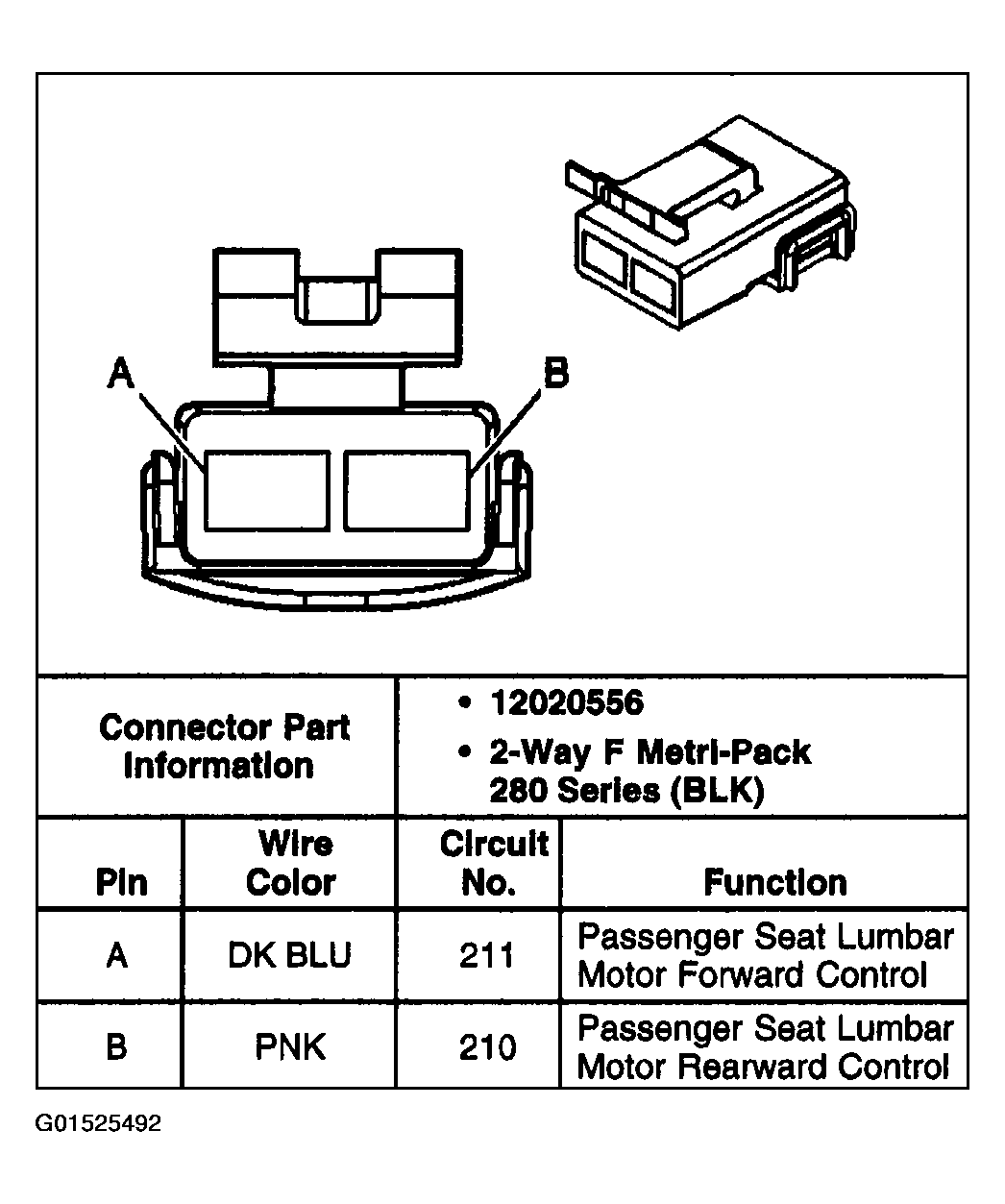

Fig 27: Seat Lumbar Horizontal Motor - Front Passenger Connector End View
G01525492Courtesy of GENERAL MOTORS CORP.

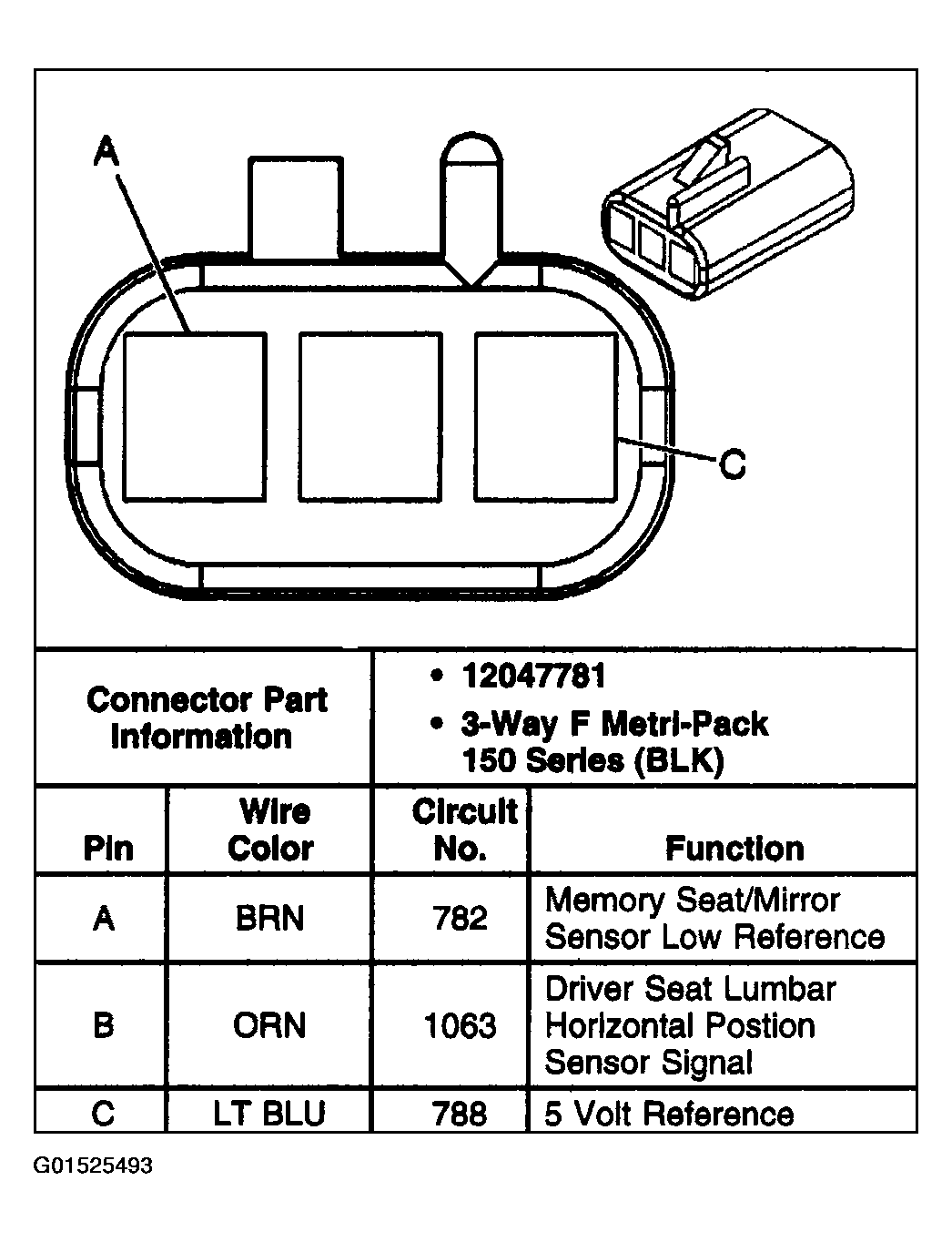

Fig 28: Seat Lumbar Horizontal Position Sensor - Driver Connector End View
G01525493Courtesy of GENERAL MOTORS CORP.

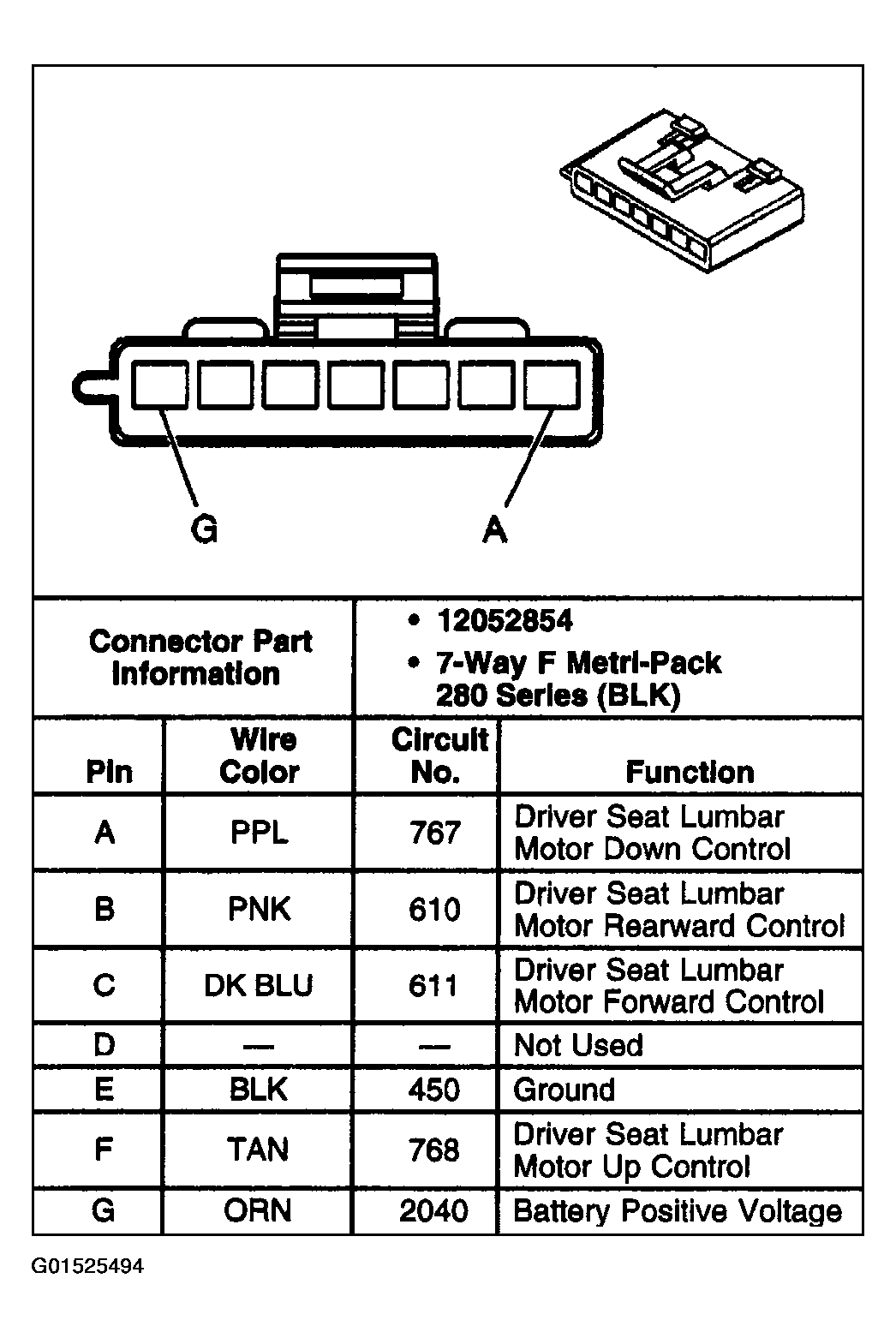

Fig 29: Seat Lumbar Switch - Driver Connector End View
G01525494Courtesy of GENERAL MOTORS CORP.

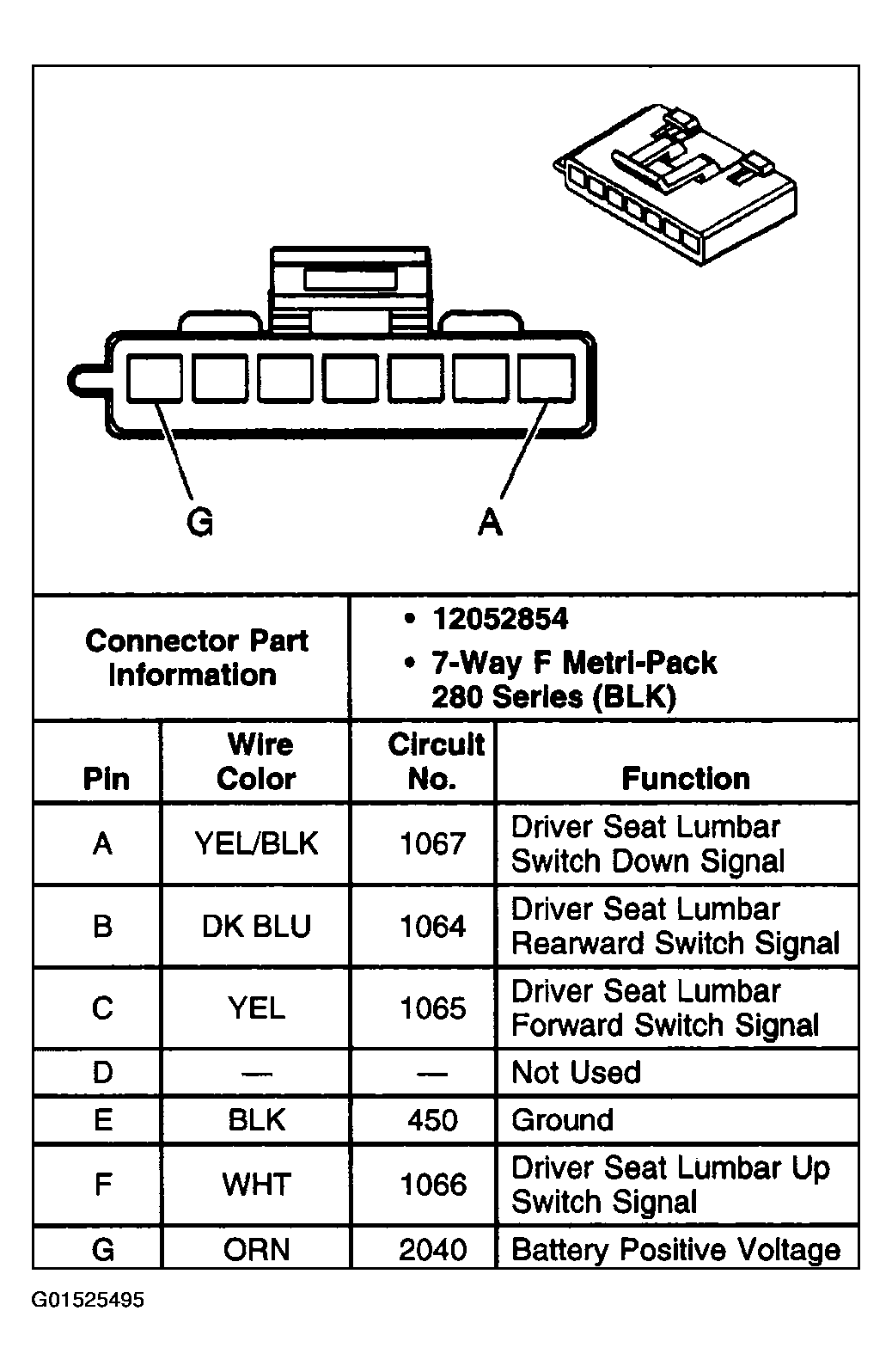

Fig 30: Seat Lumbar Switch - Driver Connector End View (W/ A45)
G01525495Courtesy of GENERAL MOTORS CORP.

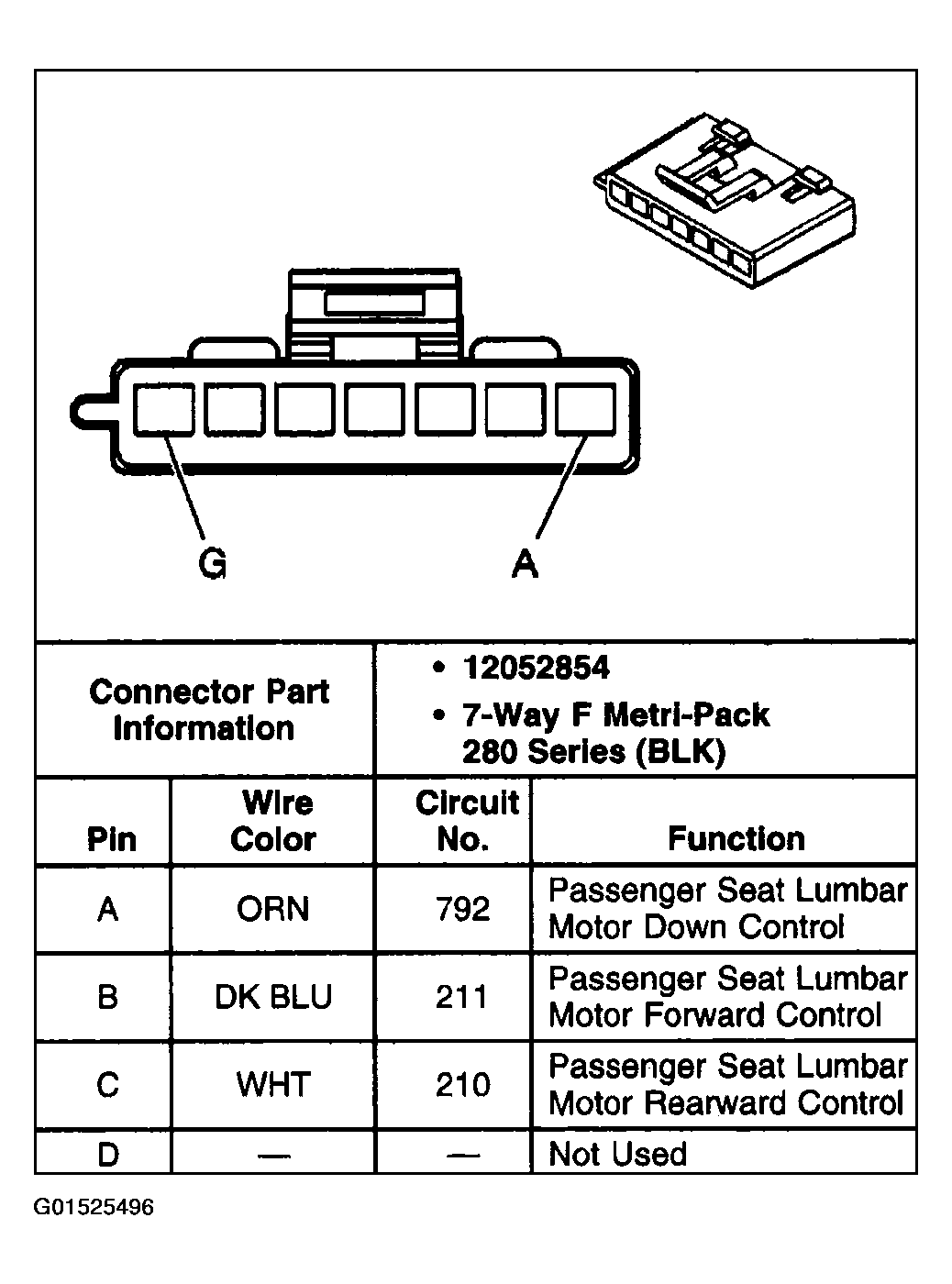

Fig 31: Seat Lumbar Switch - Front Passenger Connector End View (1 Of 2)
G01525496Courtesy of GENERAL MOTORS CORP.

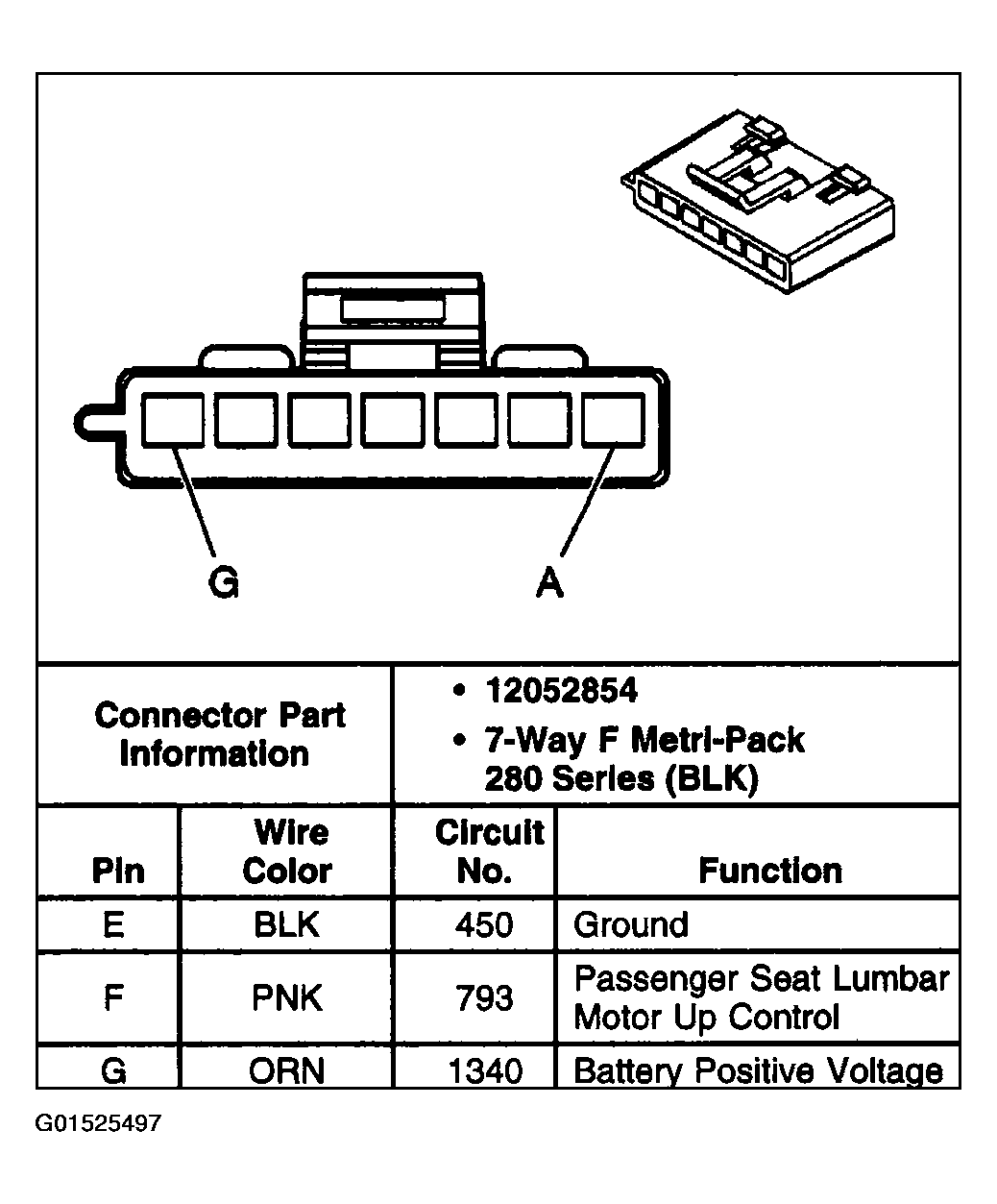

Fig 32: Seat Lumbar Switch - Front Passenger Connector End View (2 Of 2)
G01525497Courtesy of GENERAL MOTORS CORP.

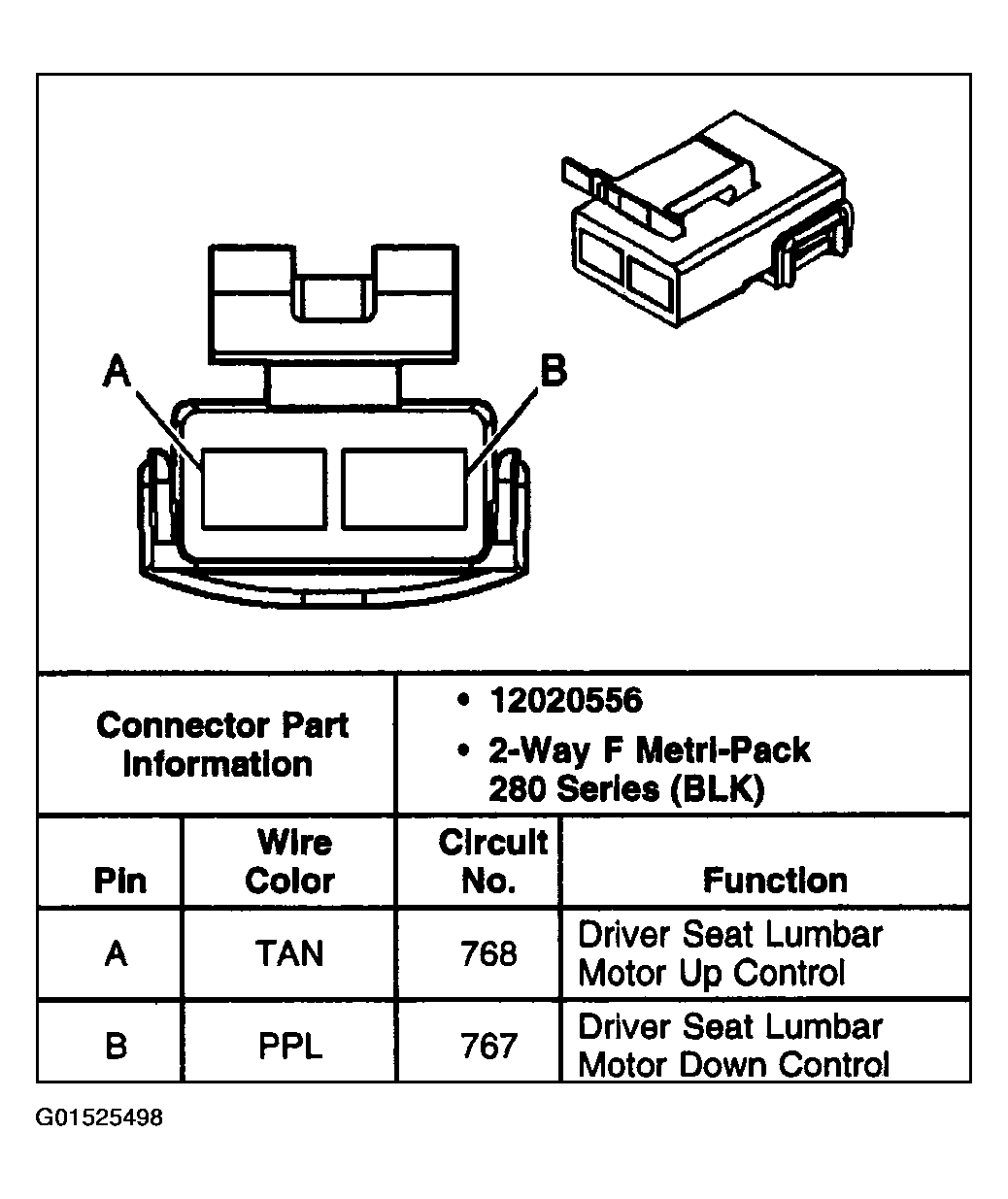

Fig 33: Seat Lumbar Vertical Motor - Driver Connector End View
G01525498Courtesy of GENERAL MOTORS CORP.
Fig 34: Seat Lumbar Vertical Motor - Front Passenger Connector End View
G01525499Courtesy of GENERAL MOTORS CORP.

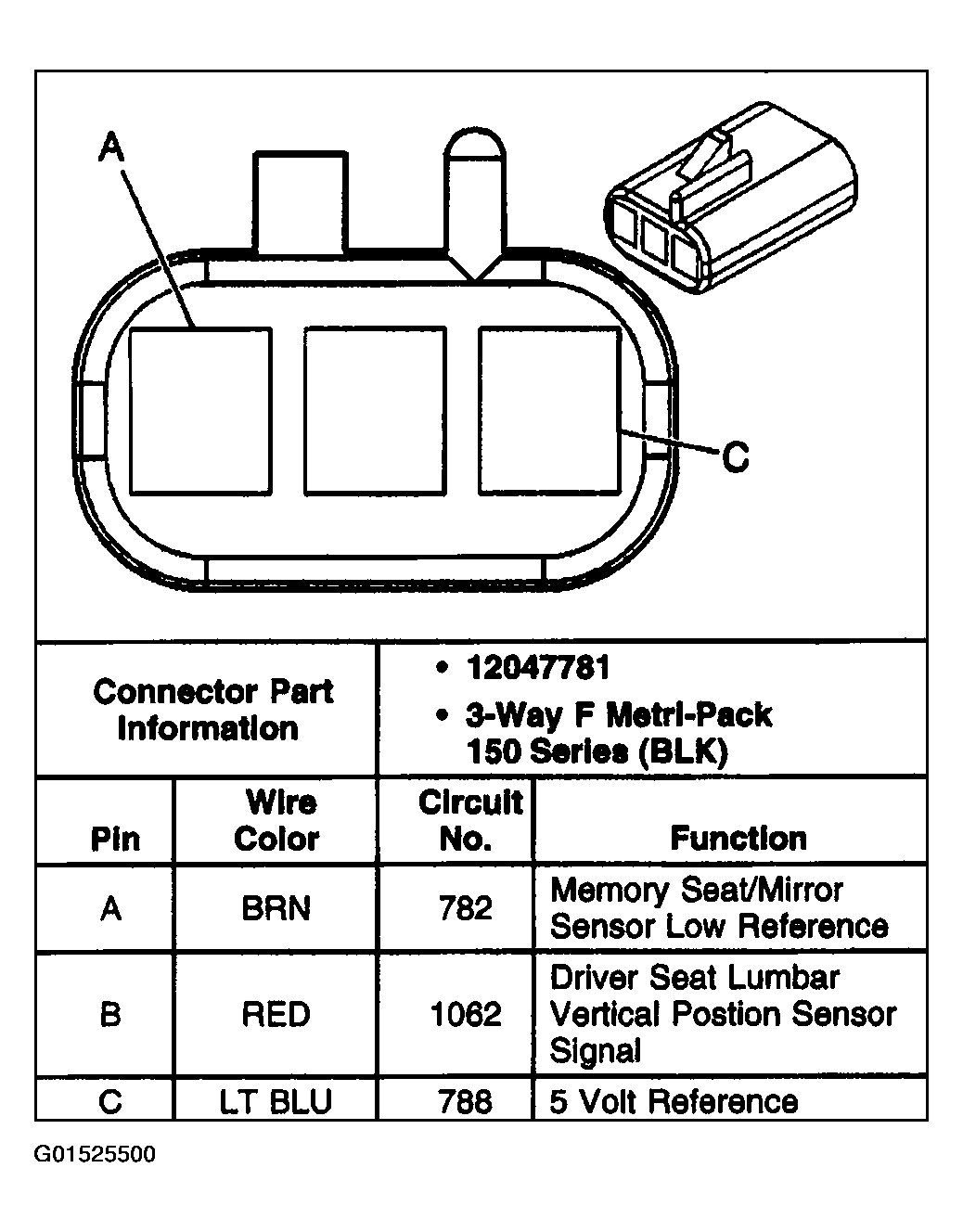

Fig 35: Seat Lumbar Vertical Position Sensor - Driver Connector End View
G01525500Courtesy of GENERAL MOTORS CORP.

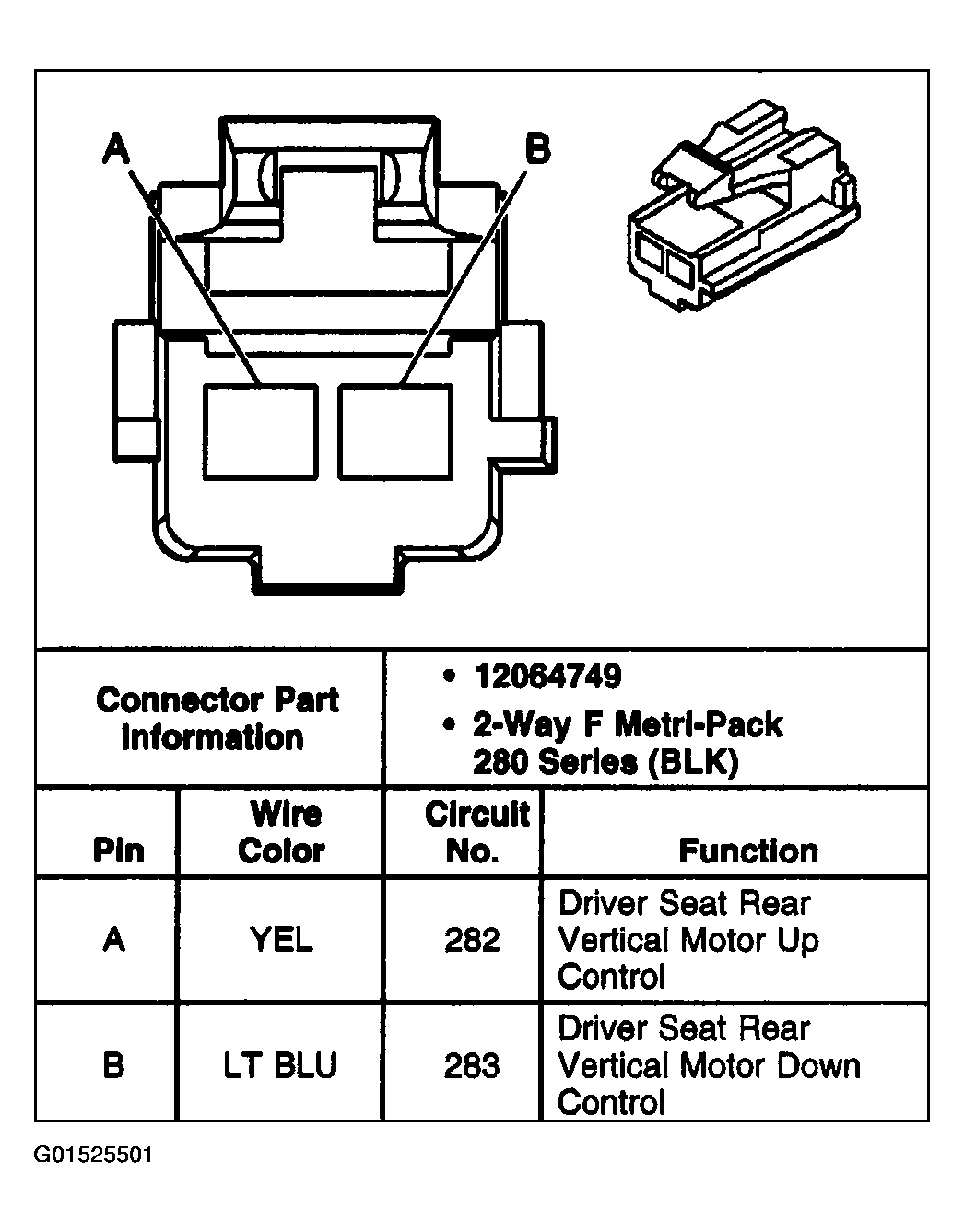

Fig 36: Seat Rear Vertical Motor - Driver Connector End View
G01525501Courtesy of GENERAL MOTORS CORP.

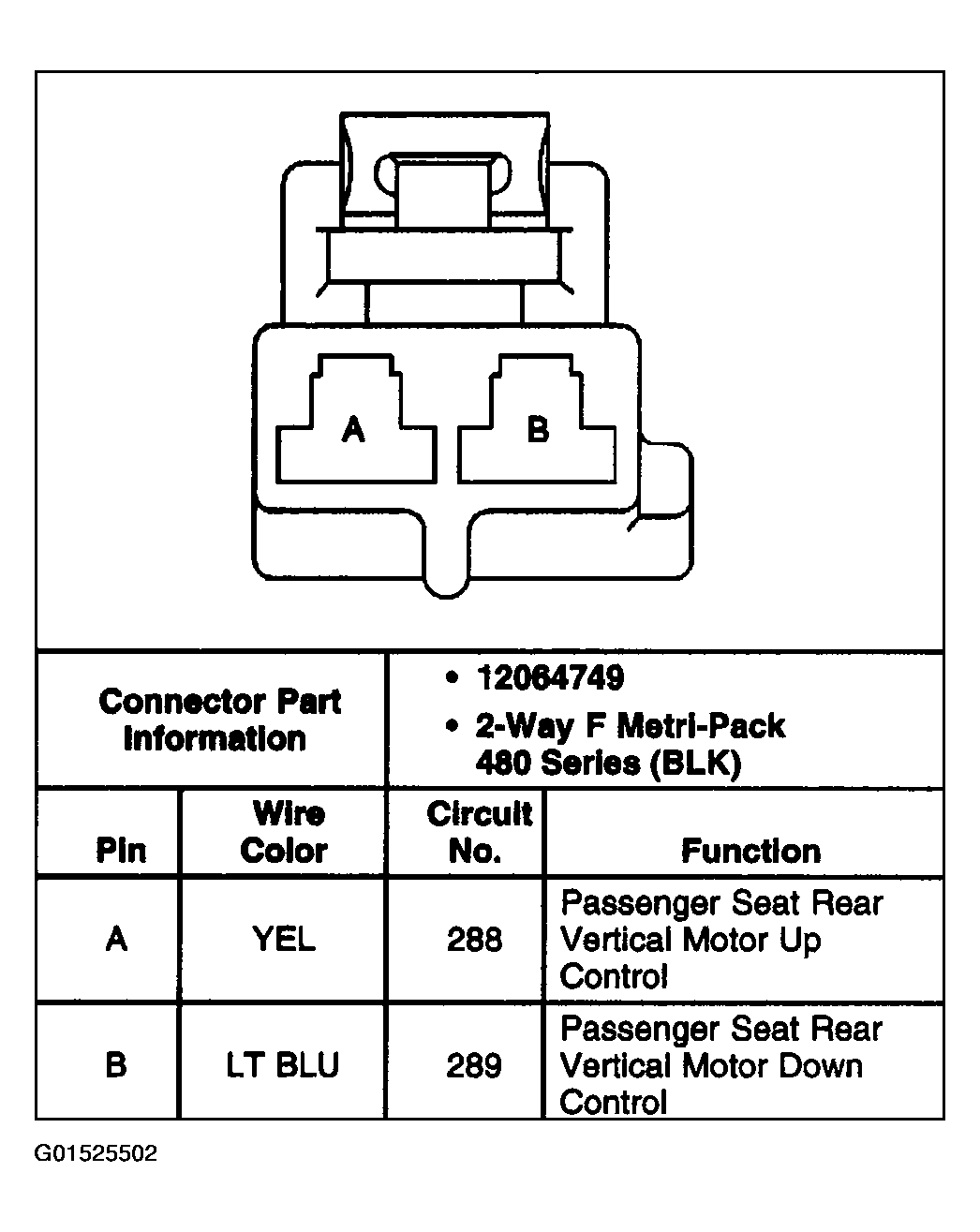

Fig 37: Seat Rear Vertical Motor - Front Passenger Connector End View
G01525502Courtesy of GENERAL MOTORS CORP.

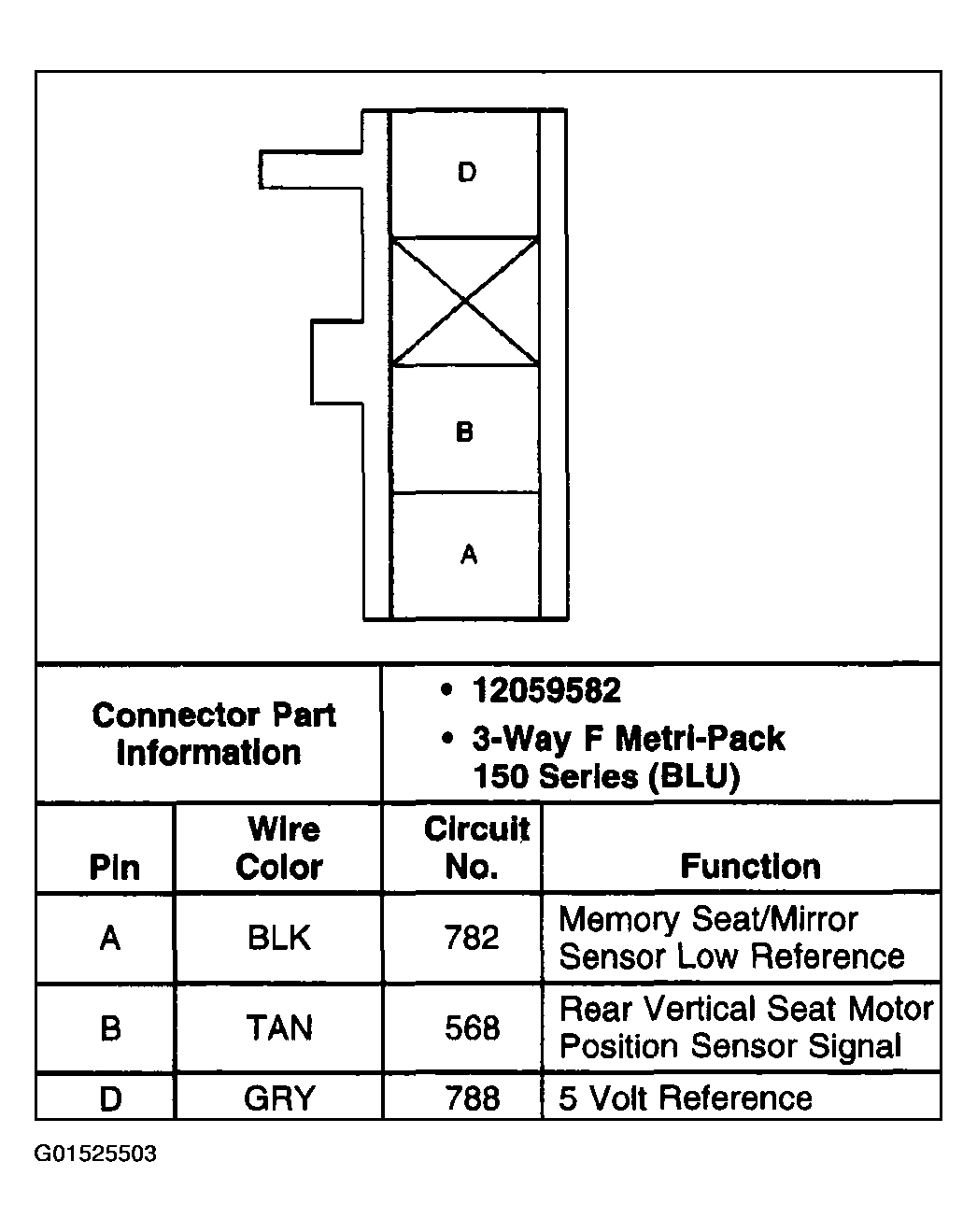

Fig 38: Seat Rear Vertical Position Sensor - Driver Connector End View
G01525503Courtesy of GENERAL MOTORS CORP.

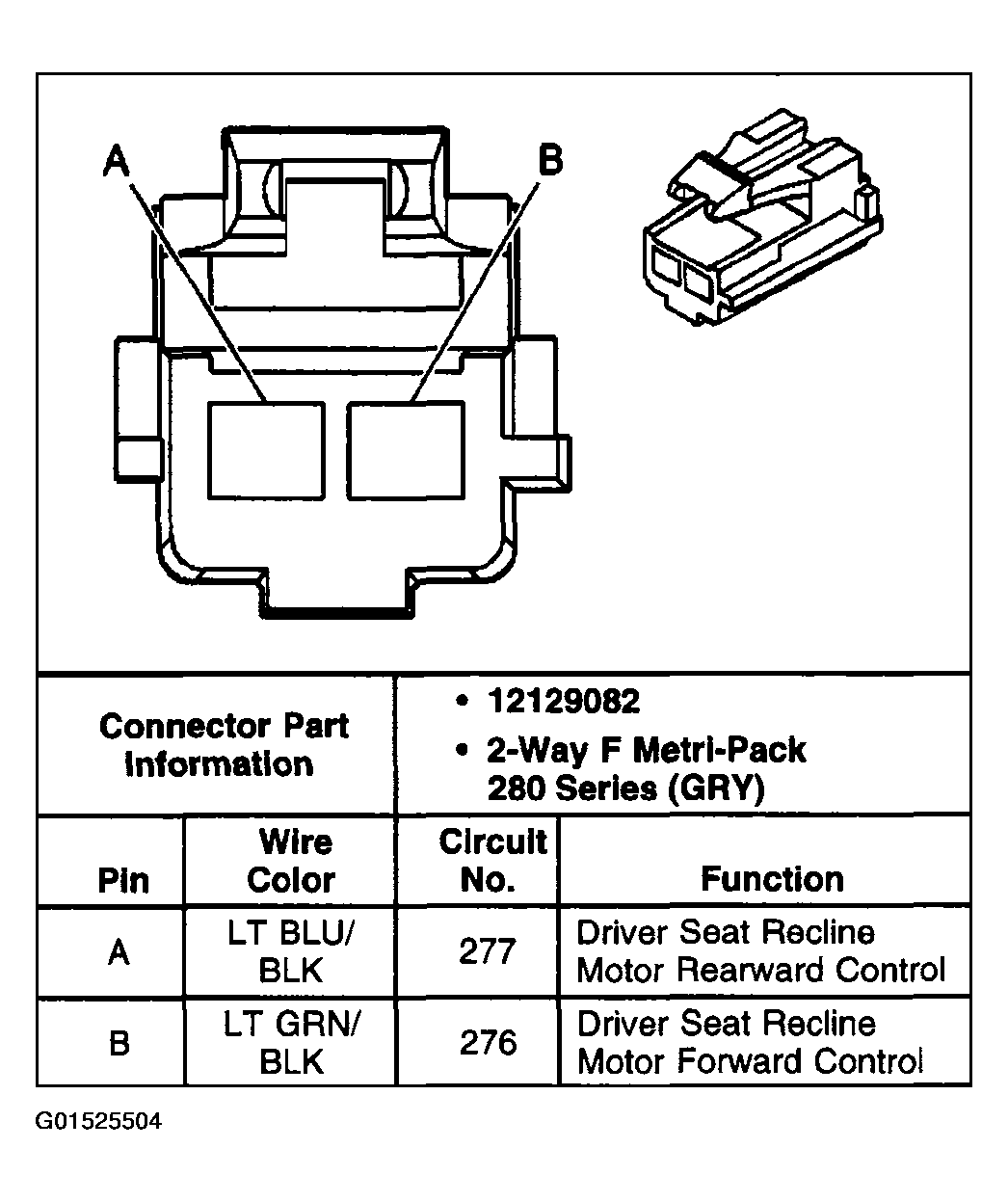

Fig 39: Seat Recline Motor - Driver Connector End View
G01525504Courtesy of GENERAL MOTORS CORP.

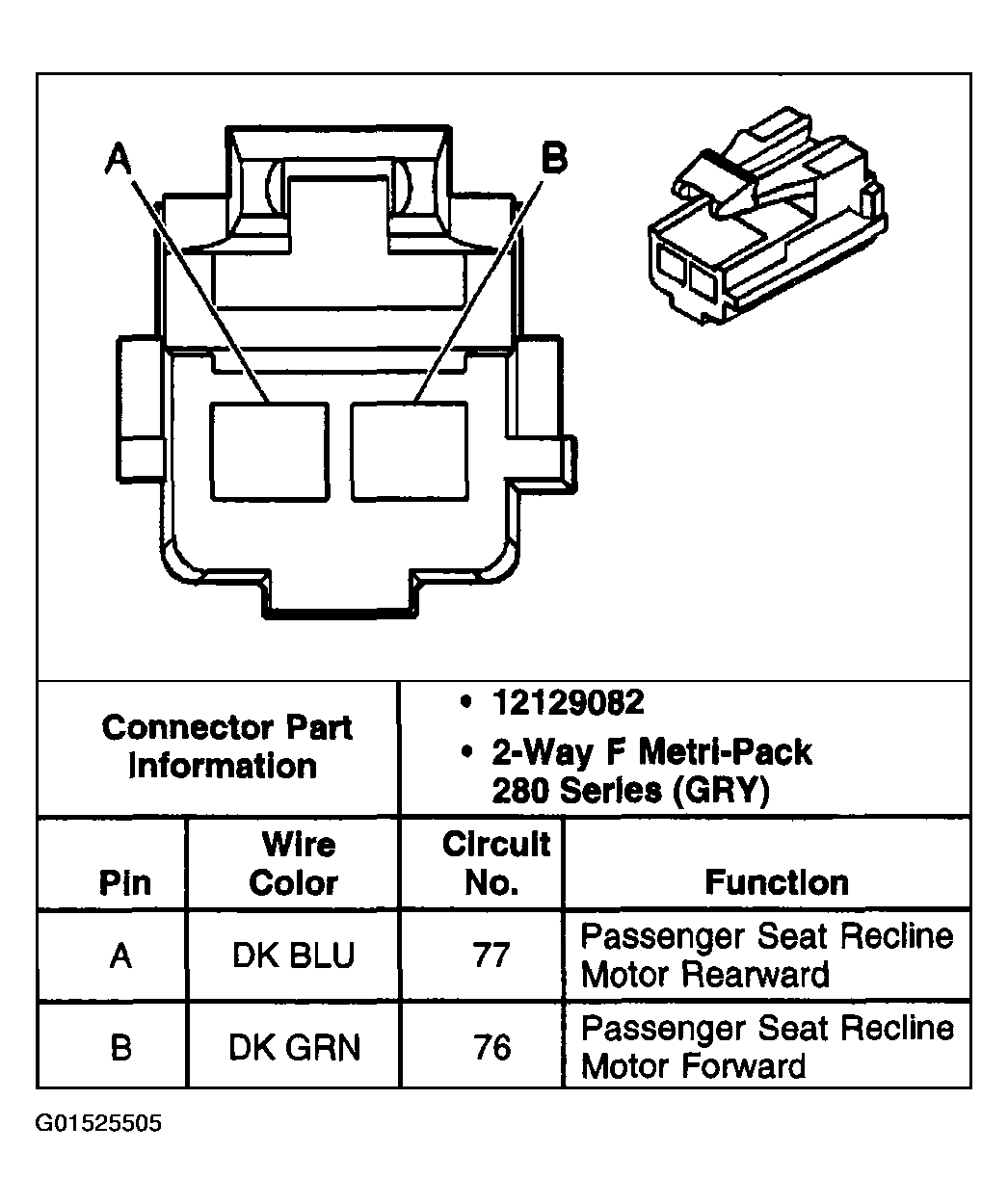

Fig 40: Seat Recline Motor - Front Passenger Connector End View
G01525505Courtesy of GENERAL MOTORS CORP.

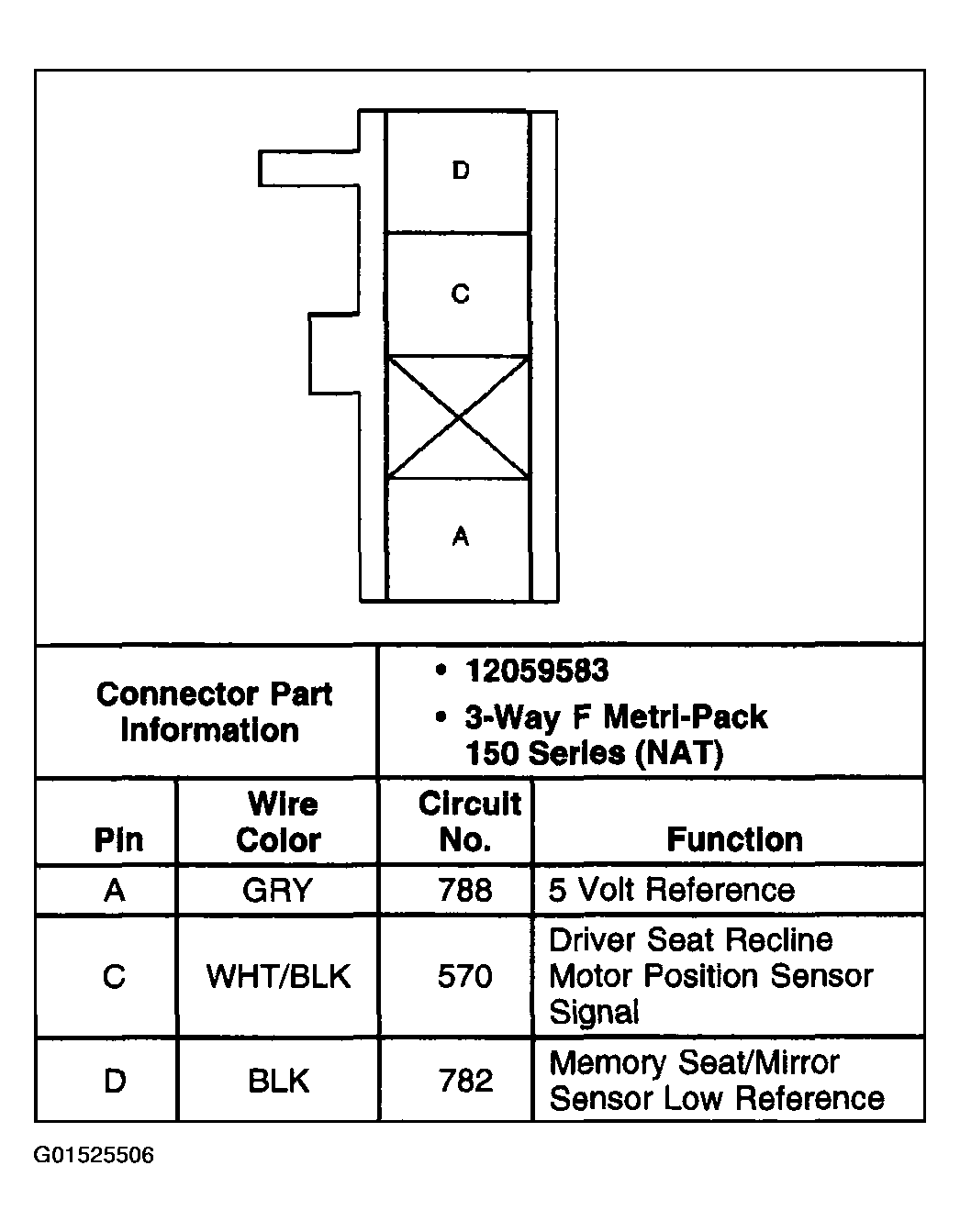

Fig 41: Seat Recline Position Sensor - Driver Connector End View
G01525506Courtesy of GENERAL MOTORS CORP.
