Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator to the vehicle
Install the upper radiator mounting brackets.
NOTE: Refer to FASTENER NOTICE .
Install the upper radiator mounting brackets retaining bolts.
Tighten

Tighten the bolts to 10 N.m (89 lb in).

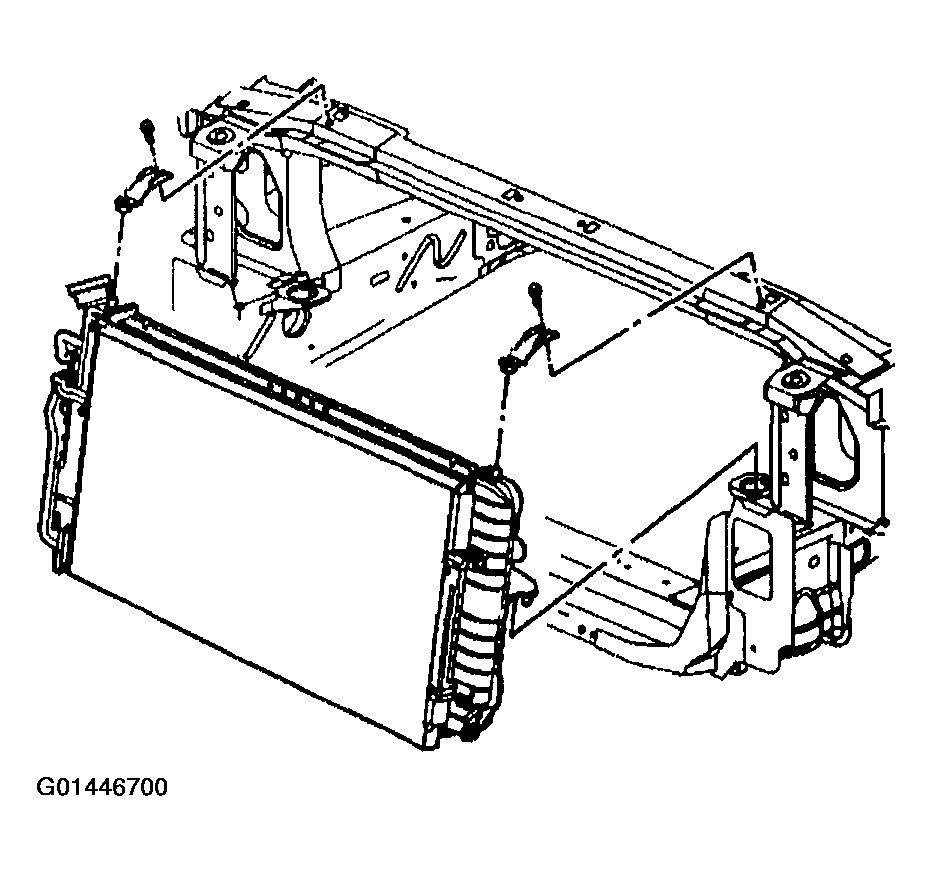

Fig 1: Installing Radiator
Courtesy of GENERAL MOTORS CORP.

NOTE: The bolt retaining the condenser to the radiator end tank is a special length and should be the ONLY bolt used upon reinstallation. The use of a longer bolt will damage the radiator end tank.
Install the condenser mounting bolts.
Tighten

Tighten the bolts to 13 N.m (10 lb ft).

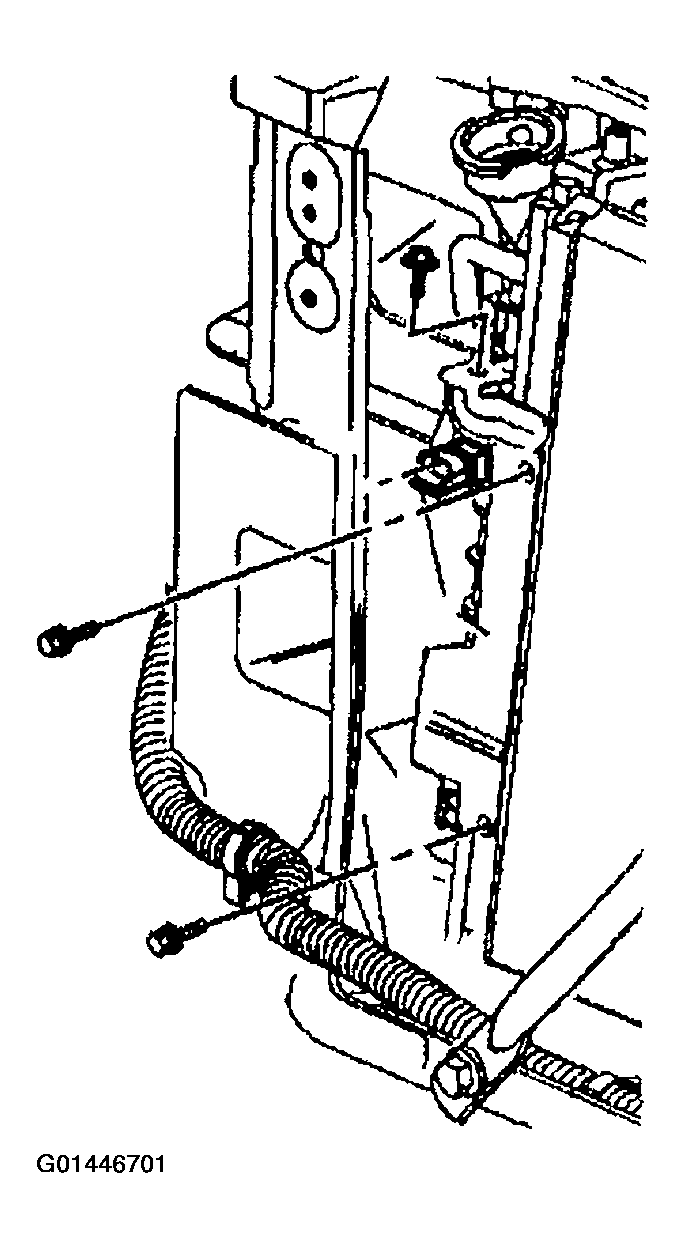

Fig 2: Installing Condenser Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Install the overflow hose to the radiator.

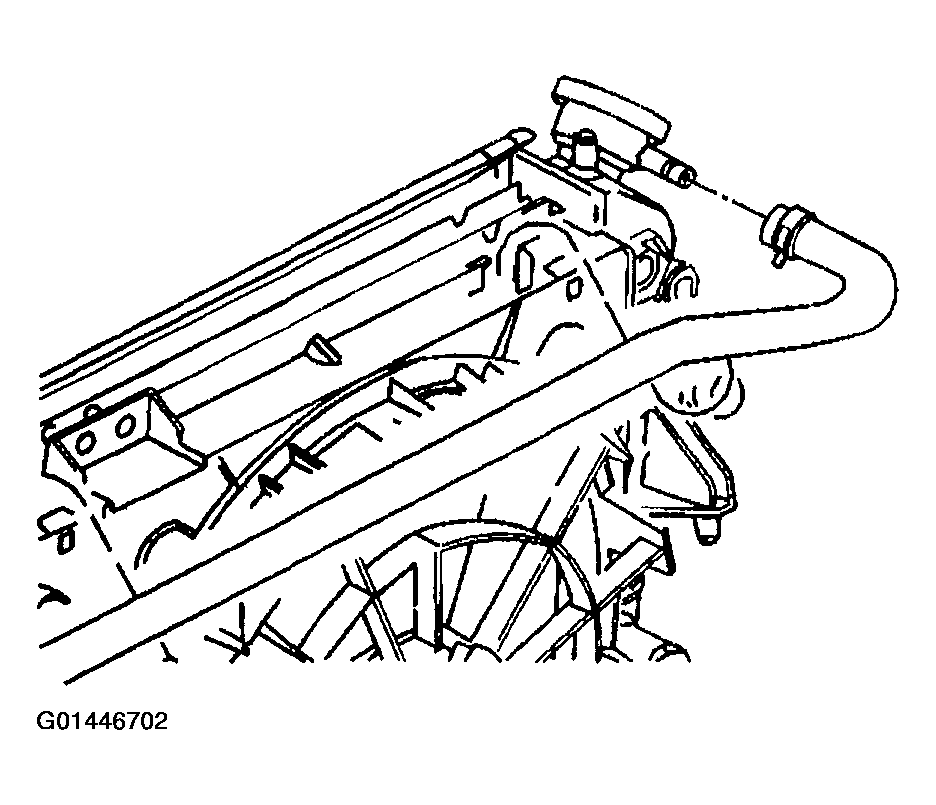

Fig 3: Installing Overflow Hose
Courtesy of GENERAL MOTORS CORP.
Connect the lower transmission oil cooler line (1).
Connect the upper transmission oil cooler line (2).
Slide the plastic cap over the transaxle oil cooler pipe quick connect fittings.

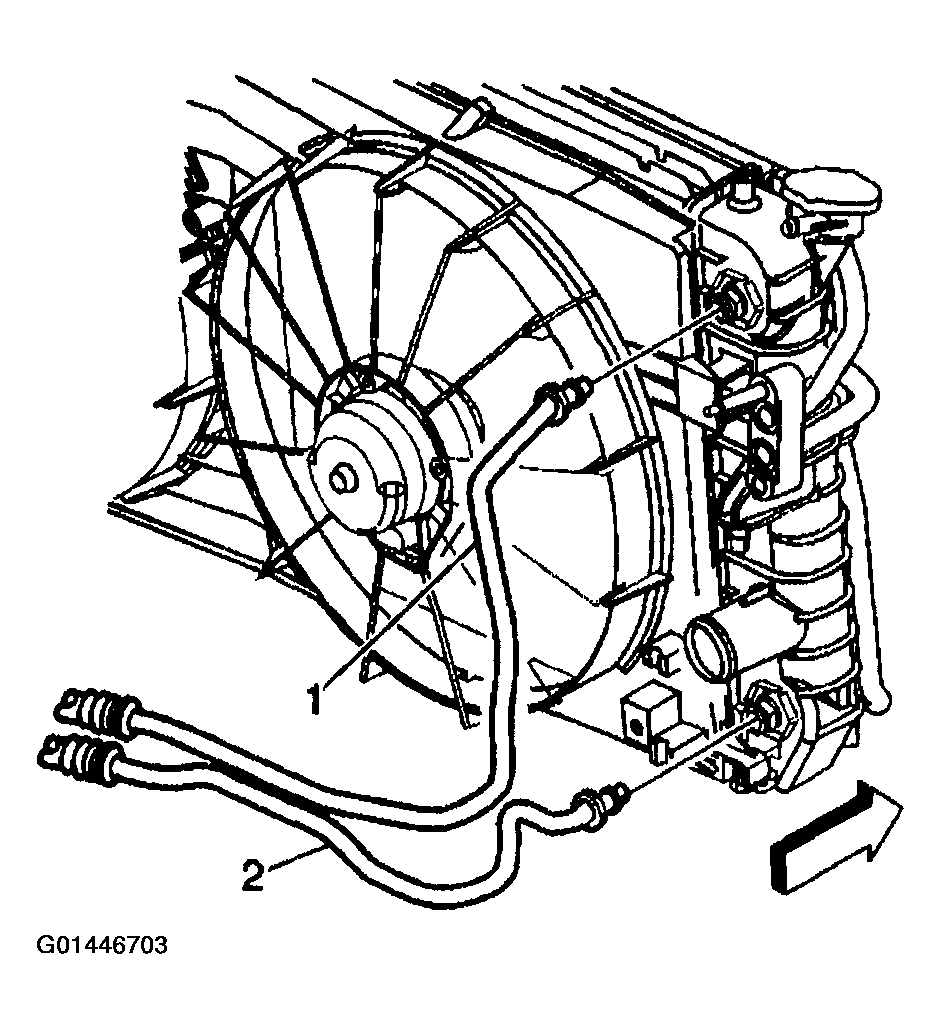

Fig 4: Connecting Transmission Oil Cooler Lines
Courtesy of GENERAL MOTORS CORP.
Install the lower radiator hose to the radiator using the J 38185 .
Install the upper radiator hose to the radiator using the J 38185 .

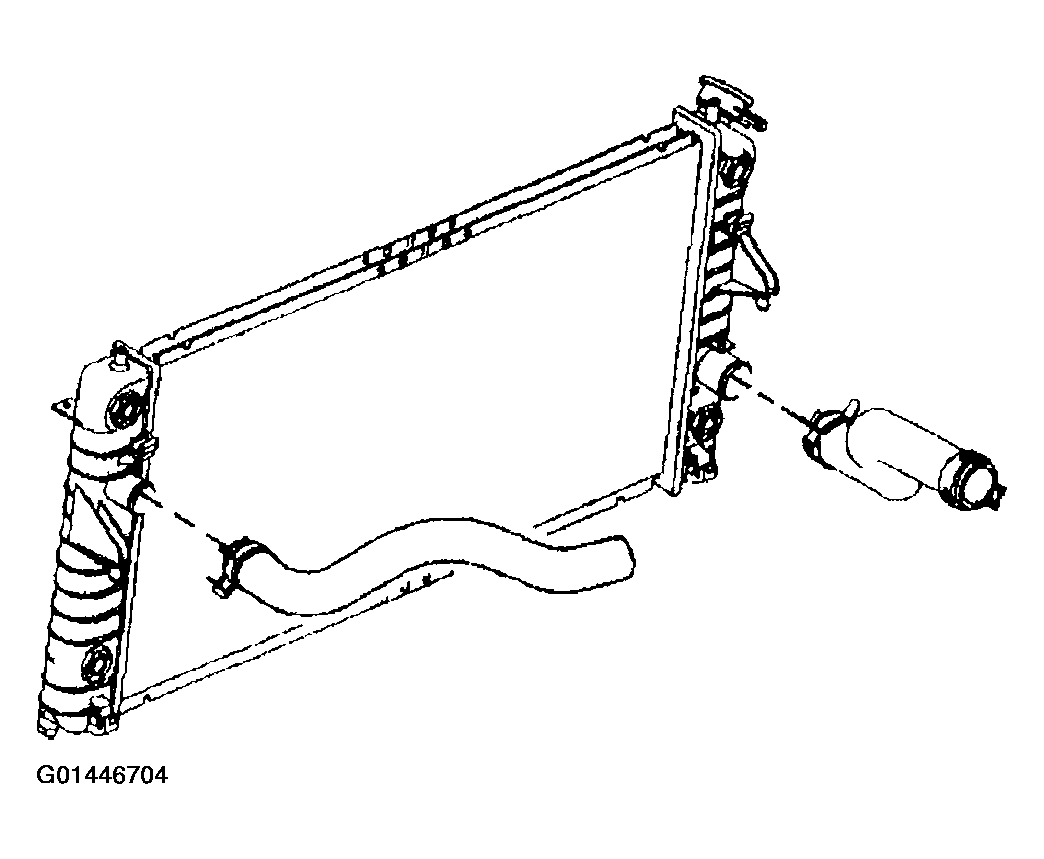

Fig 5: Installing Radiator Hoses
Courtesy of GENERAL MOTORS CORP.
Install the upper radiator seal.

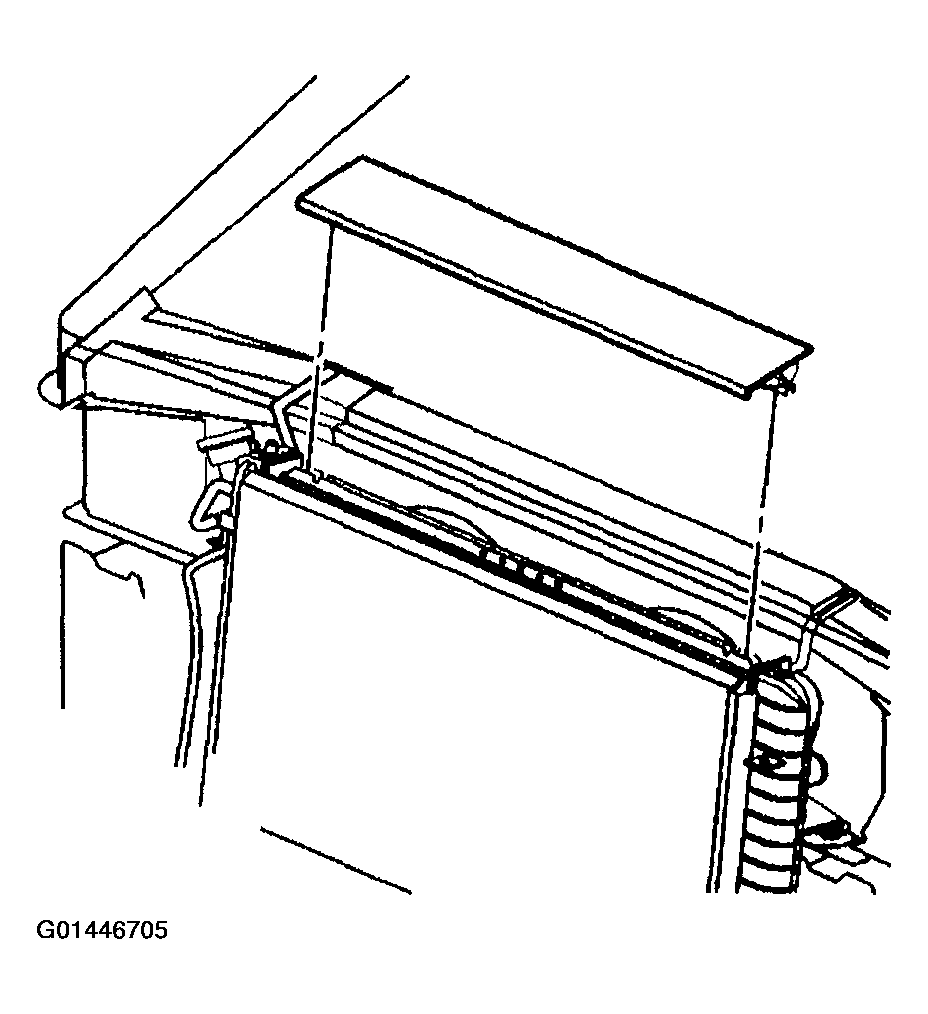

Fig 6: Installing Upper Radiator Seal
Courtesy of GENERAL MOTORS CORP.
Install the hood latch support. Refer to HOOD LATCH SUPPORT REPLACEMENT in Body Front End.
Install the cooling fans. Refer to COOLING FAN REPLACEMENT-ELECTRIC .
Inspect the transmission oil level. Refer to CHECKING FLUID LEVEL & CONDITION .
