Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inlet radiator hose to the engine.

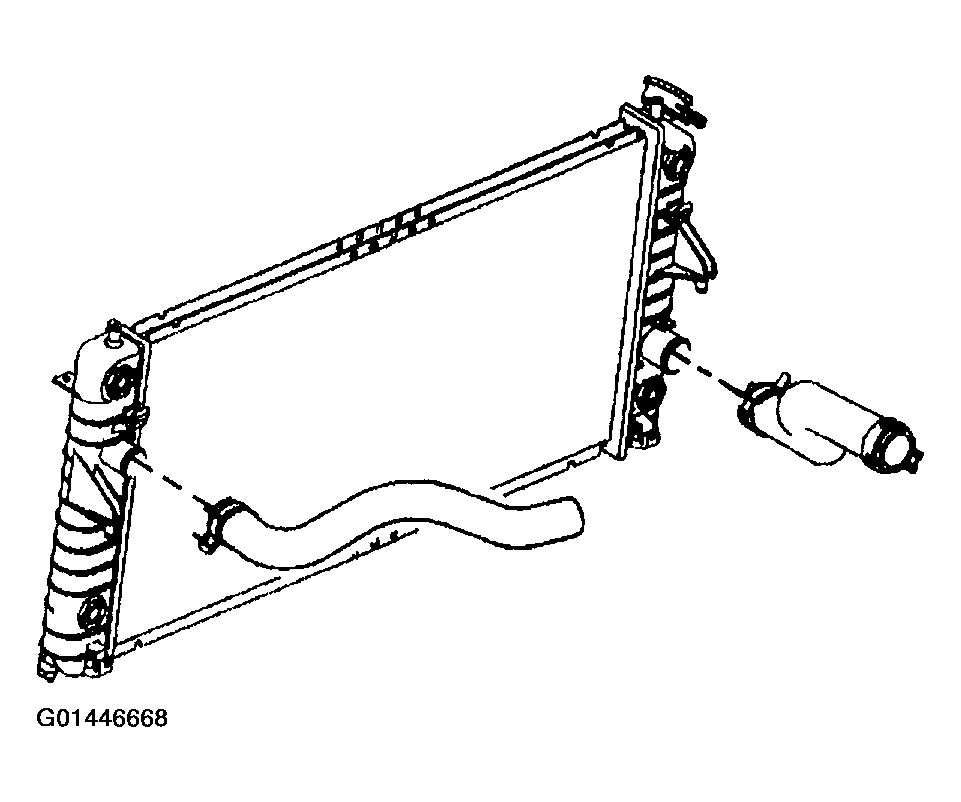

    Fig 1: Installing Radiator Hose
    G01446668Courtesy of GENERAL MOTORS CORP.
  2. Install the inlet radiator hose to the radiator.
  3. Using the J 38185  install the inlet radiator hose clamps.
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
