Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs.
  1. Remove the strut assembly from the vehicle. Refer to STRUT ASSEMBLY REPLACEMENT  .
  2. Install the strut (1) into the J34013-B.

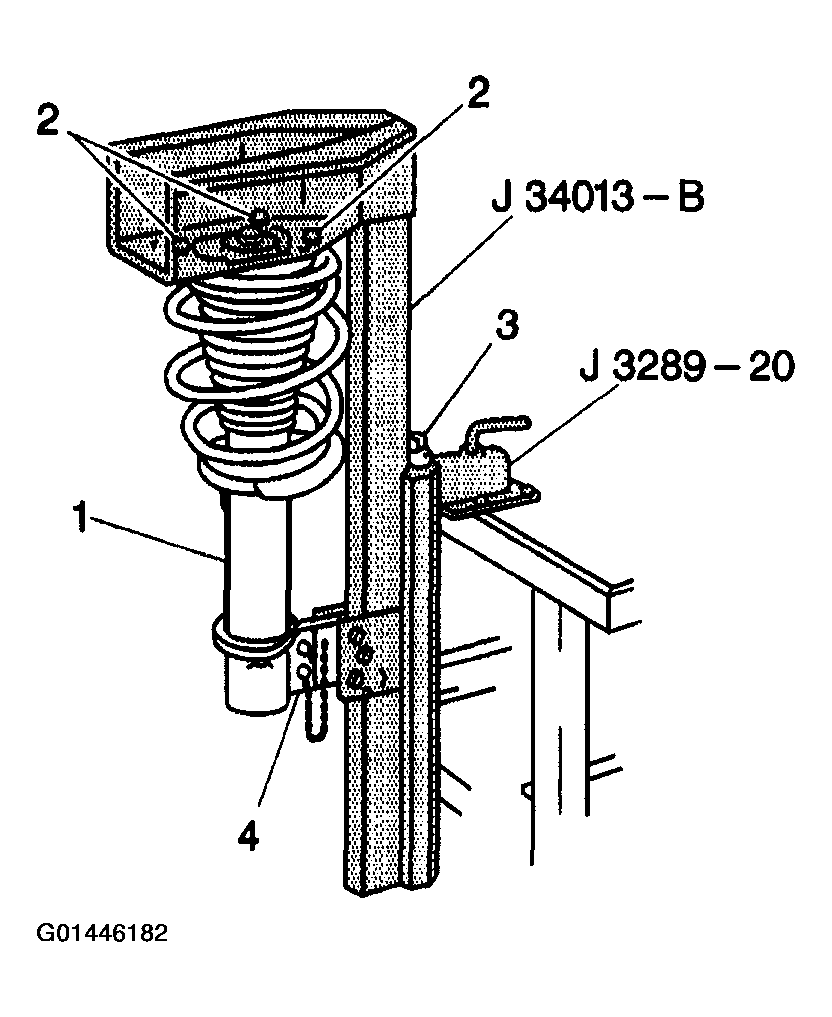

    Fig 1: Installing Strut Into Strut Compressor
    G01446182Courtesy of GENERAL MOTORS CORP.
  3. Turn the compressor forcing screw (3) until the spring compresses slightly.
  4. Use a socket (3) in order to hold the strut shaft from turning.

    Remove the strut shaft retaining nut.

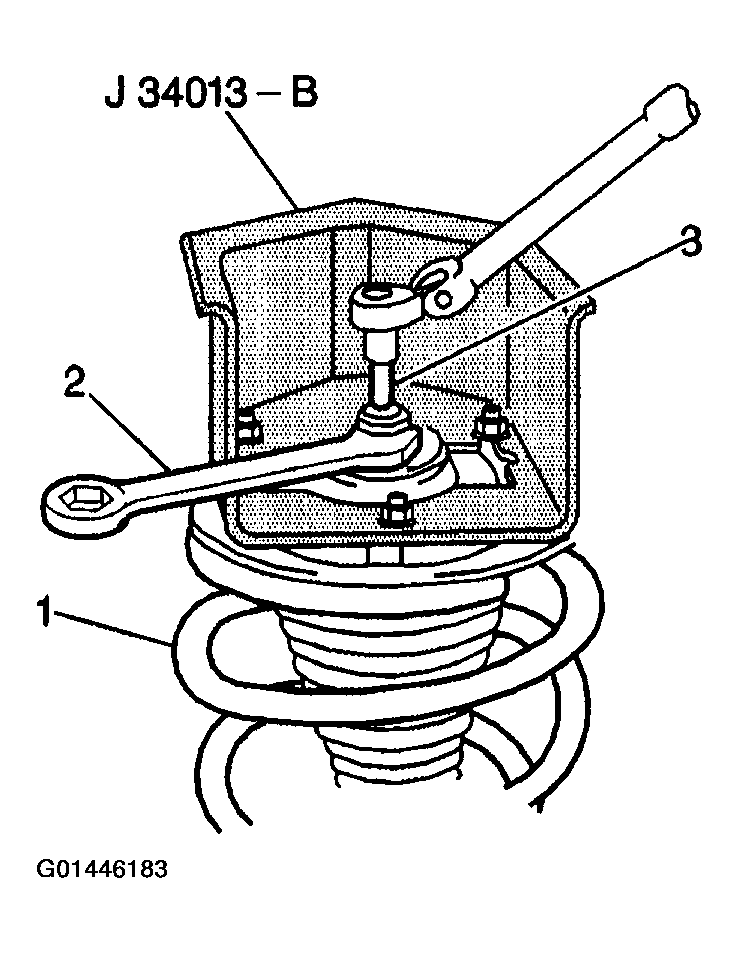

    Fig 2: Removing Strut Shaft Retaining Nut
    G01446183Courtesy of GENERAL MOTORS CORP.
  5. Install the J 34013-38  in order to help guide the strut shaft out of the assembly.
  6. Loosen the compressor screw while guiding the strut shaft out of the assembly. Continue loosening the compressor screw until the strut and the spring may be removed.

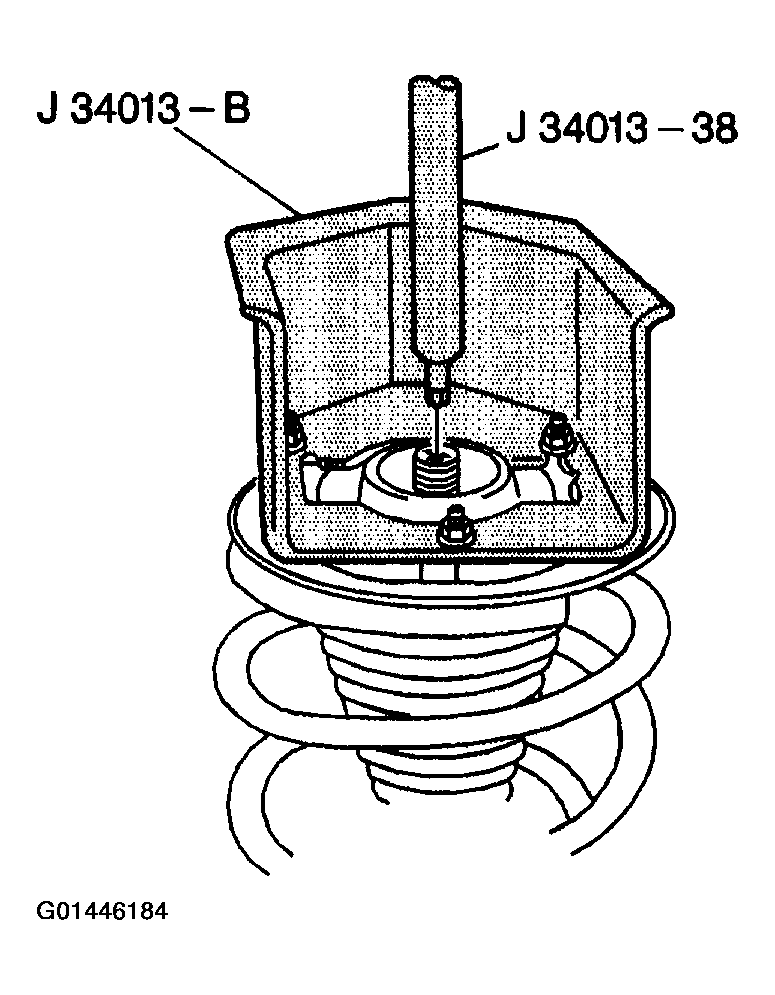

    Fig 3: Removing Strut And Spring
    G01446184Courtesy of GENERAL MOTORS CORP.
