Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Keep the wiper blade claws in the rubber claw channel of the wiper blade element. Do not allow the claws of the wiper blade to contact the metal spline of the wiper blade element.

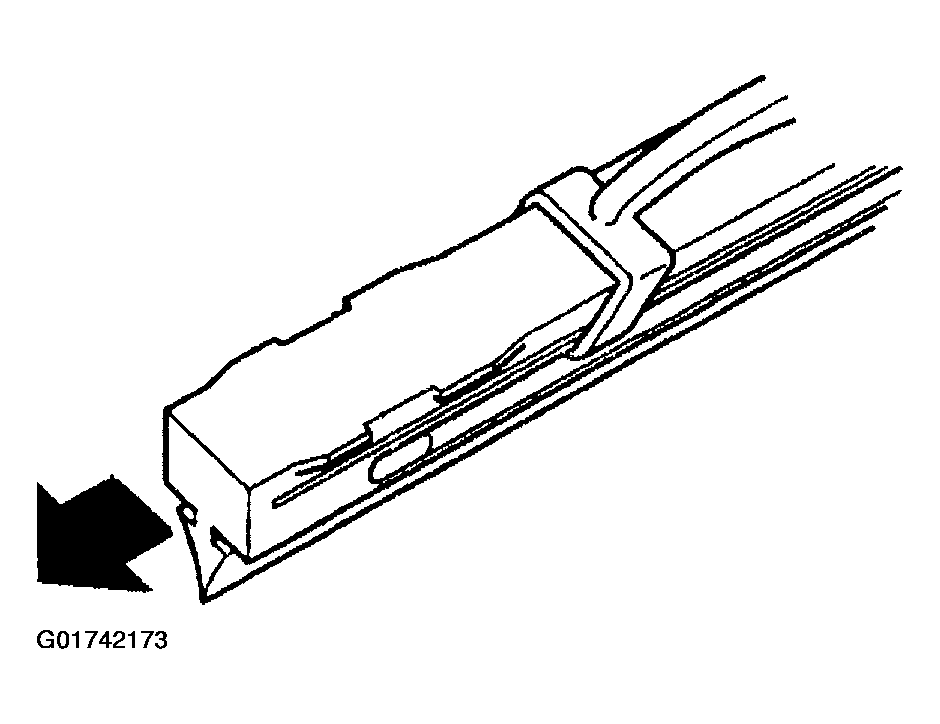

Insert the open end of the wiper blade element into the bottom claws of the wiper blade. See Figure.
Guide the wiper blade element through the wiper blade claw sets.
Engage the bottom claw of the wiper blade into the notches in wiper blade element.

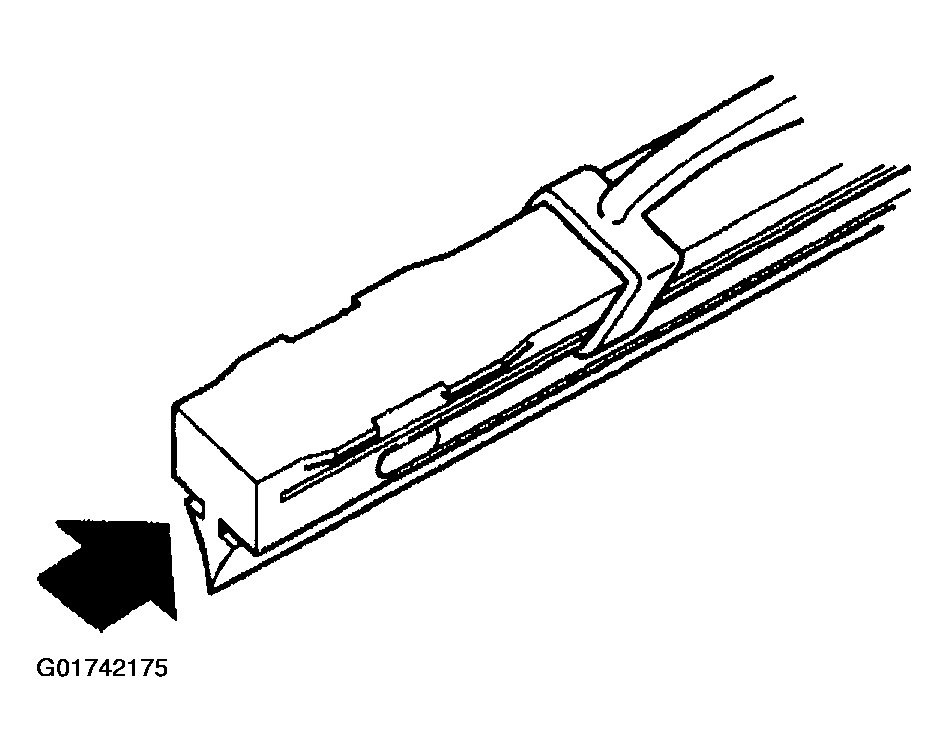

Fig 1: Engaging Wiper Blade Bottom Claw

Courtesy of GENERAL MOTORS CORP.

Install the wiper blade onto the wiper arm. Refer to WIPER ARM BLADE REPLACEMENT .
