HVAC Control Module: Removal
WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

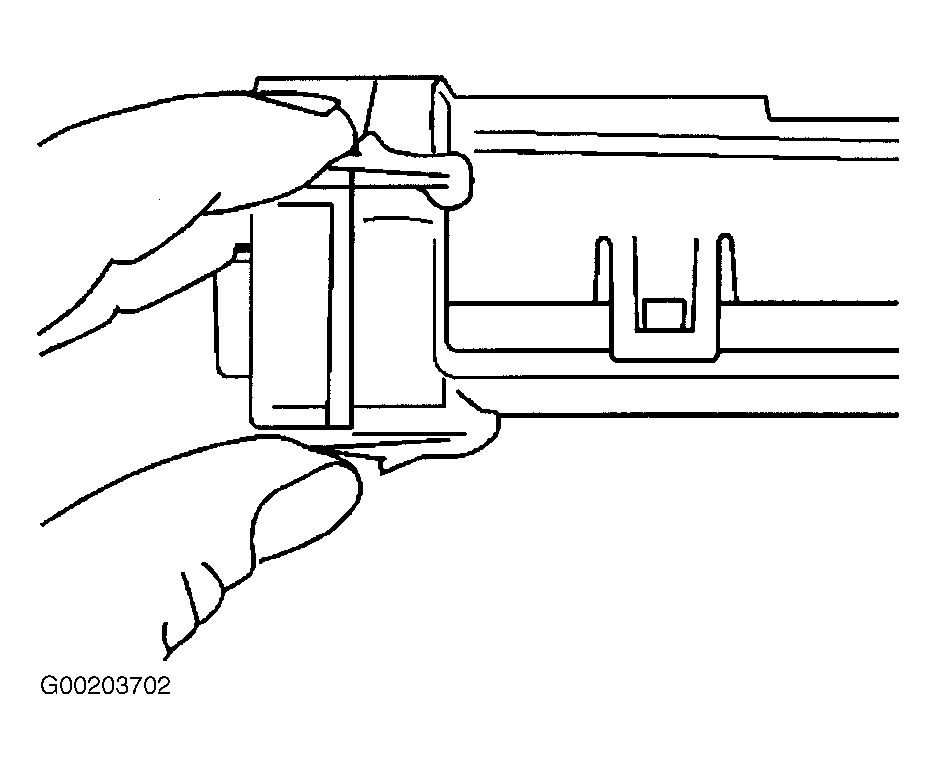

Remove the right I/P accessory trim plate. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. Pinch the tabs on the control module and pull rearward on the HVAC control module to remove from the I/P. See Fig 1.
