Connector Identification

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

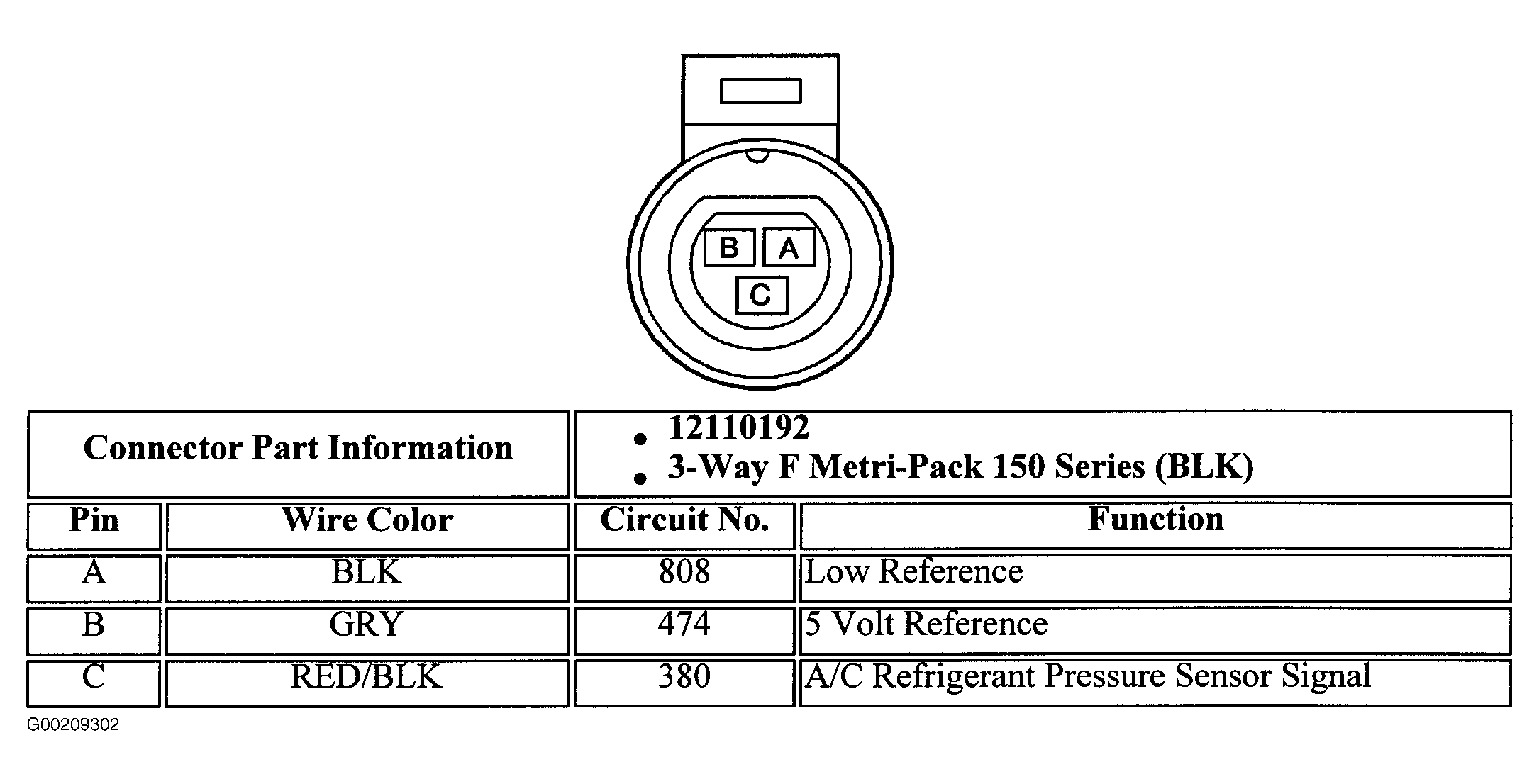

Fig 1: Identifying A/C Refrigerant Pressure Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Blower Motor Control Processor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

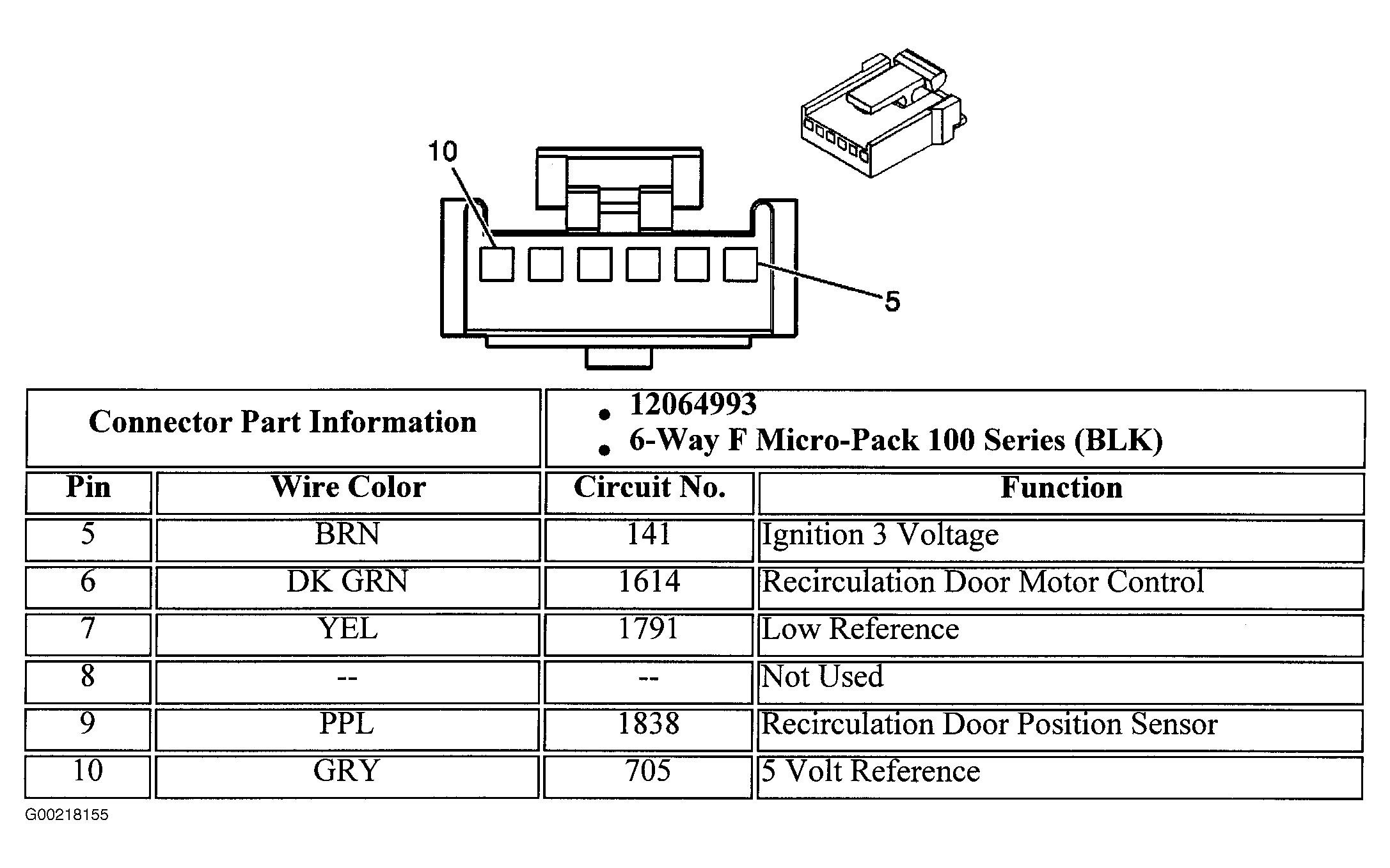

Fig 3: Identifying Recirculation Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

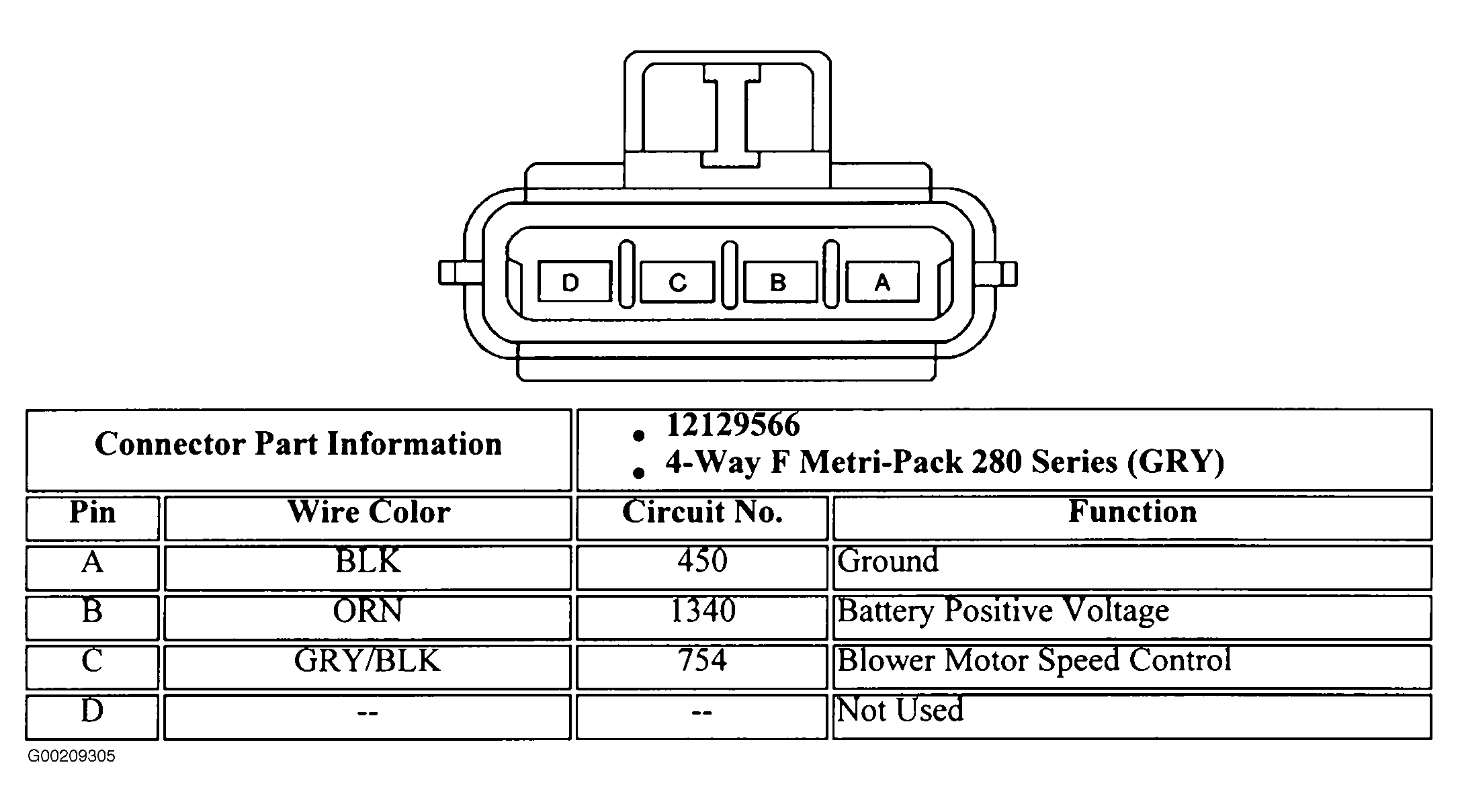

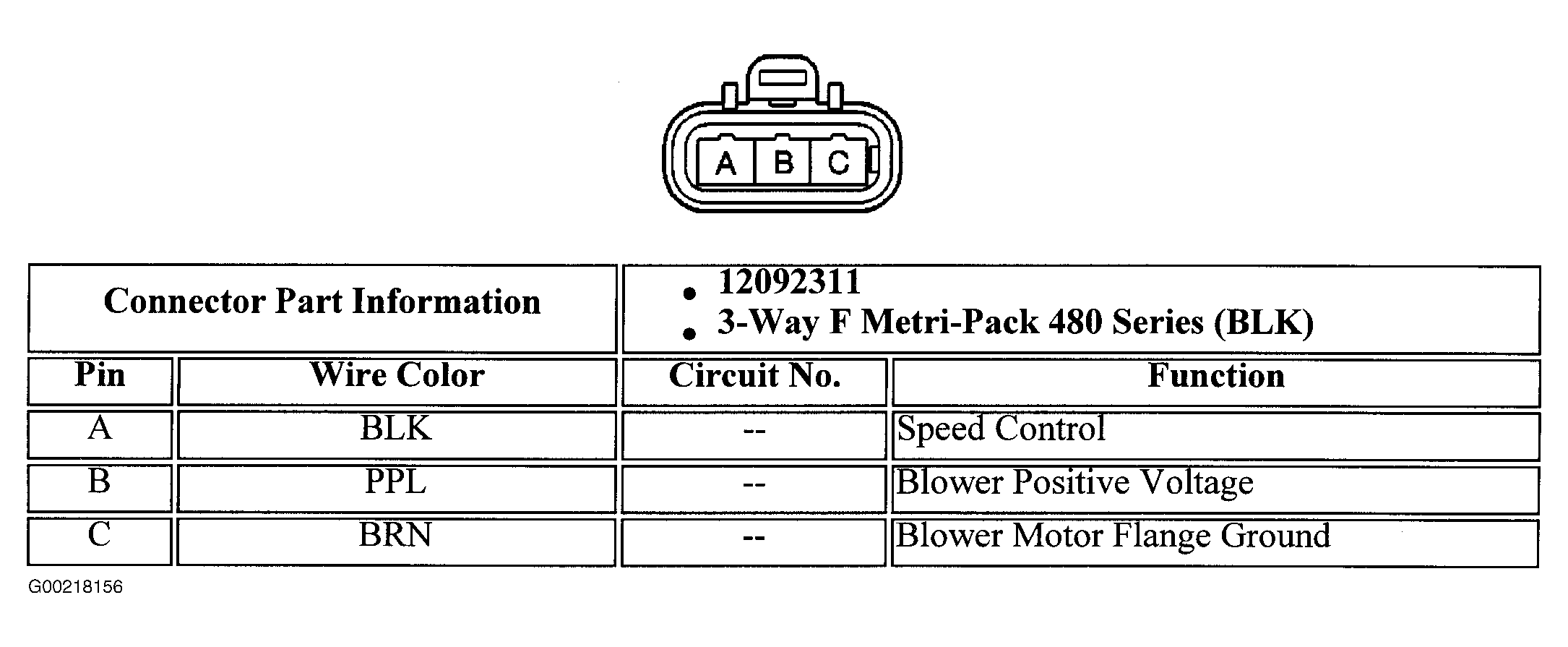

Fig 4: Identifying Blower Motor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

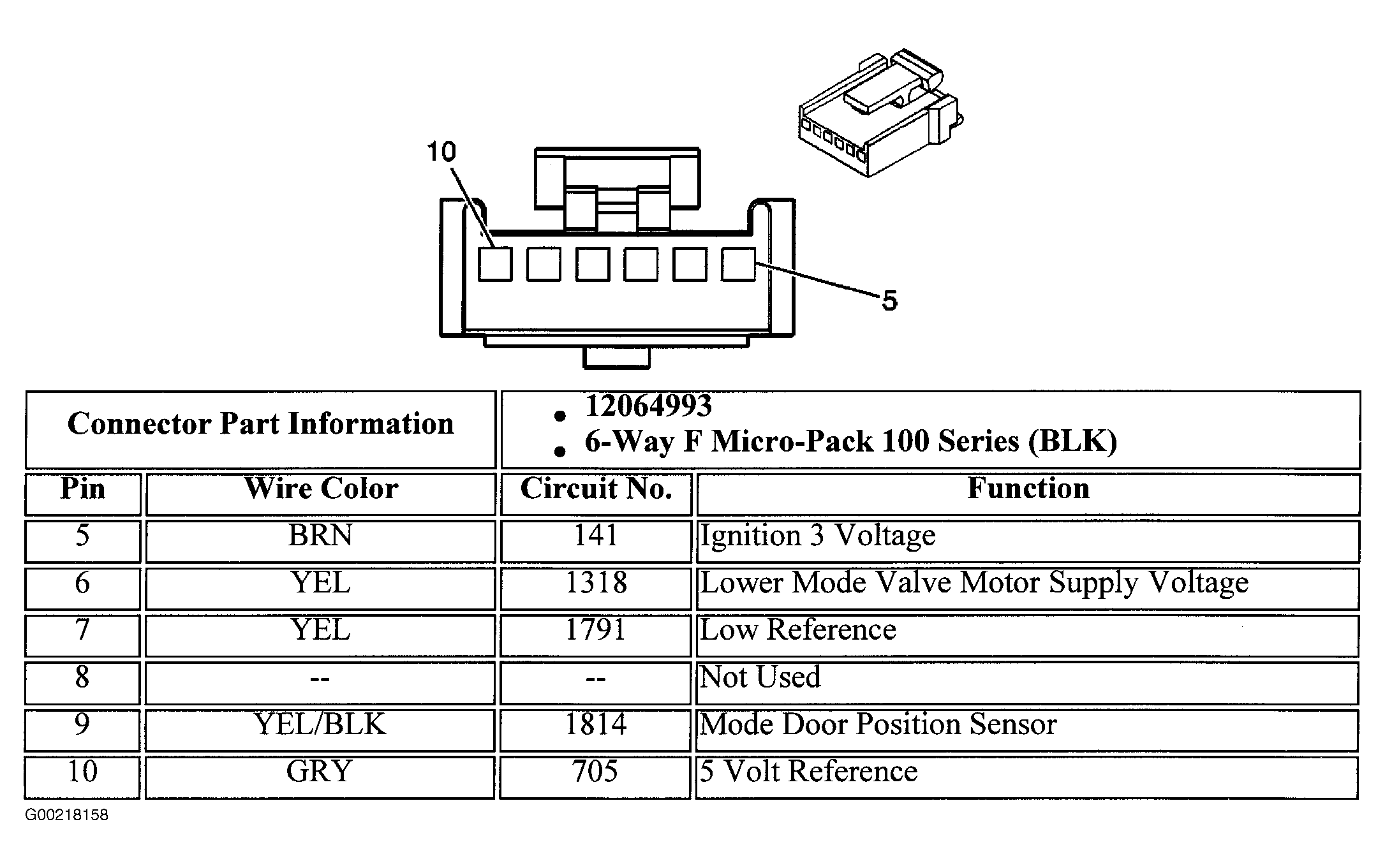

Fig 5: Identifying Left Air Temperature Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

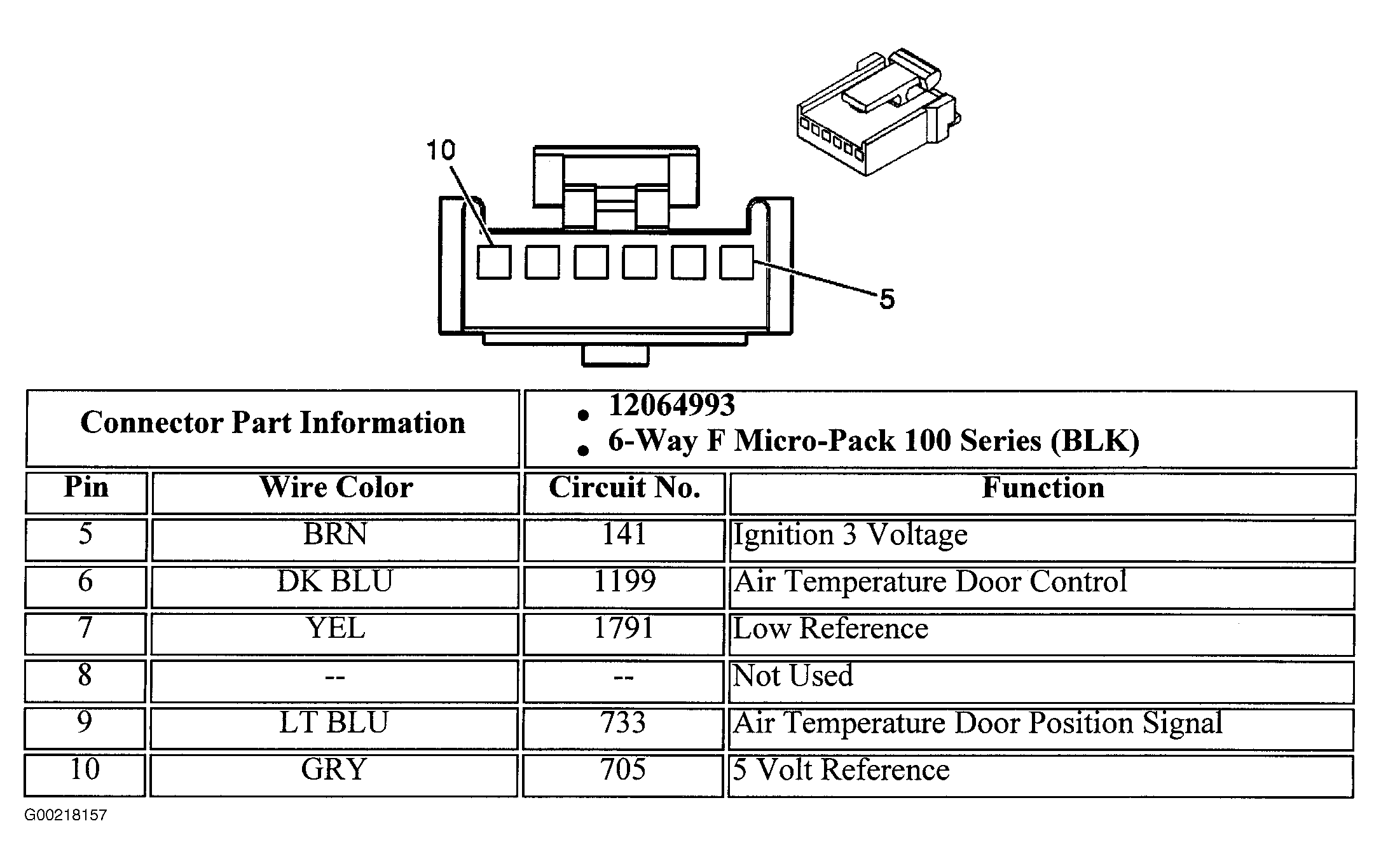

Fig 6: Identifying Mode Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

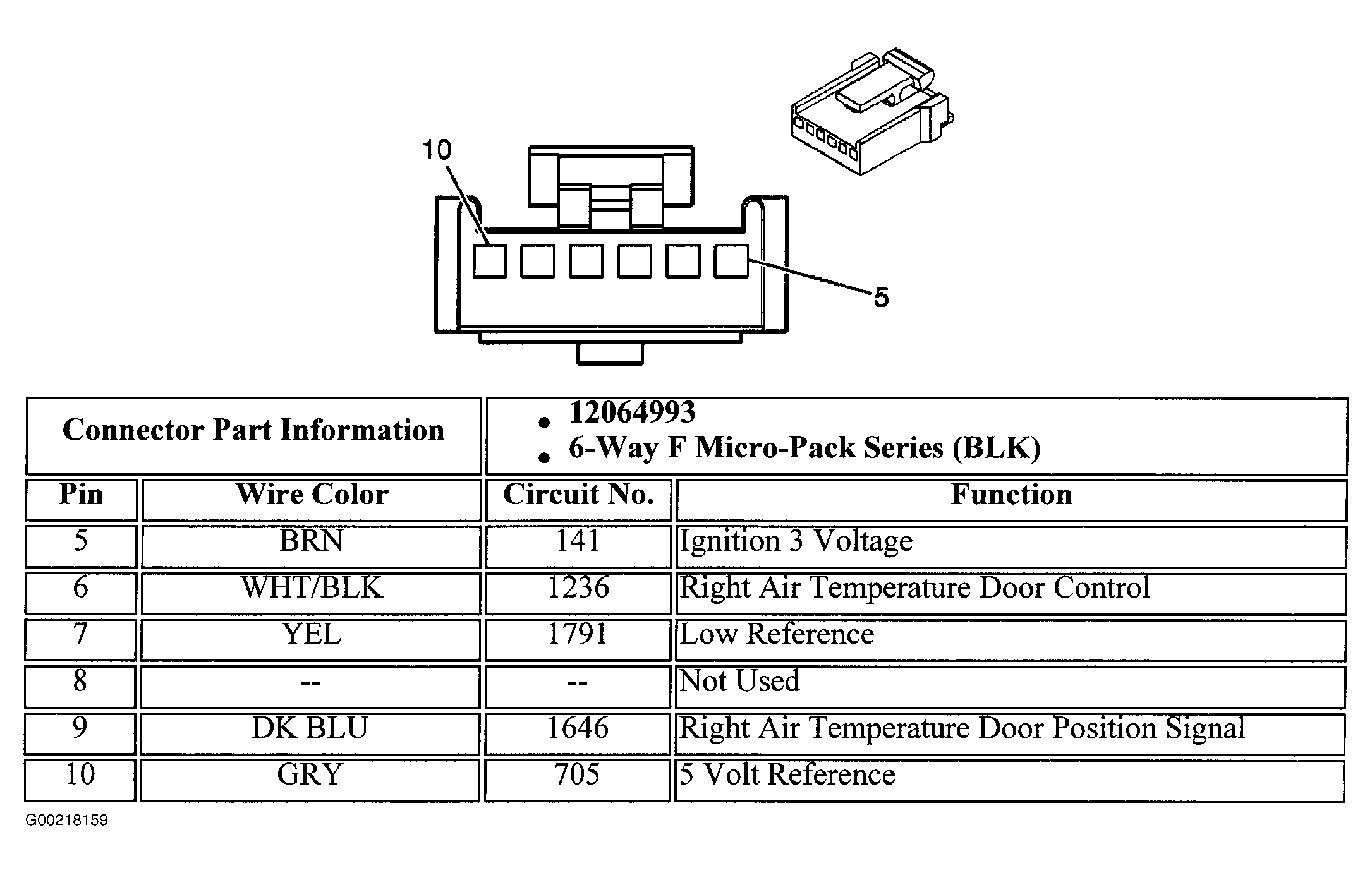

Fig 7: Identifying Right Air Temperature Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

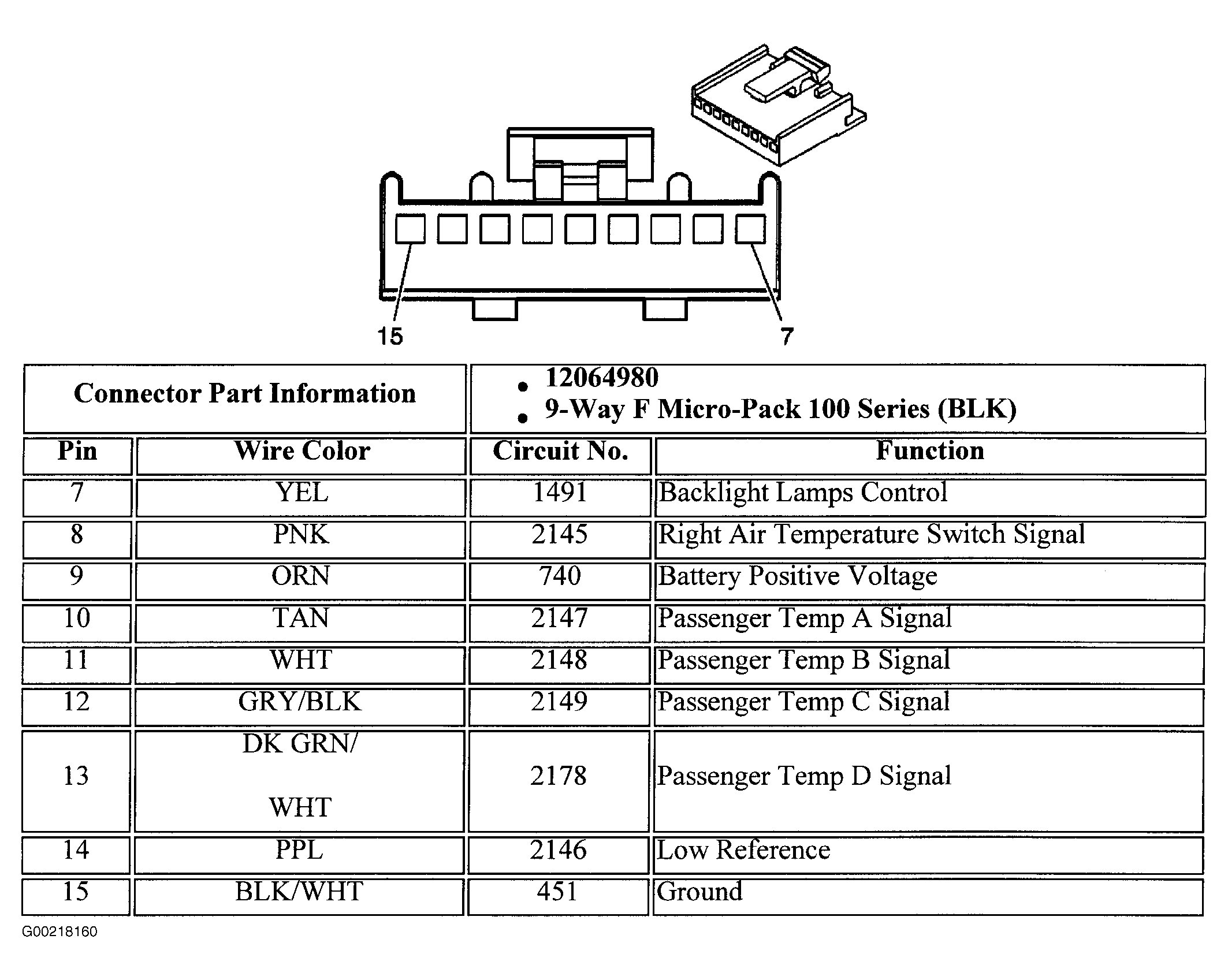

Fig 8: Identifying Right Air Temperature Switch Assembly Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

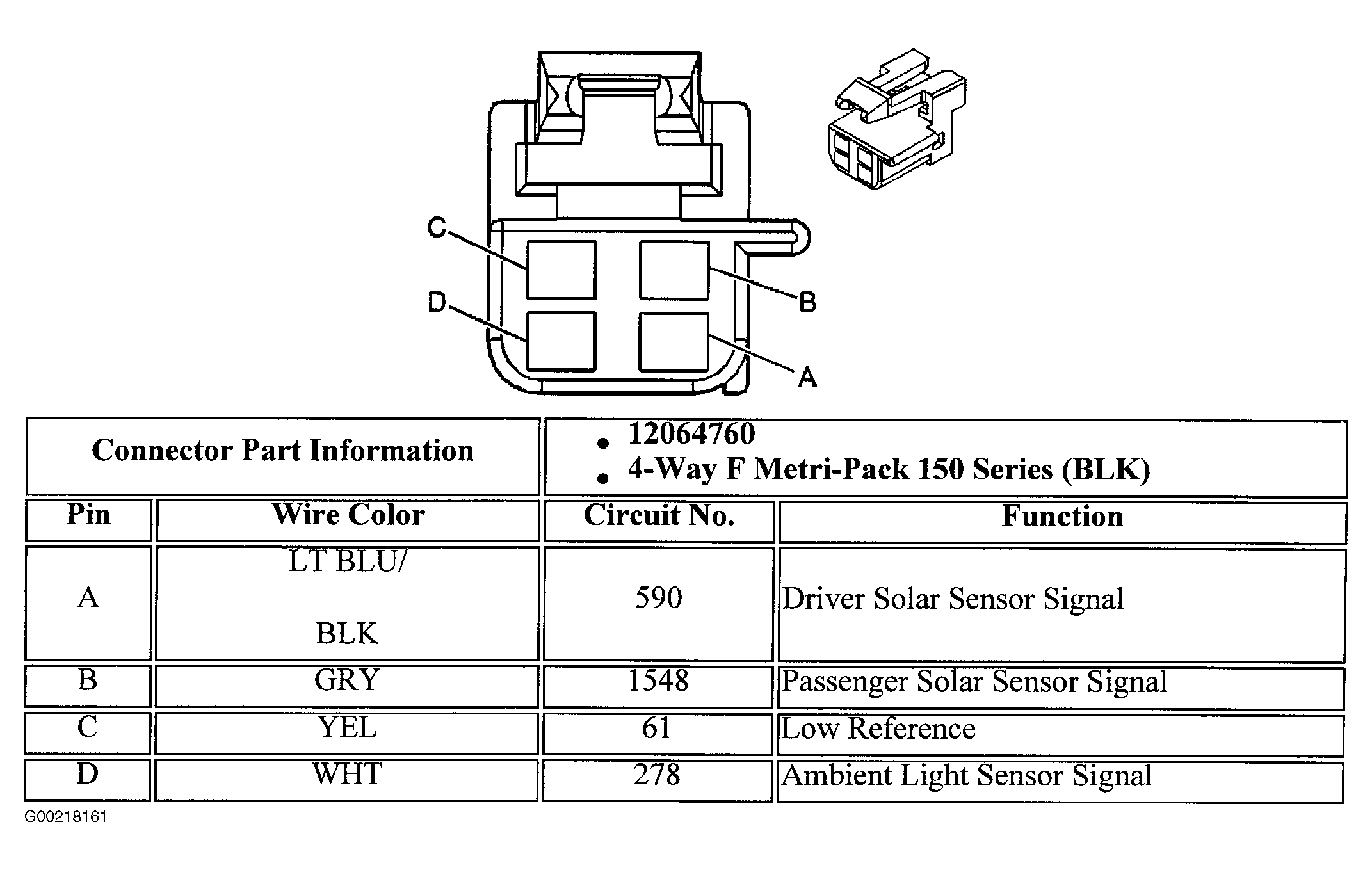

Fig 9: Identifying Sunload Sensor Assembly Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

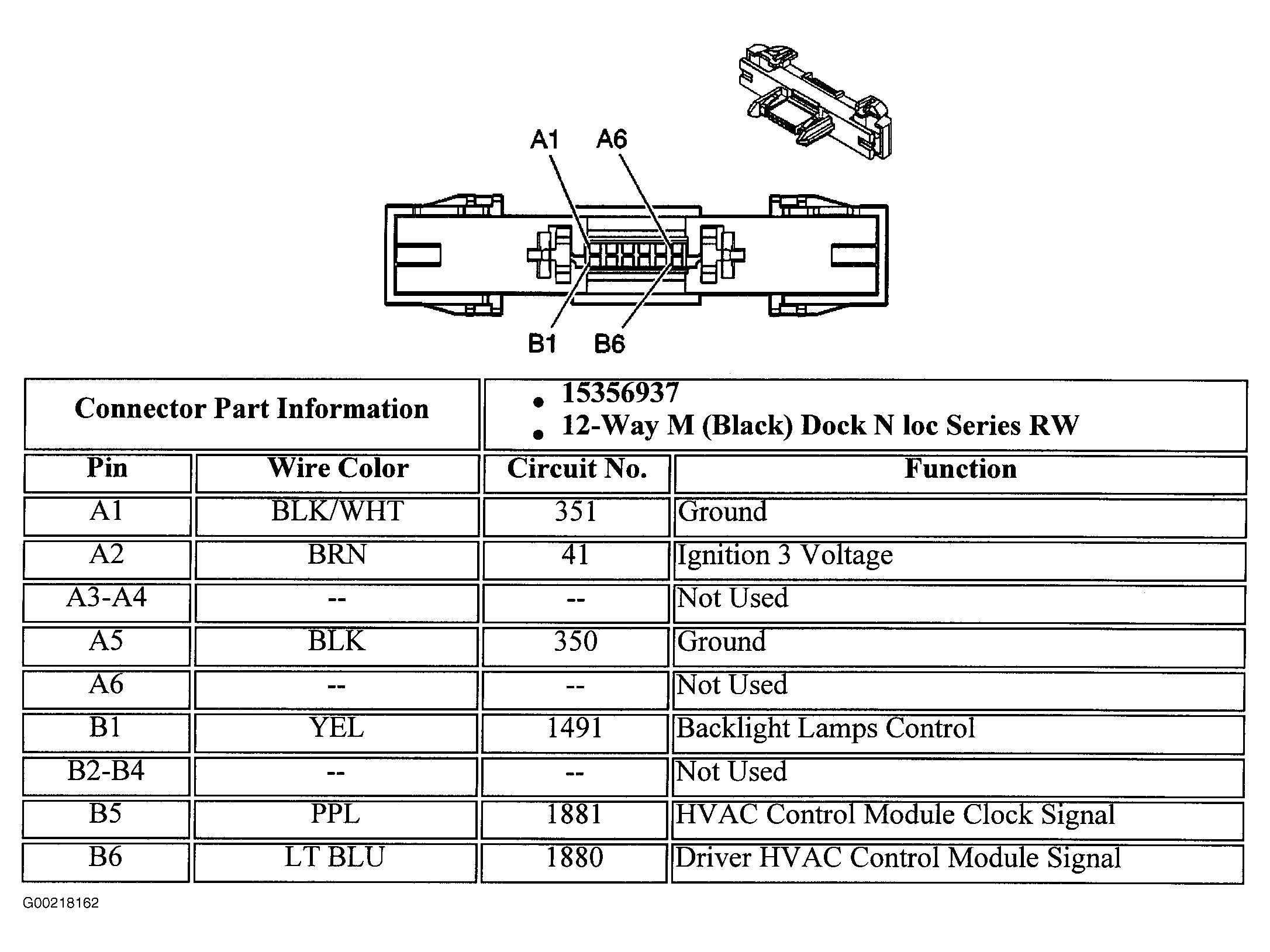

Fig 10: Identifying HVAC Control Module W/CJ2 Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
