Horns Connector End Views

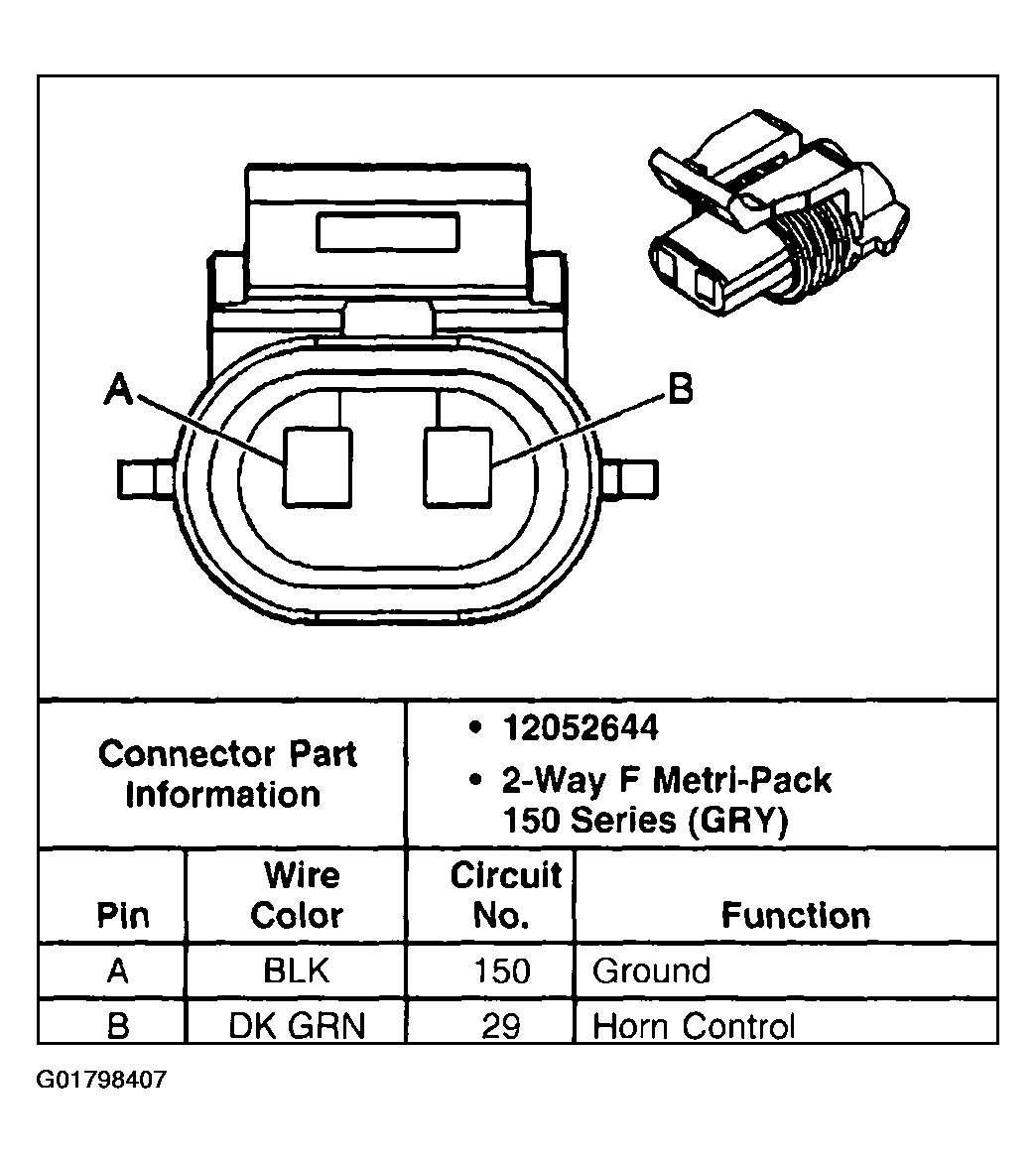

Fig 1: Identifying Left Horn Harness Connector Terminals
G01798407Courtesy of GENERAL MOTORS CORP.

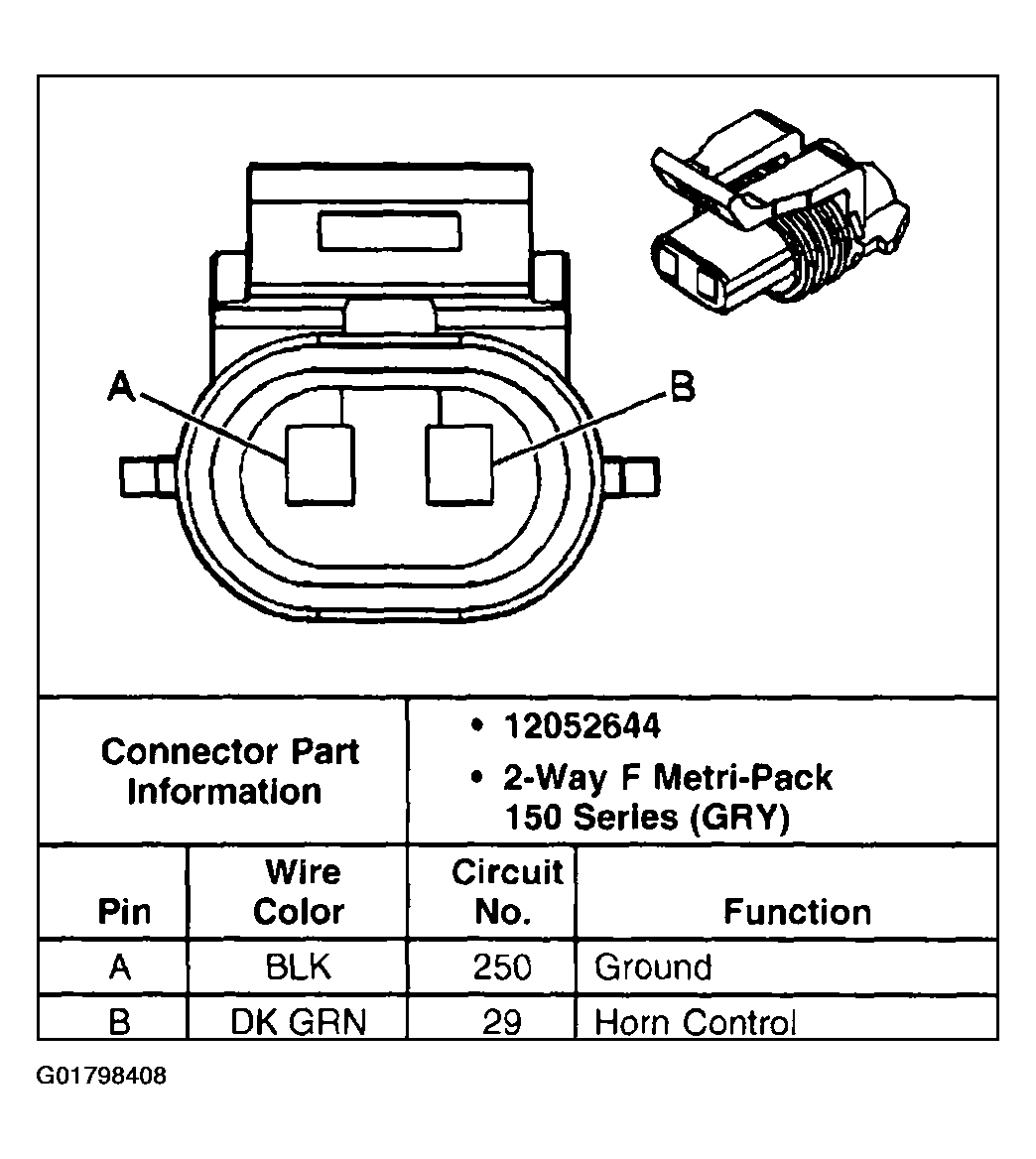

Fig 2: Identifying Right Horn (RPO U06) Harness Connector Terminals
G01798408Courtesy of GENERAL MOTORS CORP.
