Stationary Windows Connector End Views

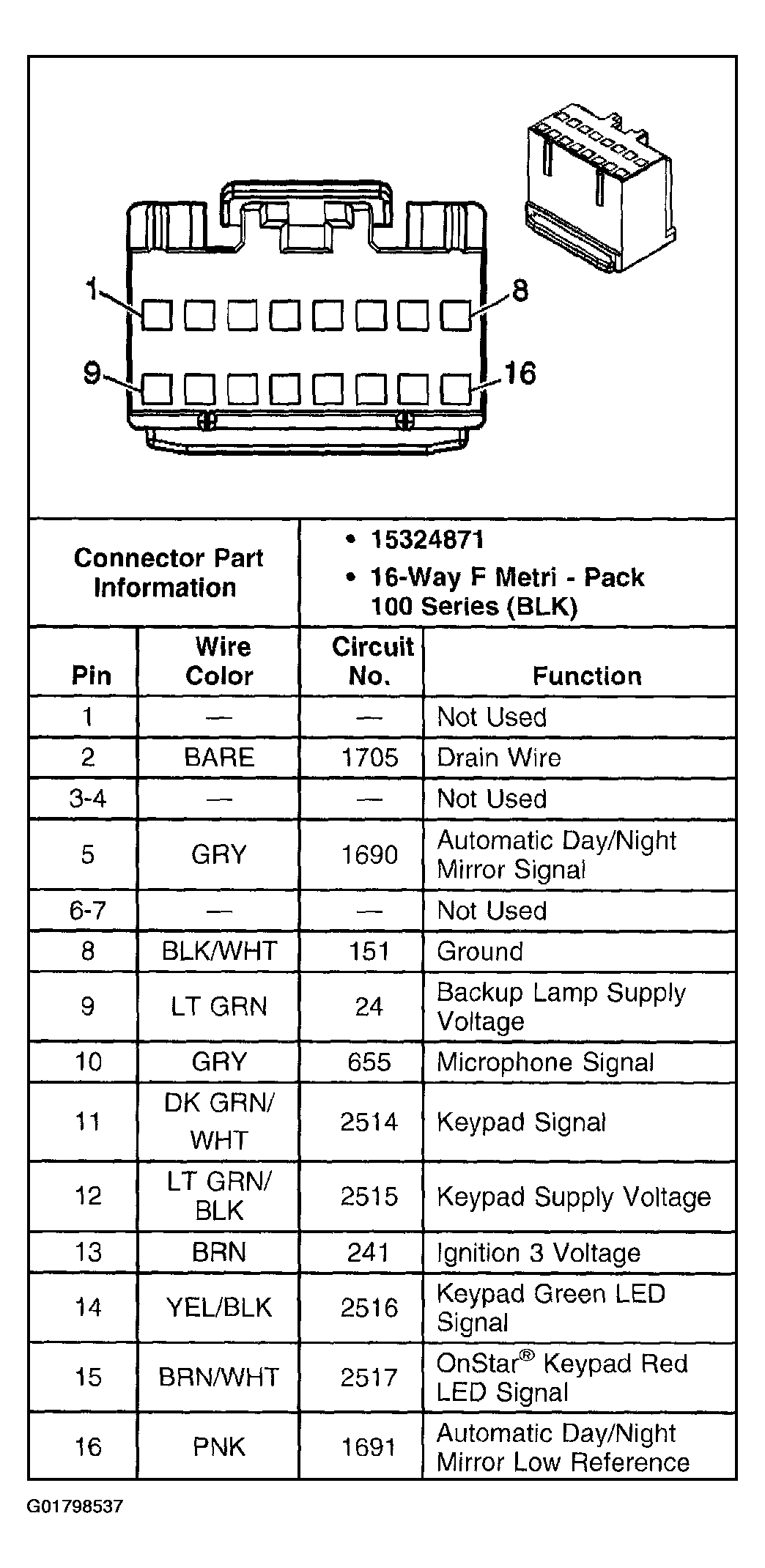

Fig 1: Identifying Inside Rearview Mirror Harness Connector

G01798537

Courtesy of GENERAL MOTORS CORP.
