Schematic & Routing Diagrams

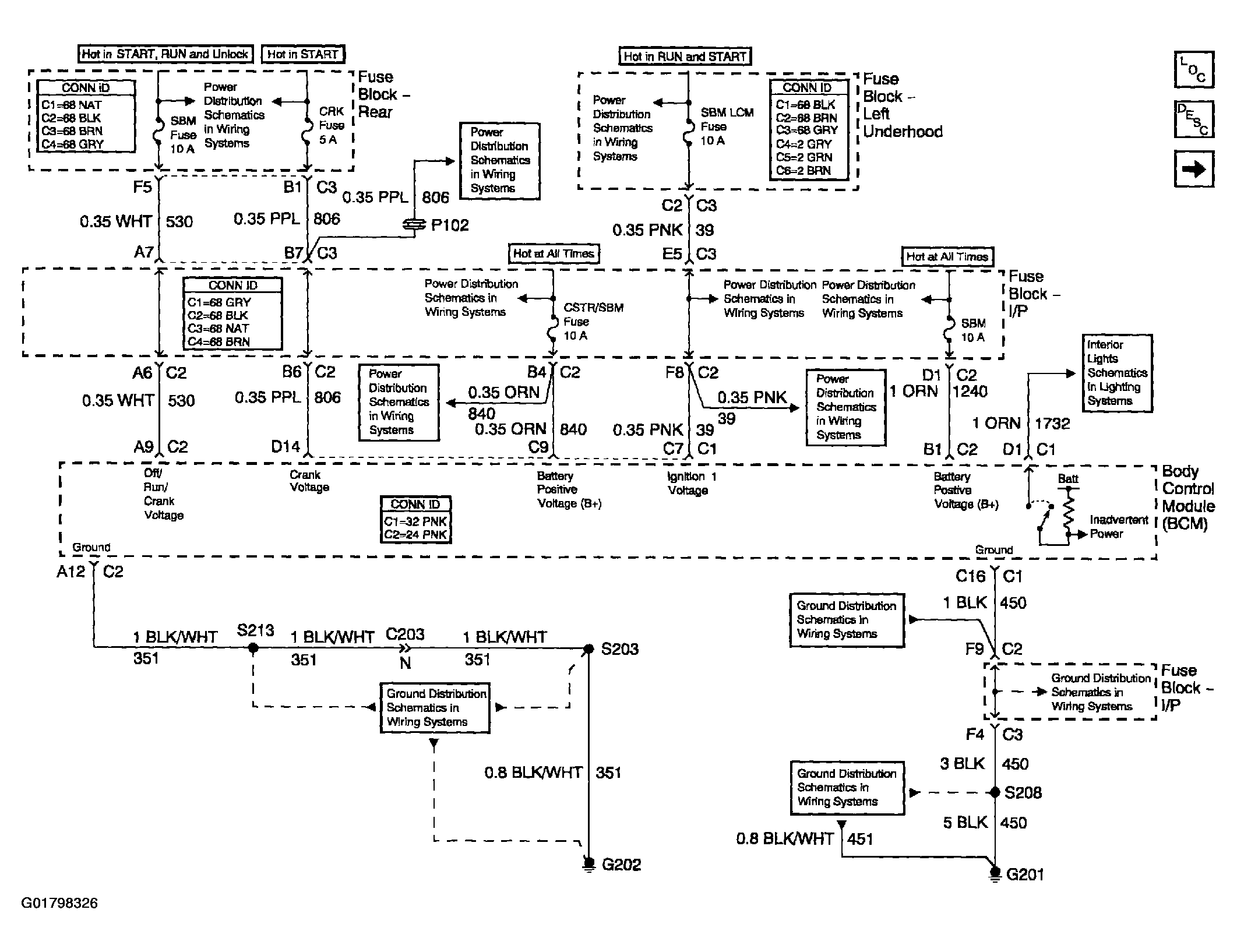

Fig 1: Body Control Module Schematics (Power & Ground)

Courtesy of GENERAL MOTORS CORP.

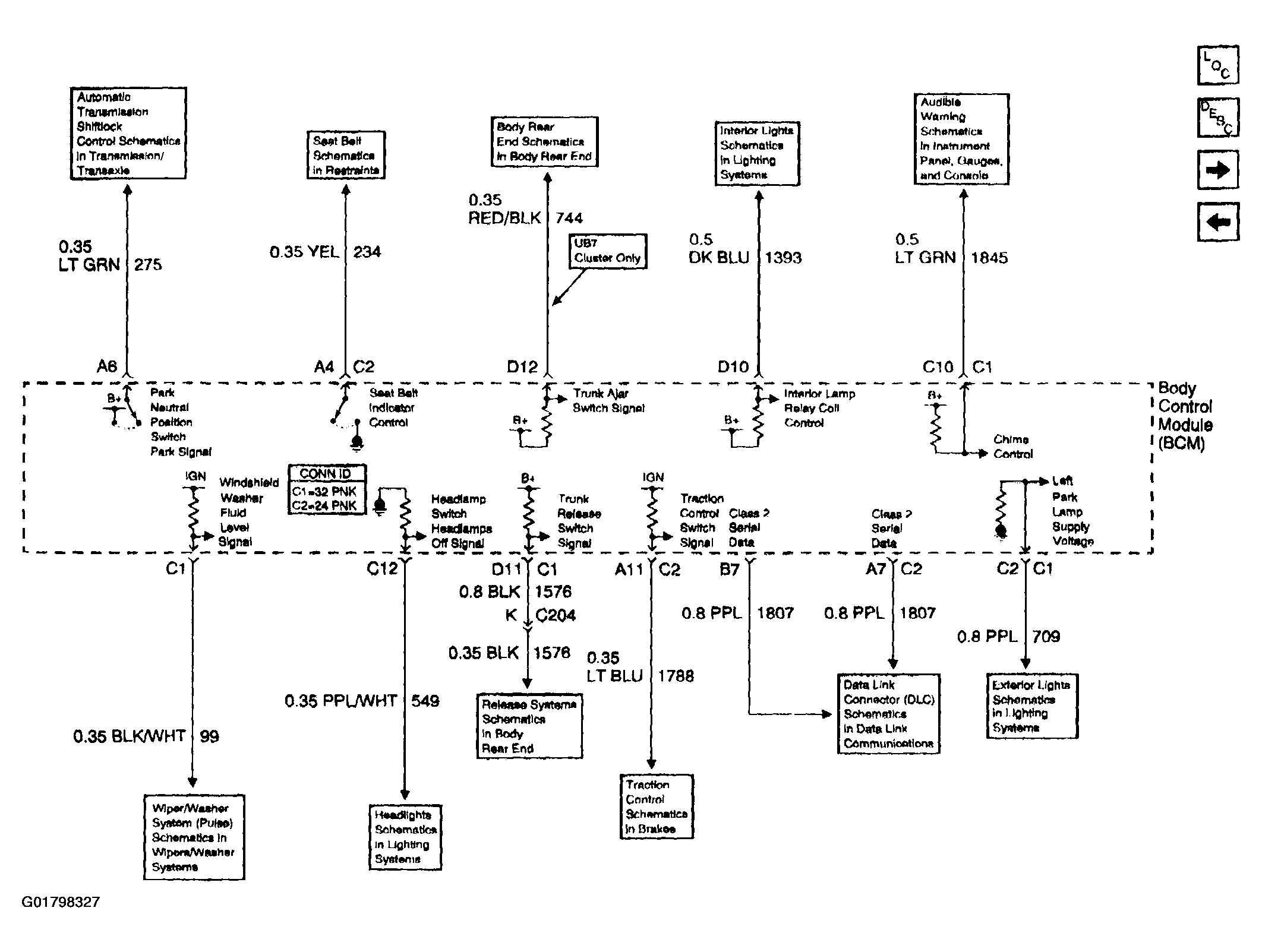

Fig 2: Body Control Module Schematics (Inputs & Outputs - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

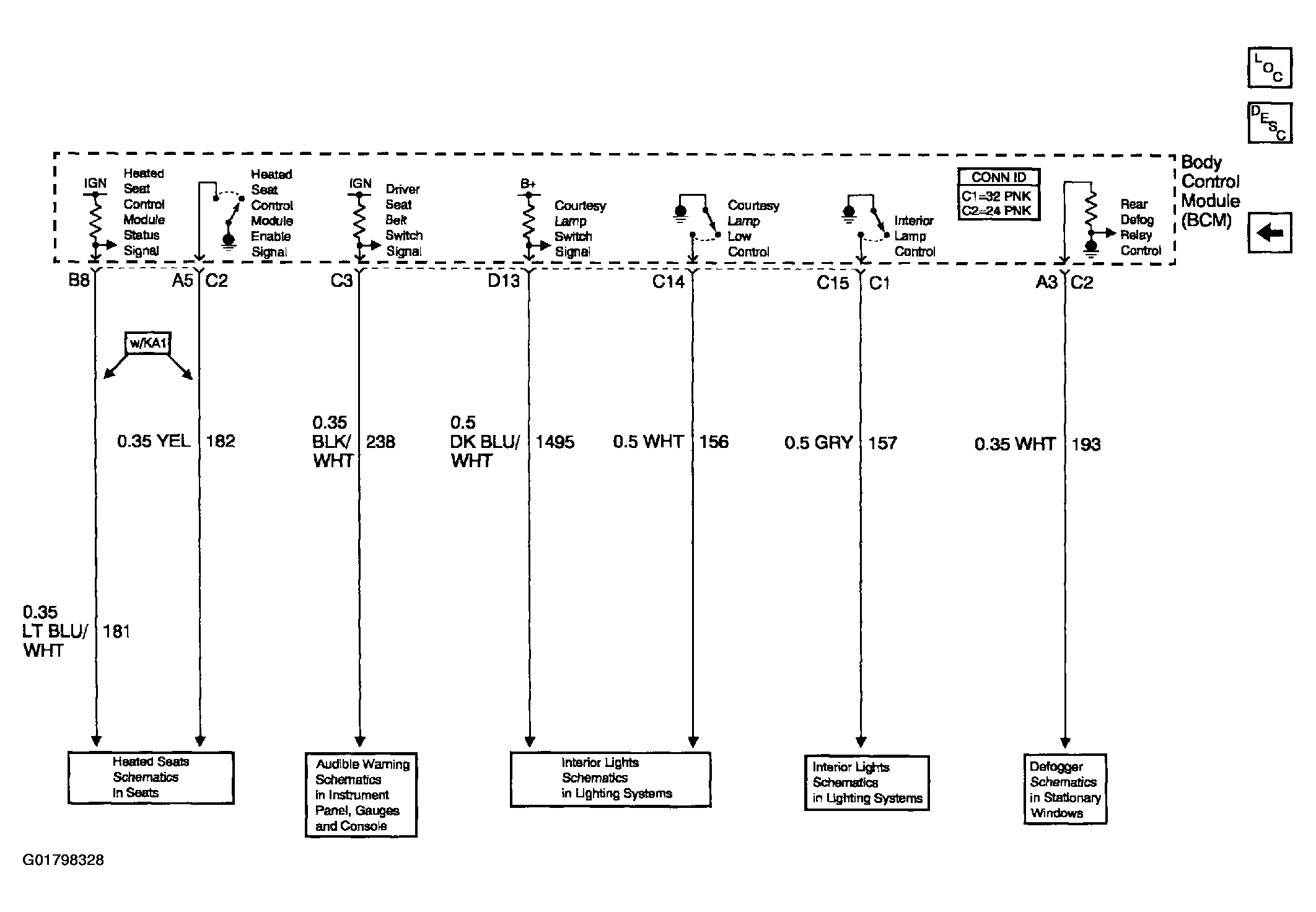

Fig 3: Body Control Module Schematics (Inputs & Outputs - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
