Scan Tool Data List
Scan Tool Data List

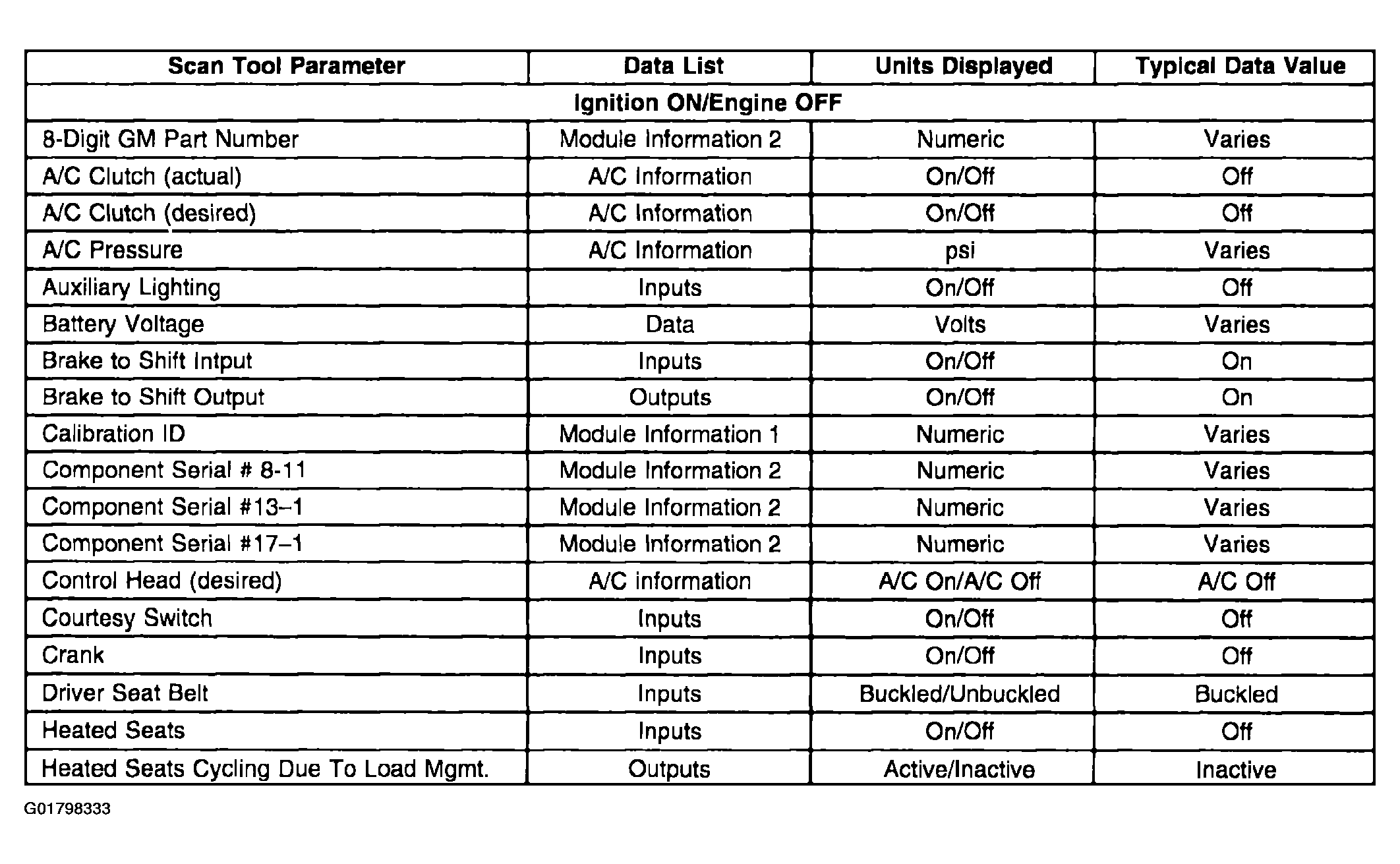

Fig 1: BCM Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

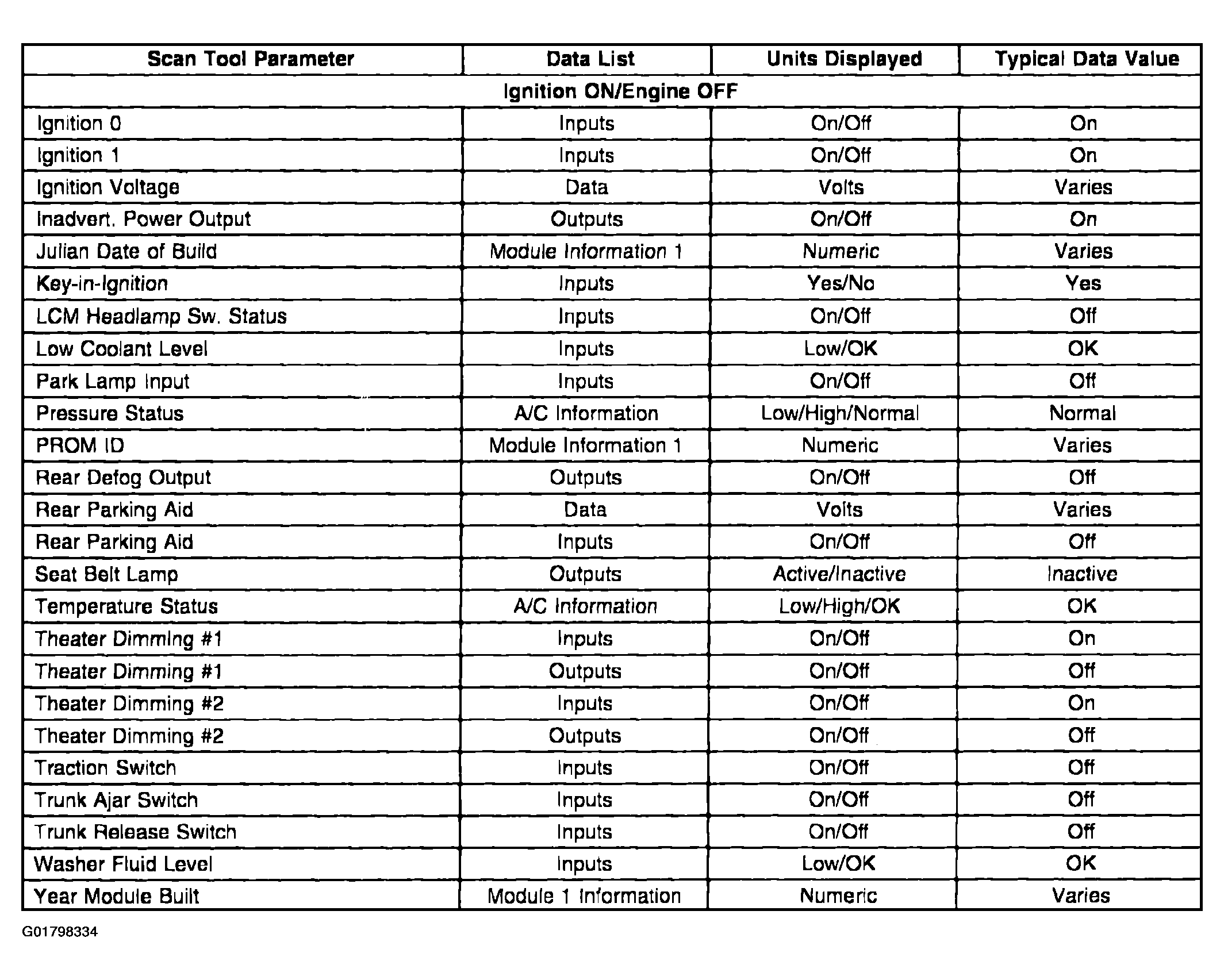

Fig 2: BCM Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
