HVAC Control Module Connector End View

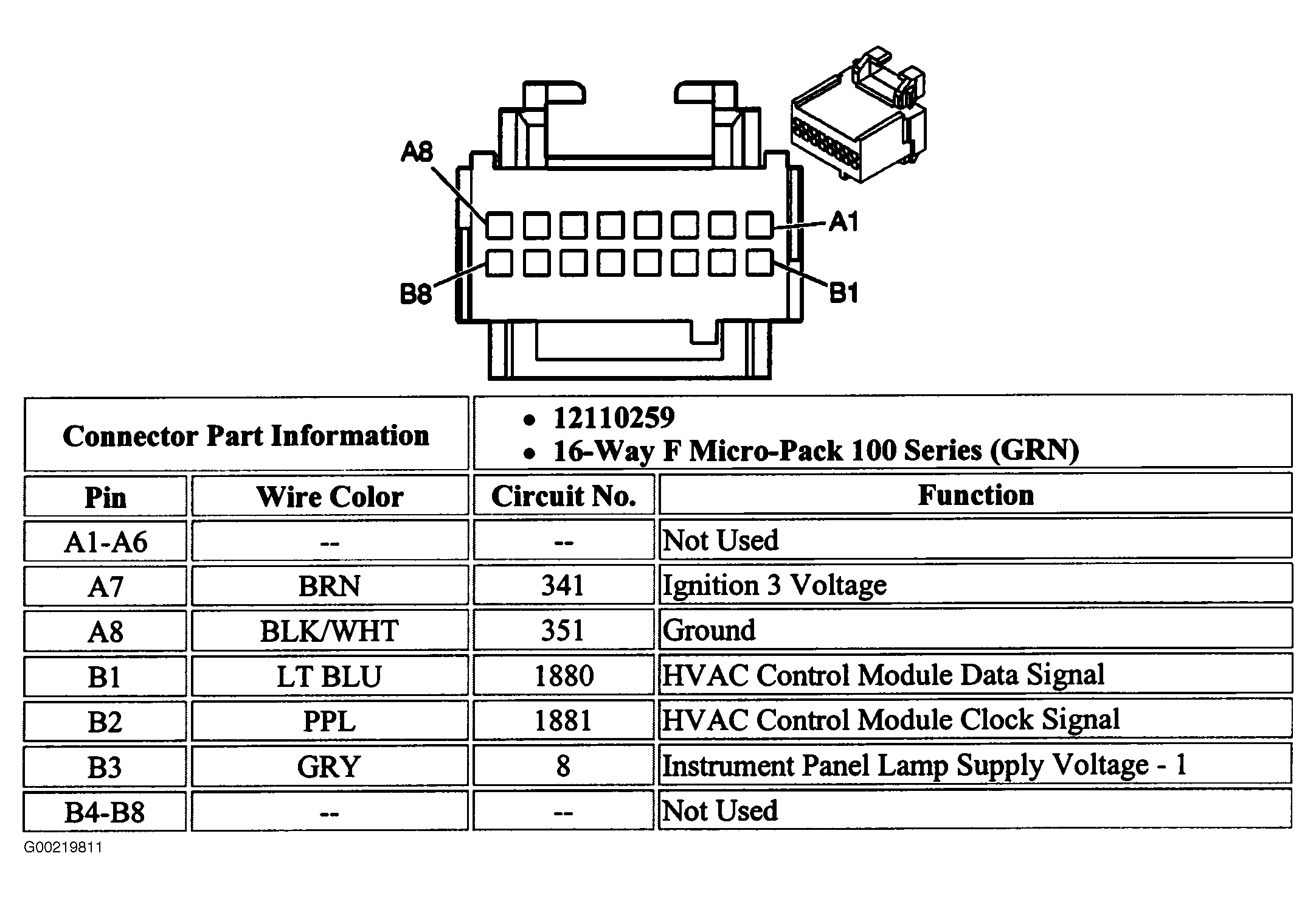

Fig 1: HVAC Control Module Connector End View

G00219811

Courtesy of GENERAL MOTORS CORP.
