Removal Procedure

  1. Raise the seat to the full upright position.
  2. Unsnap the front track cover from the seat by sliding forward.
  3. Remove the 2 front screws from the memory seat module bracket.
  4. Remove the front seat anchor bolts from the rear of the seat tracks.
  5. Raise and support the rear of the seat assembly.
  6. Disconnect the electrical connector.
  7. Remove the 2 rear fasteners from the bracket.
  8. Remove the memory seat module (1) and the bracket.

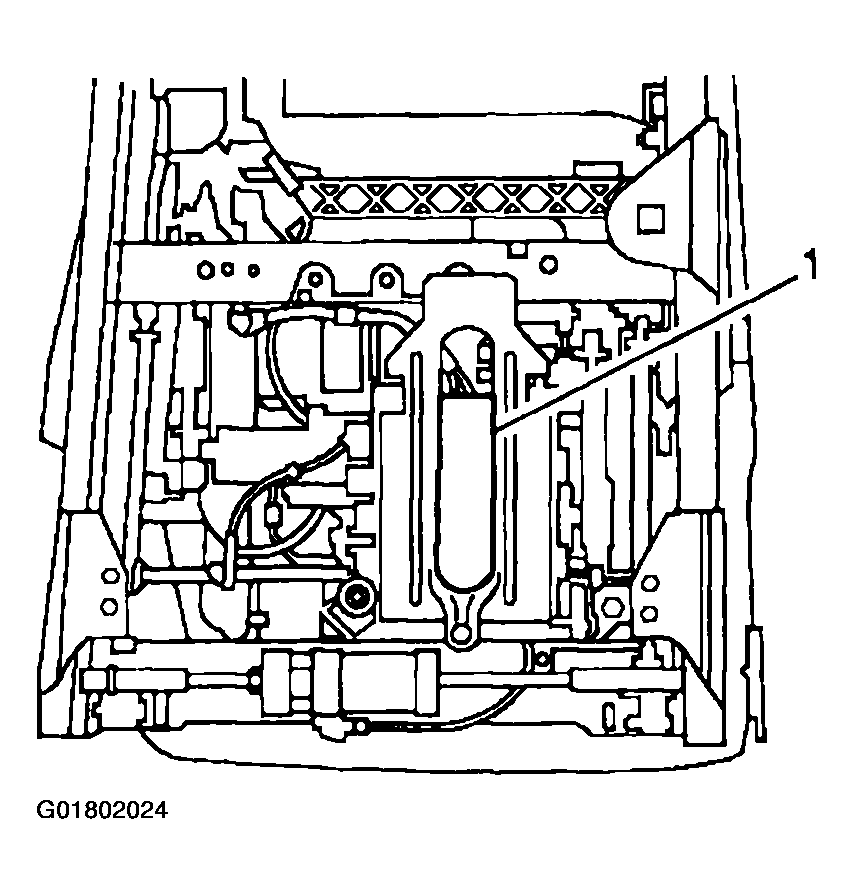

    Fig 1: Locating Memory Seat Module
    G01802024Courtesy of GENERAL MOTORS CORP.
