Keyless Entry Connector End Views
Keyless Entry Connector End Views

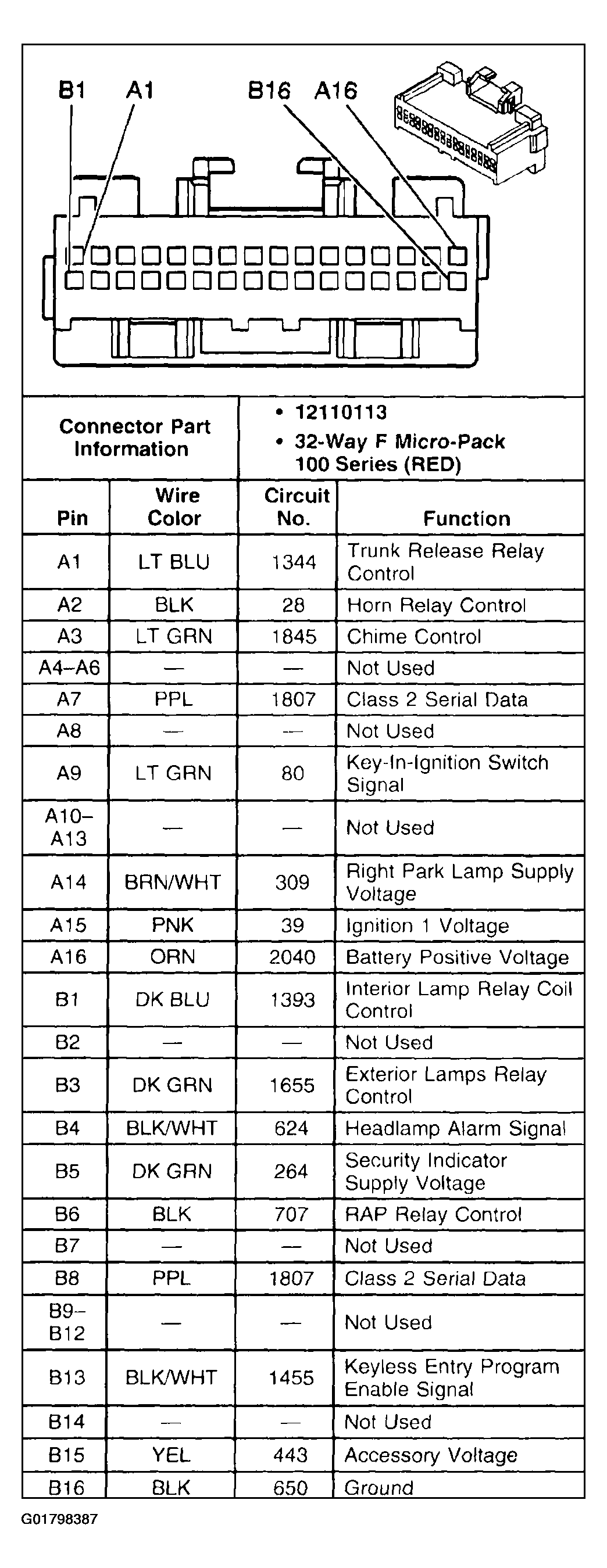

Fig 1: Identifying Remote Control Door Lock Receiver (RCDLR) Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
