Component Locations

COMPONENT LOCATIONS

Component (1) Location
Battery Under Rear Seat Cushion
Data Link Connector Lower Left Side Of Instrument Panel
Starter Lower Front of Engine
(1) To locate and identify starter motor components, see Fig 1 .

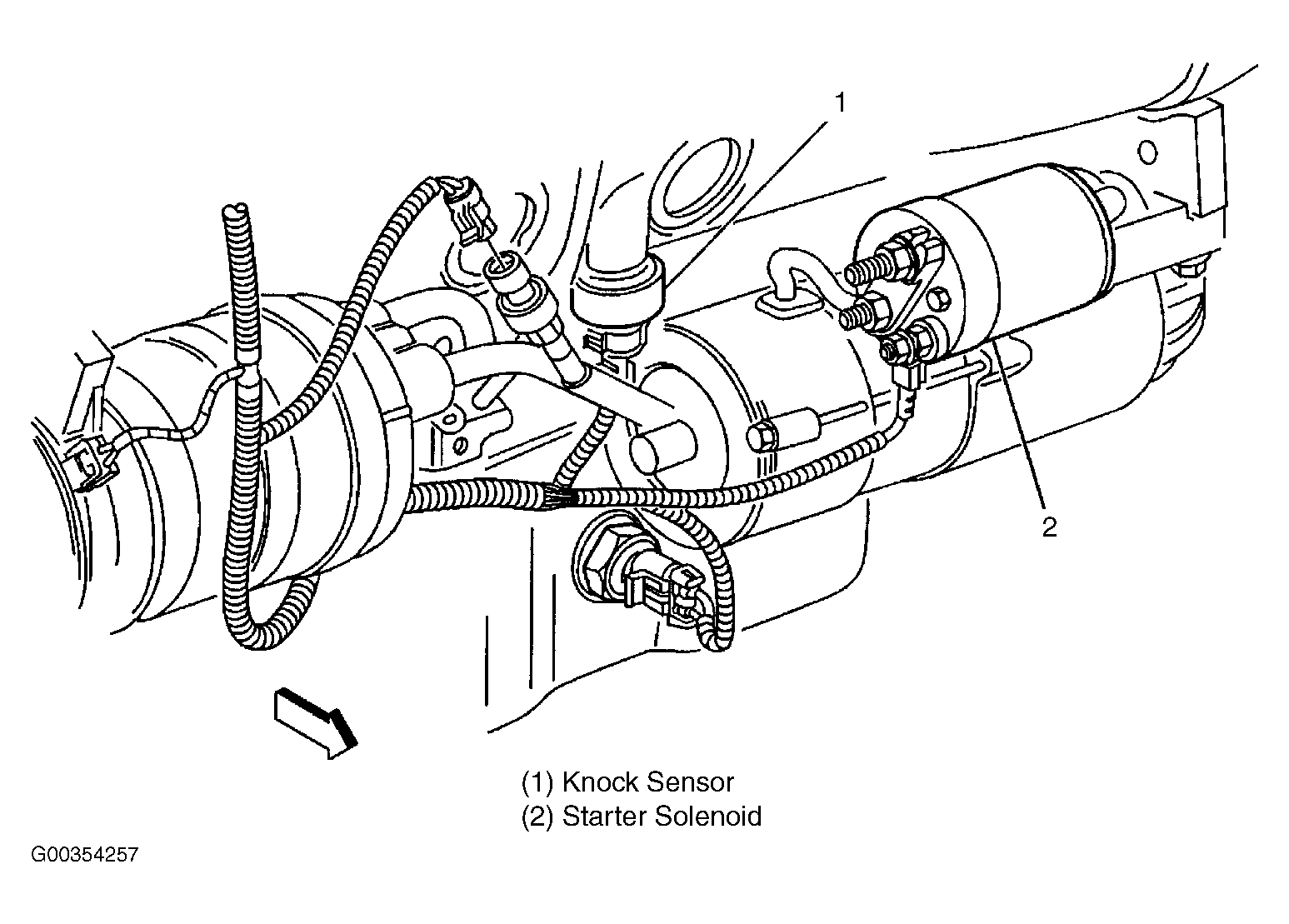

Fig 1: Locating & Identifying Starter Motor Components
G00354257Courtesy of GENERAL MOTORS CORP.
