Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

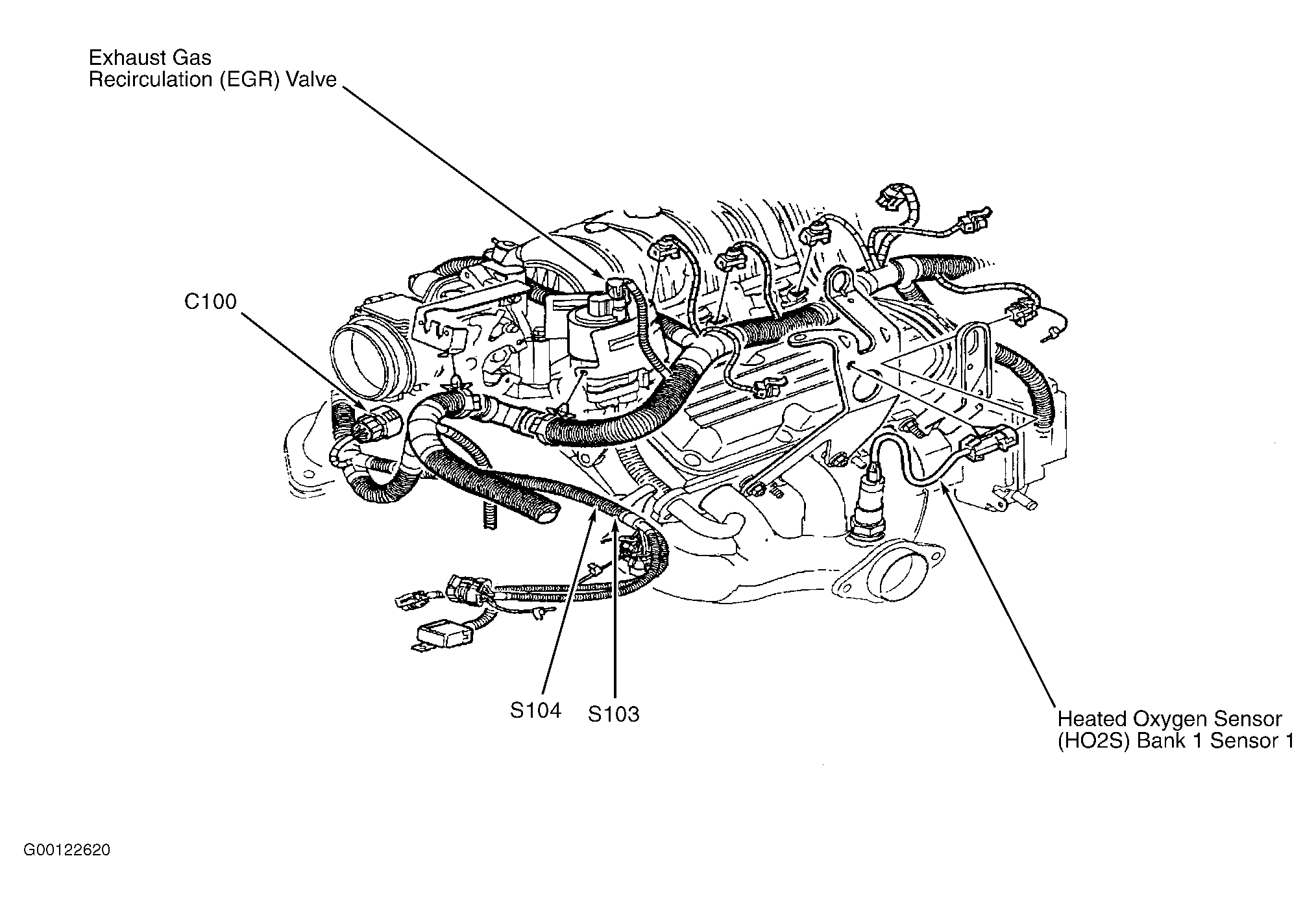

Fig 1: Right Side Of Engine

Courtesy of GENERAL MOTORS CORP.

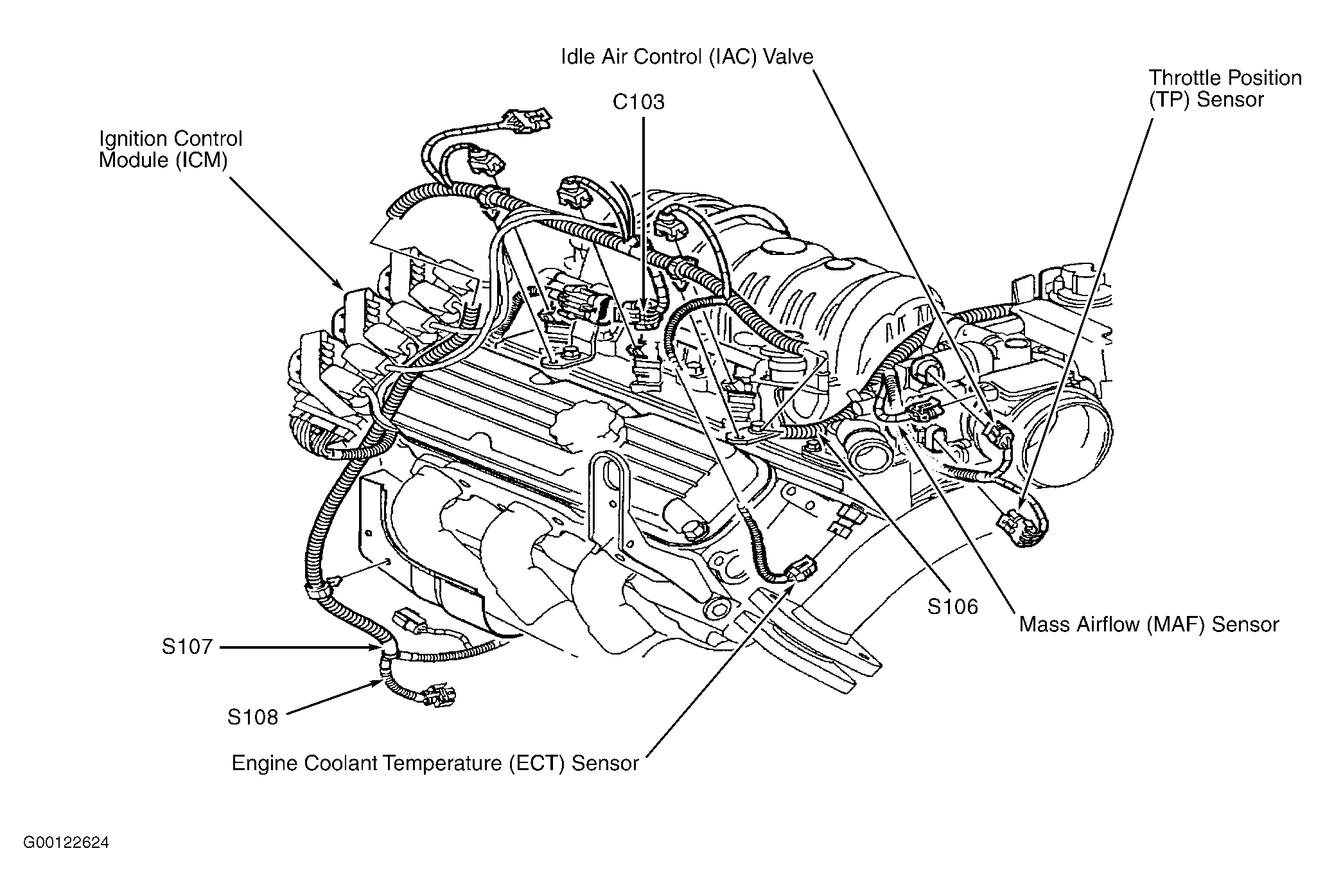

Fig 2: Left Side Of Engine

Courtesy of GENERAL MOTORS CORP.

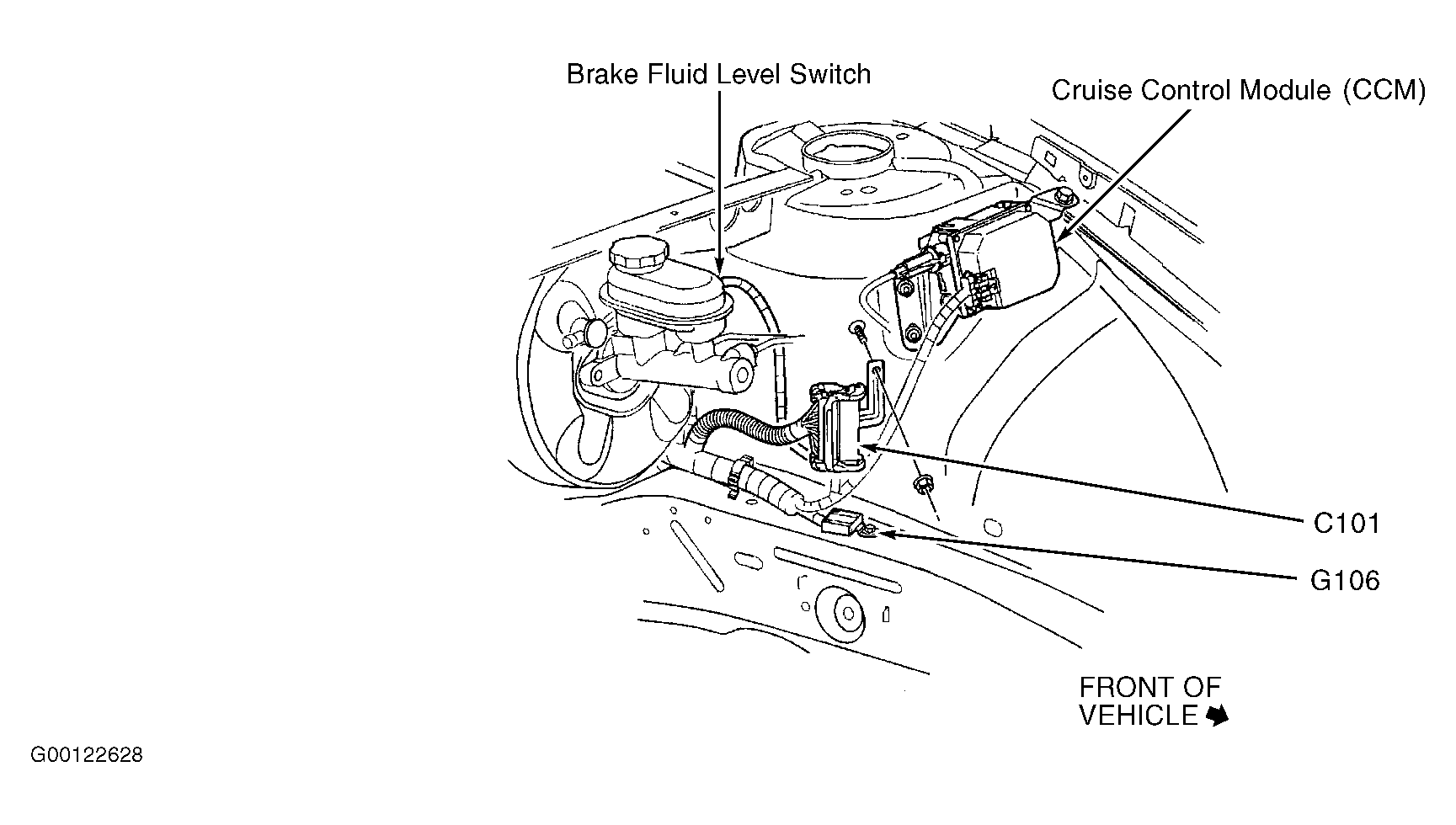

Fig 3: Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

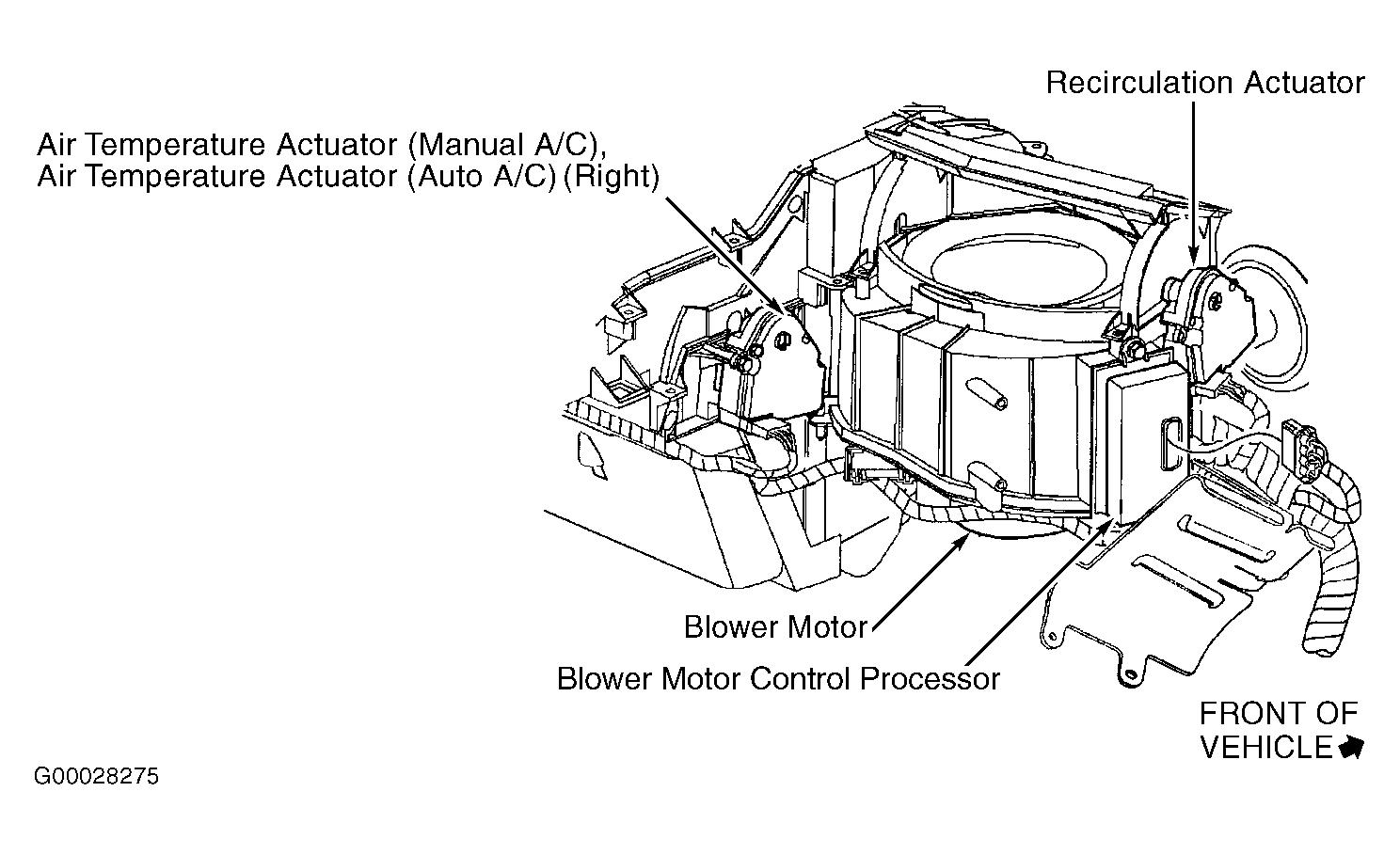

Fig 4: HVAC Assembly

Courtesy of GENERAL MOTORS CORP.

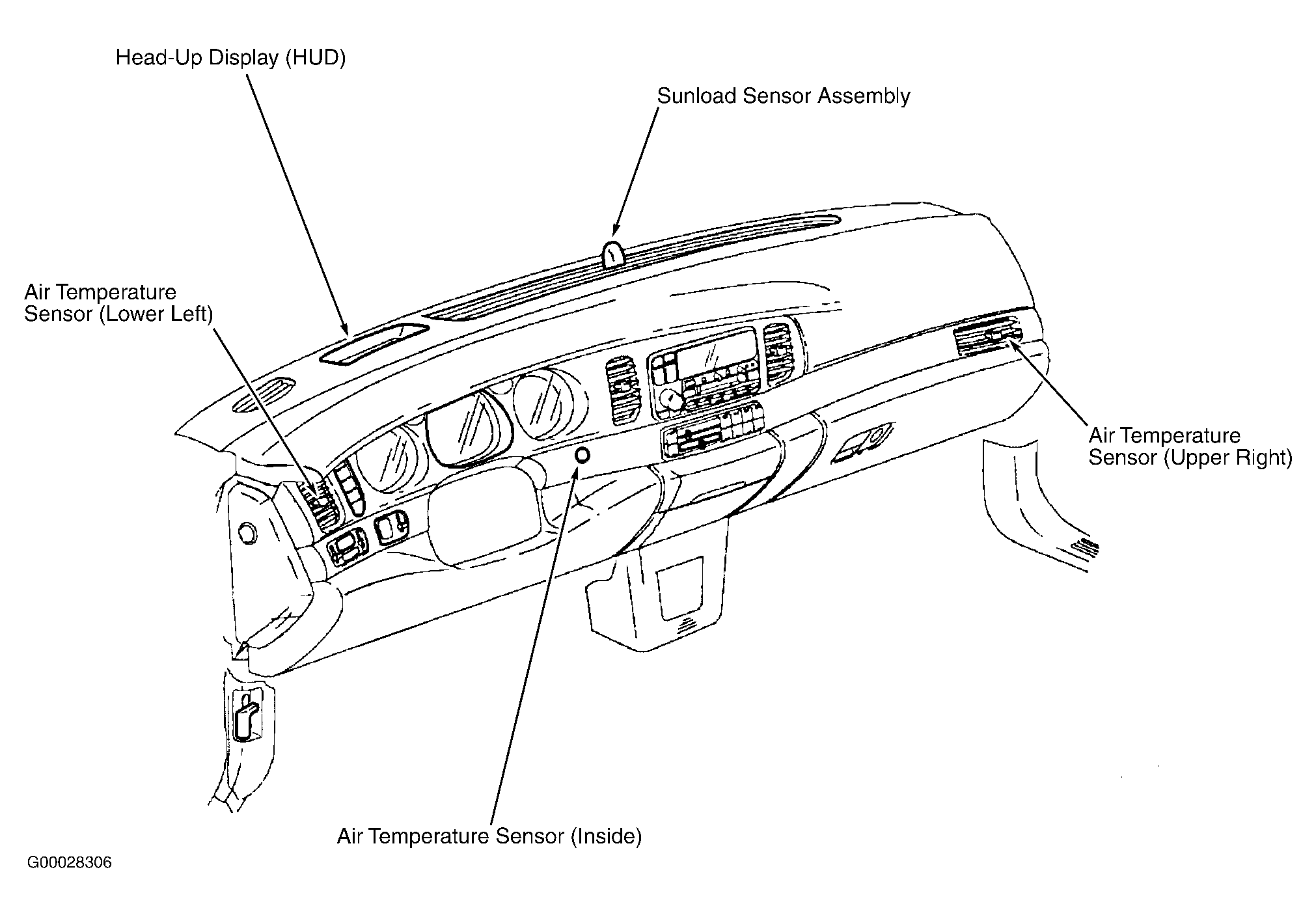

Fig 5: Dash

Courtesy of GENERAL MOTORS CORP.

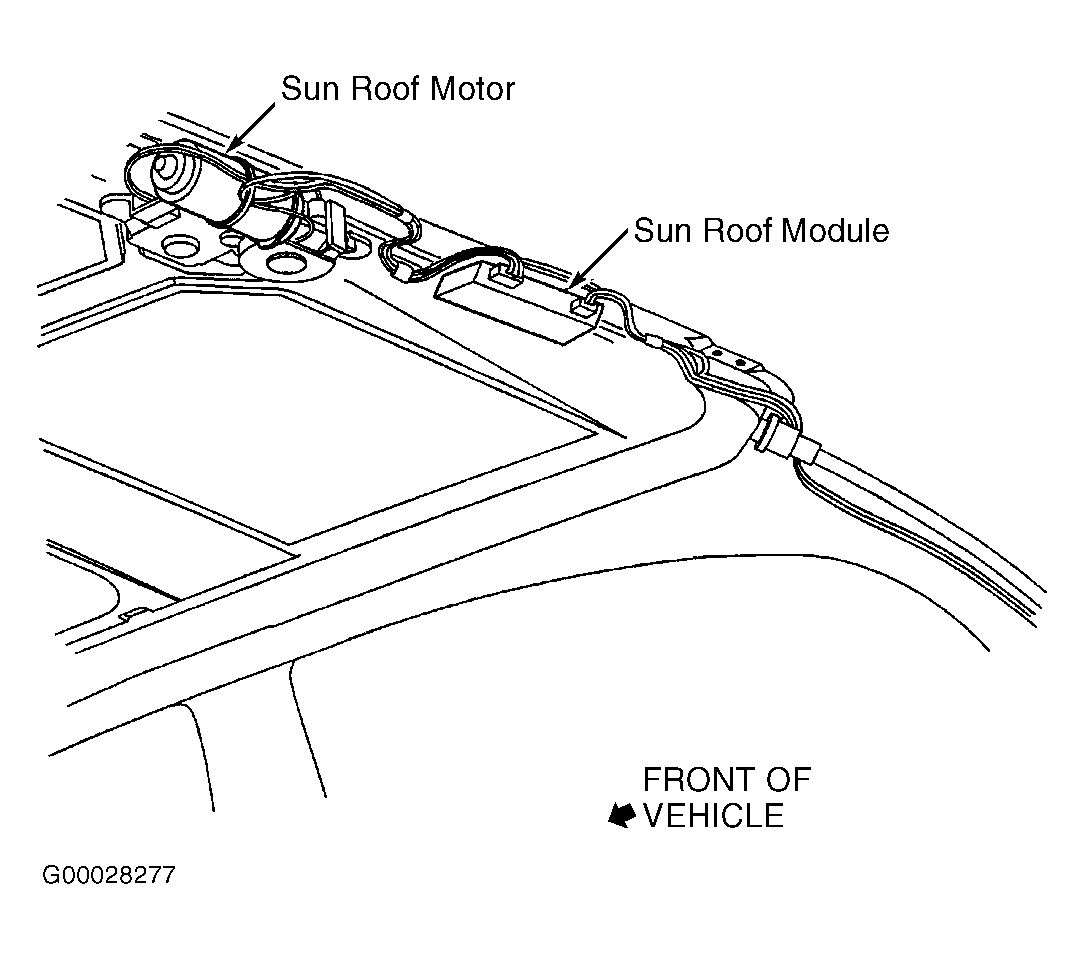

Fig 6: Roof

Courtesy of GENERAL MOTORS CORP.

Fig 7: Under Left Rear Seat

Courtesy of GENERAL MOTORS CORP.
