Home >> Buick >> 2002 >> LeSabre Limited, 4T65E/MN3 >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Circuit Protection Devices

Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

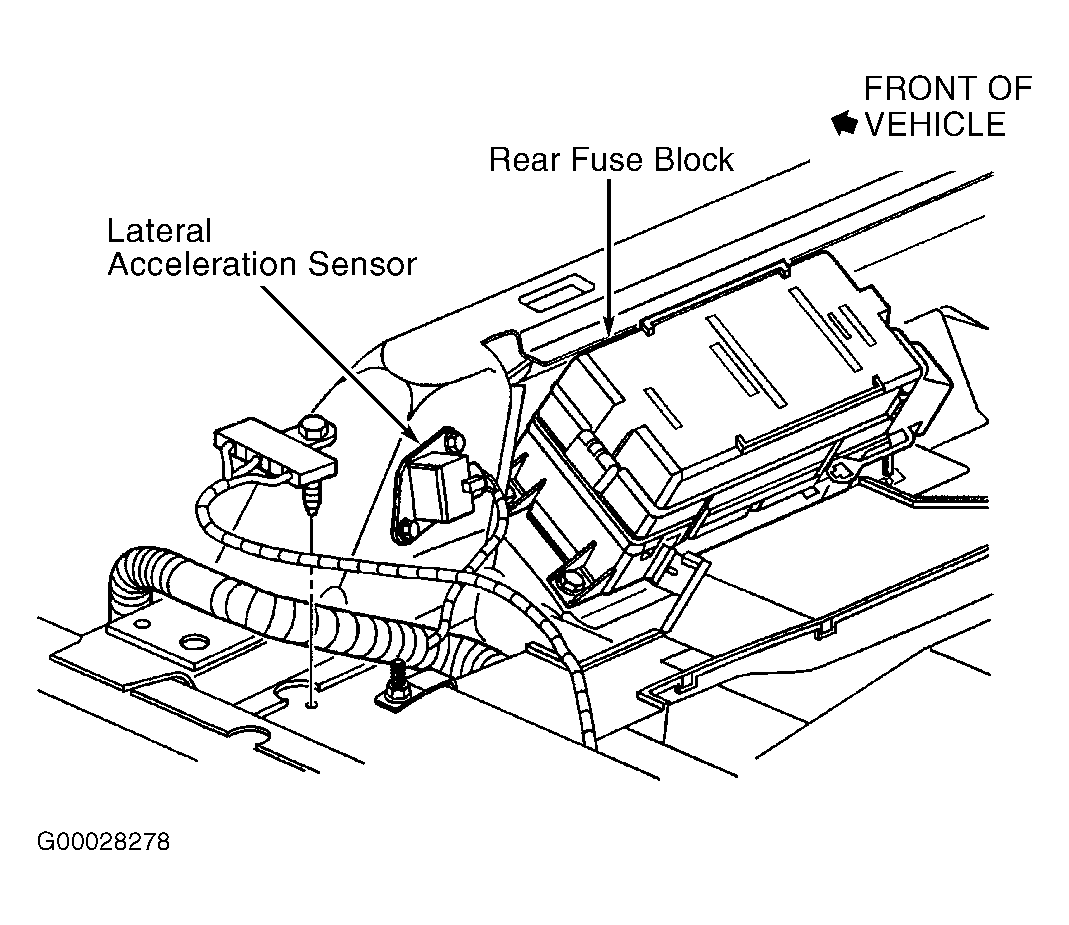

Rear Fuse Block	Under left rear seat. See Figure .
Underhood Fuse Block	Right front side of engine compartment.
