Abs Connector End Views

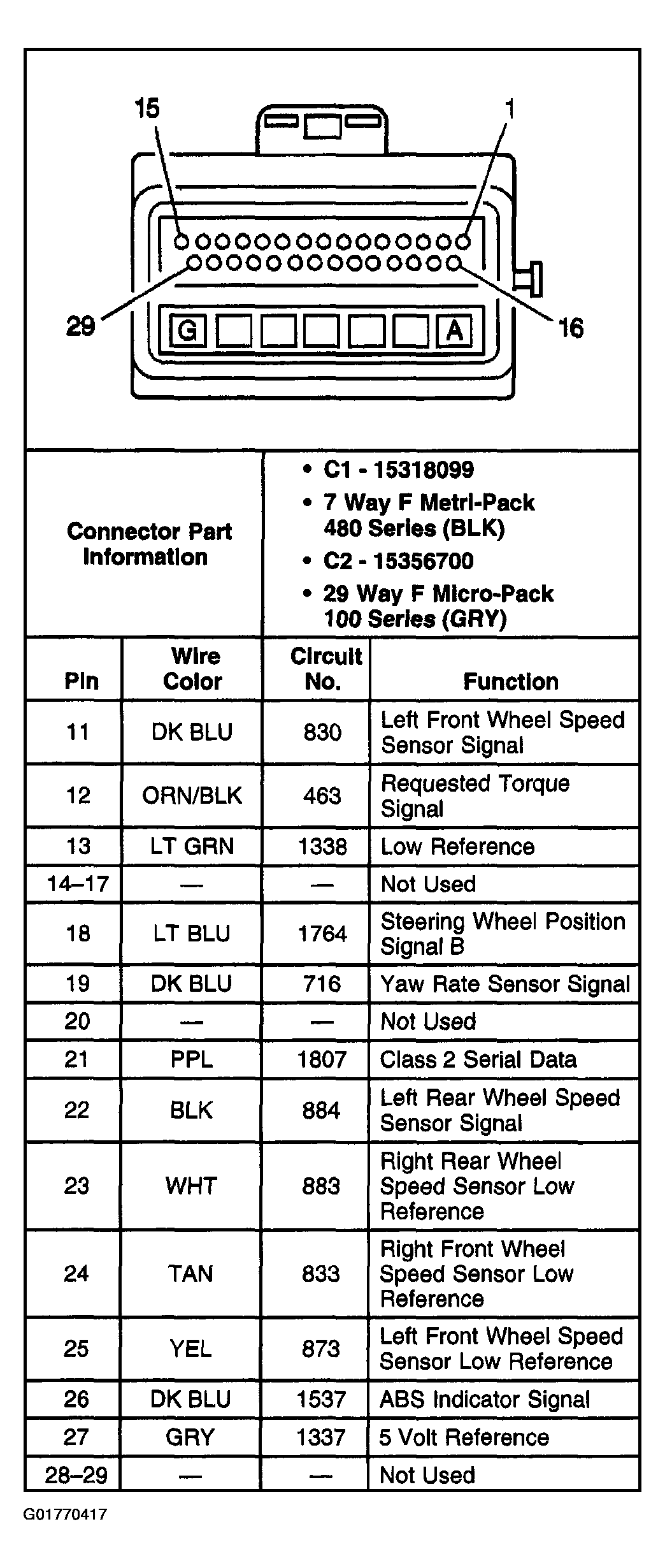

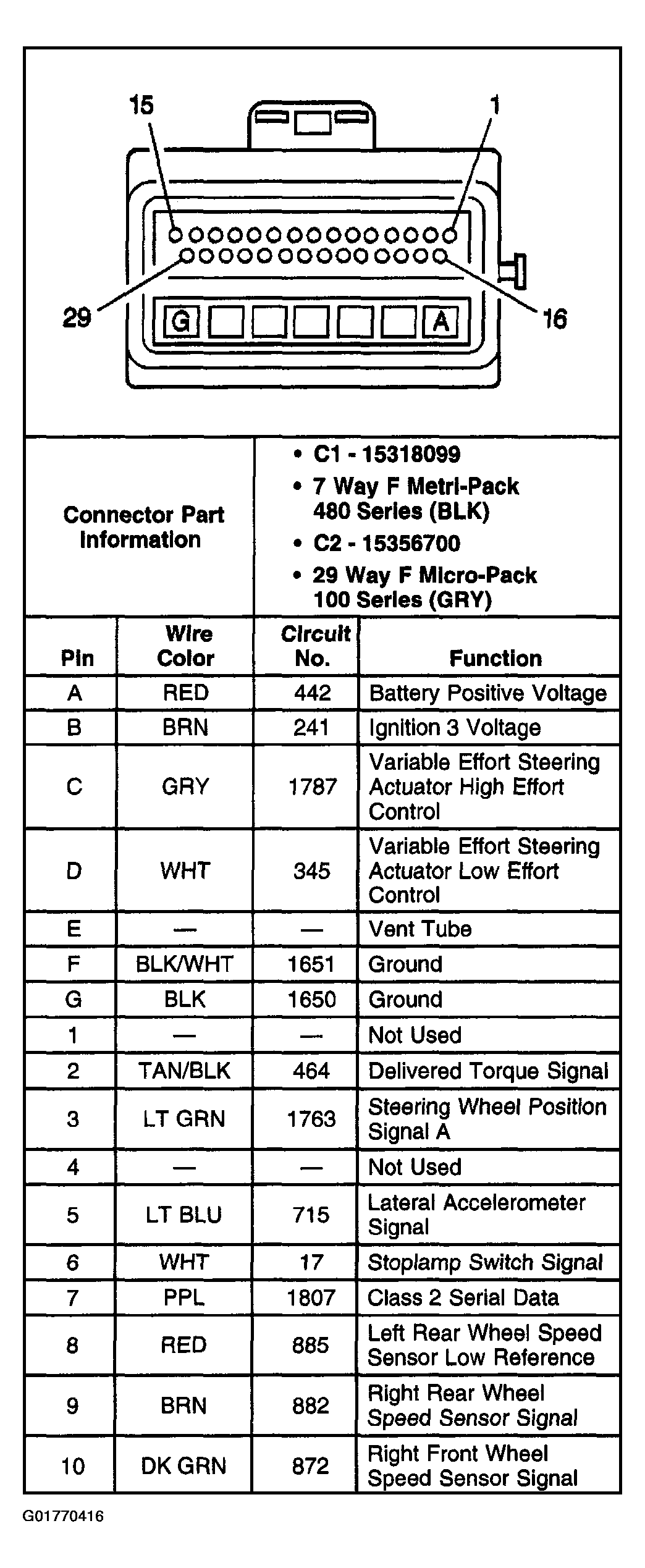

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

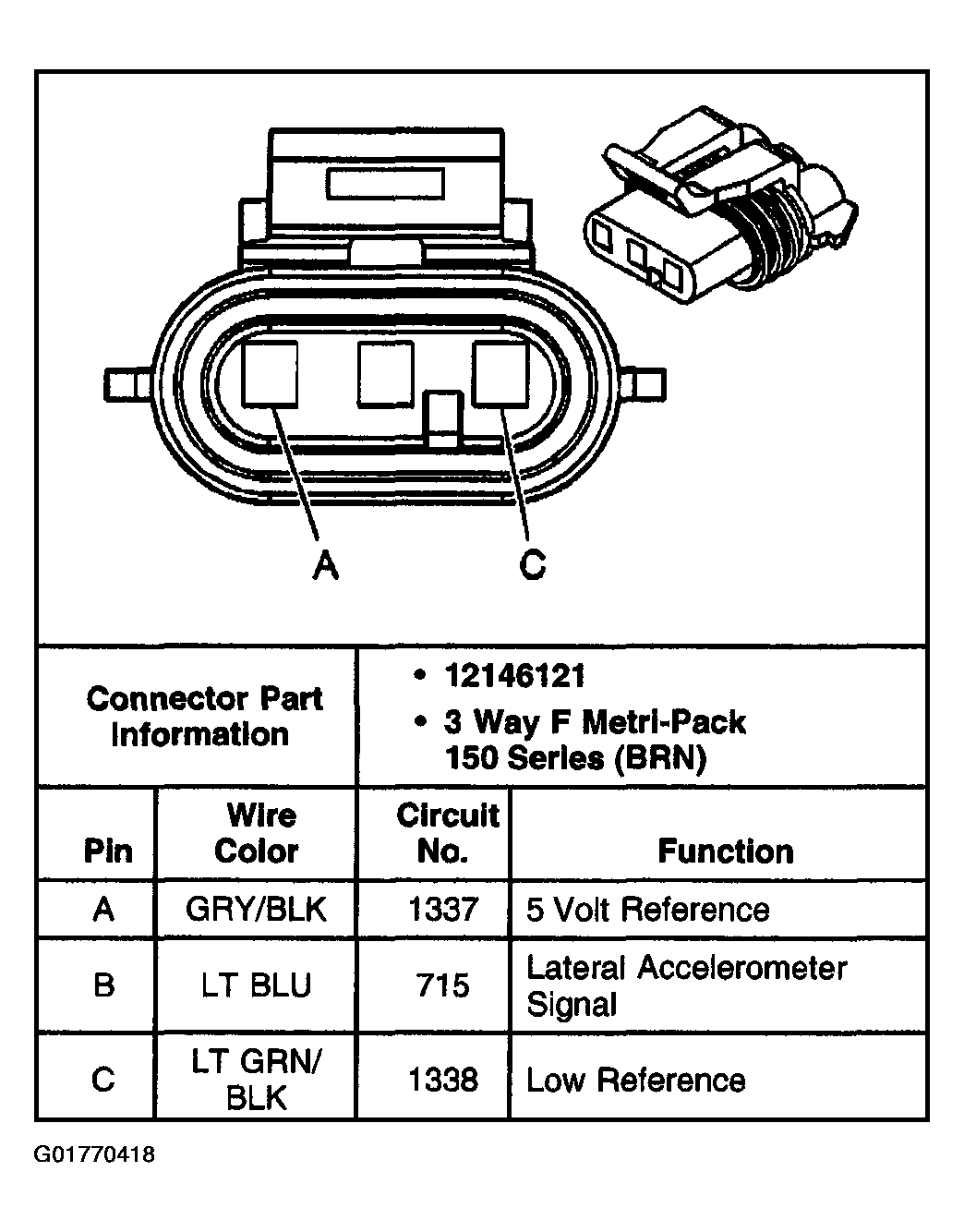

Fig 3: Lateral Accelerometer Sensor

Courtesy of GENERAL MOTORS CORP.

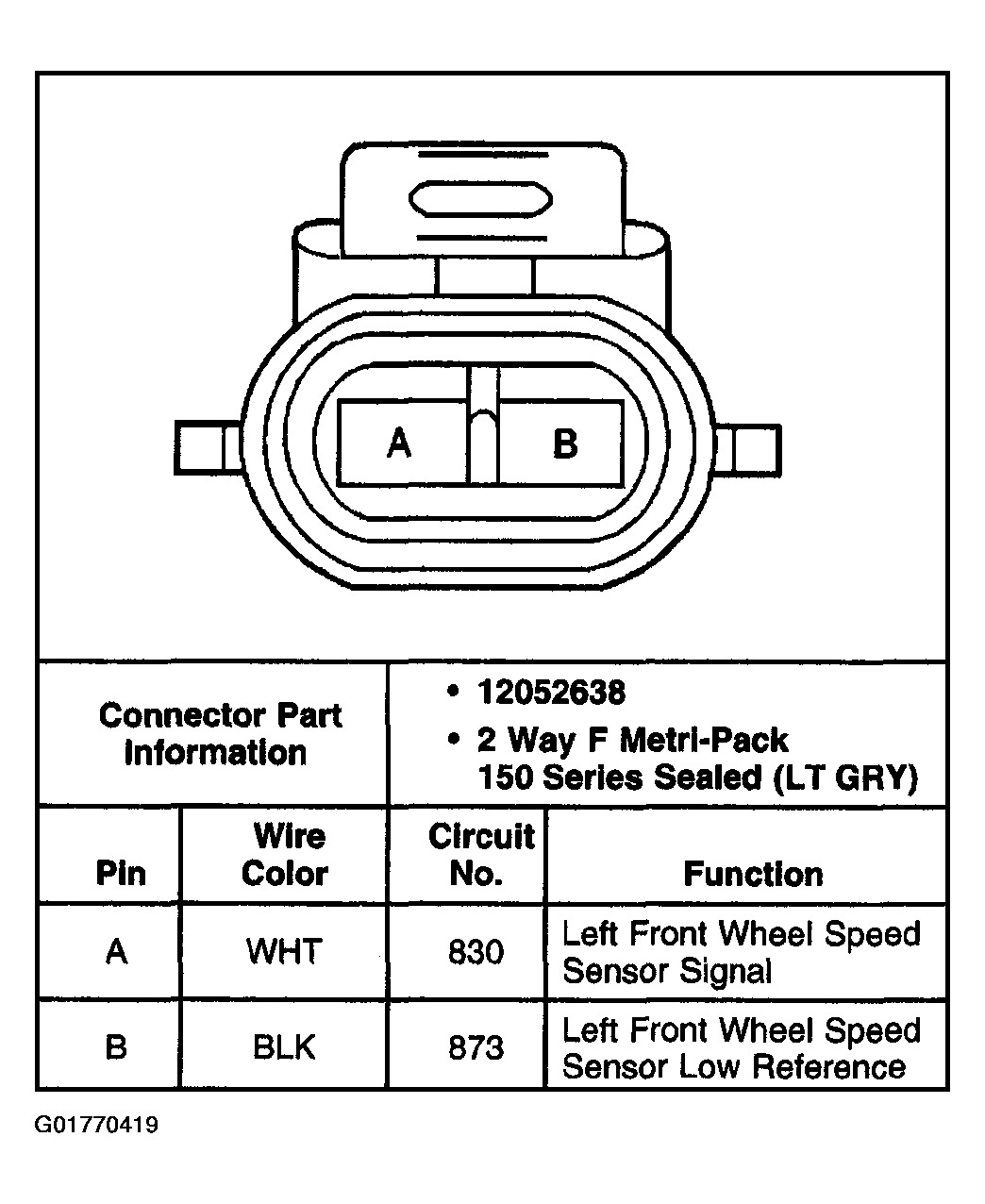

Fig 4: LH Front Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

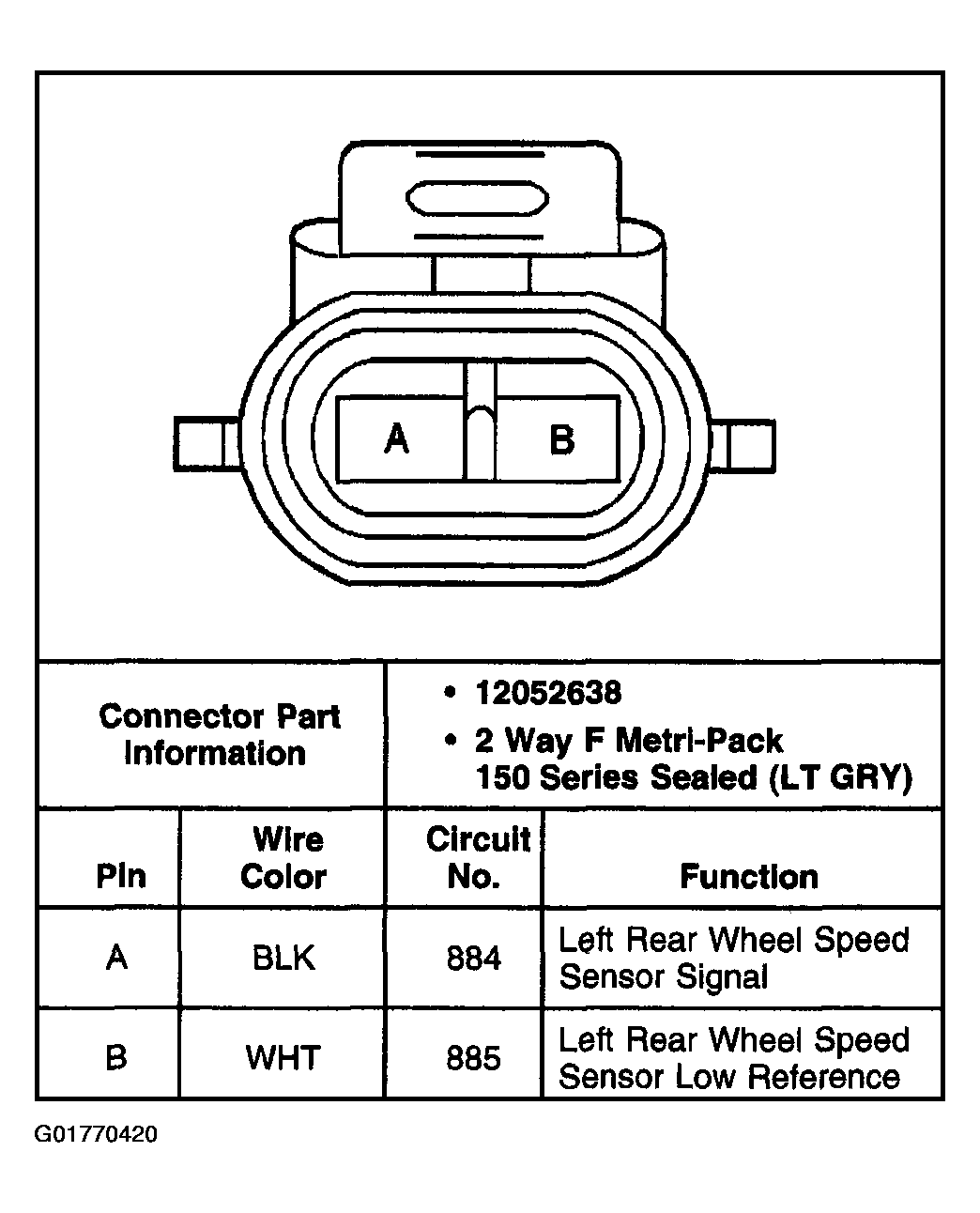

Fig 5: LH Rear Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

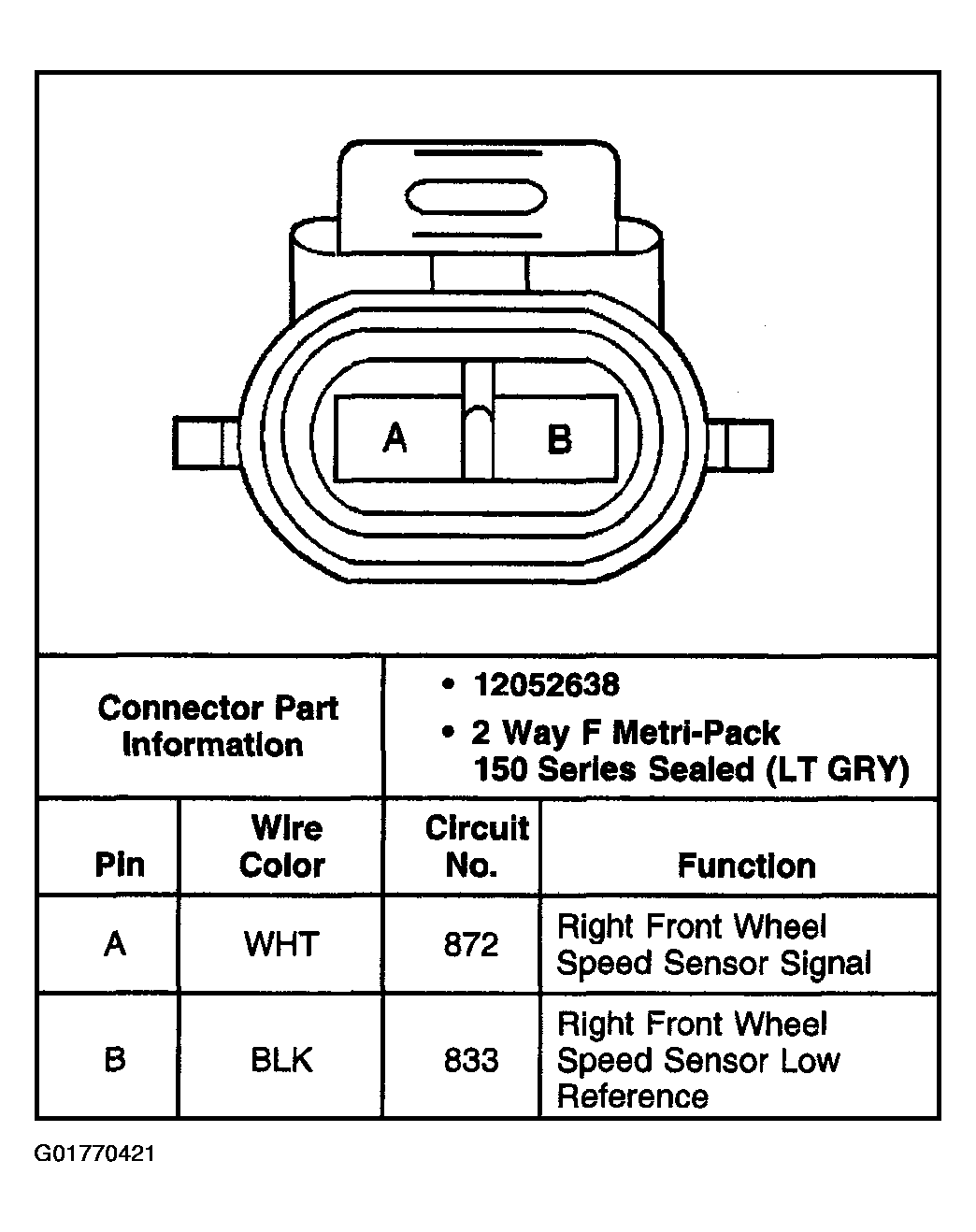

Fig 6: RH Front Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 7: RH Rear Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

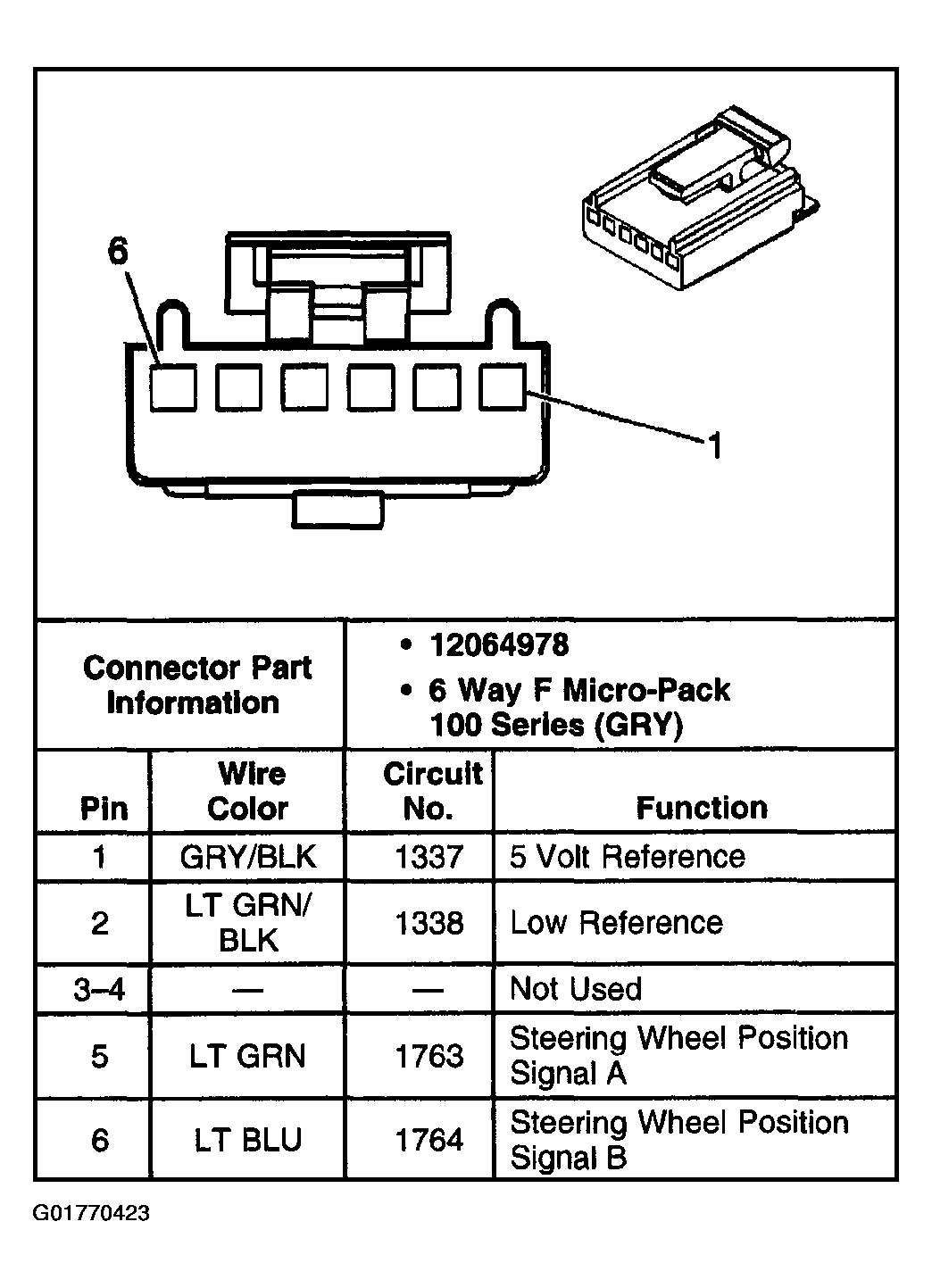

Fig 8: Steering Wheel Position Sensor (SWPS)

Courtesy of GENERAL MOTORS CORP.

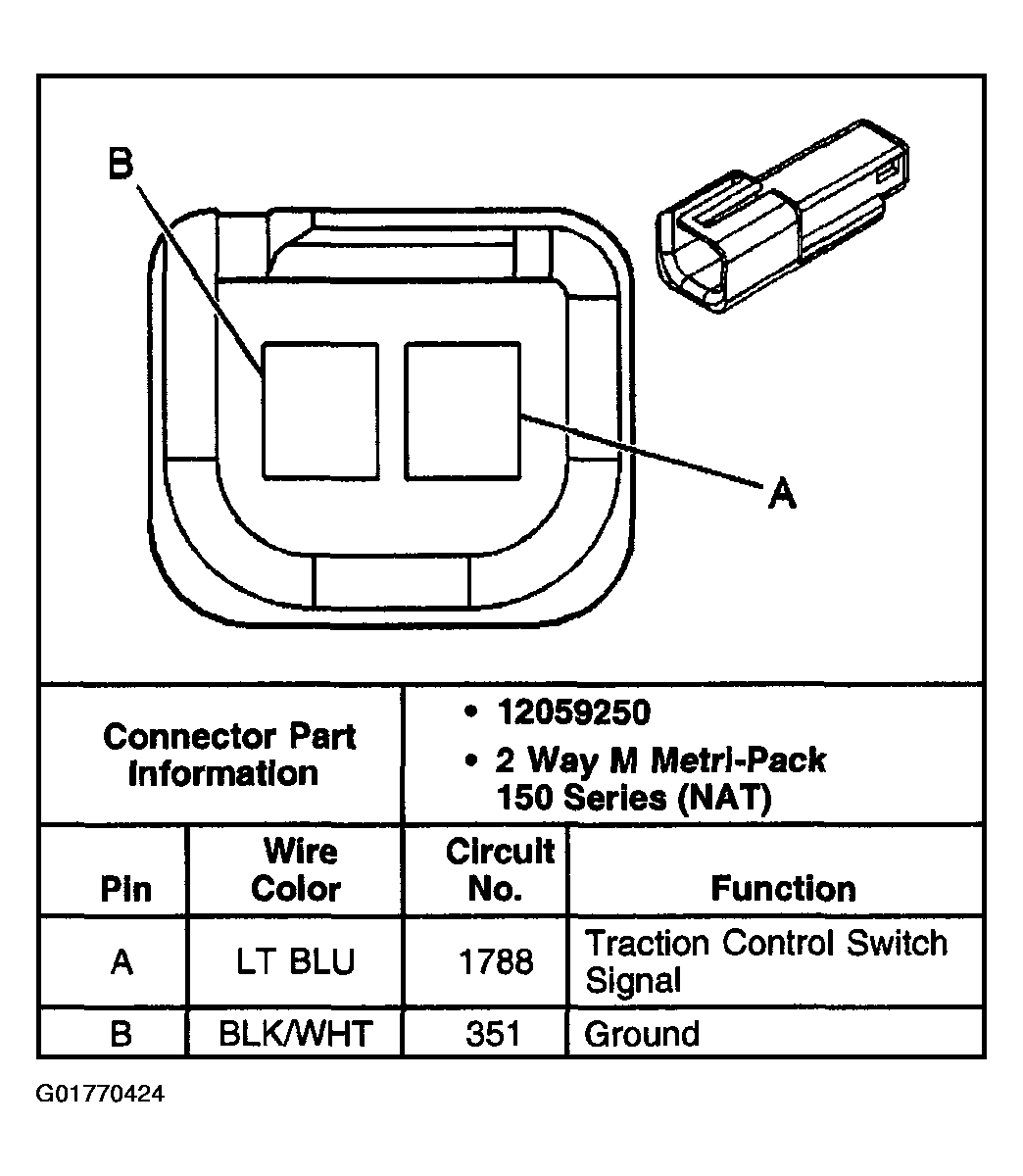

Fig 9: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

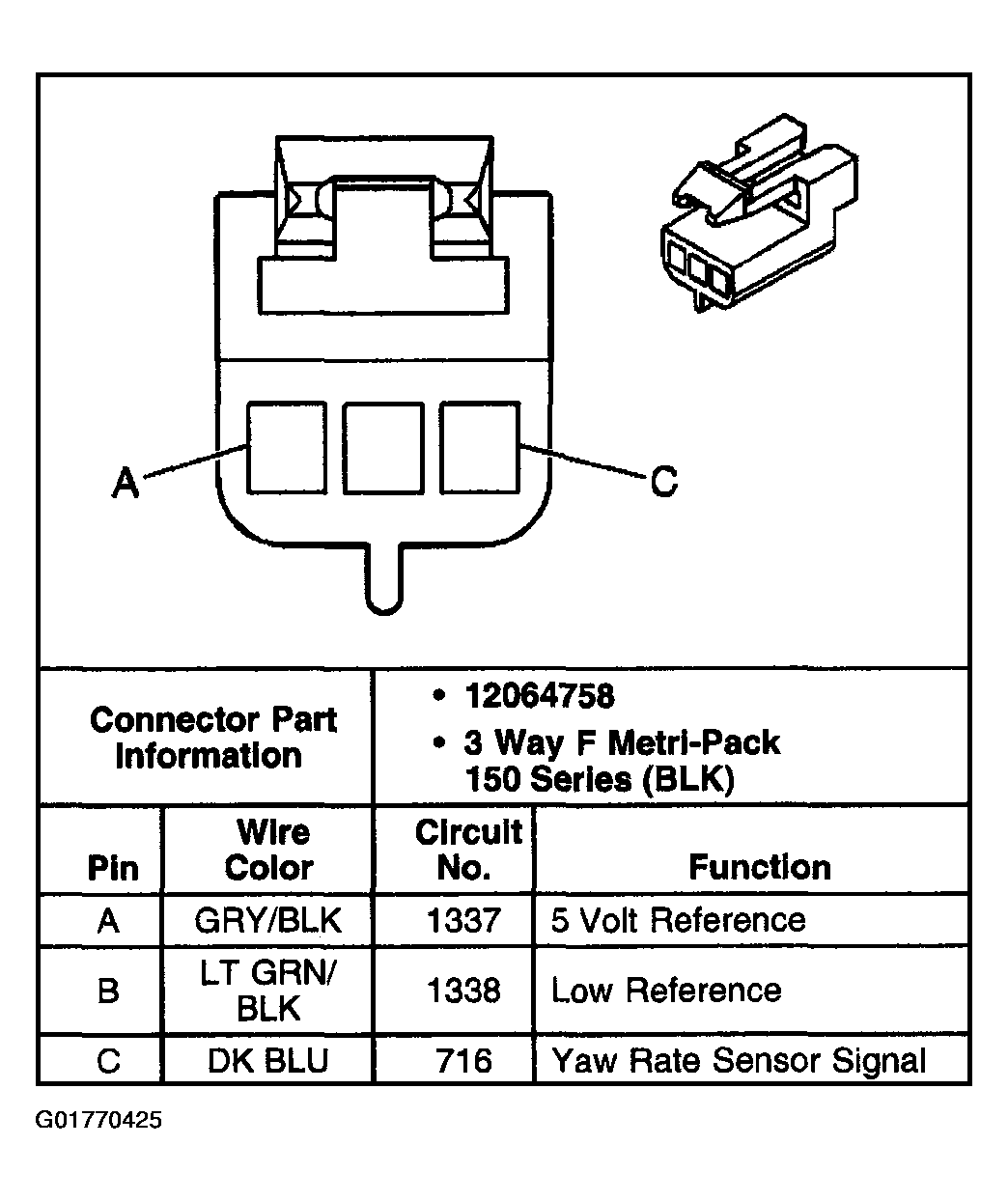

Fig 10: Yaw Rate Sensor

Courtesy of GENERAL MOTORS CORP.
