Keyless Entry Connector End Views

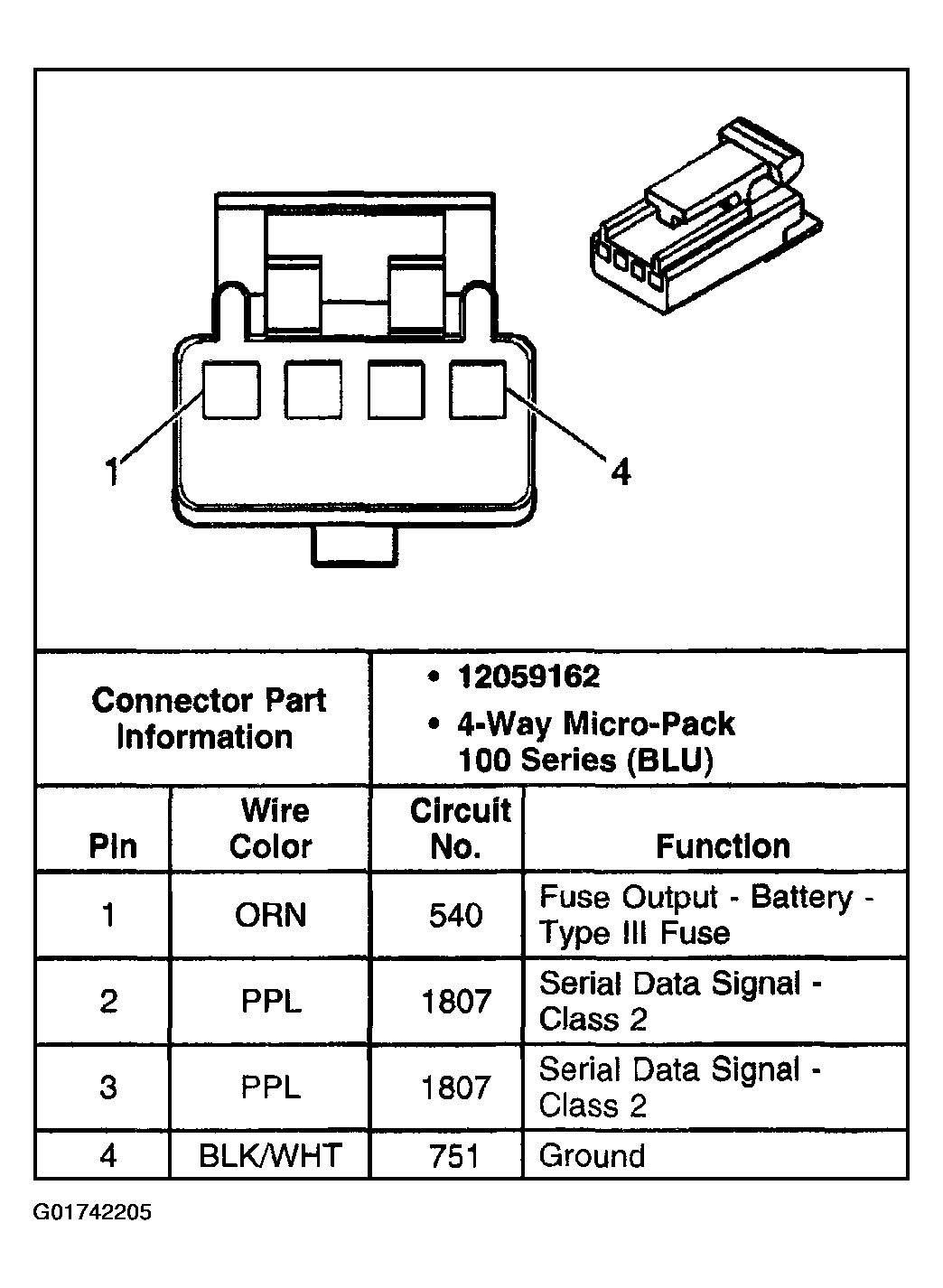

Fig 1: Remote Control Door Lock Receiver (RCDLR)

G01742205

Courtesy of GENERAL MOTORS CORP.
