Removal Procedure

  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Disconnect the battery positive cable (1) from the battery.

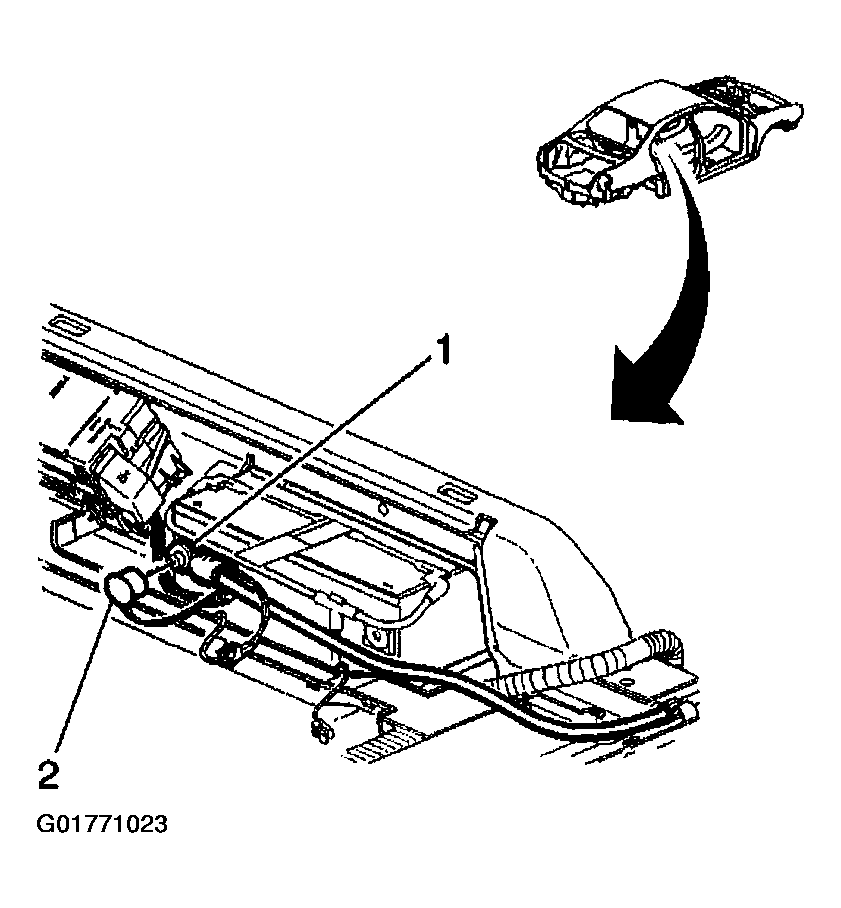

    3. Fig 1: Disconnecting Battery Positive Cable
    G01771023Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.

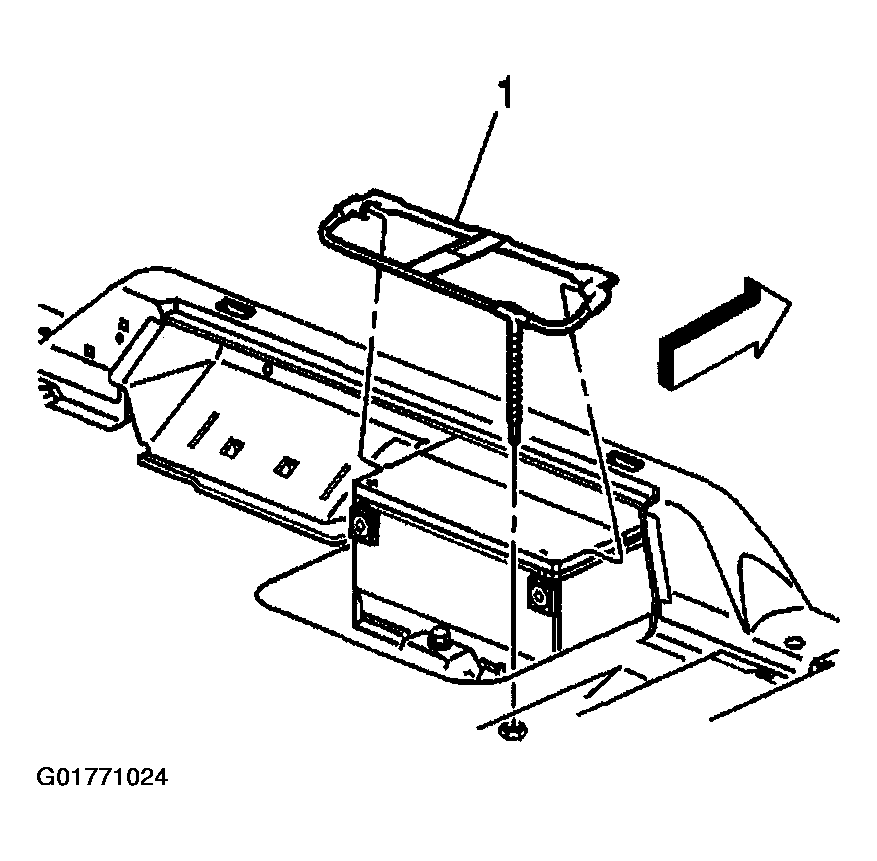

    4. Fig 2: Removing Battery Vent Tube
    G01771024Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.
  5. Remove the battery.

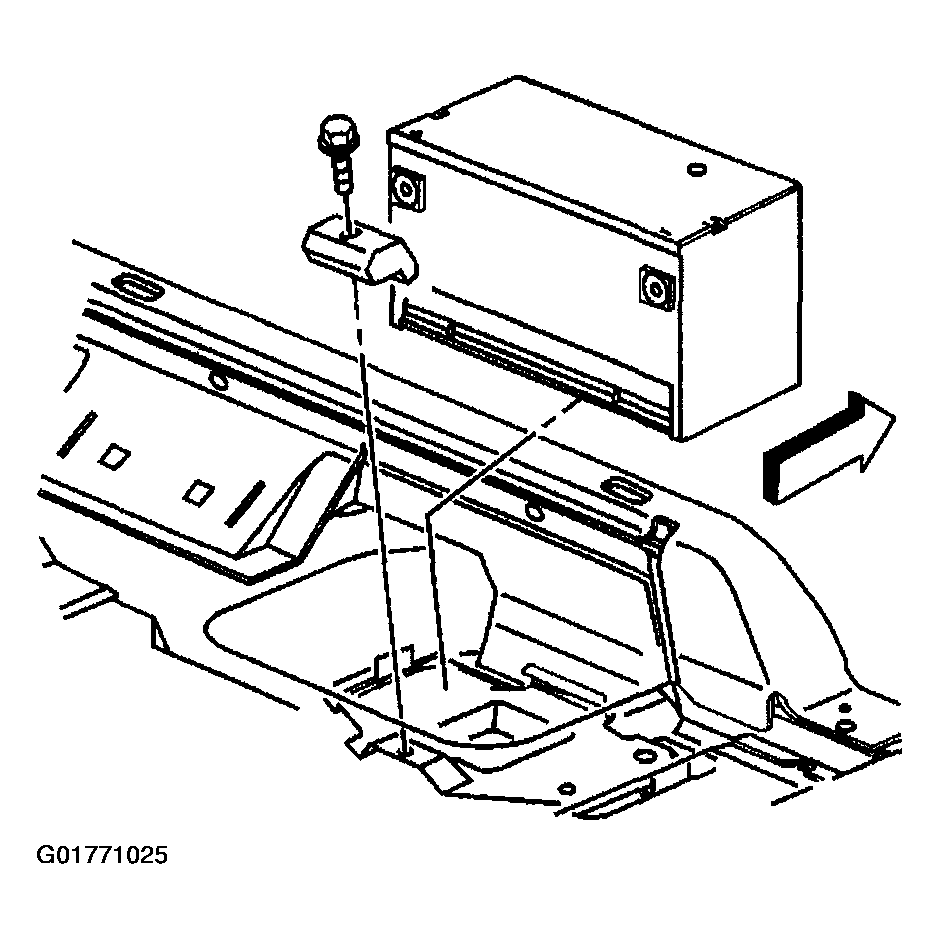

    6. Fig 3: Removing Battery
    G01771025Courtesy of GENERAL MOTORS CORP.
