Abs Schematics

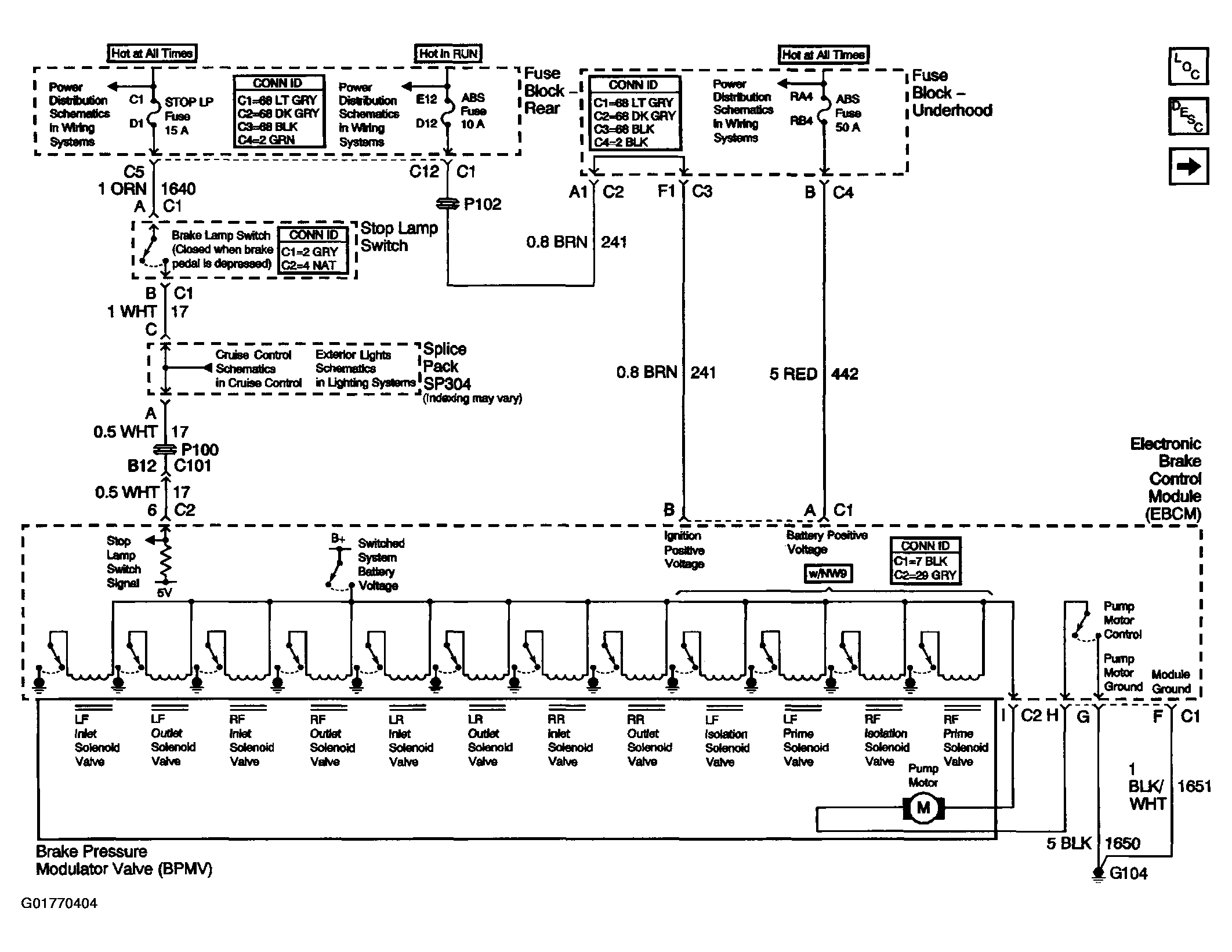

Fig 1: PWR, GND, Stoplamp Switch, Solenoid Valves, & Pump Motor

Courtesy of GENERAL MOTORS CORP.

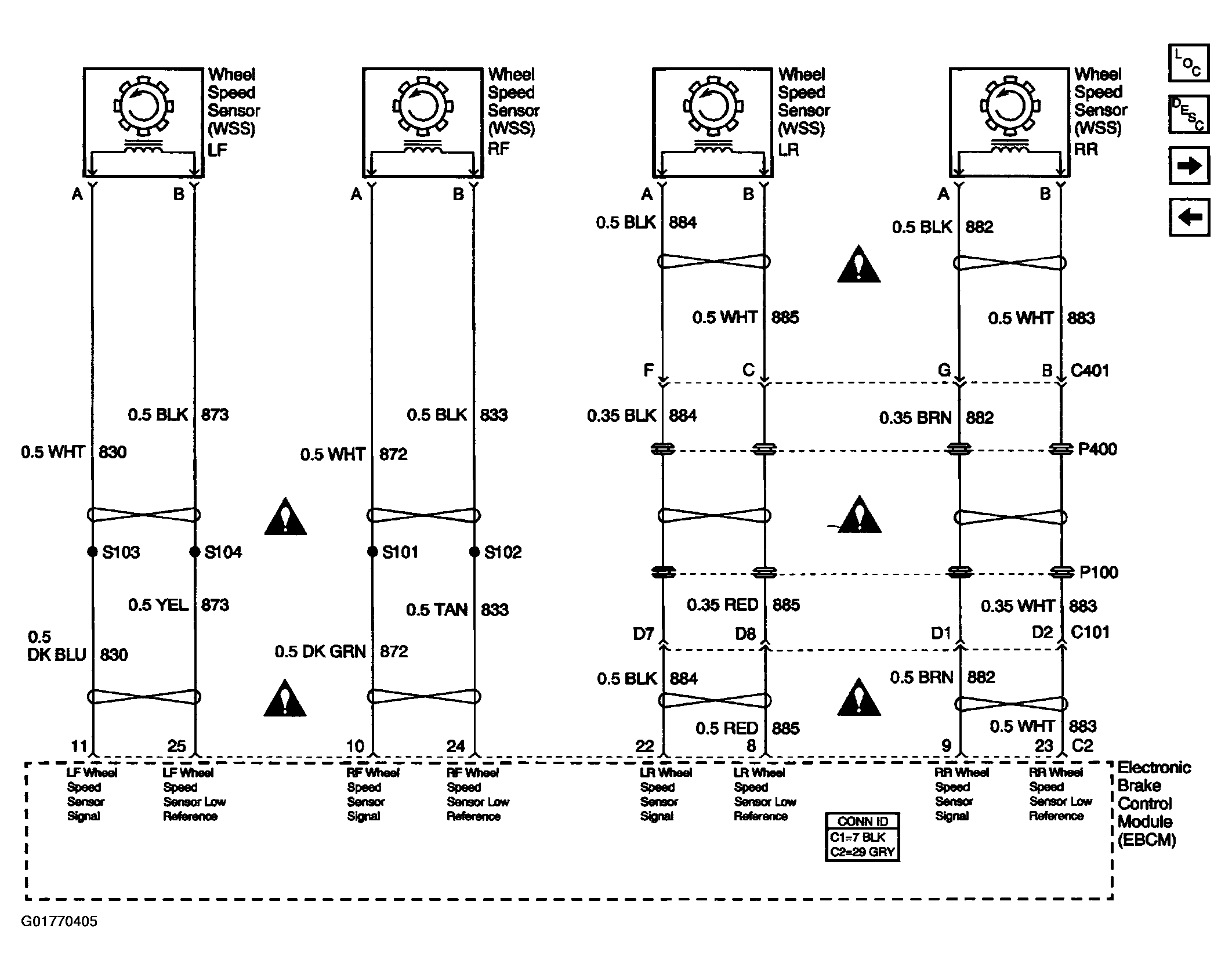

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

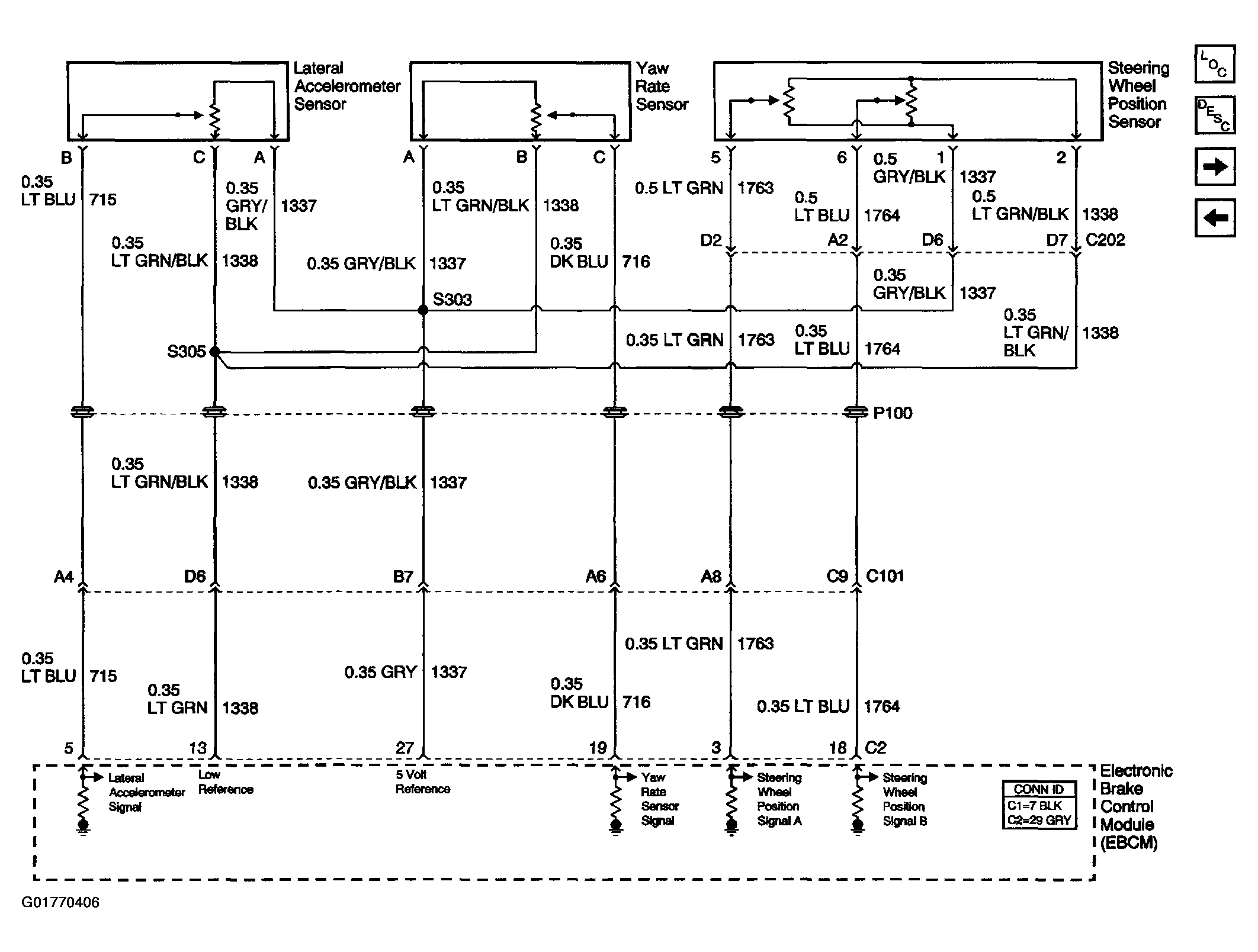

Fig 3: Vehicle Stability Enhancement System (W/JL4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Traction Control (W/NW9)

Courtesy of GENERAL MOTORS CORP.

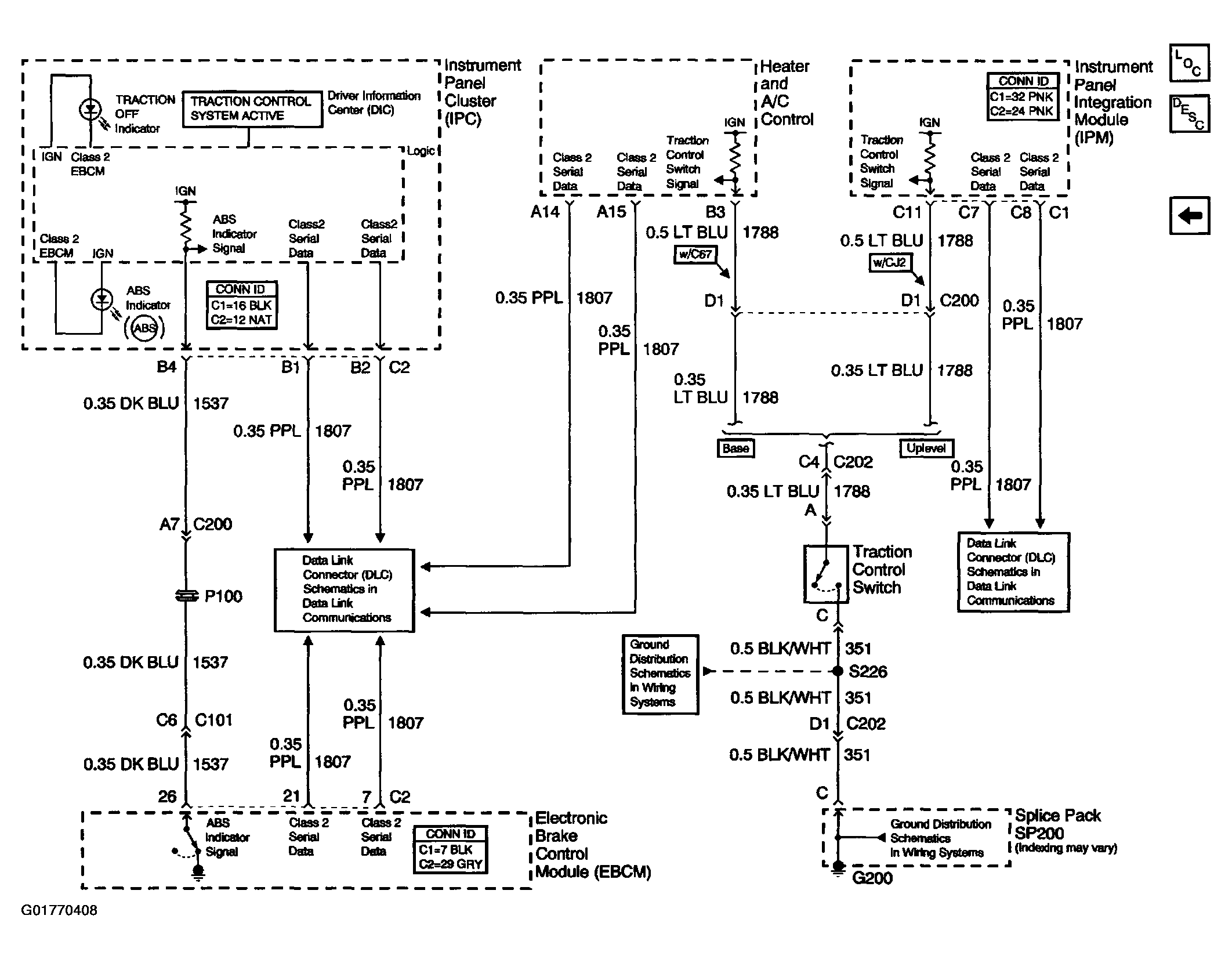

Fig 5: Indicators & Traction Control Switch

Courtesy of GENERAL MOTORS CORP.
