Defogger Schematics

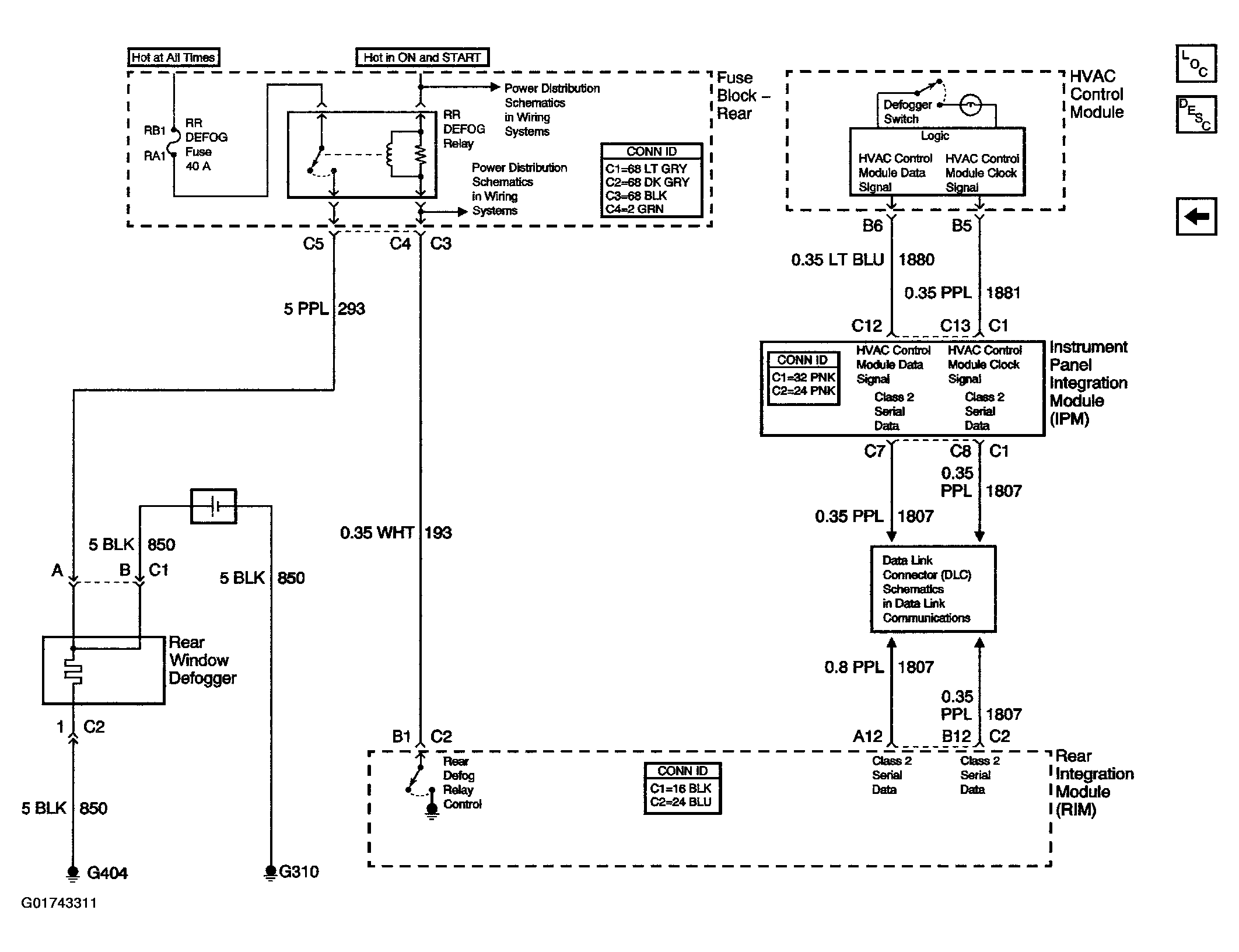

Fig 1: Rear Window Defogger
Courtesy of GENERAL MOTORS CORP.

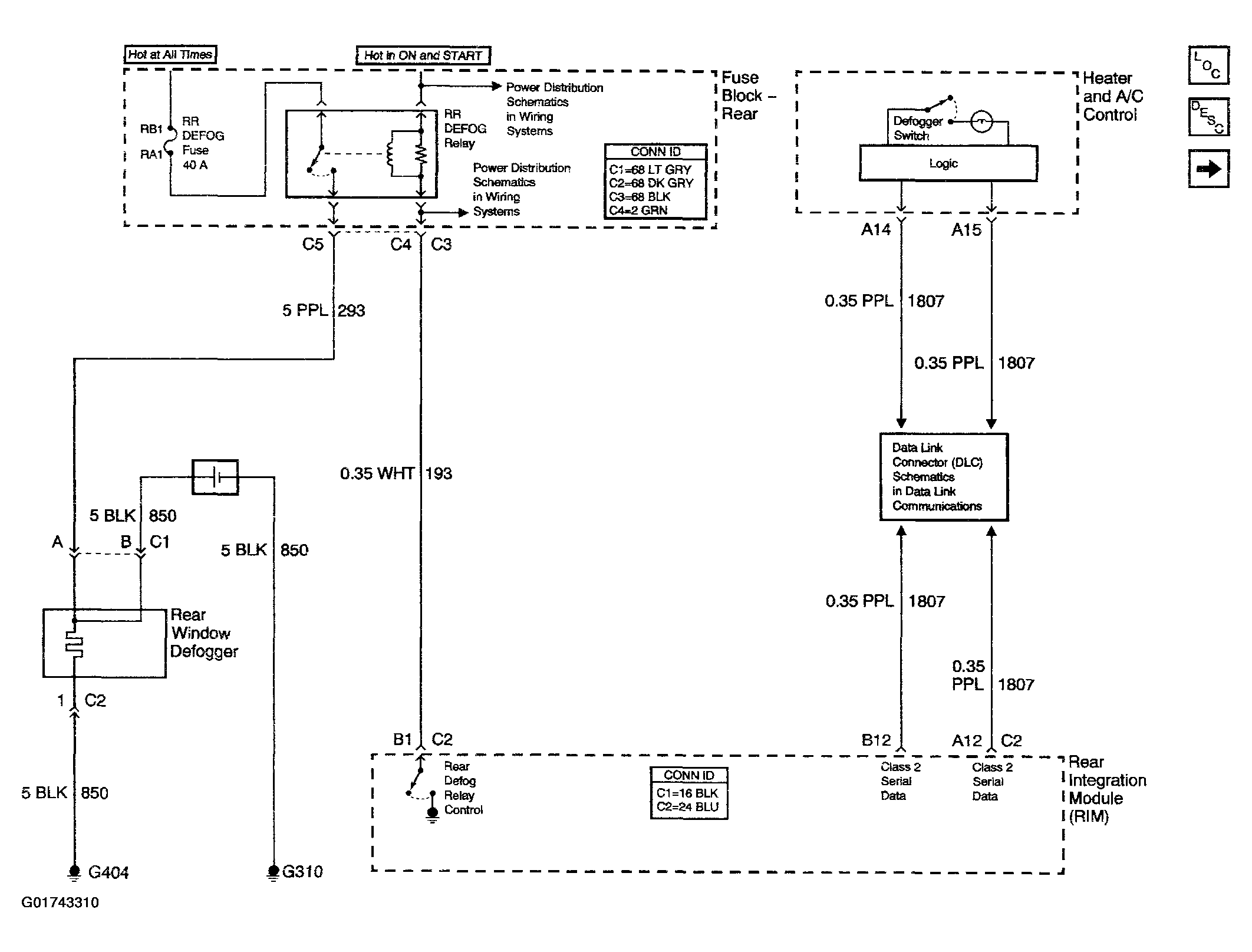

Fig 2: Defogger Schematics (w/CJ2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
