Installation Procedure

  1. Position the horn assembly to the left front frame rail.
  2. Install the horn assembly bolt.

    Tighten:

    Tighten the bolt to 15 N.m (11 lb ft)

  3. Connect the electrical connector to the horn assembly.
  4. Install the left front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Body Front End.

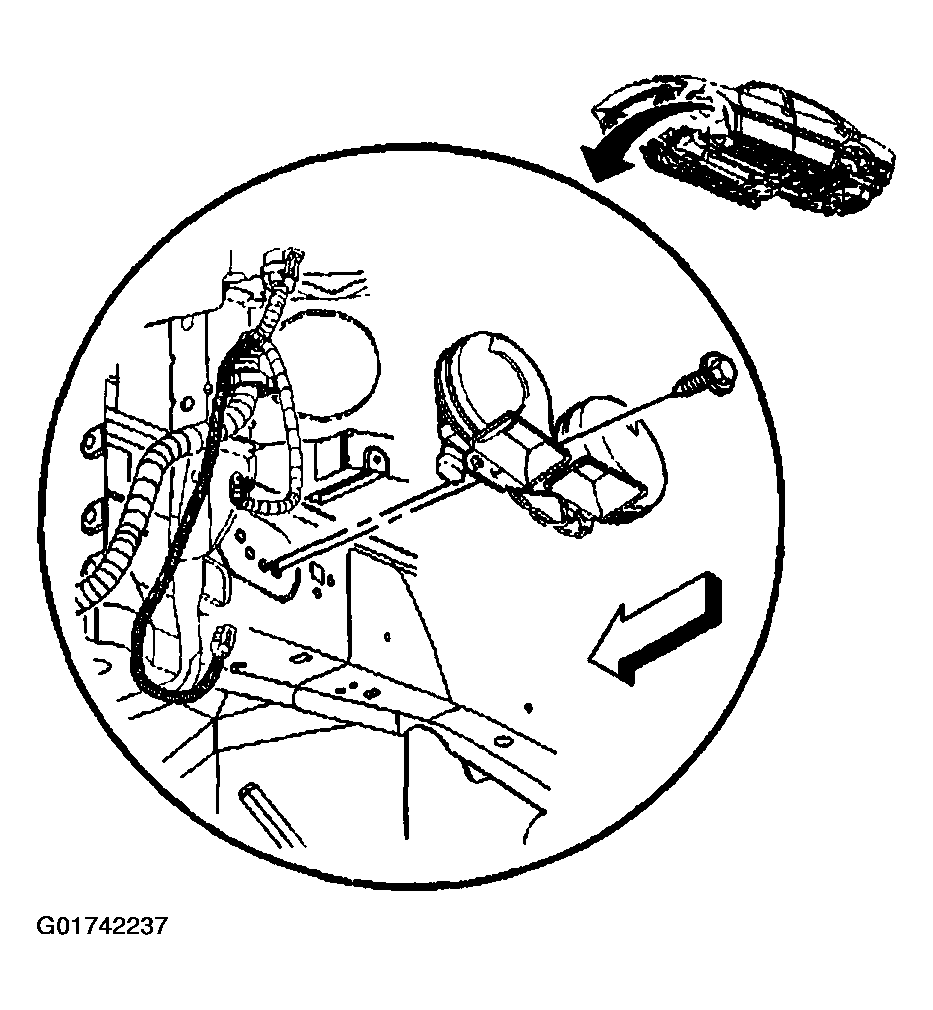

    Fig 1: Horn Assembly
    G01742237Courtesy of GENERAL MOTORS CORP.
