Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Install the cruise control cable ball stud (1) into the slot in the cruise control module actuator strip (2).

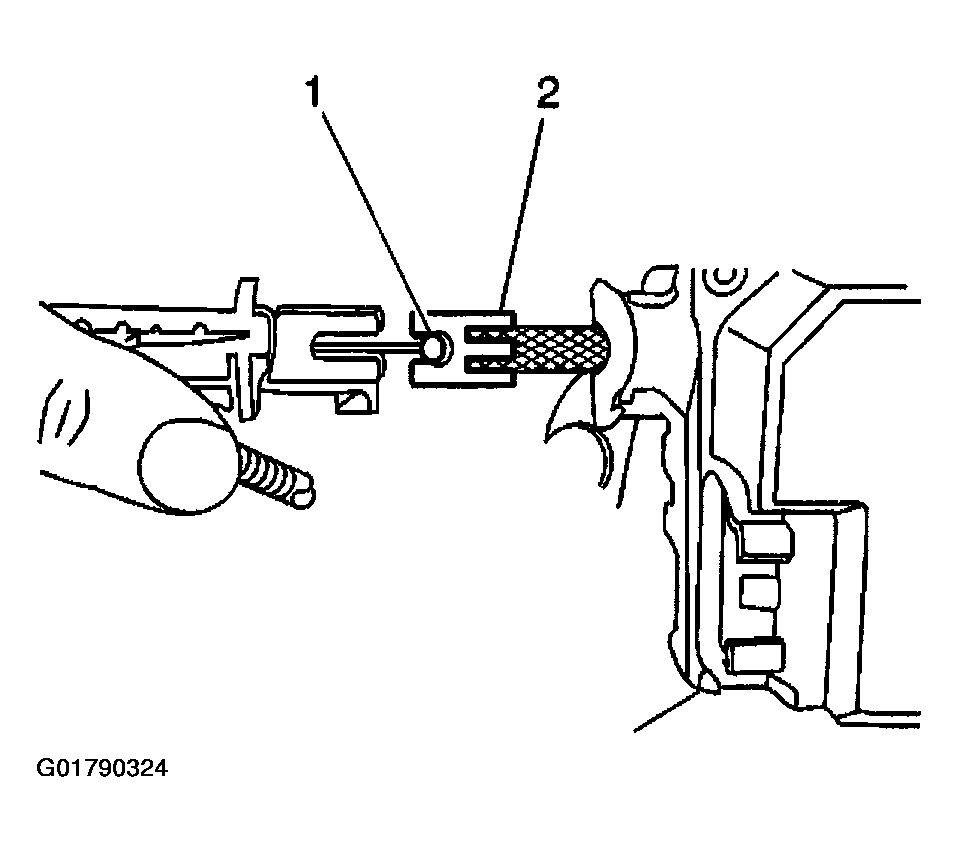

Fig 1: Installing Cruise Control Cable Ball Stud
Courtesy of GENERAL MOTORS CORP.
Insert the cruise control cable housing into the cruise control module and twist clockwise to secure.
Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.
Connect the cruise control cable to the throttle body injection cam (4).

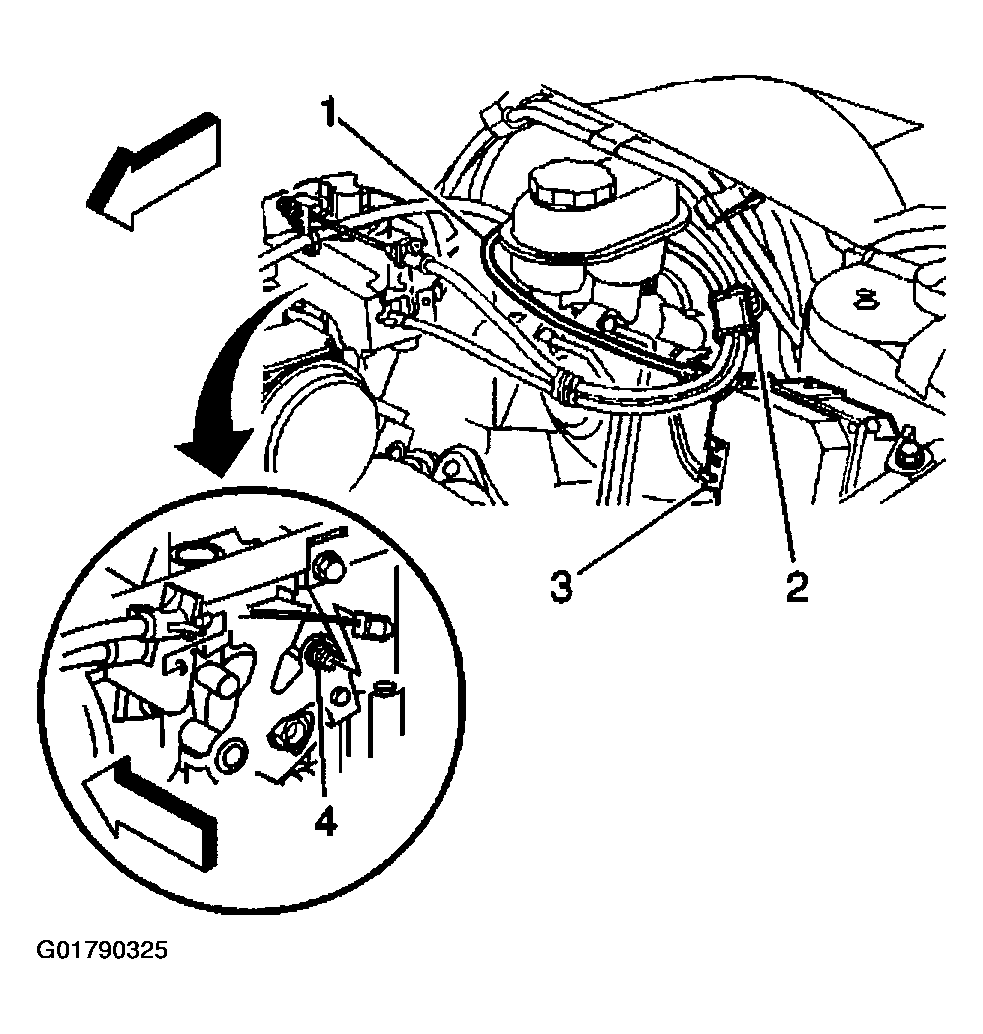

Fig 2: Connecting Cruise Control Cable To Throttle Body Injection Cam
Courtesy of GENERAL MOTORS CORP.
Snap the cable bracket into the throttle body bracket.
Install the cable into the retainers (2).
