Cruise Control Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Cruise Control Module (CCM)

Courtesy of GENERAL MOTORS CORP.

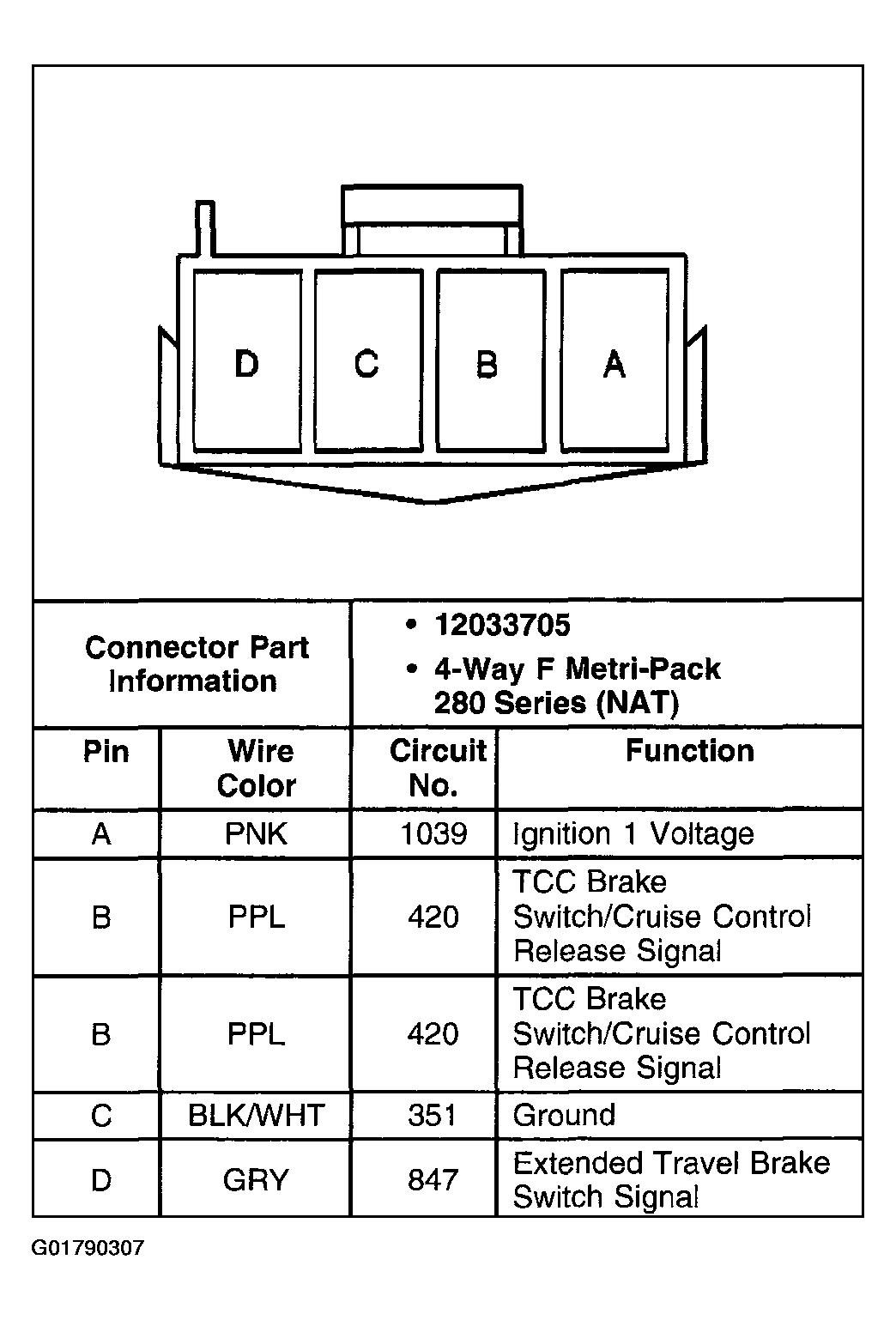

Fig 2: Identifying Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.
