Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Install the radio antenna module to the roof beam, ensuring that the alignment tab is properly located.

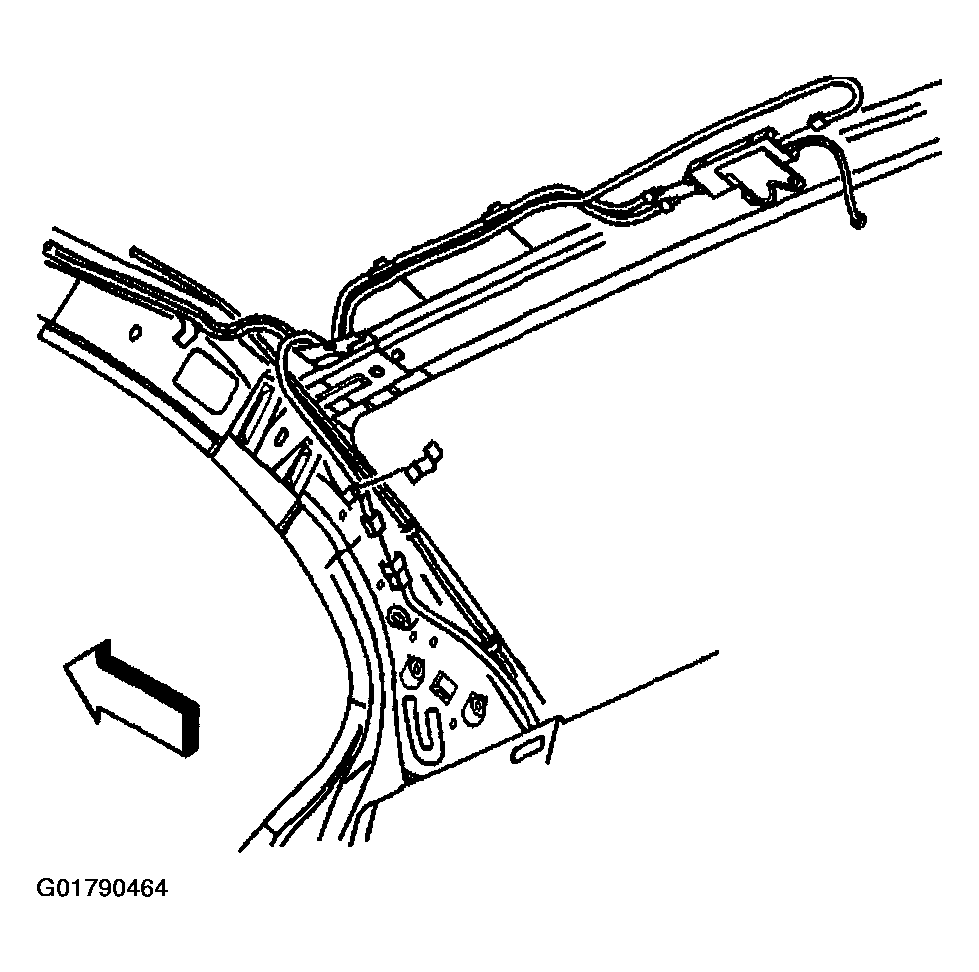

Fig 1: Installing Radio Antenna Module
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install radio antenna module fastener.
Tighten

Tighten the fastener to 9 N.m (80 lb in).
Connect the electrical connectors to the radio antenna module.
Install the headliner. Refer to HEADLINER REPLACEMENT (WITHOUT SUNROOF) or HEADLINER REPLACEMENT (WITH SUNROOF) .
