Installation Procedure

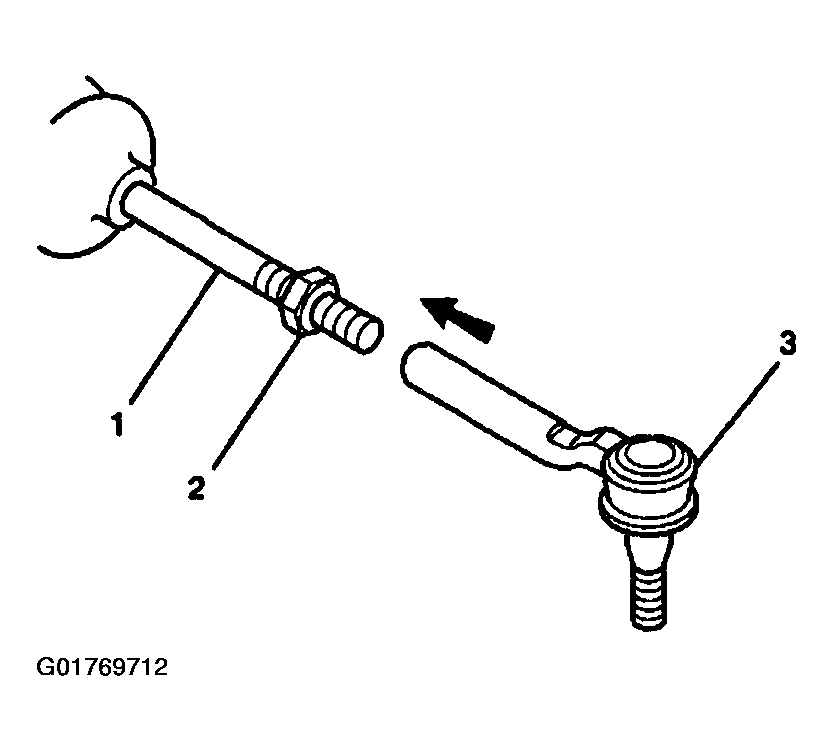

  1. Install the outer tie rod (3) to the inner tie rod (1). Do not tighten the jam nut (2).
    2. Fig 1: Installing Outer Tie Rod To Inner Tie Rod
    G01769712Courtesy of GENERAL MOTORS CORP.

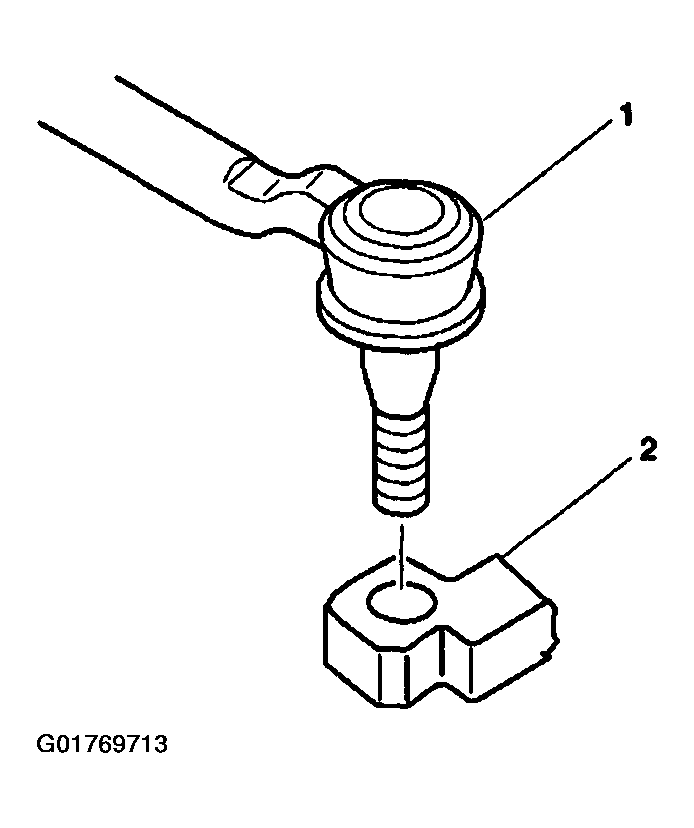

  2. Install the outer tie rod (1) to the steering knuckle (2).
    Fig 2: Installing Outer Tie Rod To Steering Knuckle
    G01769713Courtesy of GENERAL MOTORS CORP.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

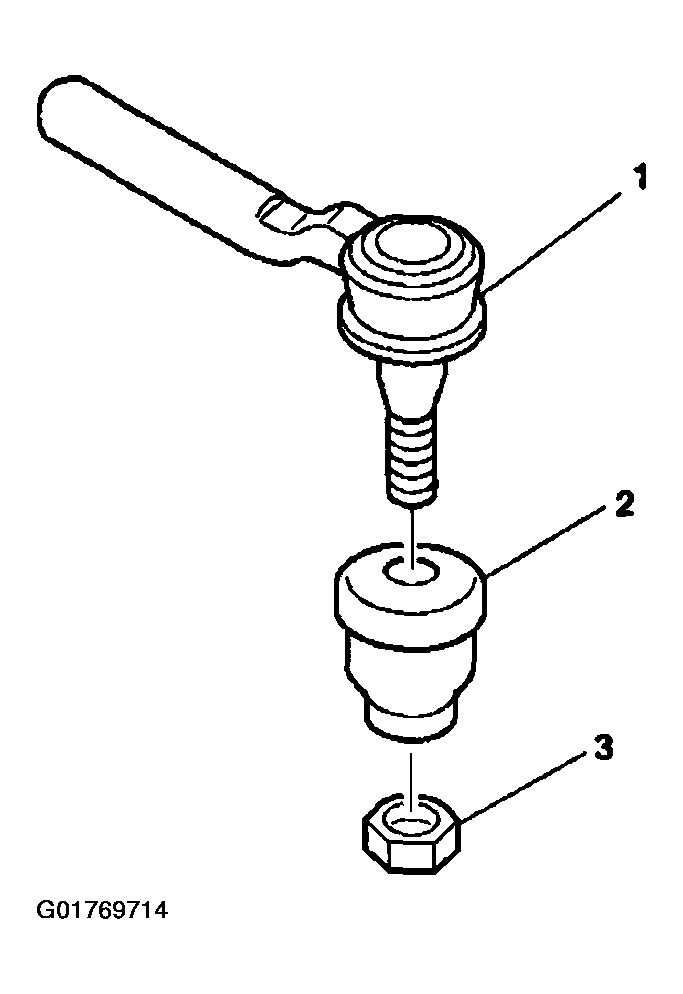

  3. Install the outer tie rod lock nut (3). Tighten the tie rod lock nut to 30 N.m (22 ft lbs) plus an additional 180 degrees.
    4. Fig 3: Installing Outer Tie Rod Lock Nut
    G01769714Courtesy of GENERAL MOTORS CORP.
  4. Install the tire and wheel.
  5. Lower vehicle.
  6. Adjust the toe alignment. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.
