Removal Procedure

  1. Raise and support the vehicle.
  2. Remove the steering gear heatshield. Refer to POWER STEERING GEAR HEAT SHIELD REPLACEMENT .
  3. Install a drain pan under the vehicle.
  4. Remove the power steering hose retainer (2) from the engine frame at gear.

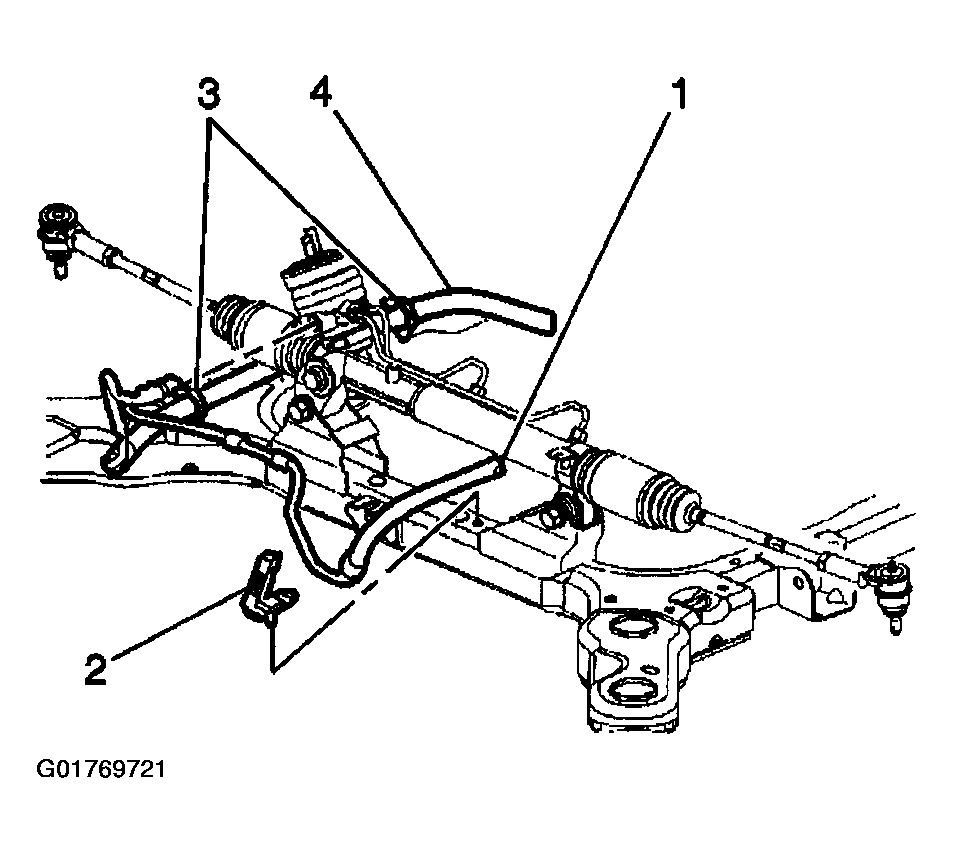

    5. Fig 1: Removing Power Steering Hose Retainer From Engine Frame At Gear
    G01769721Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pressure hose from the power steering gear.
  6. Remove the power steering pressure hose from the power steering pump.

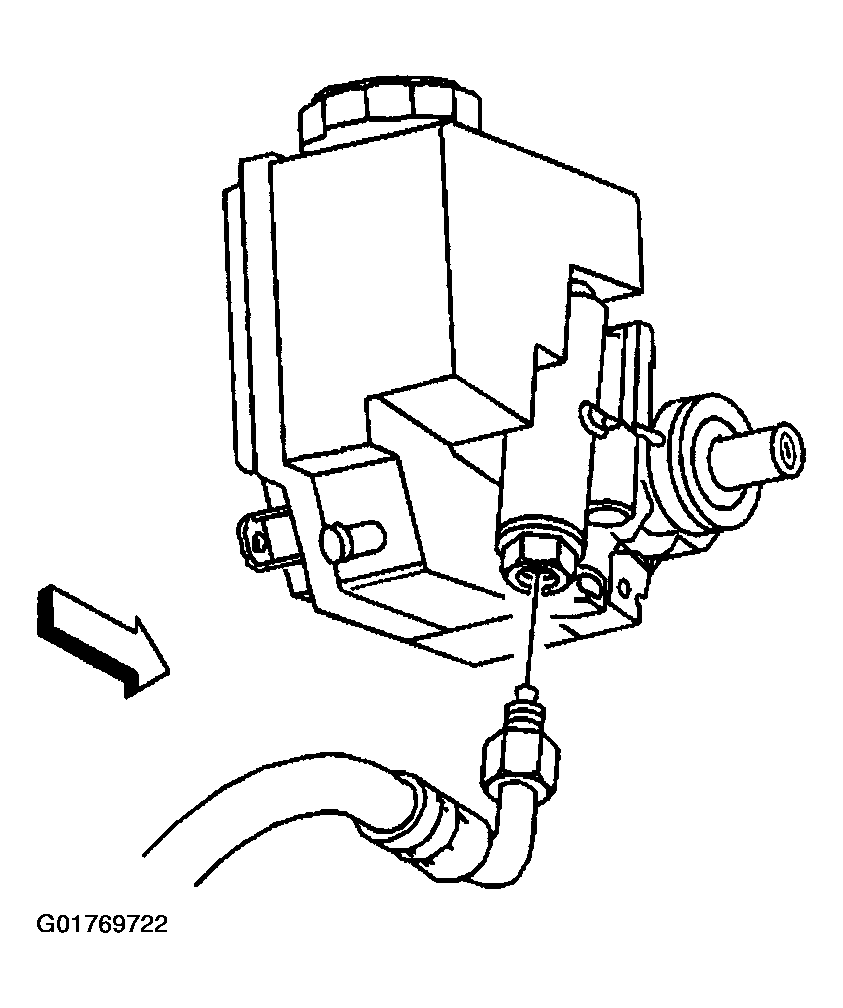

    7. Fig 2: Removing Power Steering Pressure Hose From Power Steering Pump
    G01769722Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering pressure hose from the vehicle.
