Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the RIM to the vehicle.
  2. Connect the electrical connectors (3).

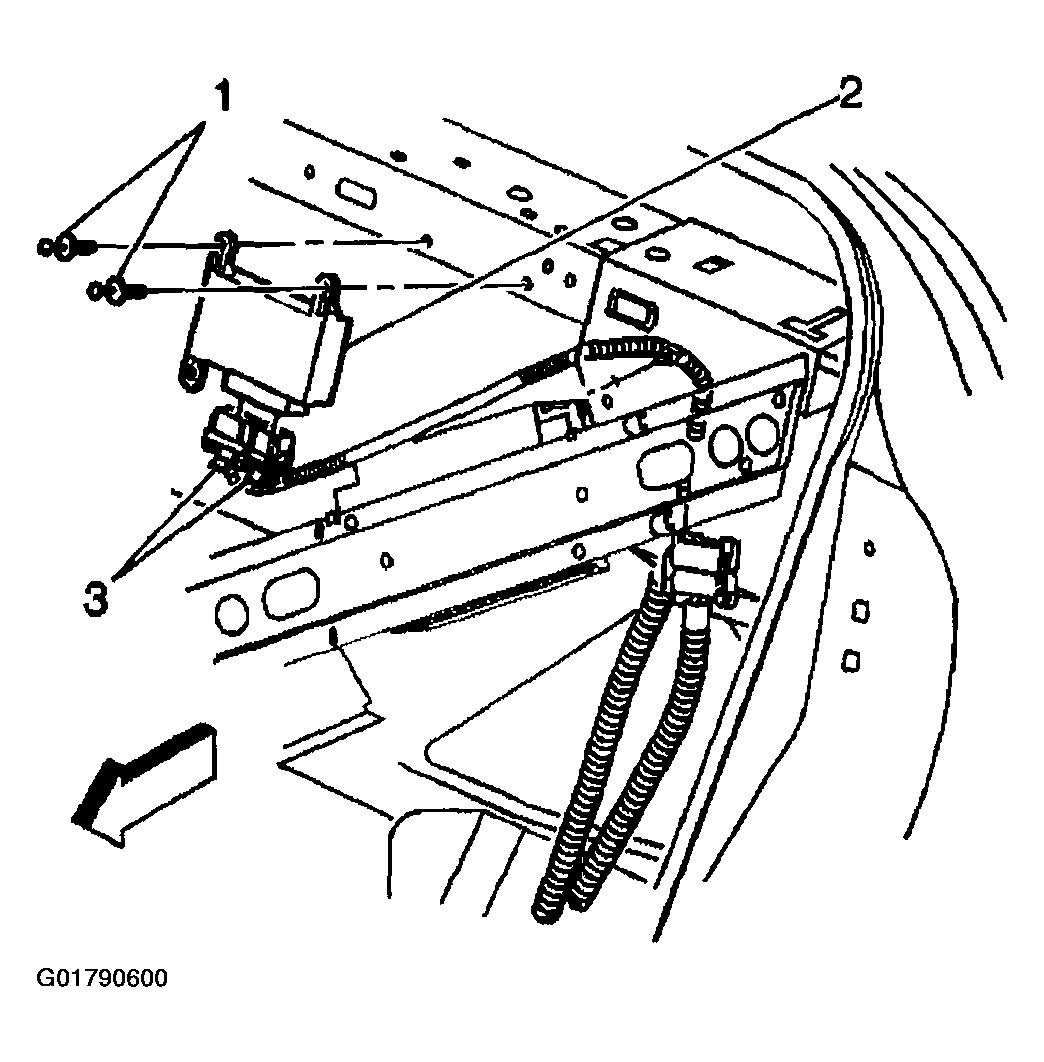

    3. Fig 1: Removing & Installing Rear Integration Module
    G01790600Courtesy of GENERAL MOTORS CORP.
  3. Fasten the RIM (2) to the vehicle with the push pin retainers (1).
  4. Reposition the rear seat back insulator.
  5. Install the rear seat back. Refer to SEAT BACK REPLACEMENT-REAR .
  6. Install the rear seat belt buckle anchor bolts.
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT-REAR
  8. Reprogram the RIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
