Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT-RIGHT .
  2. Remove the fastener (2) from the Instrument Panel Module (IPM).

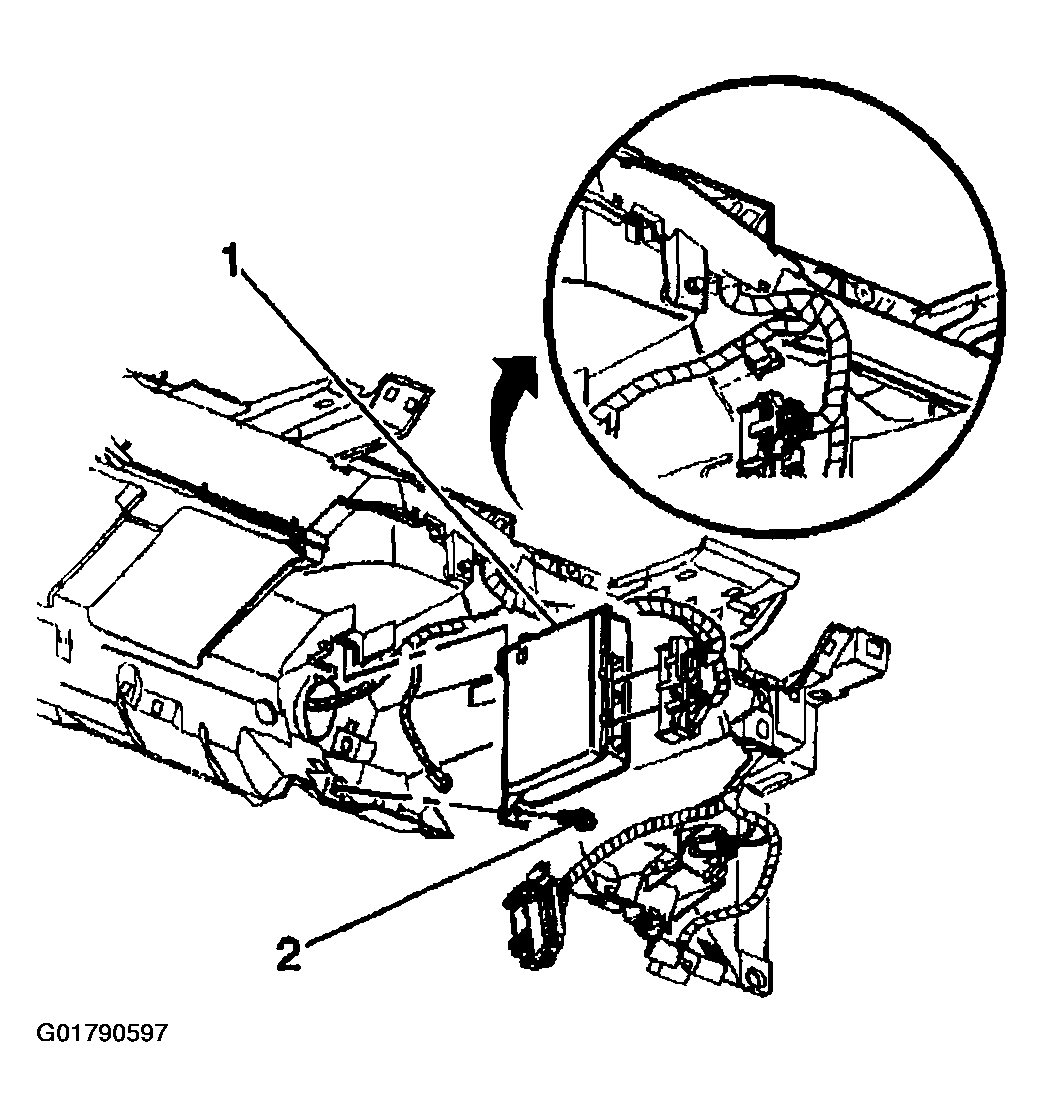

    3. Fig 1: Removing & Installing Instrument Panel Module
    G01790597Courtesy of GENERAL MOTORS CORP.
  3. Rotate the IPM up and out of the IP retainer.
  4. Disconnect the electrical connectors from the IPM (1).
