Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the IPM (1).

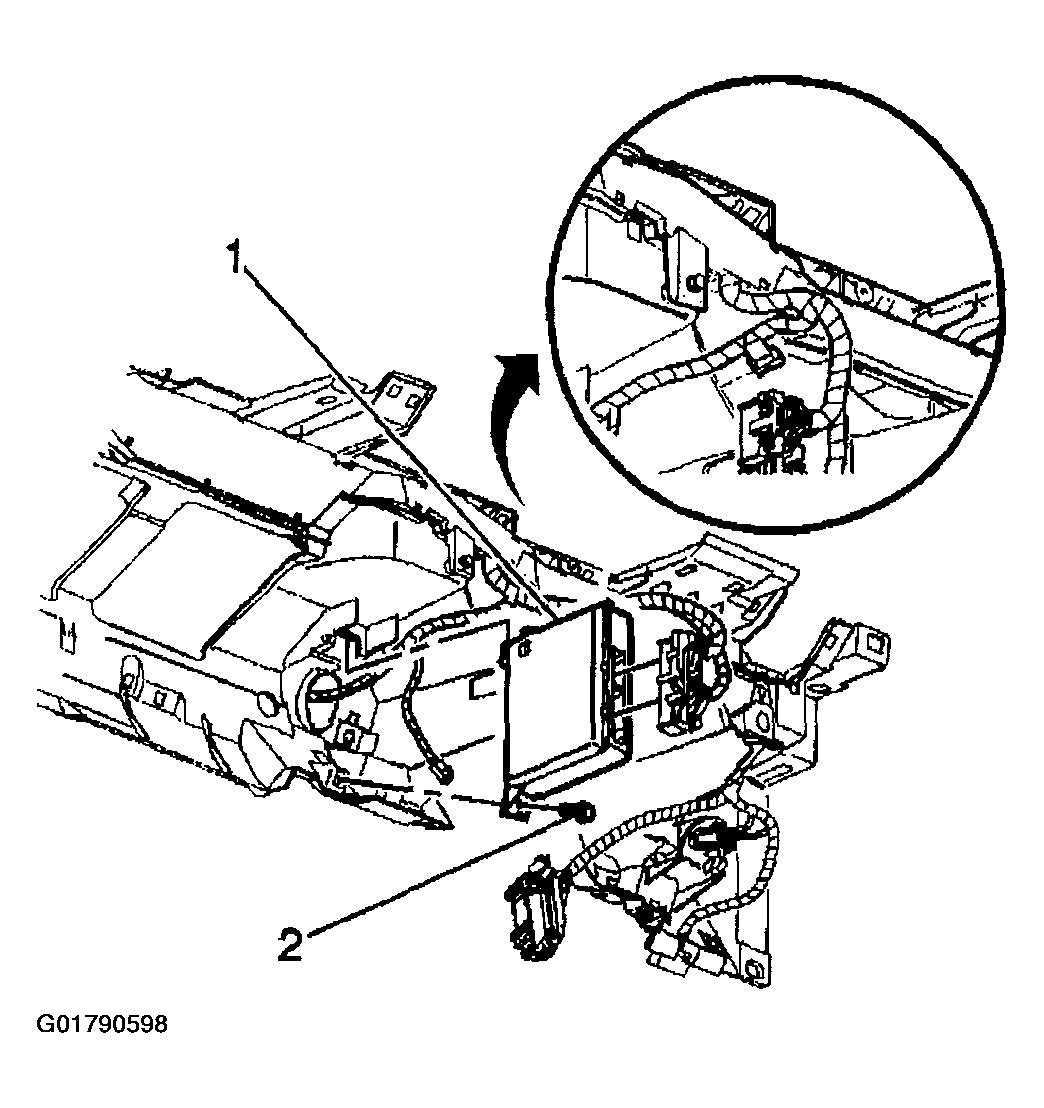

    2. Fig 1: Removing & Installing Instrument Panel Module
    G01790598Courtesy of GENERAL MOTORS CORP.
  2. Install the IPM (1) to the IP retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the fastener.

    Tighten

    Tighten the fastener to 2 N.m (18 lb in).

  4. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT-RIGHT .
  5. Reprogram the IPM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
