Body Control Module Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

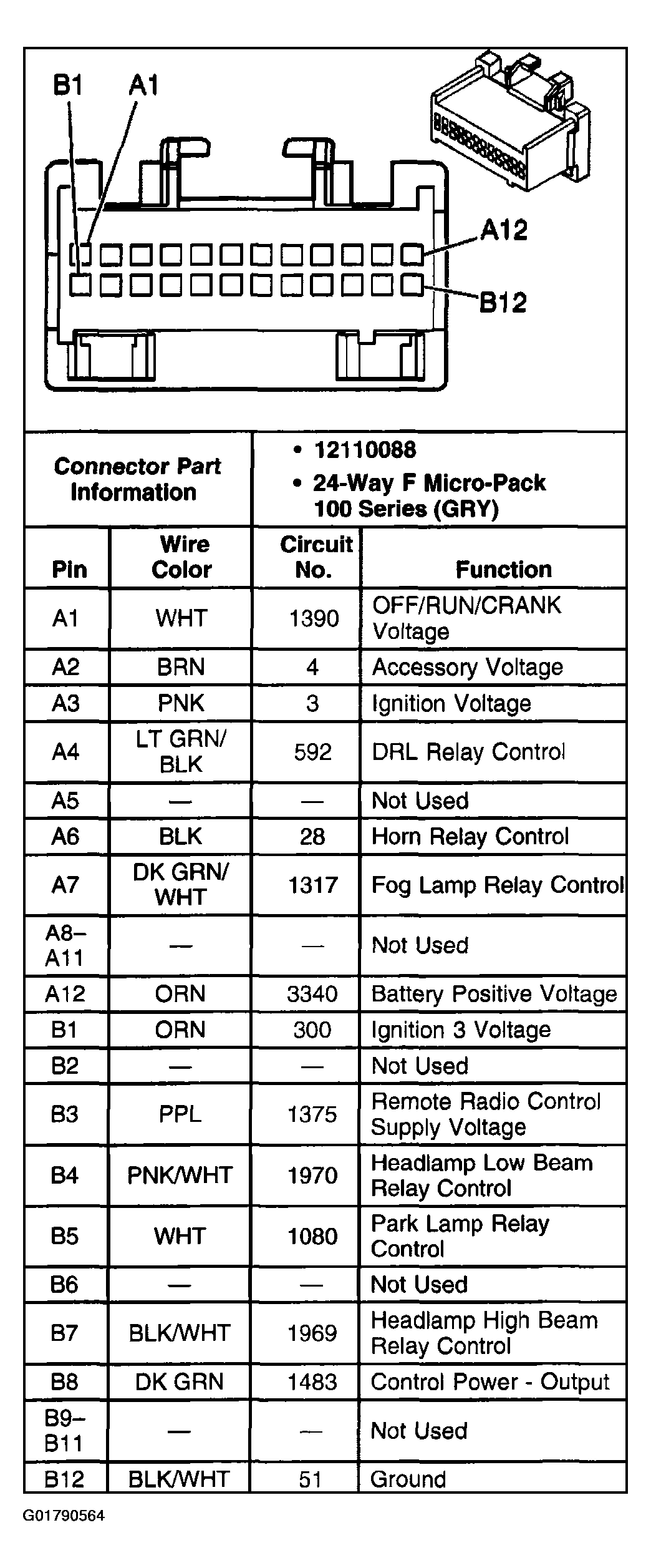

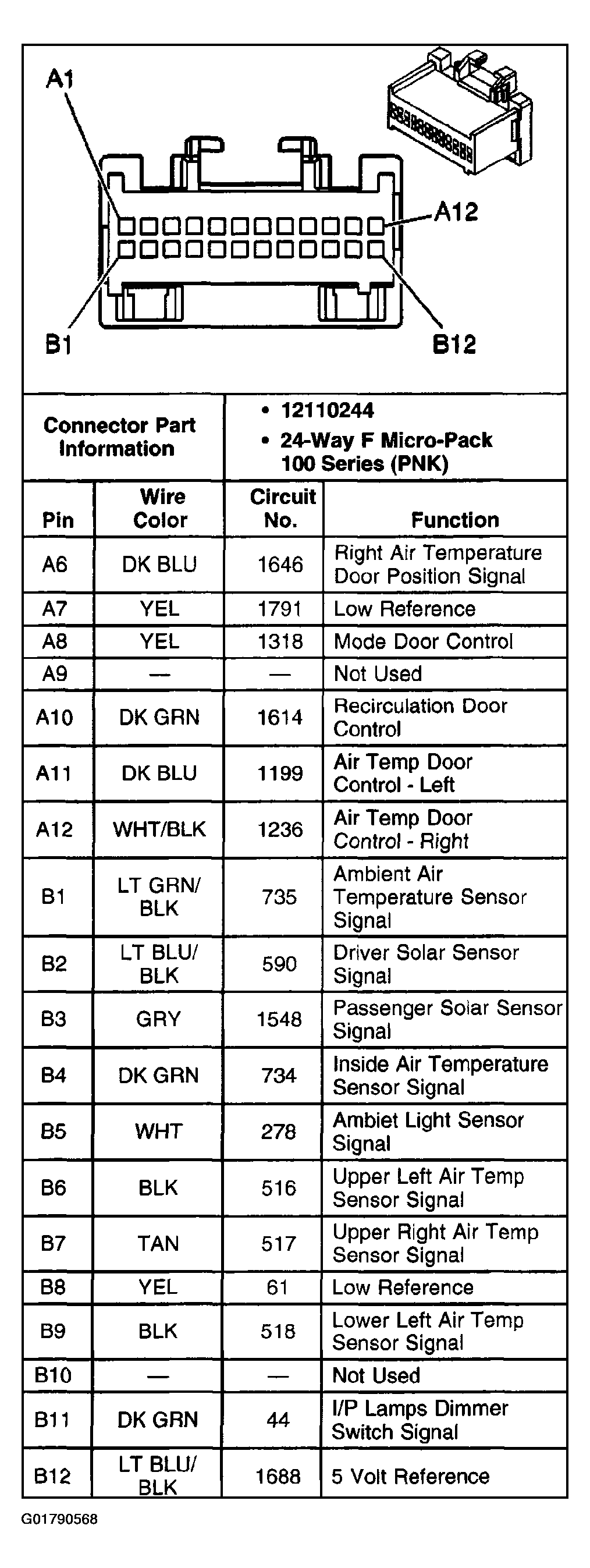

Fig 1: Identifying Dash Integration Module (DIM) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

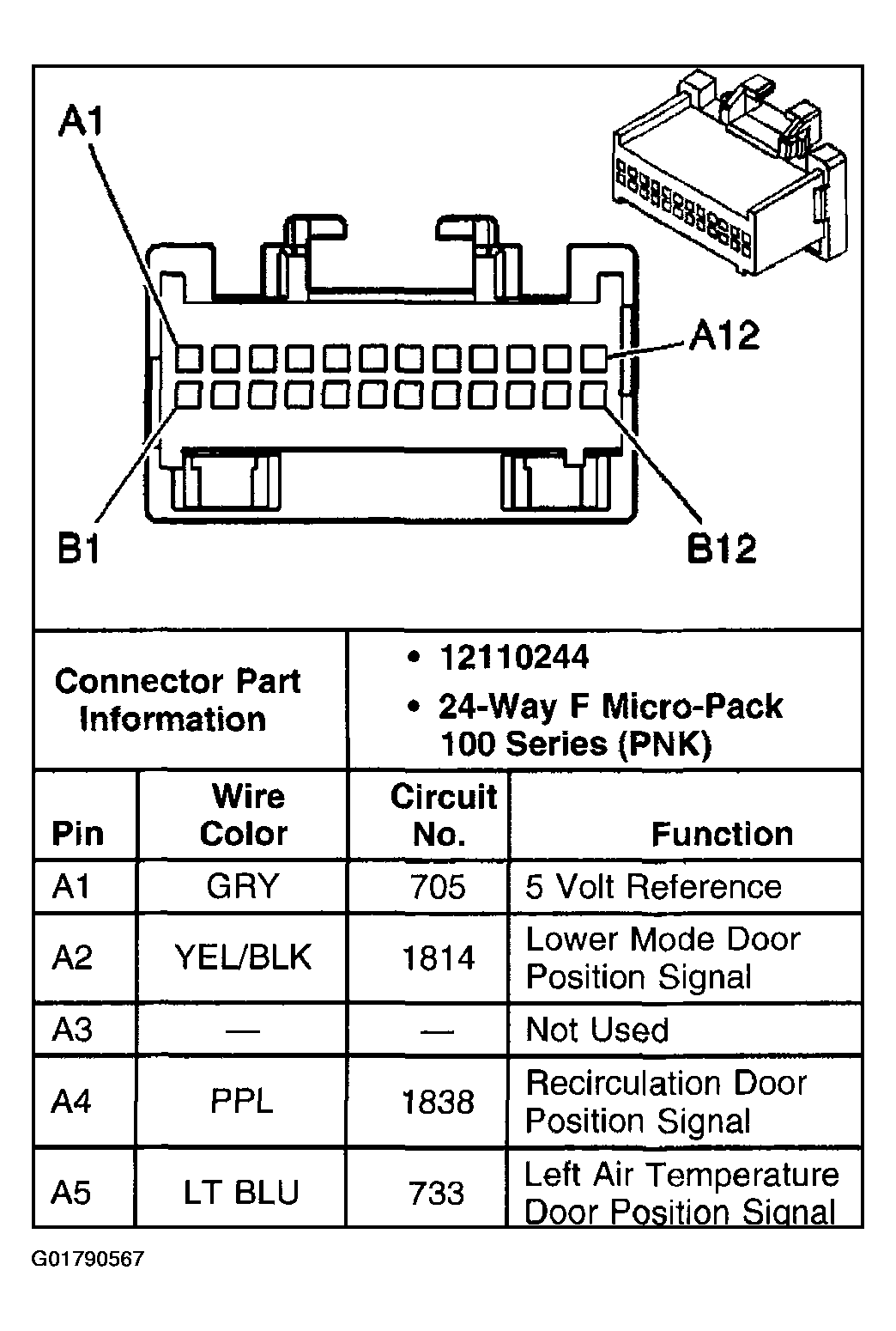

Fig 2: Identifying Dash Integration Module (DIM) C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

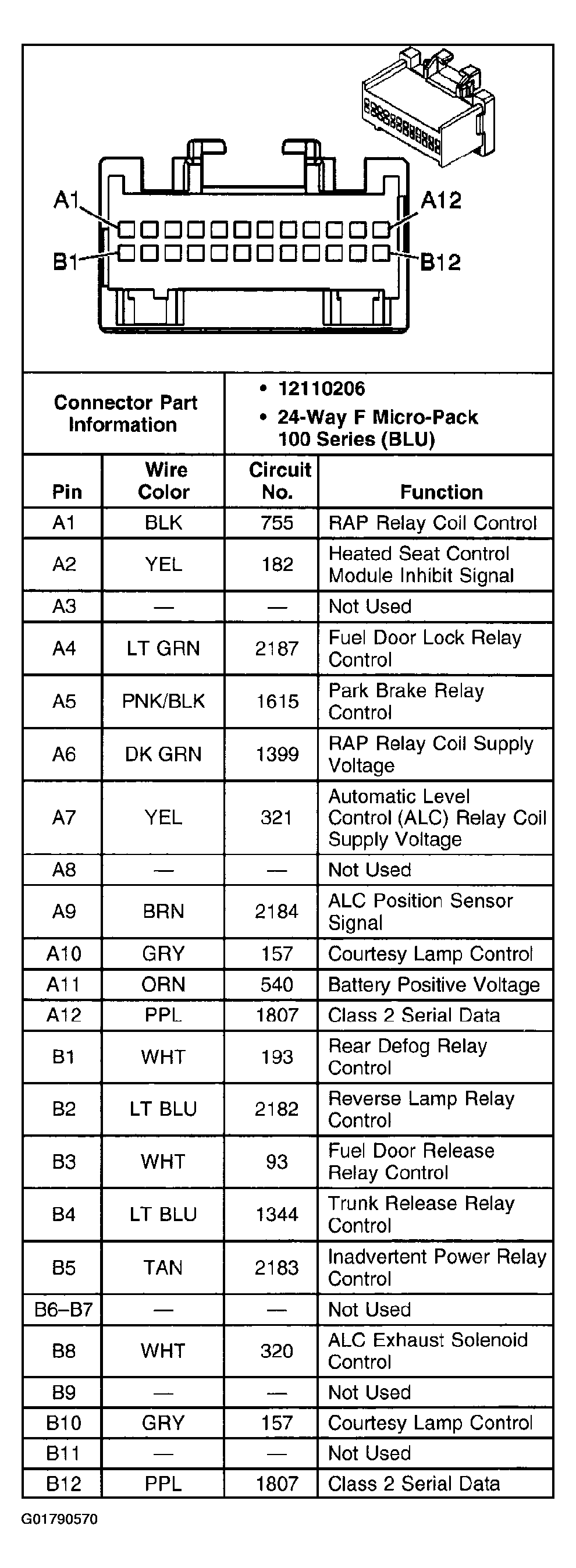

Fig 3: Identifying Dash Integration Module (DIM) C3 Connector End View

Courtesy of GENERAL MOTORS CORP.

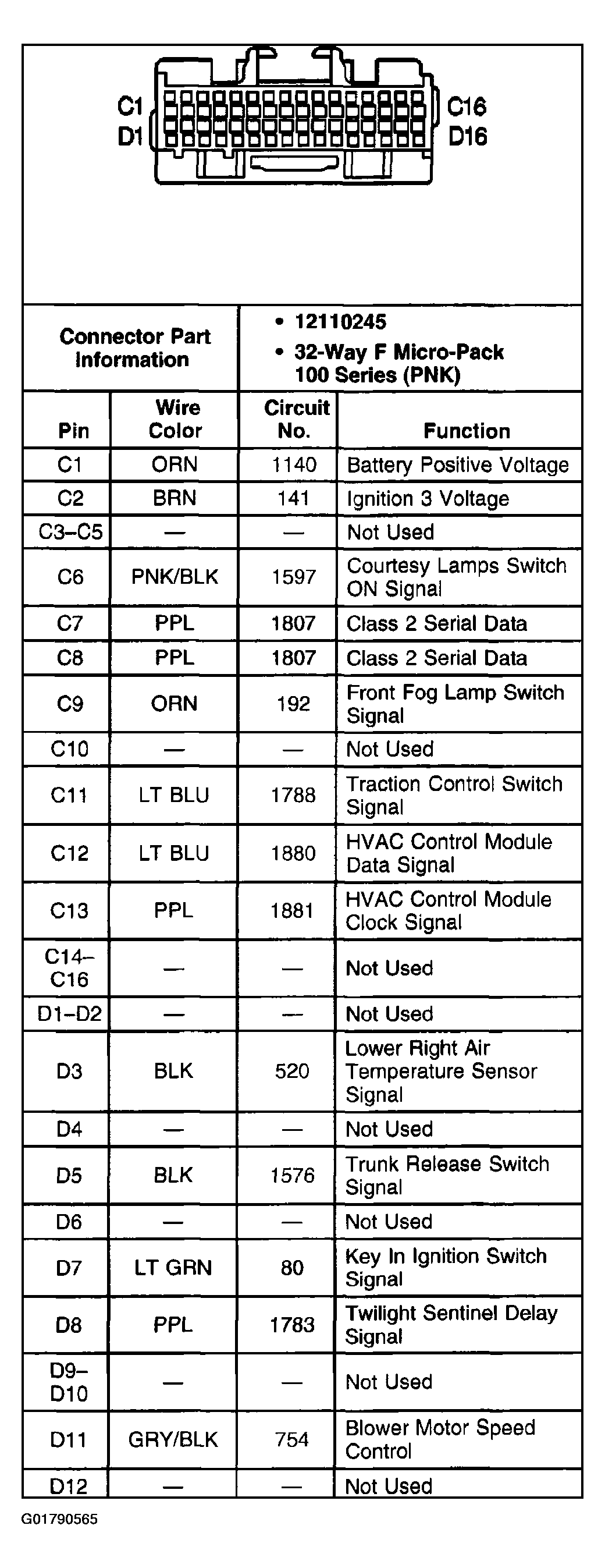

Fig 4: Identifying Instrument Panel Integration Module (IPM) C1 Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

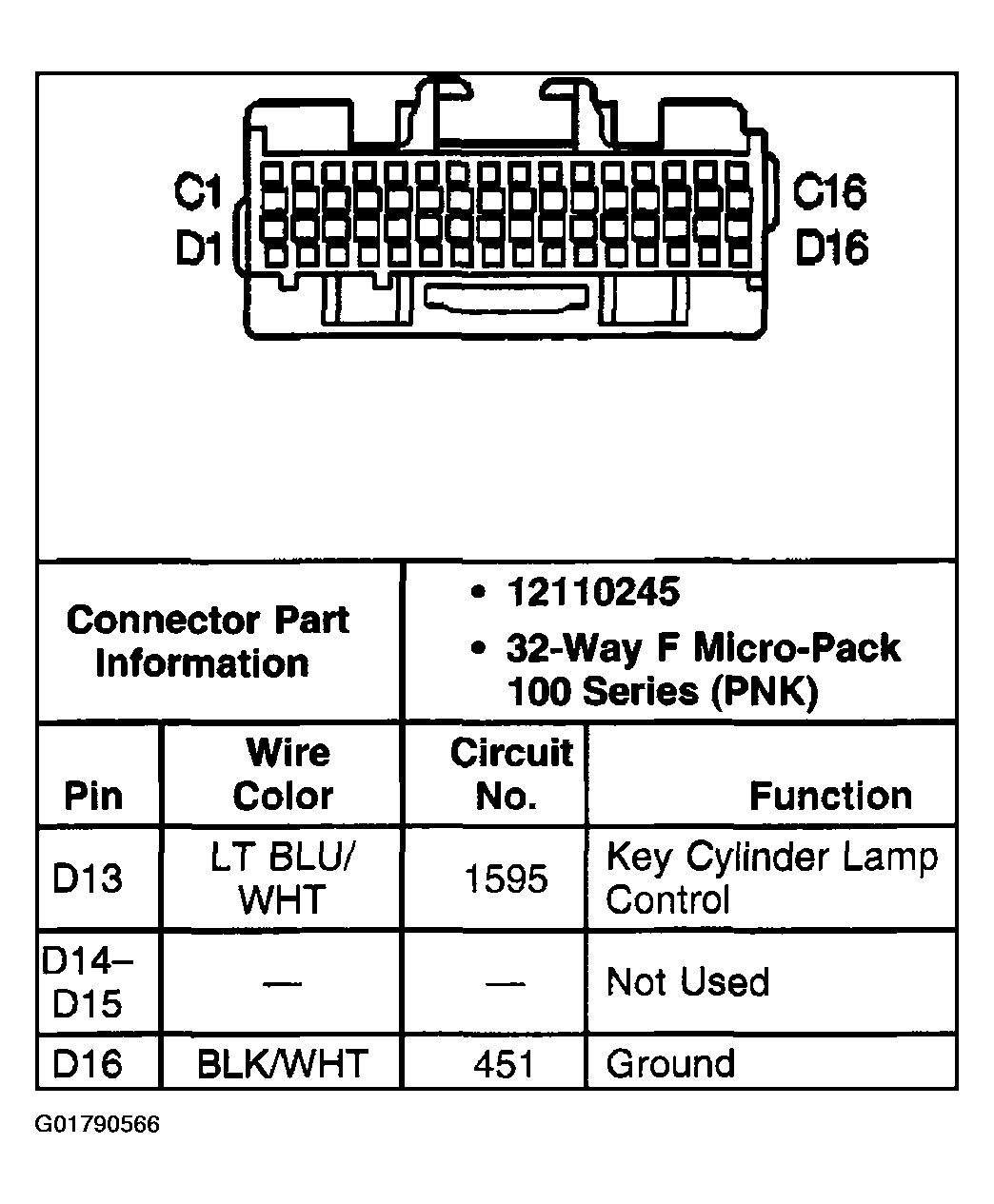

Fig 5: Identifying Instrument Panel Integration Module (IPM) C1 Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

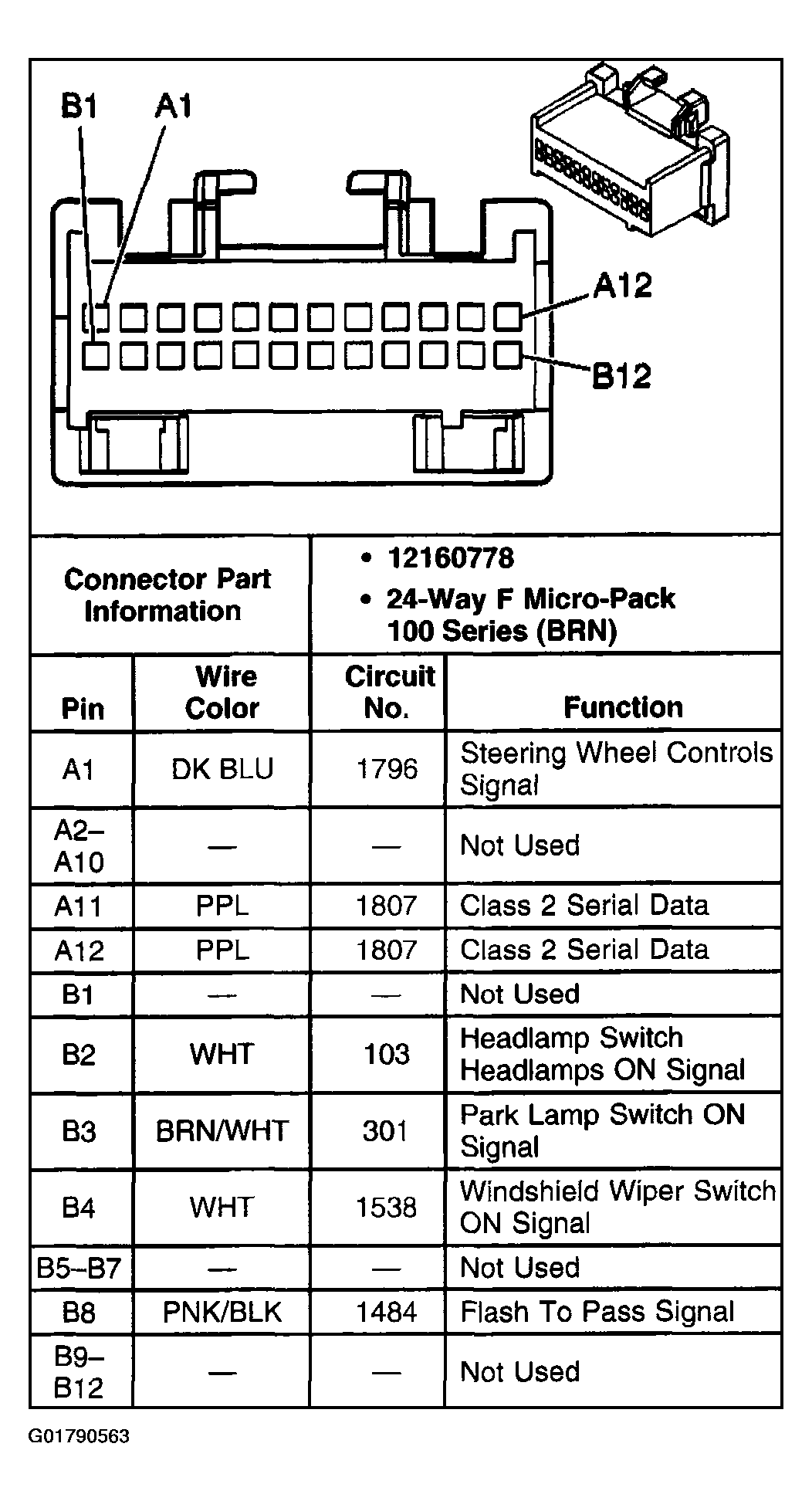

Fig 6: Identifying Instrument Panel Integration Module (IPM) C2 Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Instrument Panel Integration Module (IPM) C2 Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

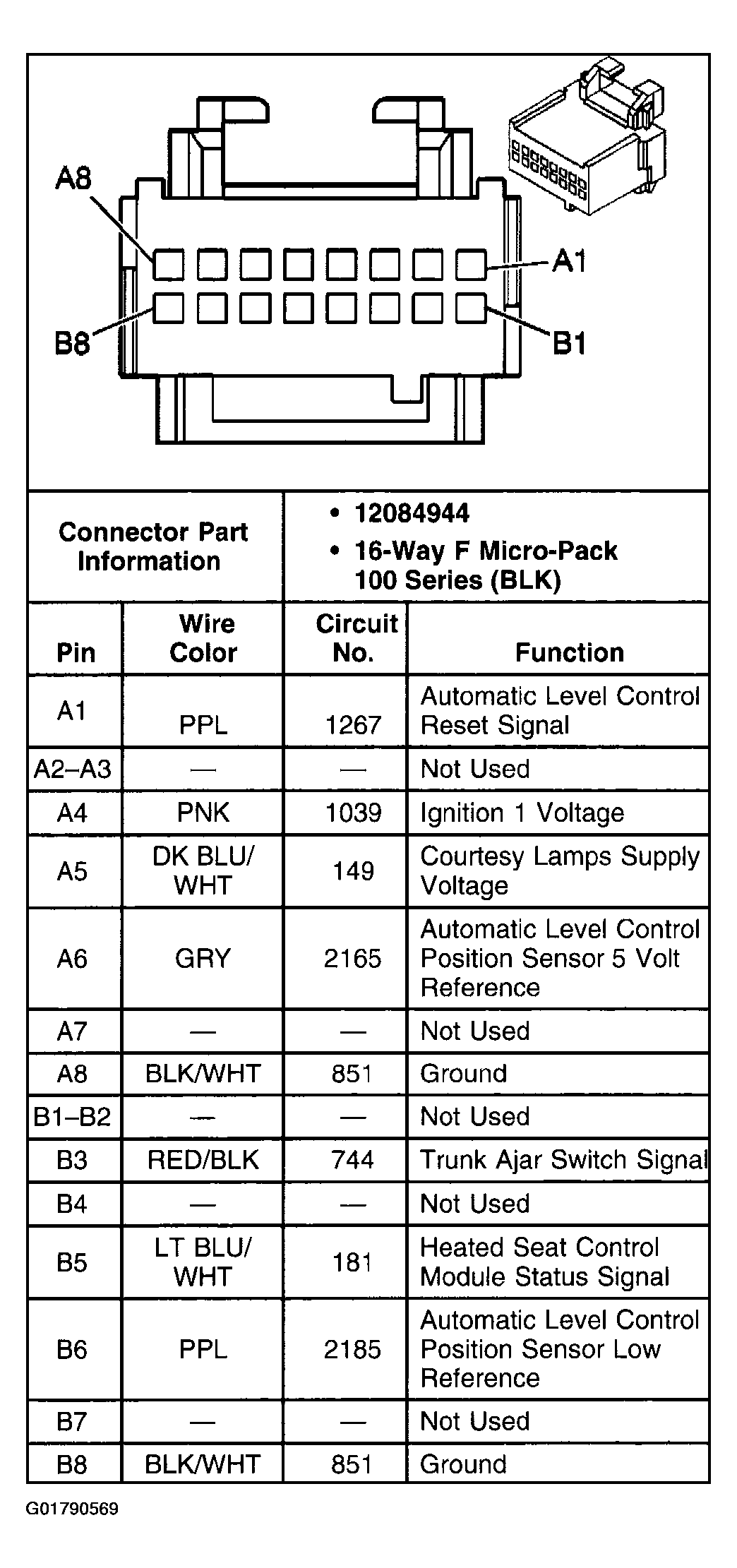

Fig 8: Identifying Rear Integration Module (RIM) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

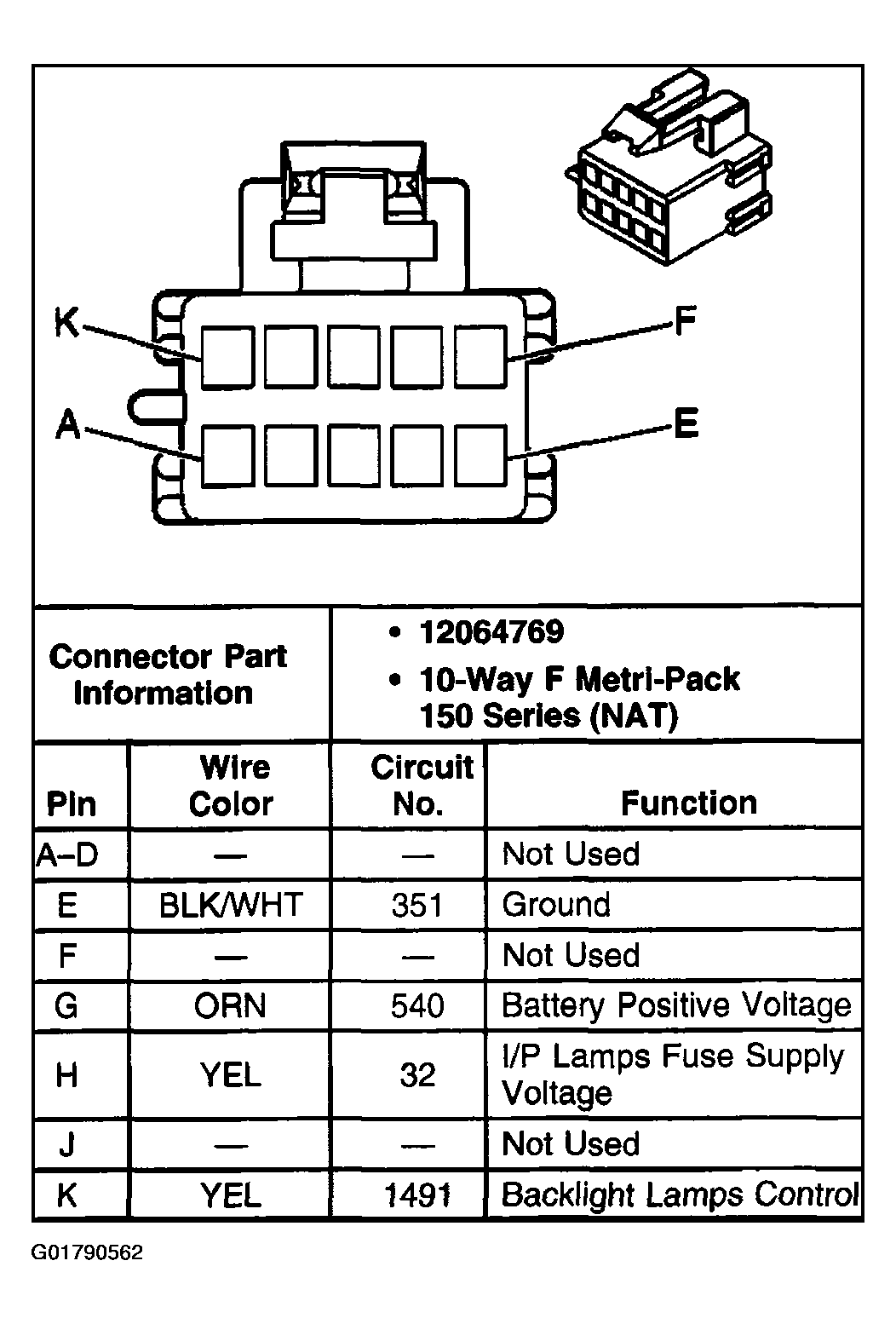

Fig 9: Identifying Rear Integration Module (RIM) C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
