Body Control Module Component Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

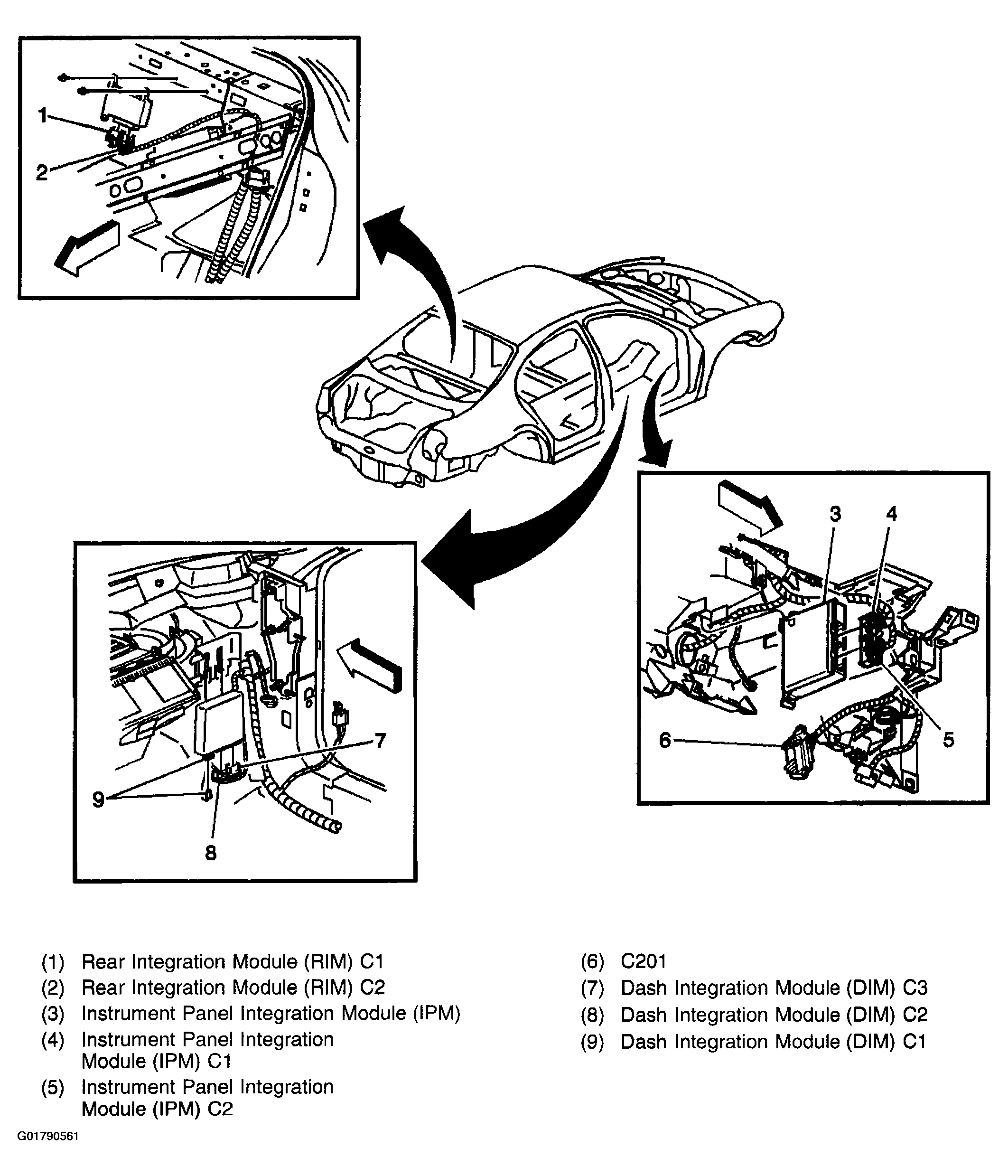

Fig 1: Identifying Body Control Module Component Views
G01790561Courtesy of GENERAL MOTORS CORP.
